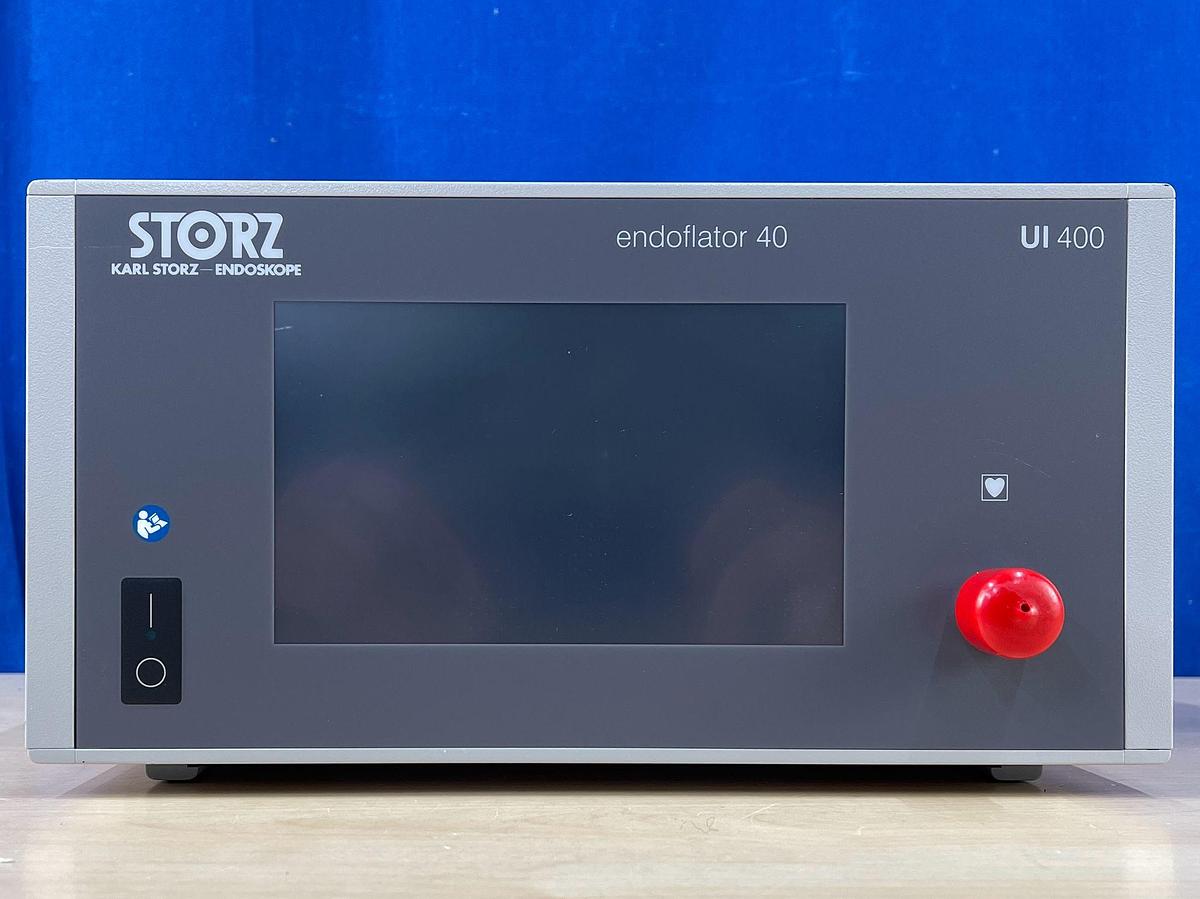

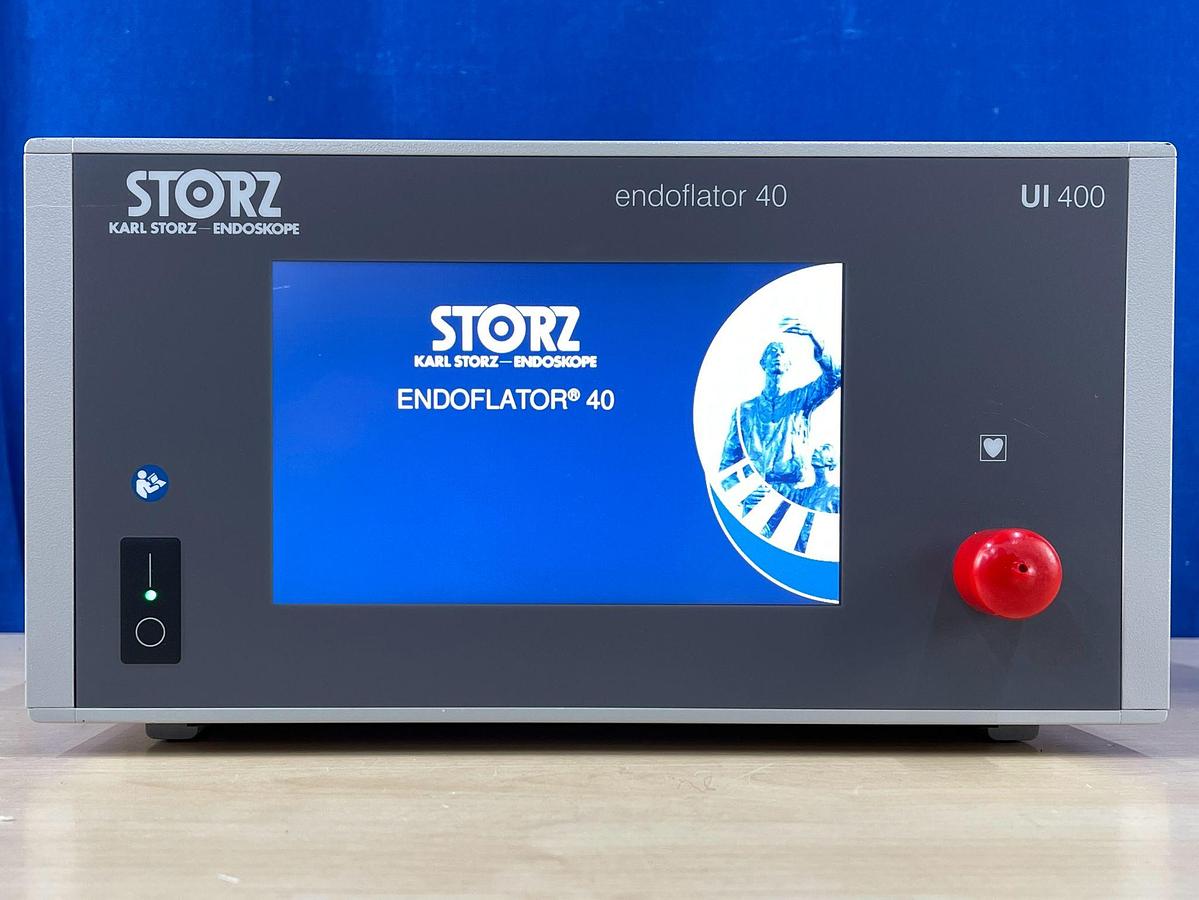

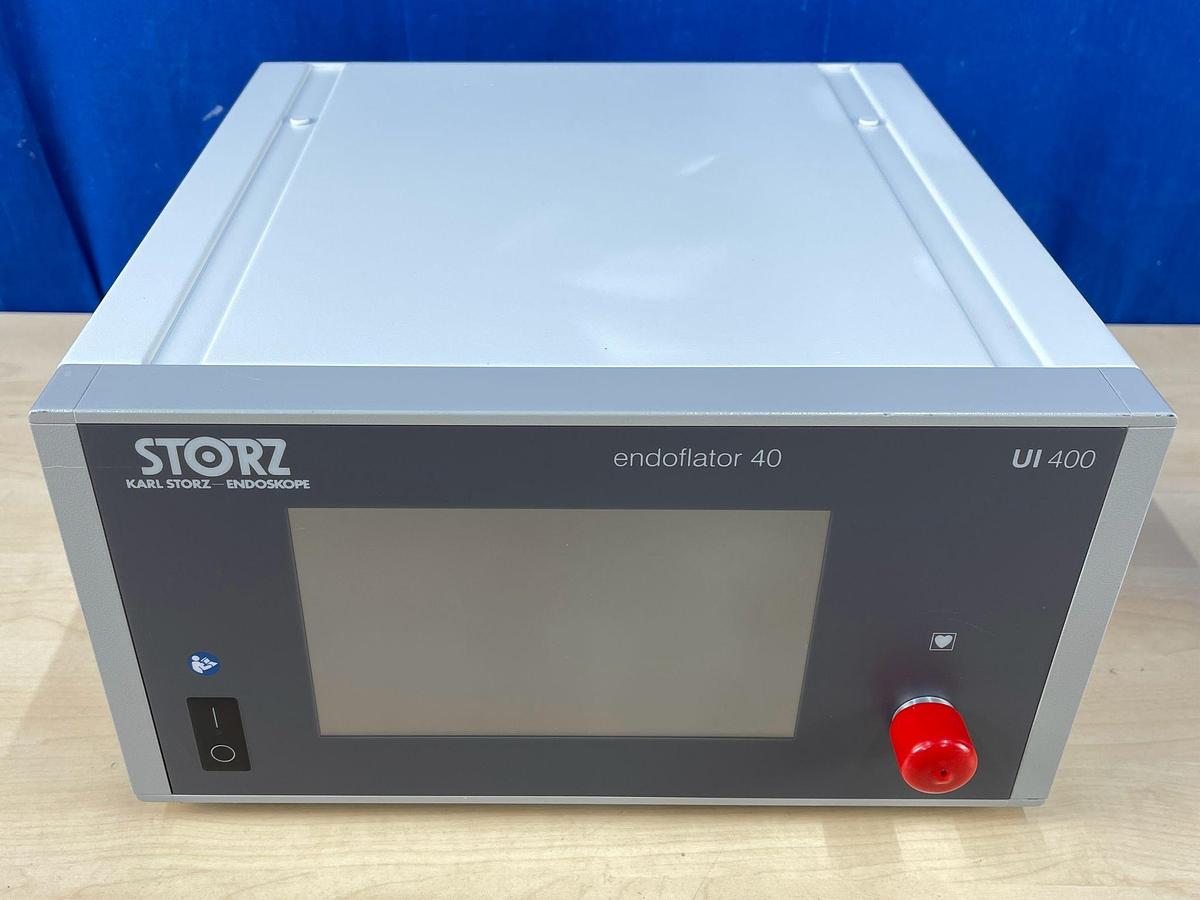

Karl Storz Endoflator 40 UI400

Includes:

- Karl Storz Endoflator 40 UI400

Key Features:

• High-flow insufflation up to 40 l/min

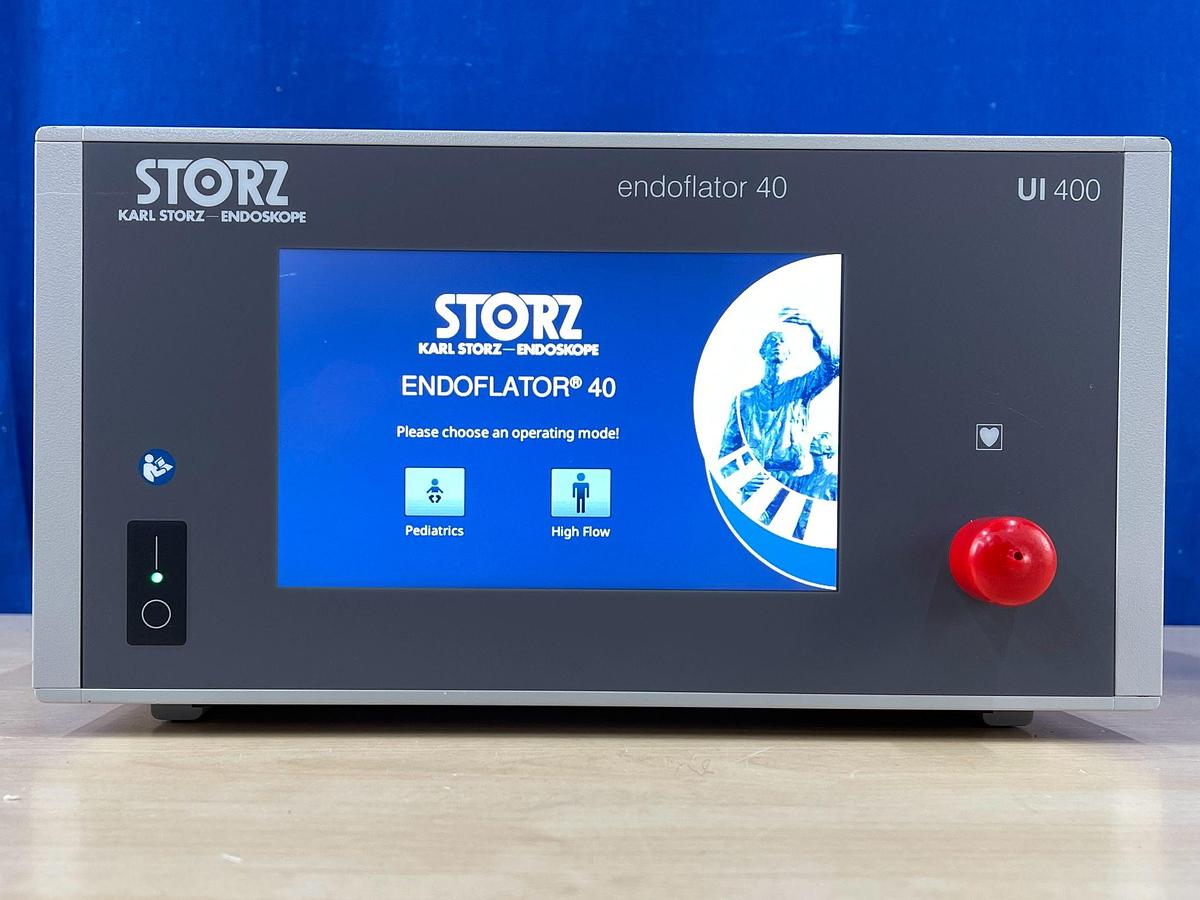

• Dedicated Paediatric Mode with controlled low-flow settings

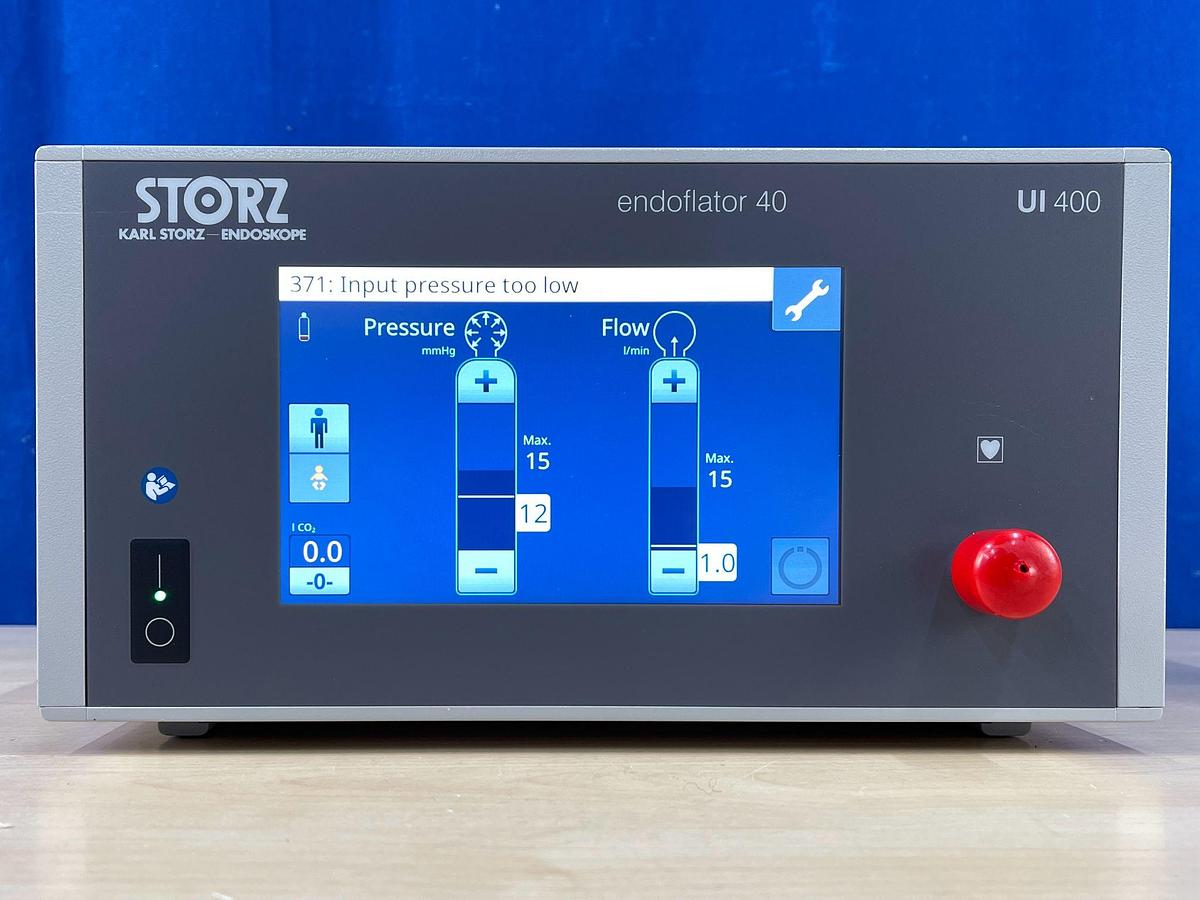

• Touch-screen control for intuitive operation
• SECUVENT® safety system for overpressure relief
• SCB communication for integration with compatible KARL STORZ systems
• Suitable for a range of minimally invasive procedures

Technical Highlights:

• High Flow range: 1–40 l/min
• Paediatric flow range: 0.1–15 l/min
• High Flow pressure range: 1–30 mmHg
• Paediatric pressure range: 1–15 mmHg
• 100–240 VAC, 50/60 Hz power supply

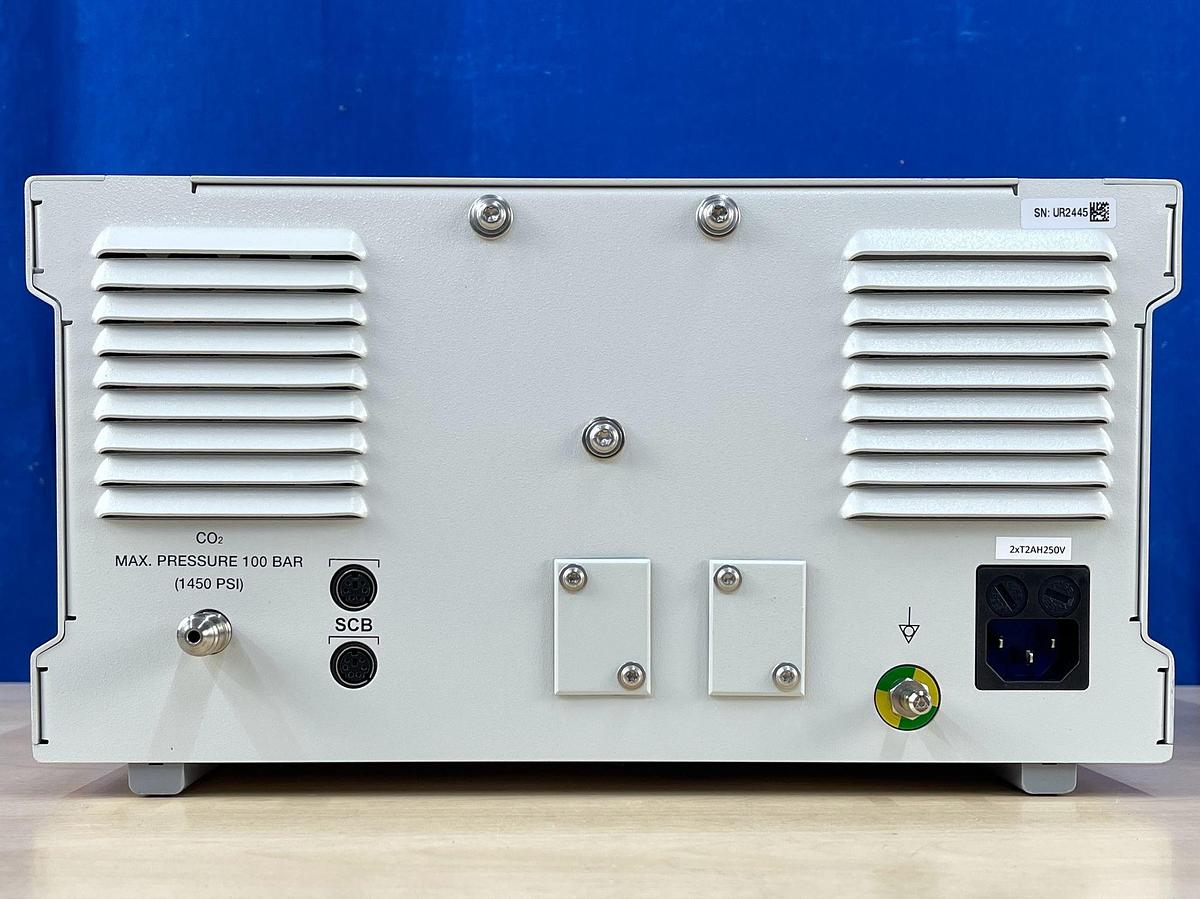

• Maximum gas inlet pressure: 100 bar
• CF safety classification and IP21 protection

Applications:

The ENDOFLATOR® 40 is designed for CO₂ insufflation in:

• Laparoscopic surgery
• Thoracoscopic procedures
• General and visceral surgery
• Gynaecology
• Urology
• Proctology

Key Benefits:

• Fast and efficient insufflation for demanding procedures
• Precise control across different pressure and flow requirements
• Dedicated paediatric settings for sensitive applications
• Enhanced operational safety through SECUVENT®
• Easy monitoring and adjustment via the touch-screen interface
• Supports integration with the KARL STORZ SCB system

Why Choose Karl Storz ENDOFLATOR® 40 UI400?

The Karl Storz Endoflator 40 UI400 is a highly functional insufflator designed for laparoscopic surgeries. It is particularly noted for its versatility, offering high flow rates of up to 40 l/min for standard procedures and 0.1–15 l/min for pediatric applications. This device is equipped with advanced operating modes tailored to both high flow and pediatric settings, providing intracavitary pressure ranges of 1–30 mmHg and 1–15 mmHg, respectively. With a user-friendly touchscreen interface, the Endoflator 40 UI400 ensures easy control and adjustment of surgical settings, enhancing efficiency in the operating room. It seamlessly integrates with the IMAGE1 S™ camera platform, allowing coherent communication and control from the sterile area, which is vital for maintaining sterility and control during procedures. The system's power requirements range from 100 to 240 VAC and it operates at an average power input of 160 Watts at 240 VAC. Its design is compact and manageable, with dimensions of 305 mm in width, 164 mm in height, and 315 mm in depth, and a weight of 7.4 kg. Additionally, it is equipped with the SECUVENT® safety system to manage intracavitary overpressure, providing an added layer of safety for patients. This used device remains an effective option for surgical teams needing reliable endoscopic equipment.
