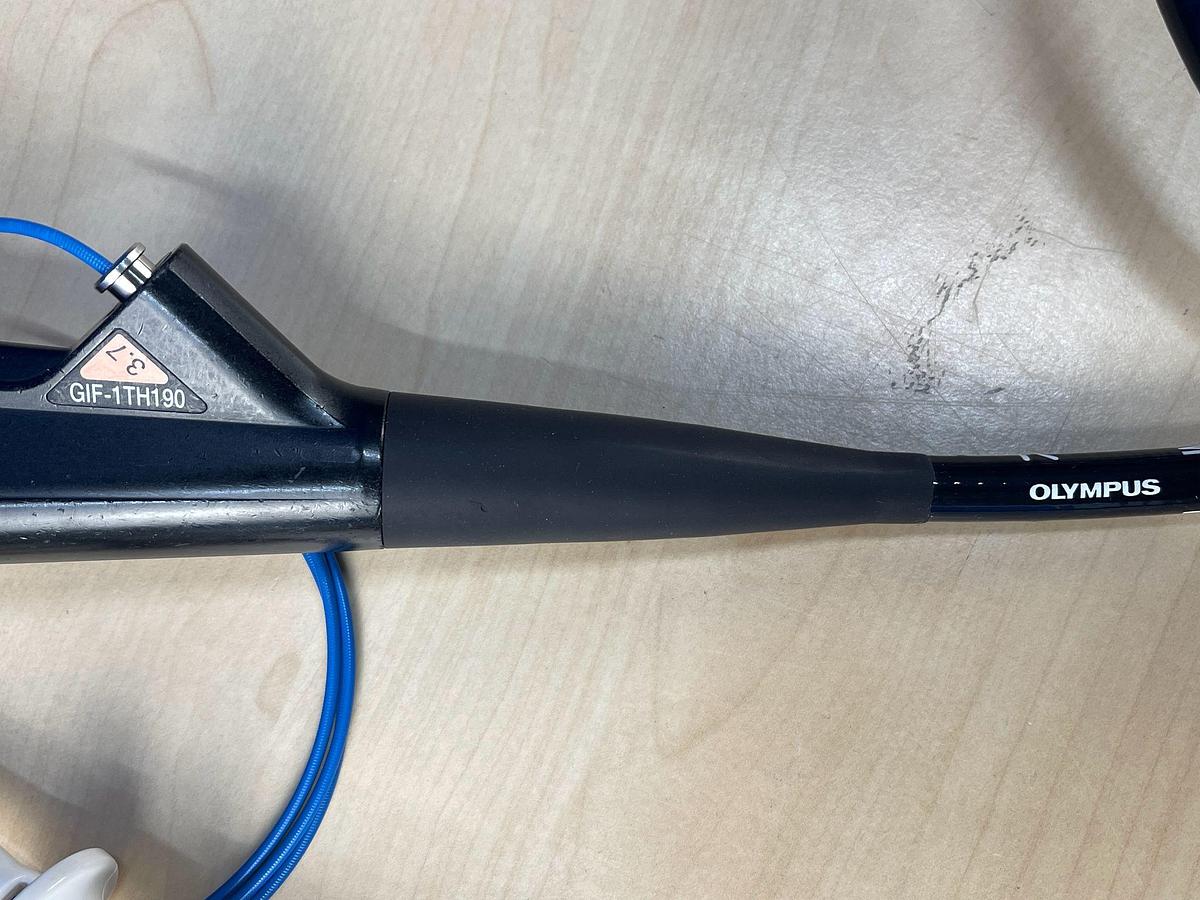

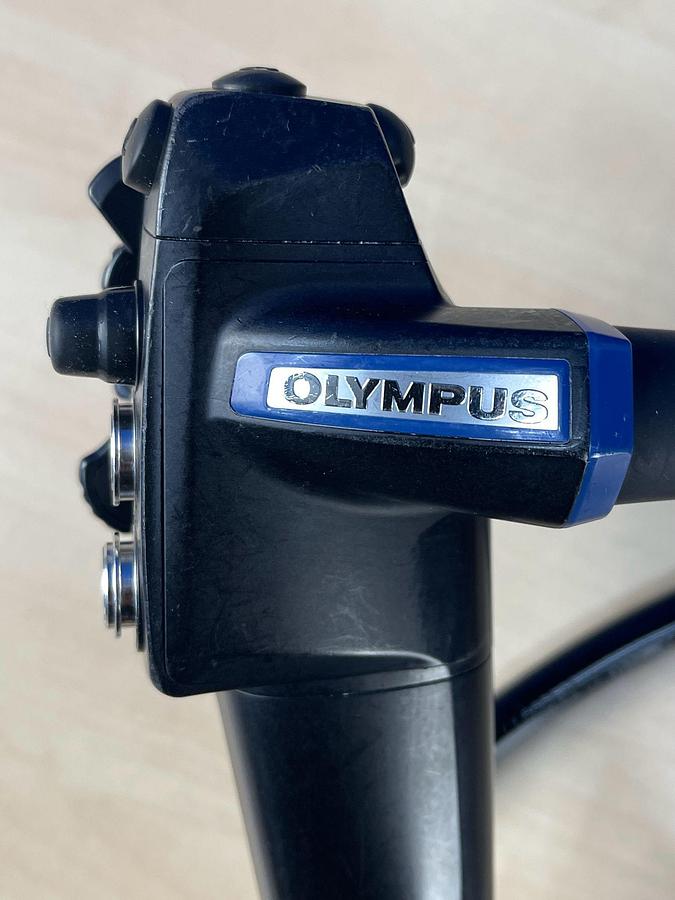

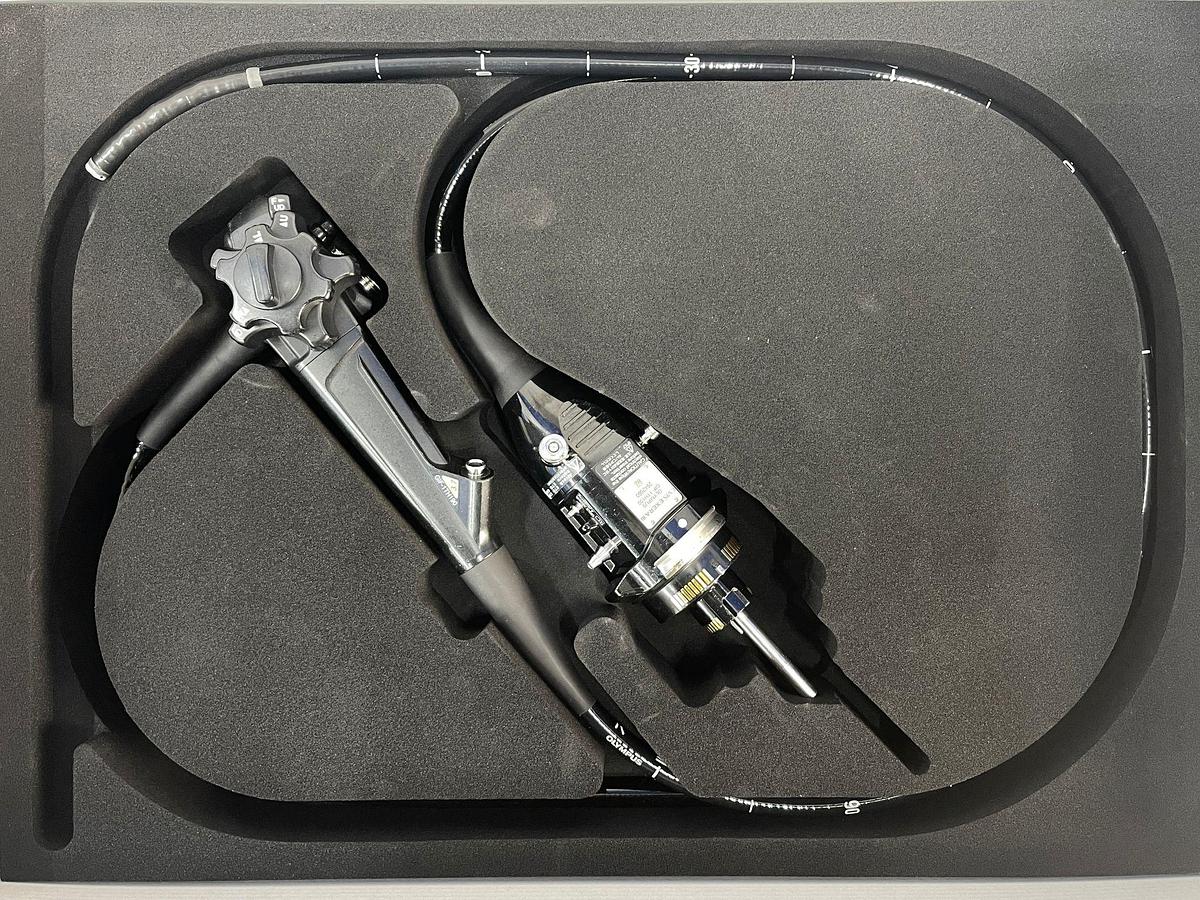

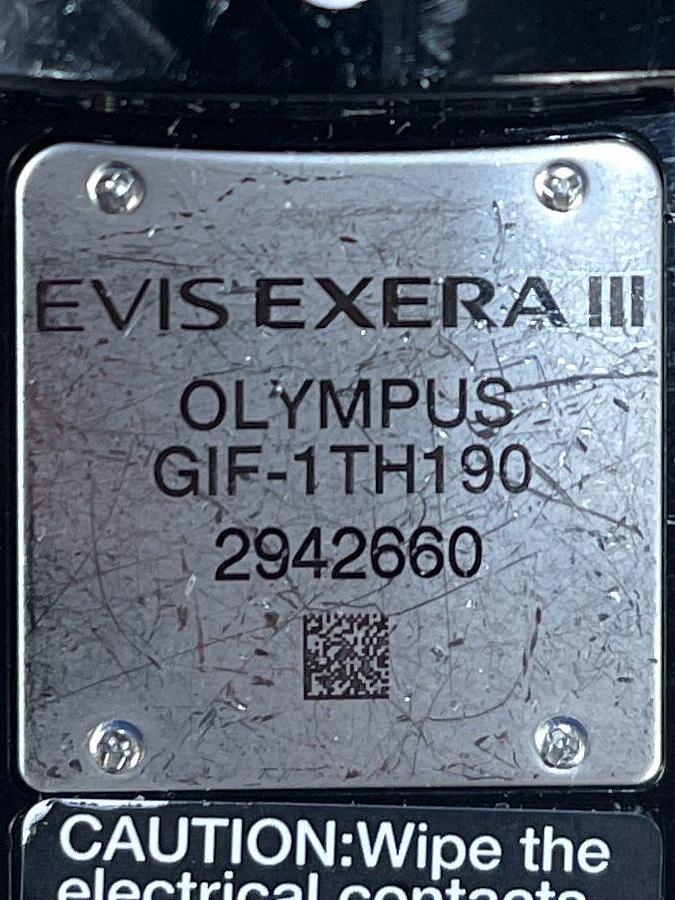

Olympus Scope GIF-1TH190

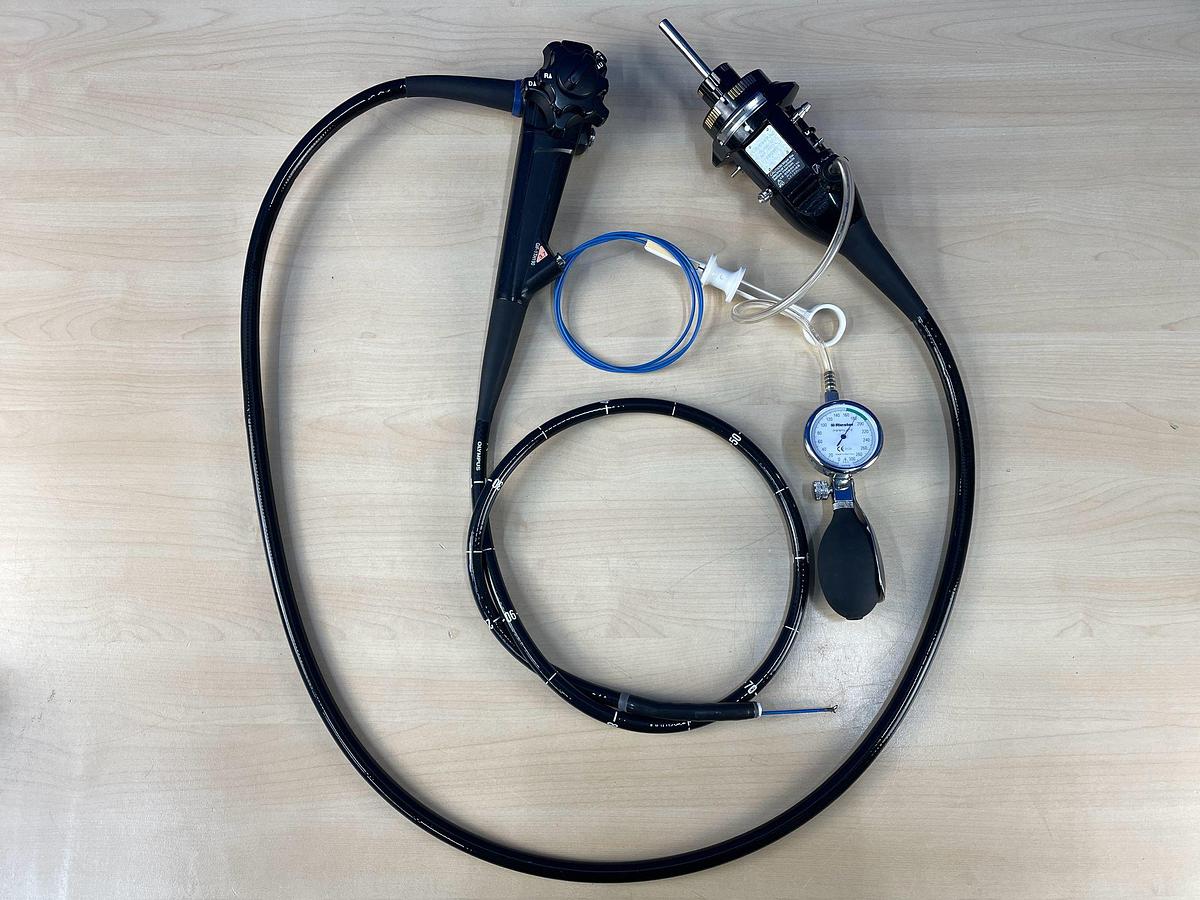

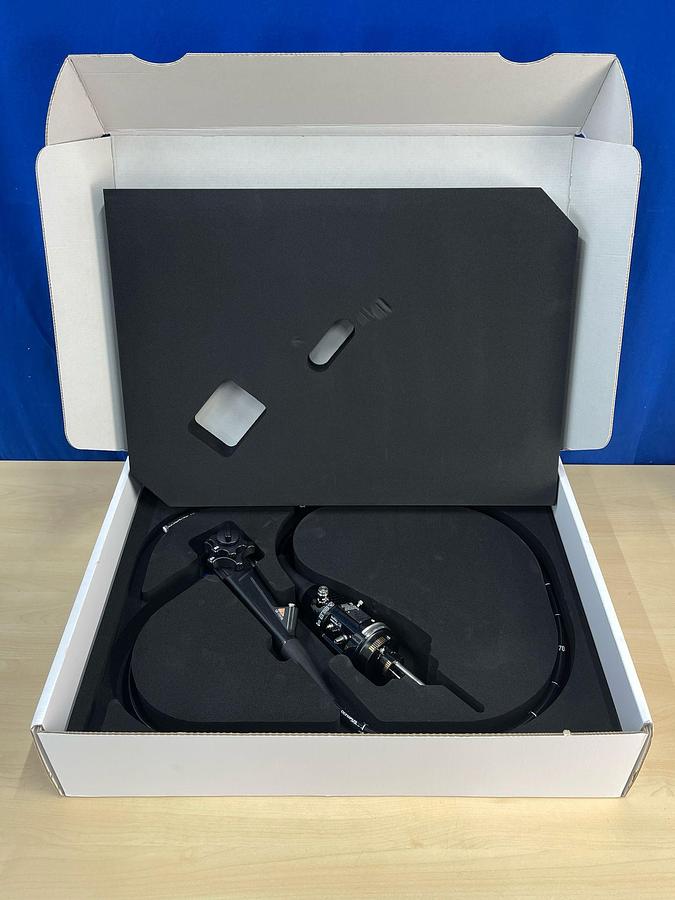

Includes: -Olympus Scope GIF-1TH190

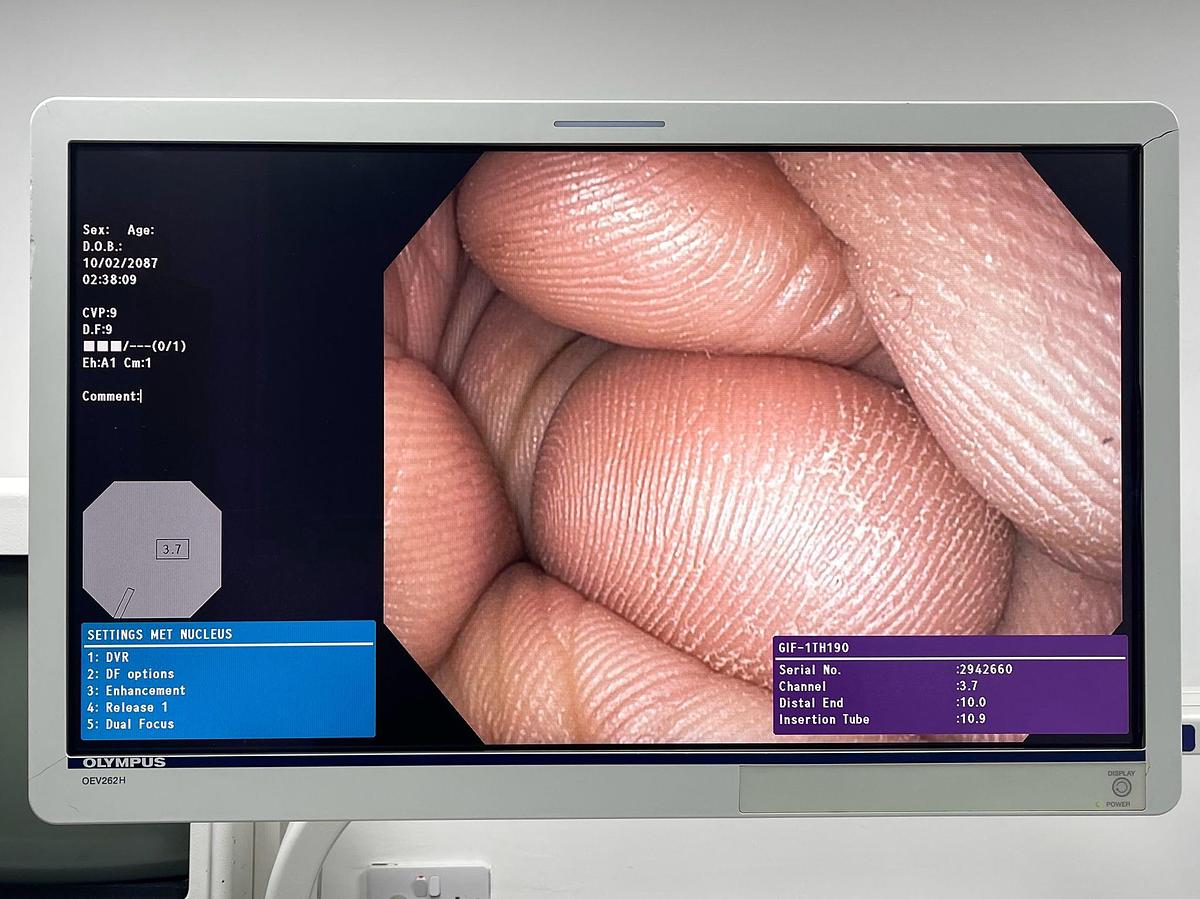

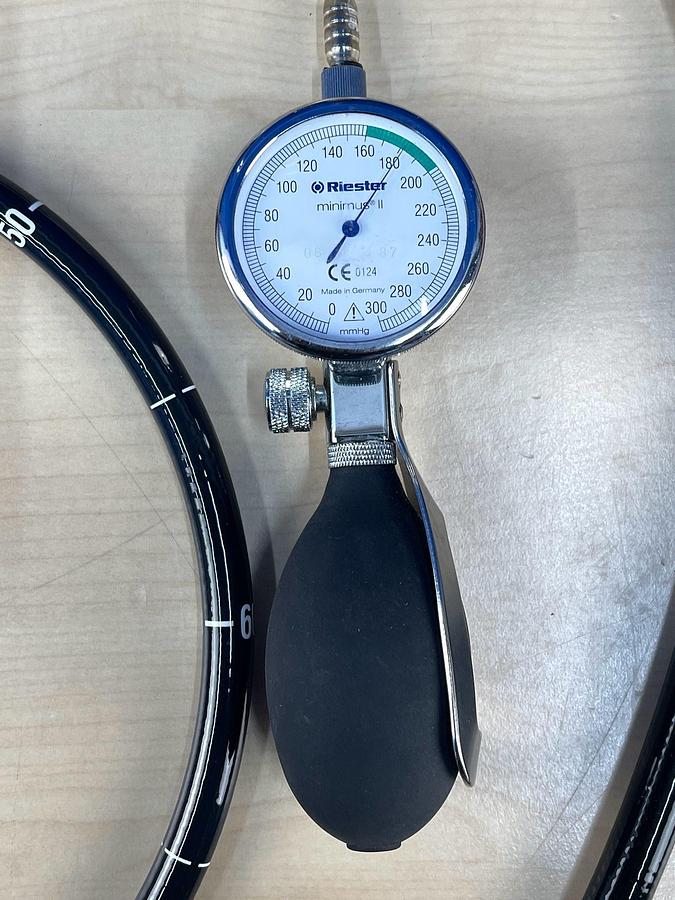

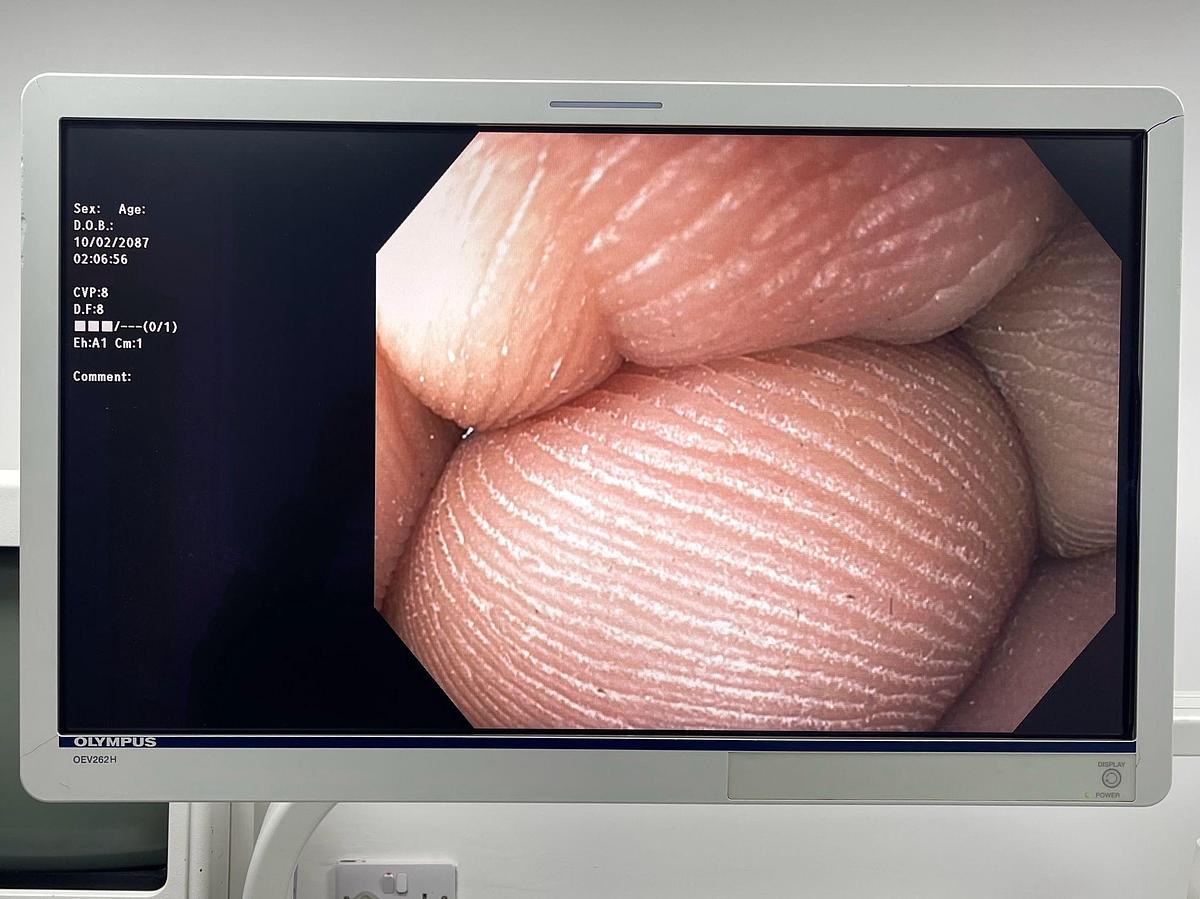

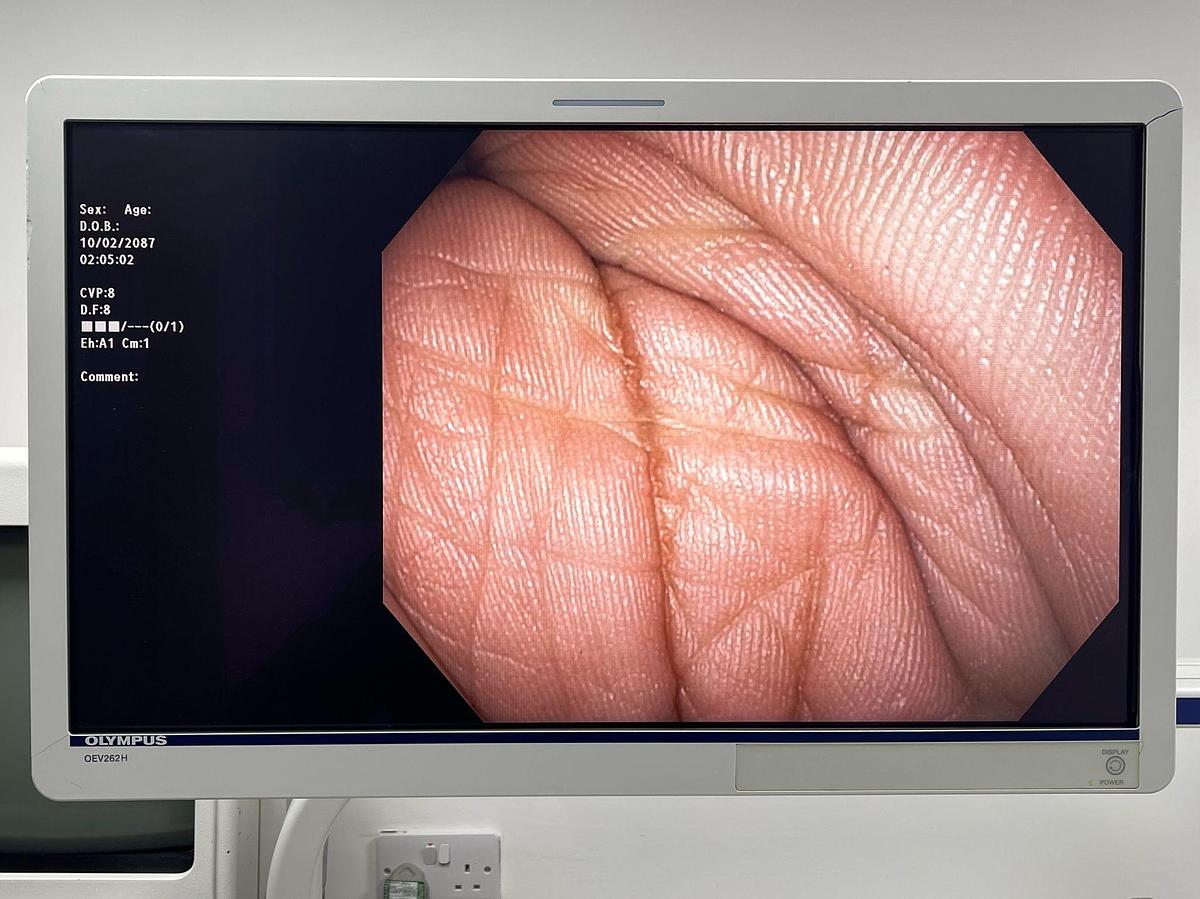

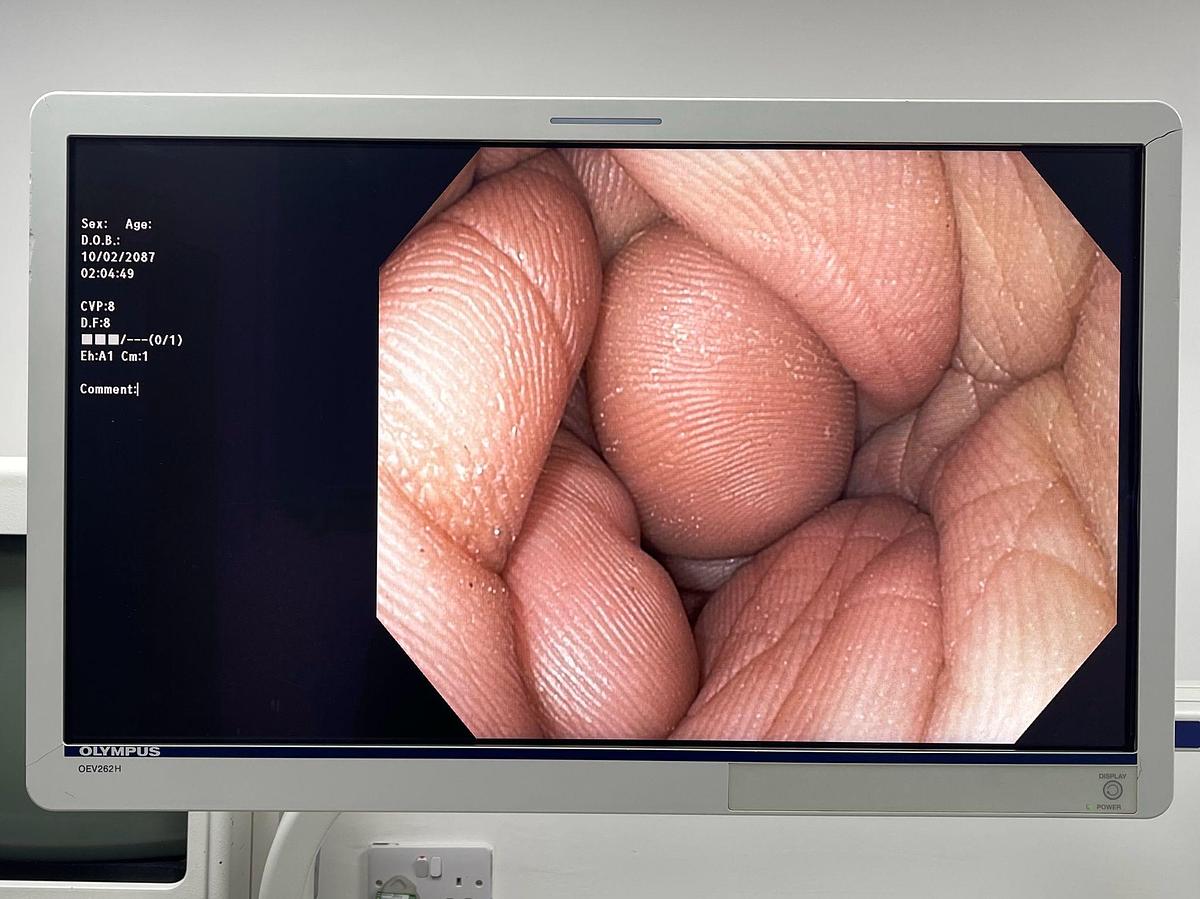

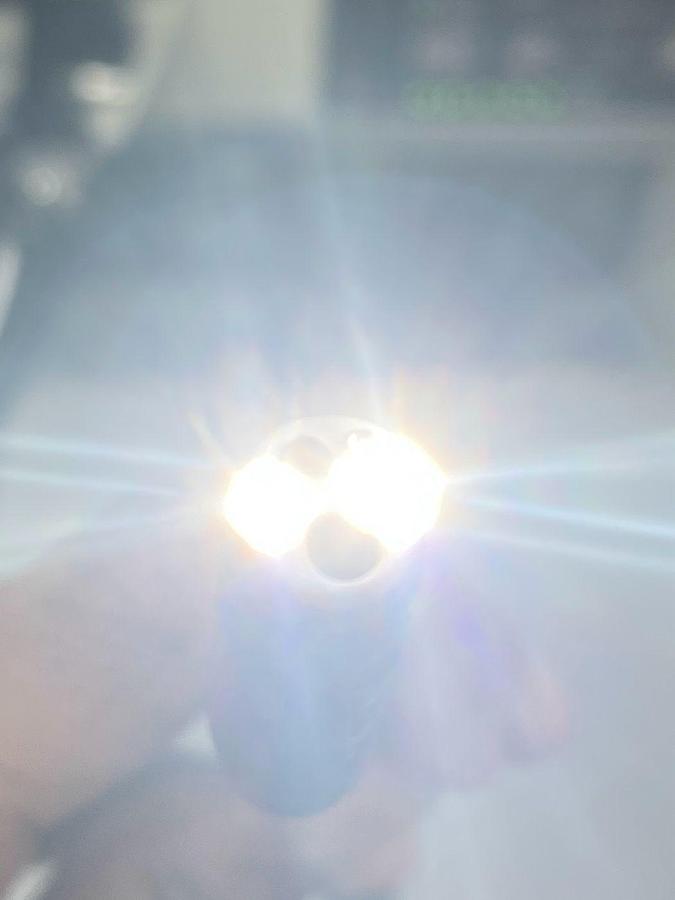

Report: -Leak Test: pass -Image Test: pass -Light Guide: pass -Angulation Test: Adjustment needed

Key Features:

• HDTV Image Quality – Delivers high-definition visualisation for detailed mucosal observation.
• NBI Technology – Enhances contrast of mucosal and vascular patterns to support clinical assessment.

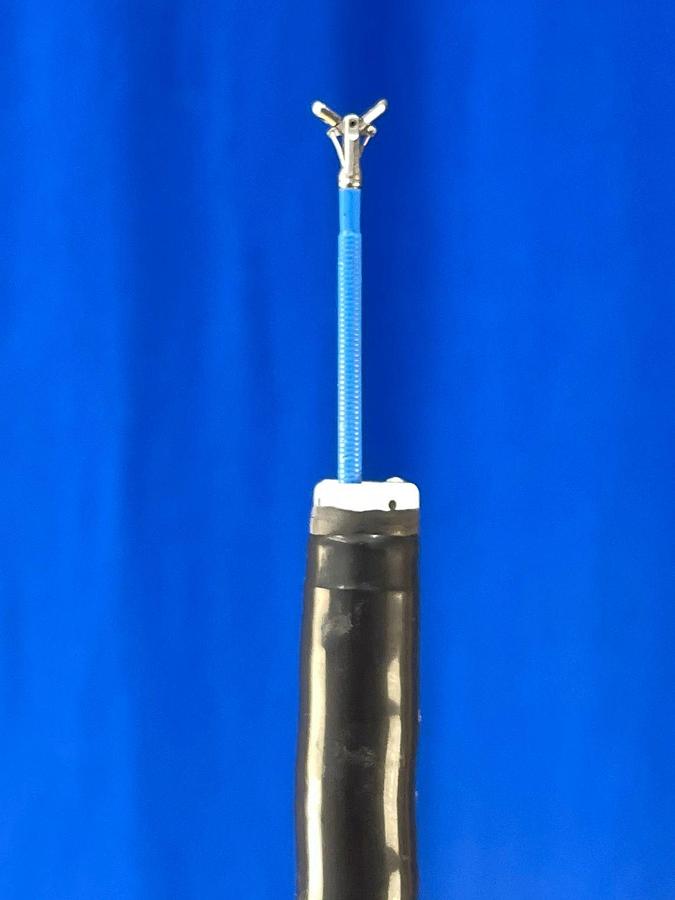

• 3.7 mm Therapeutic Channel – Accommodates a broad range of endotherapy accessories.

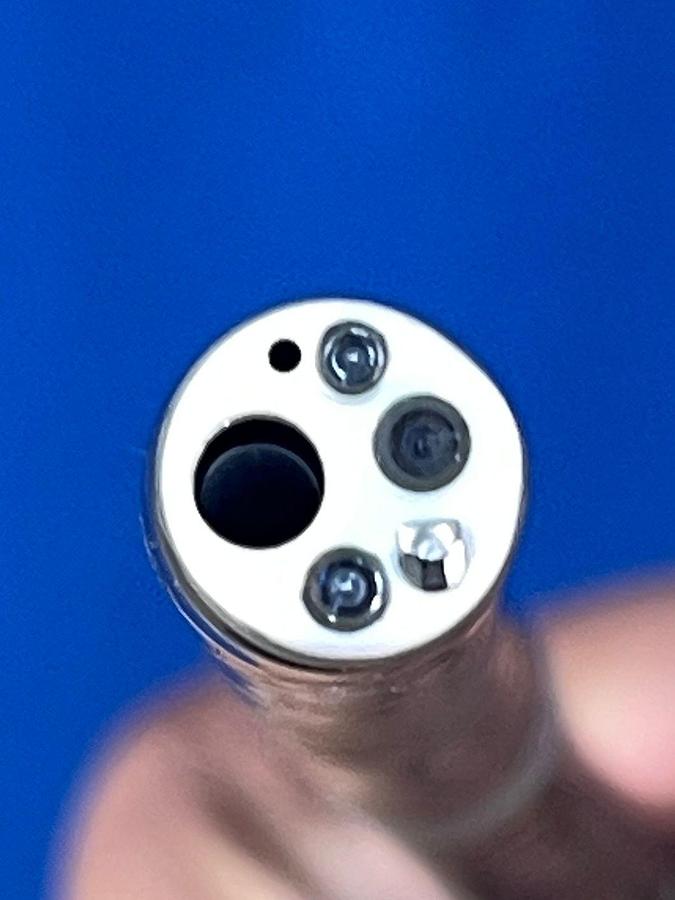

• Slim 10.0 mm Distal End – Provides a more streamlined design while maintaining therapeutic capability.
• Close Focus – Enables observation of mucosal surfaces from approximately 2 mm.
• Forward Water Jet – Helps maintain a clear field of view during examination and treatment.
• Waterproof One-Touch Connector – Simplifies setup and supports efficient reprocessing.

Technical Highlights:

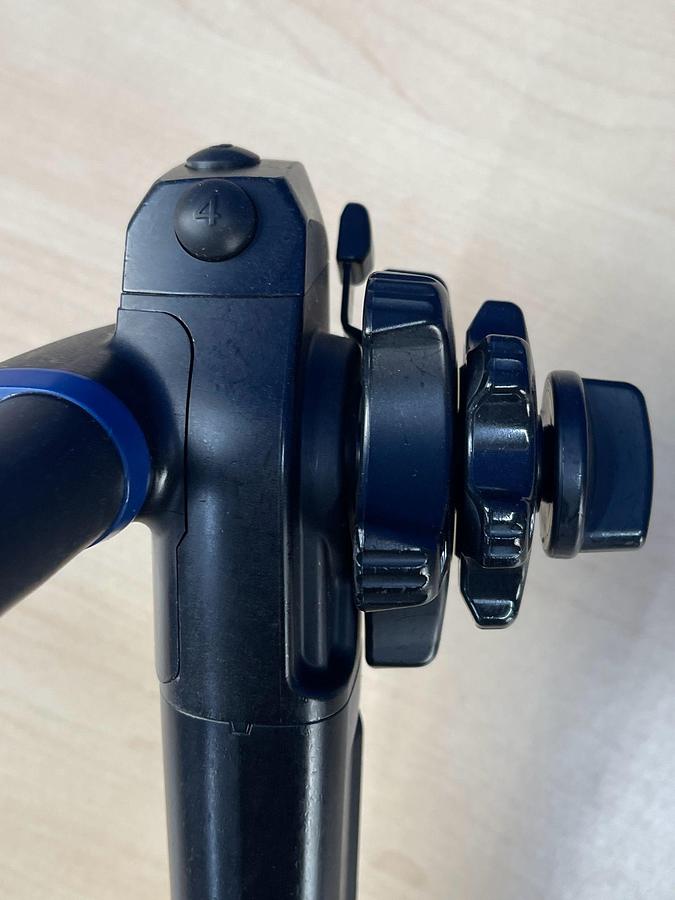

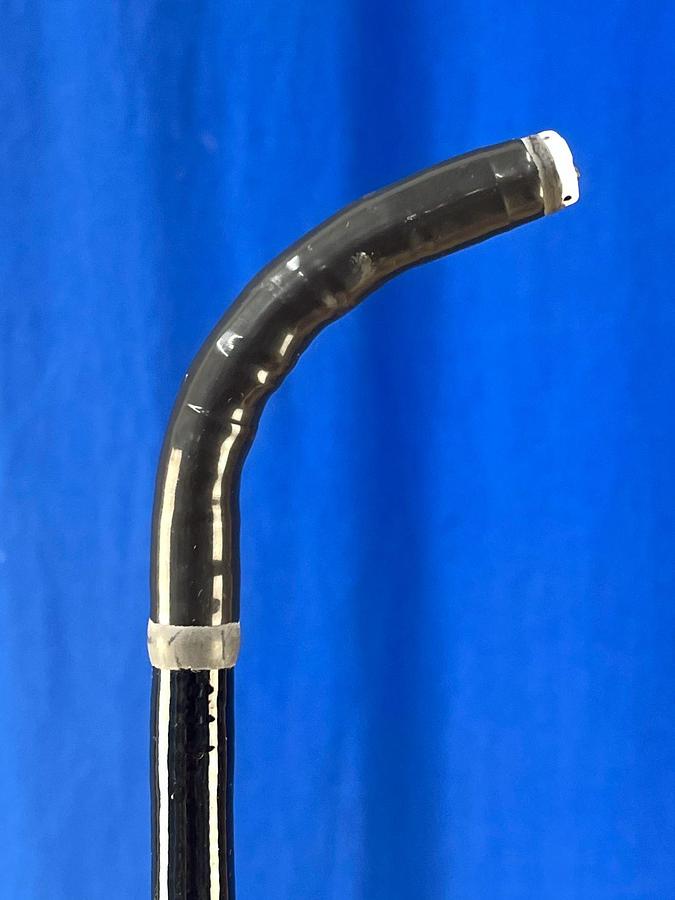

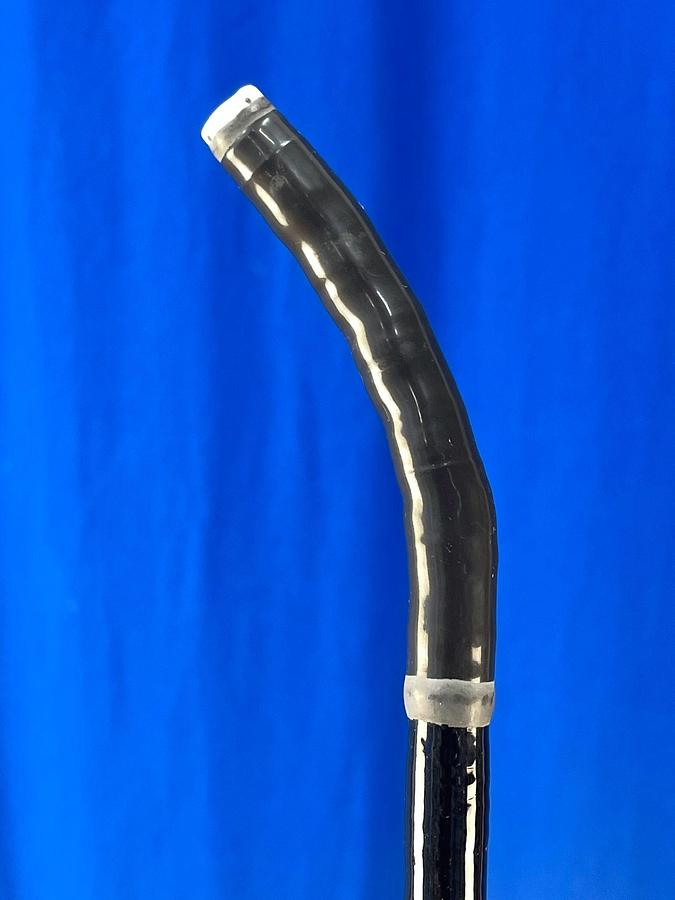

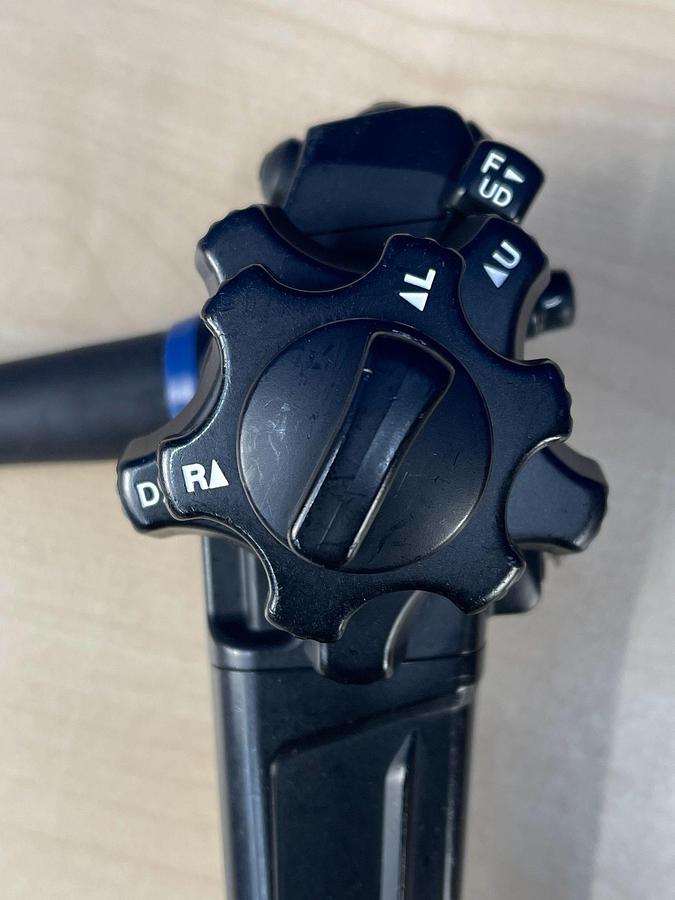

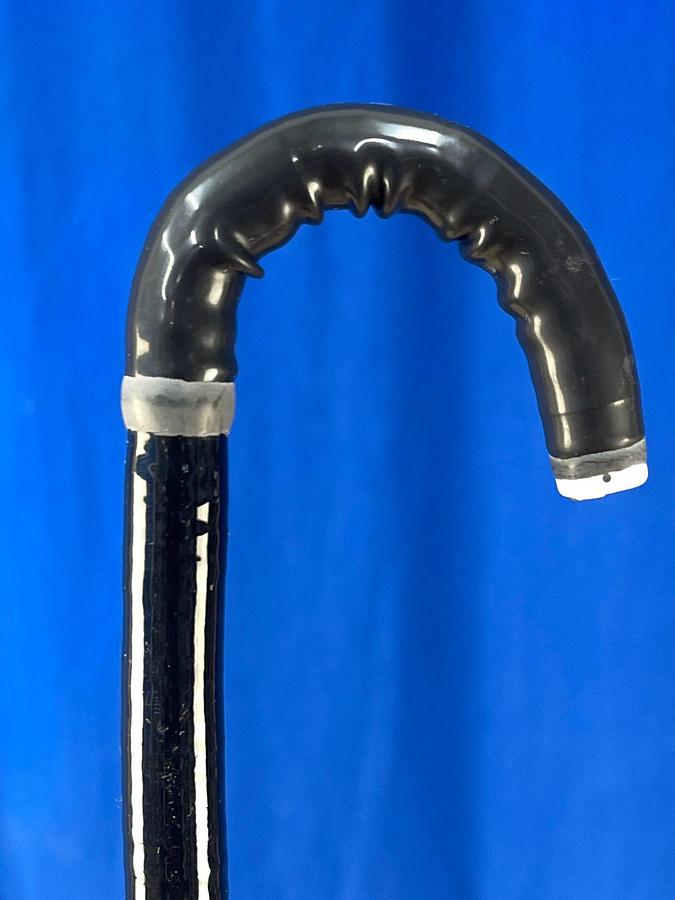

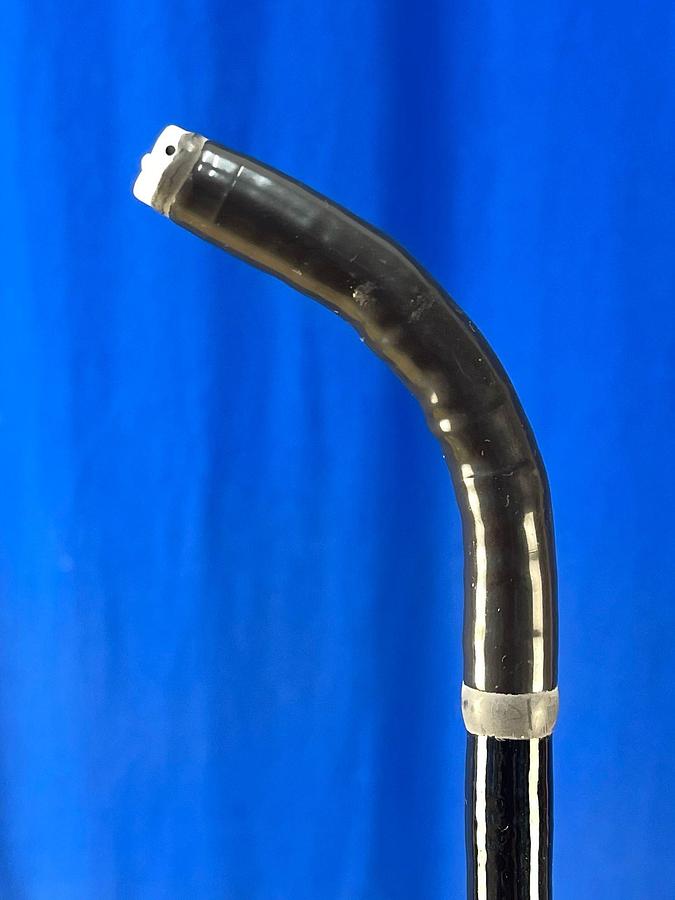

The GIF-1TH190 features a 140° field of view, 1,030 mm working length and 3.7 mm instrument channel. Its advanced bending capability provides up to 210° upward, 90° downward and 100° right/left angulation, supporting controlled navigation during procedures.

Its combination of HDTV imaging, NBI, close-focus capability and therapeutic functionality allows the same gastroscope to support both detailed observation and endotherapy applications.

Applications:

The Olympus GIF-1TH190 is suitable for:

• Upper gastrointestinal endoscopy
• Diagnostic gastroscopy
• Mucosal and vascular pattern assessment
• Barrett’s oesophagus evaluation
• Therapeutic endoscopy
• Endoscopic biopsy and accessory-based interventions
• Observation and treatment of upper GI lesions

Key Benefits:

• High-definition visualisation for detailed examination.
• Enhanced tissue contrast with NBI technology.
• Therapeutic versatility through the large 3.7 mm working channel.
• Slim distal-end design for efficient endoscopic access.
• Excellent manoeuvrability with wide angulation.
• Integrated water-jet capability for maintaining visibility.
• Efficient setup and handling with the waterproof one-touch connector.

Why Choose Olympus GIF-1TH190?

The Olympus GIF-1TH190 offers an effective combination of high-definition imaging and therapeutic capability in a single-channel gastroscope. Its HDTV, NBI, close-focus observation, water jet and 3.7 mm instrument channel make it a versatile choice for demanding upper GI diagnostic and therapeutic procedures.
