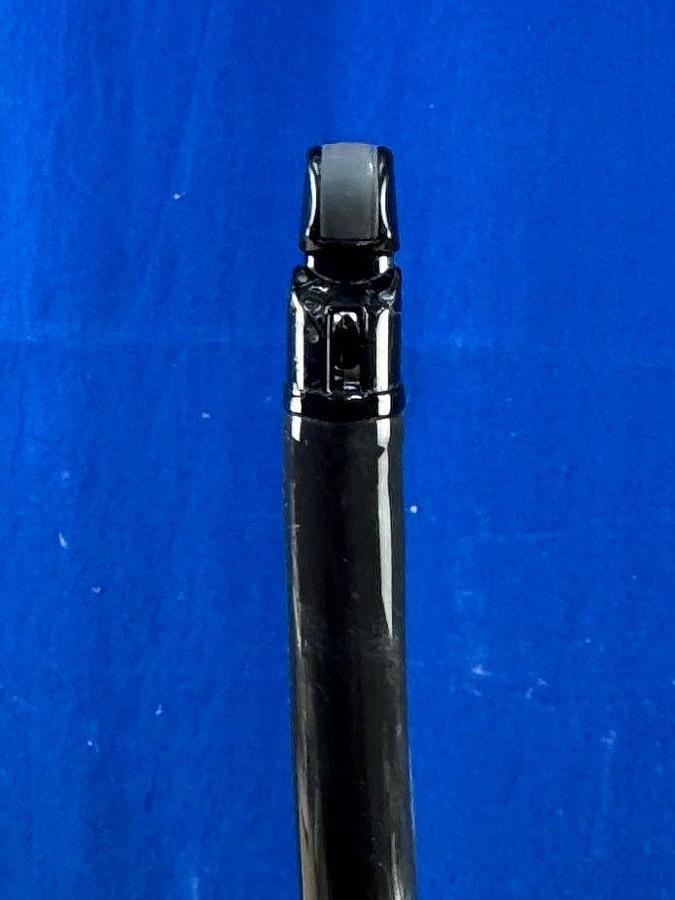

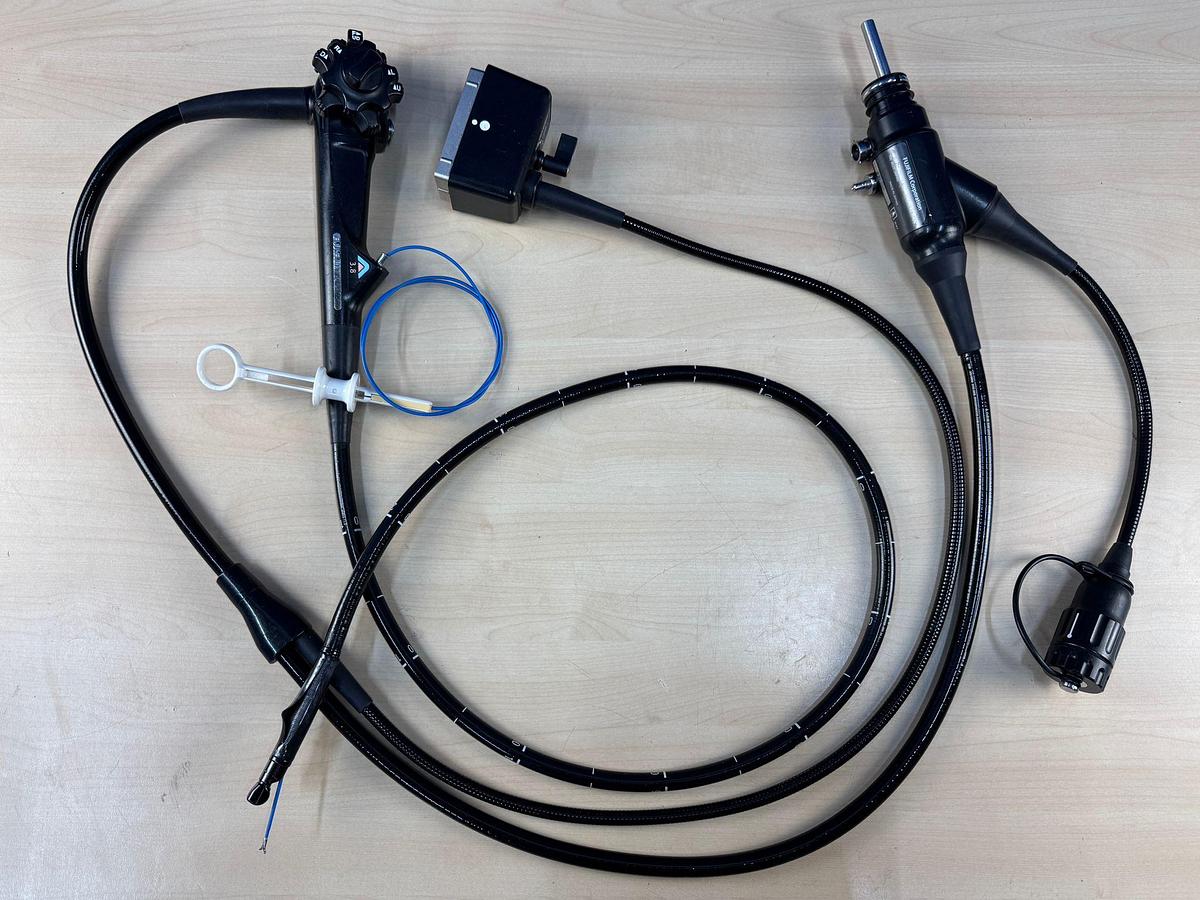

Fujinon Scope EG-580 UT Linear Ultrasonic Endoscope

Includes:

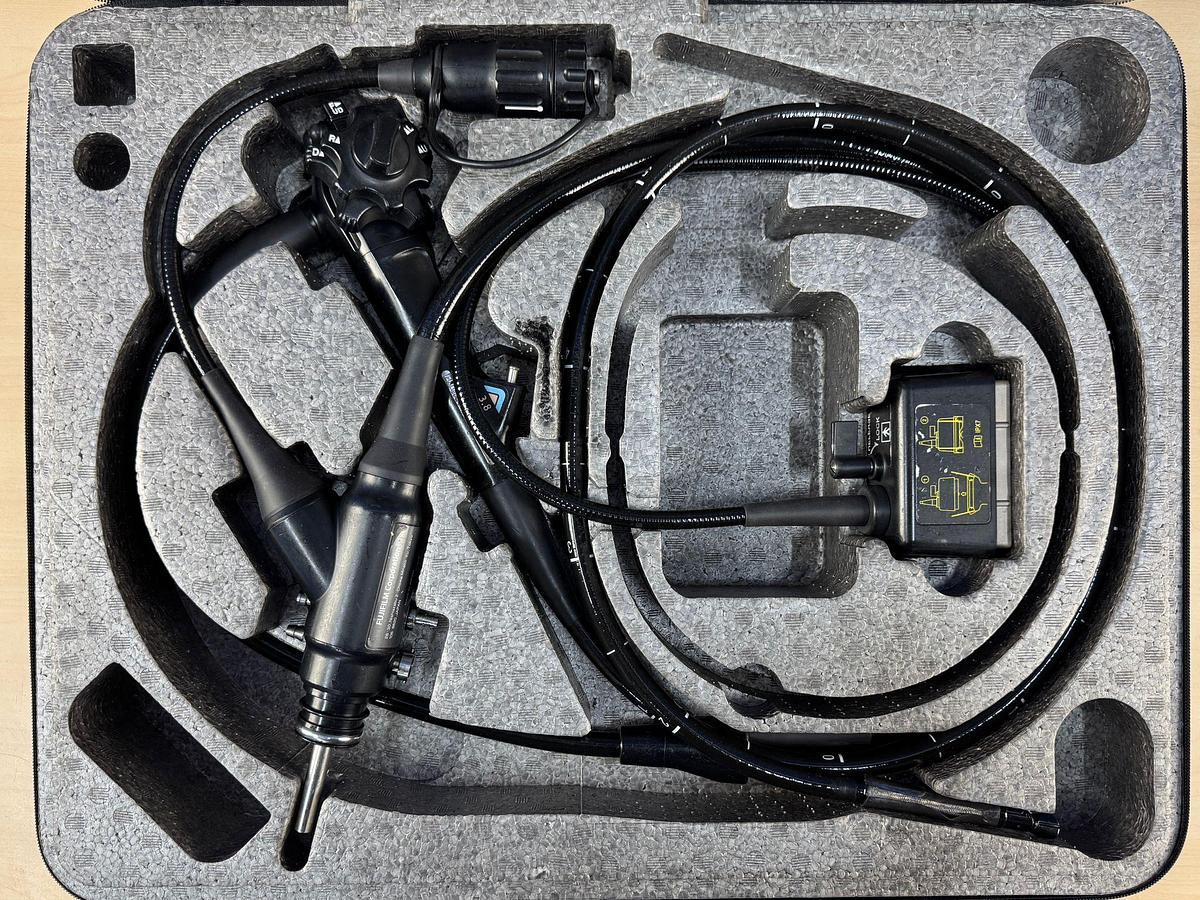

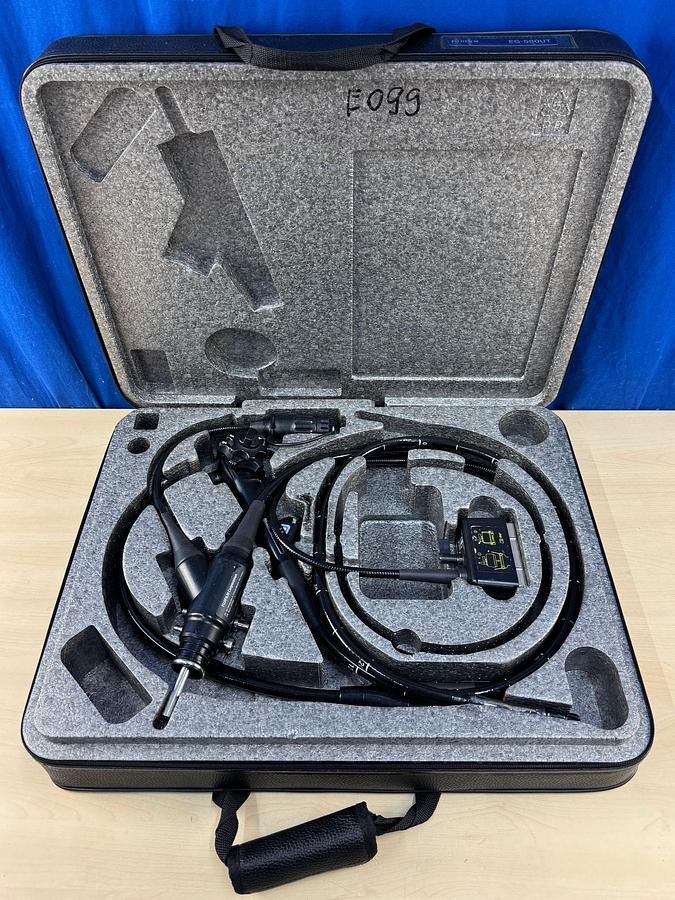

- Fujinon Scope EG-580 UT Linear Ultrasonic Endoscope

Report:

- Leak Test: Fail

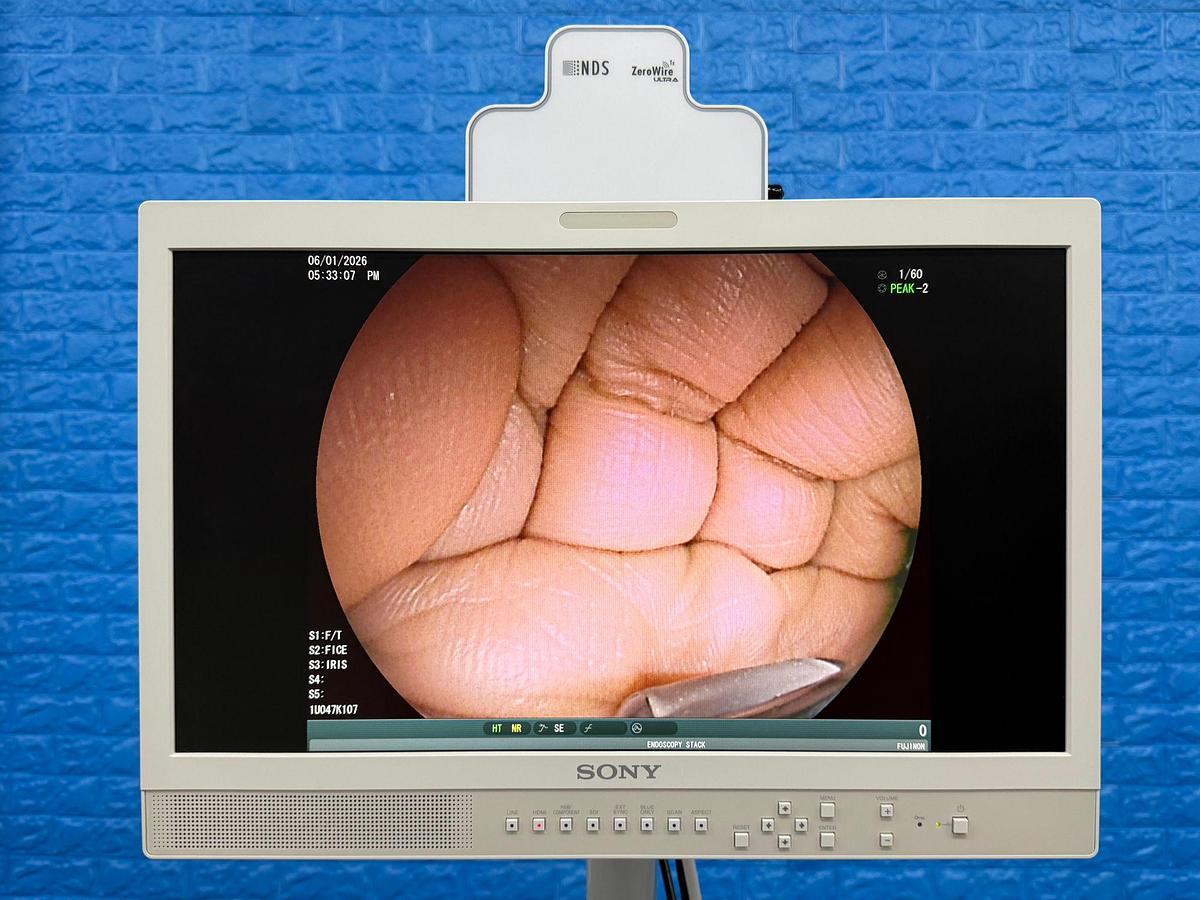

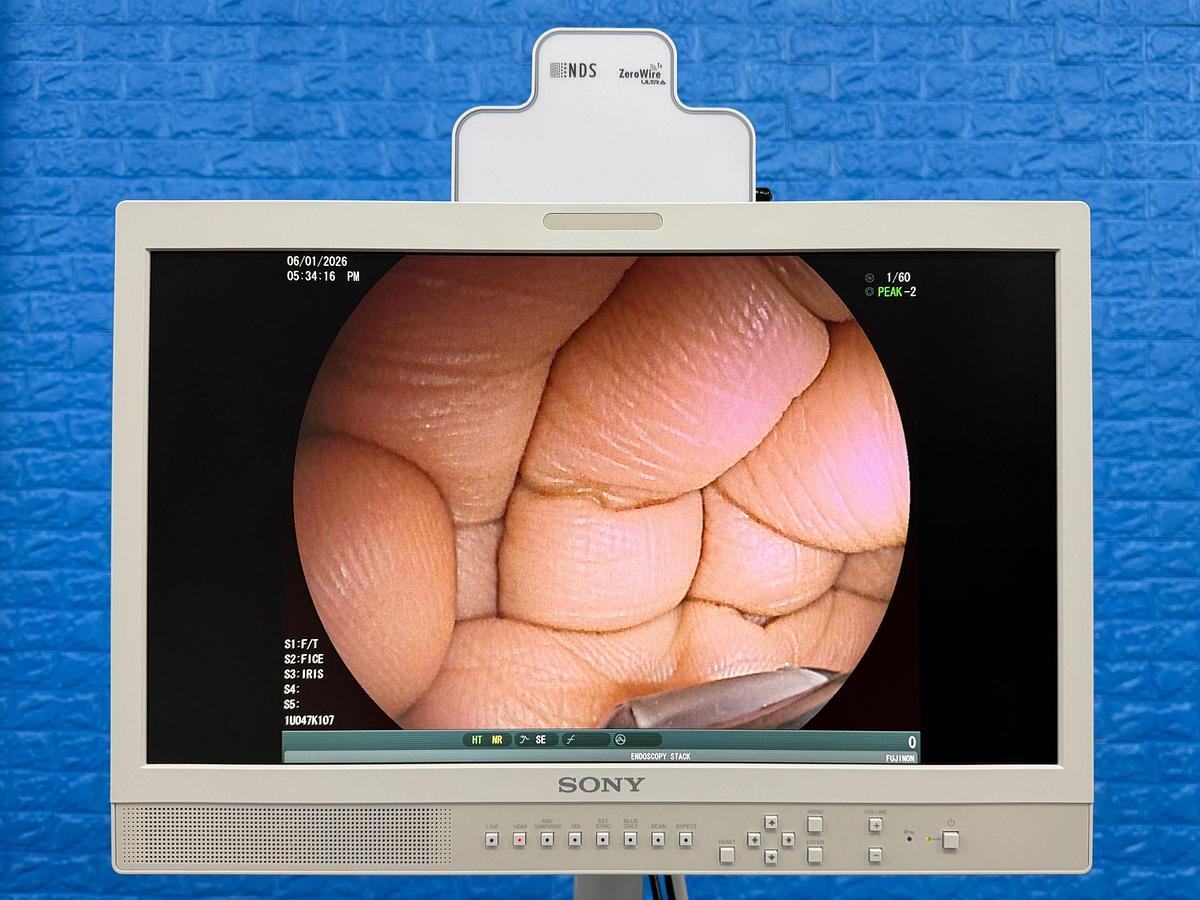

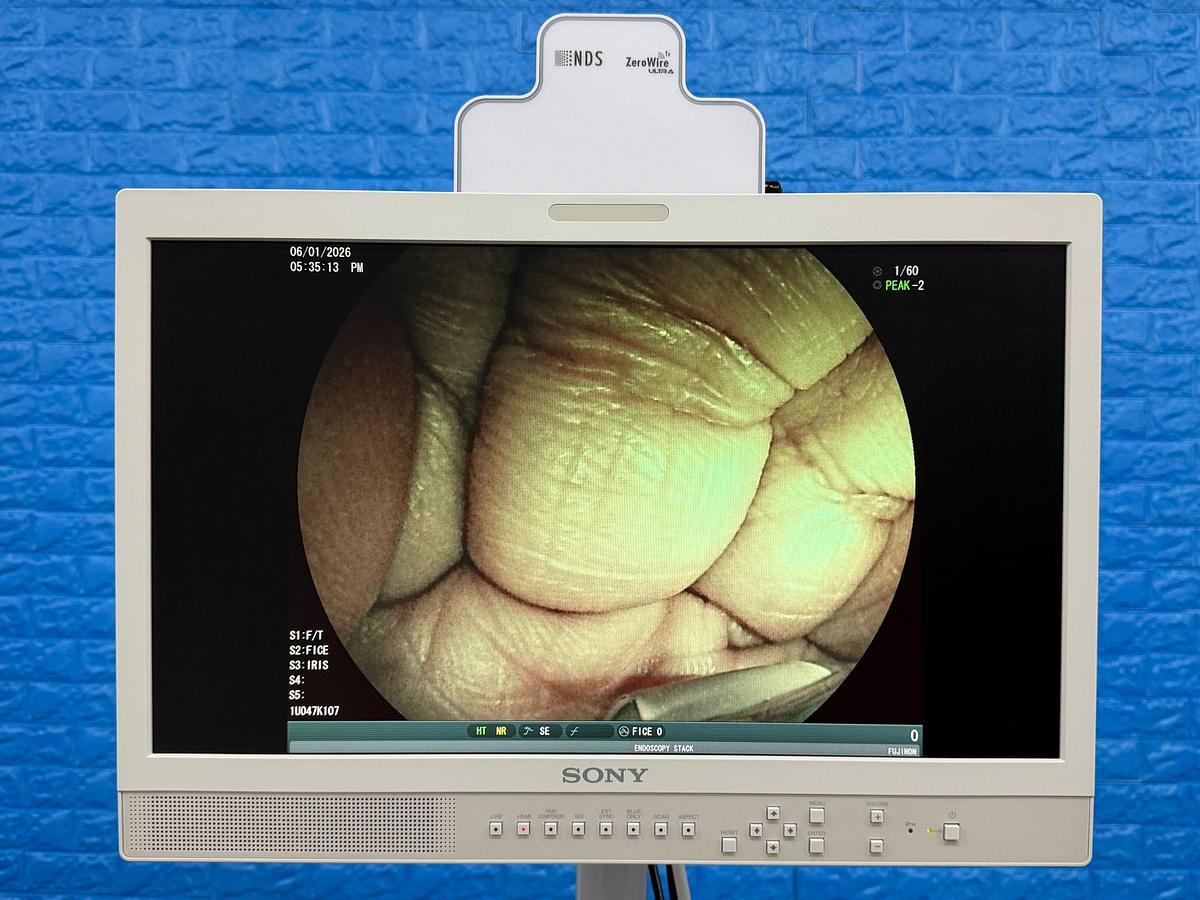

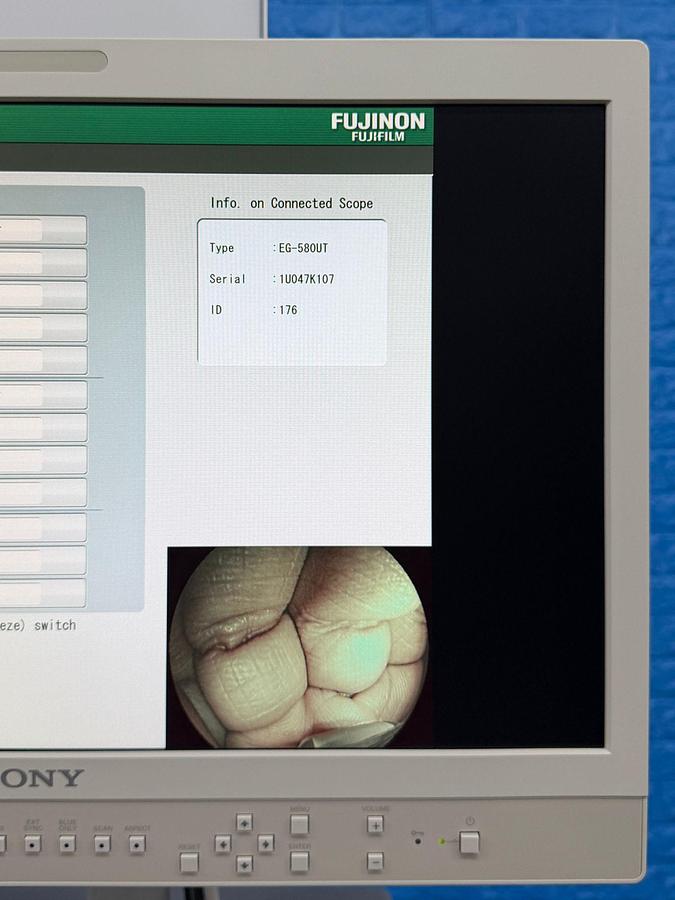

- Image Test: Pass

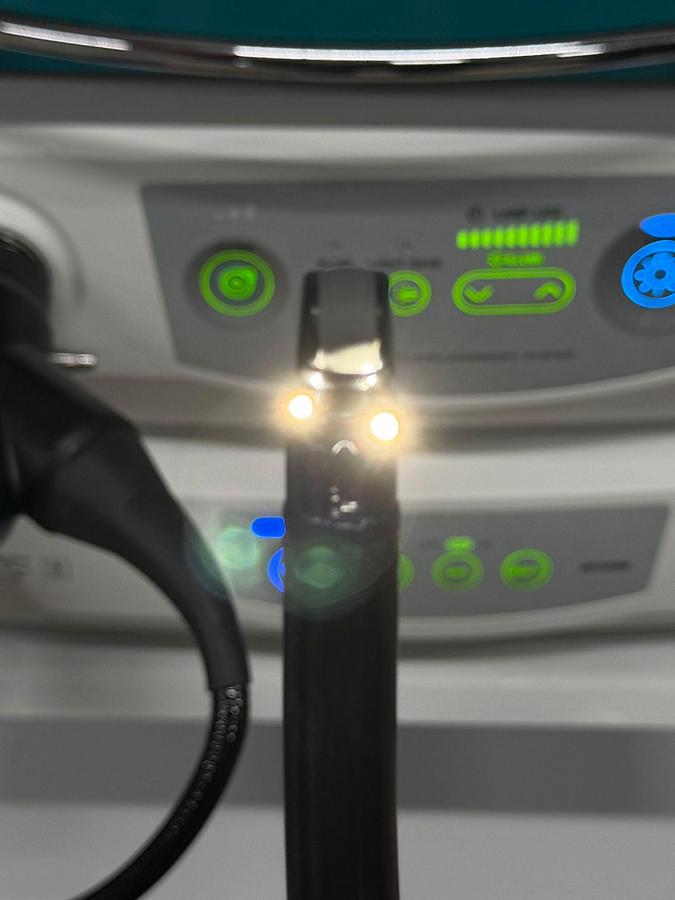

- Light Guide: Pass

- Angulation Test: Pass

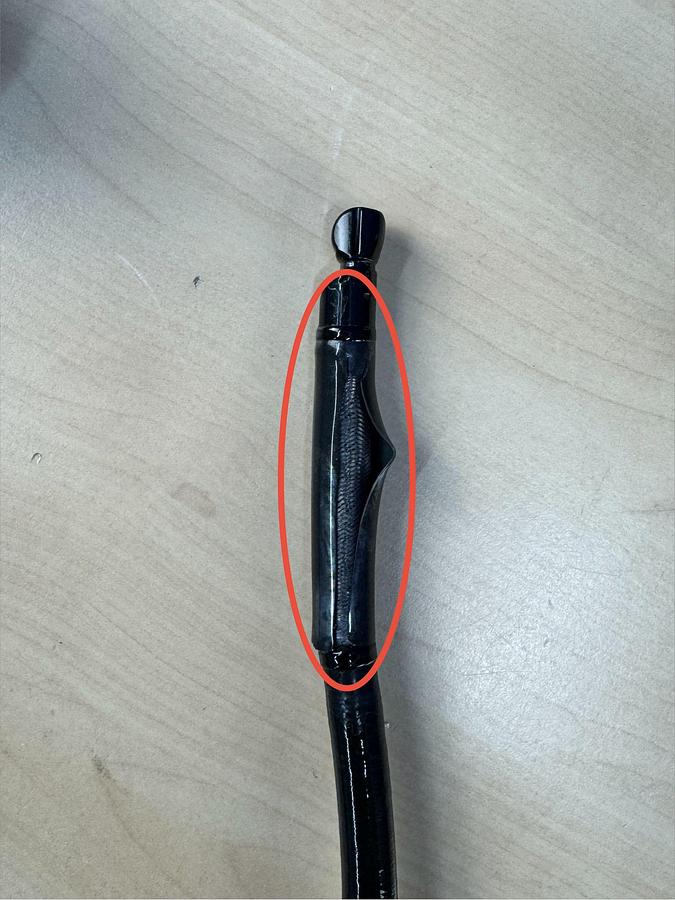

- ⁠Need new bending rubber

Key Features:

• Curved Linear Array EUS: Electronic convex scanning for detailed endoscopic ultrasound imaging.
• 40° Forward-Oblique View: Provides a 140° field of view for effective visualisation during examination.

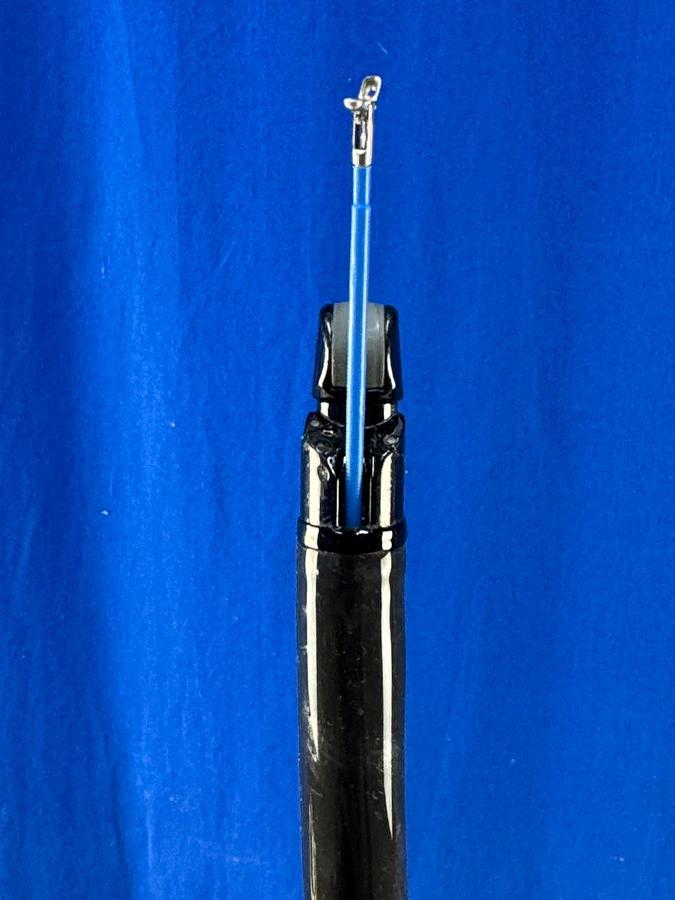

• Wide 3.8 mm Working Channel: Supports therapeutic procedures and endoscopic ultrasound interventions.

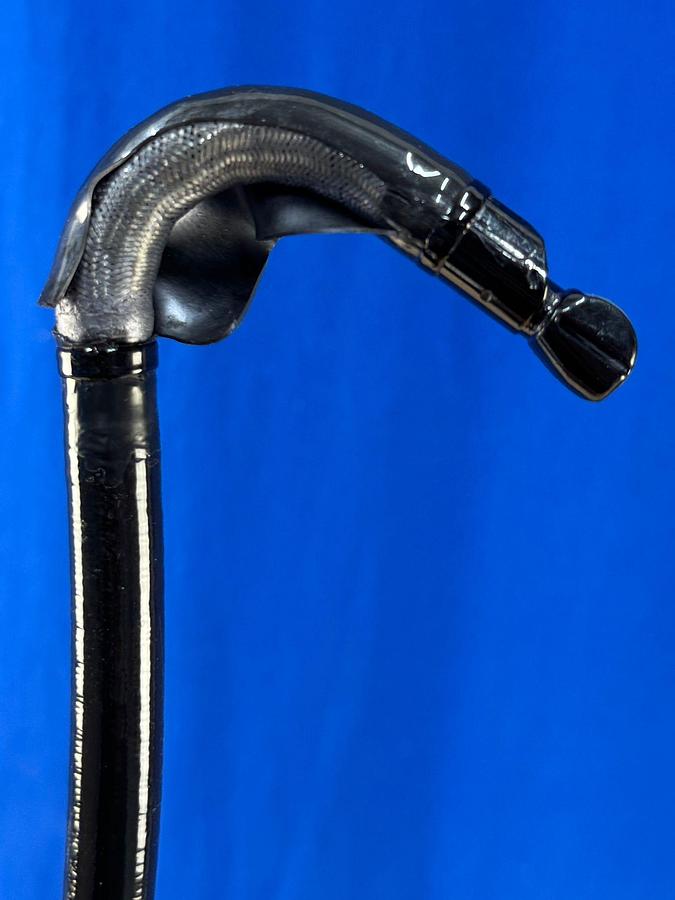

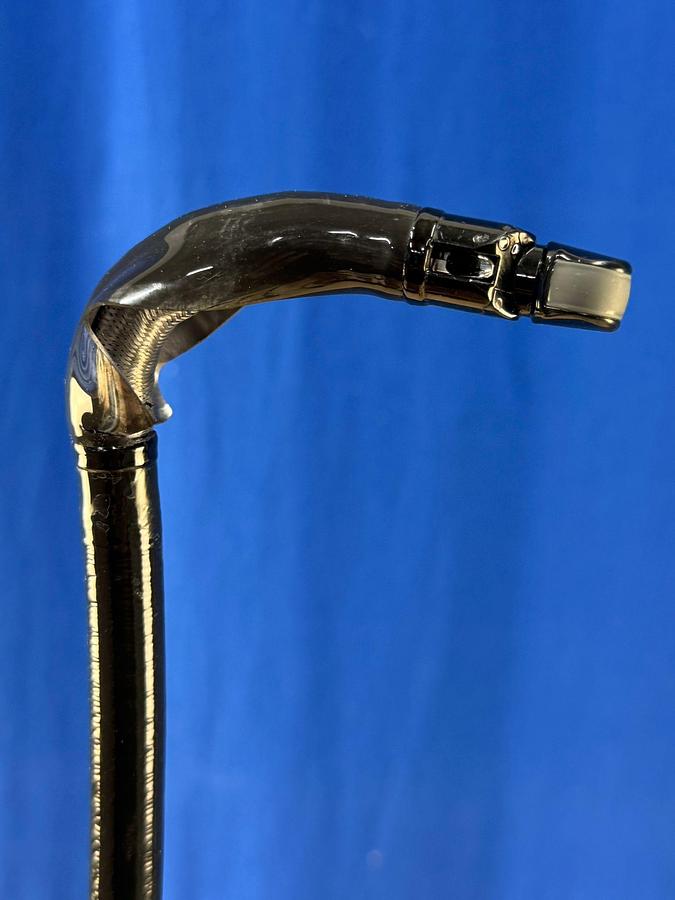

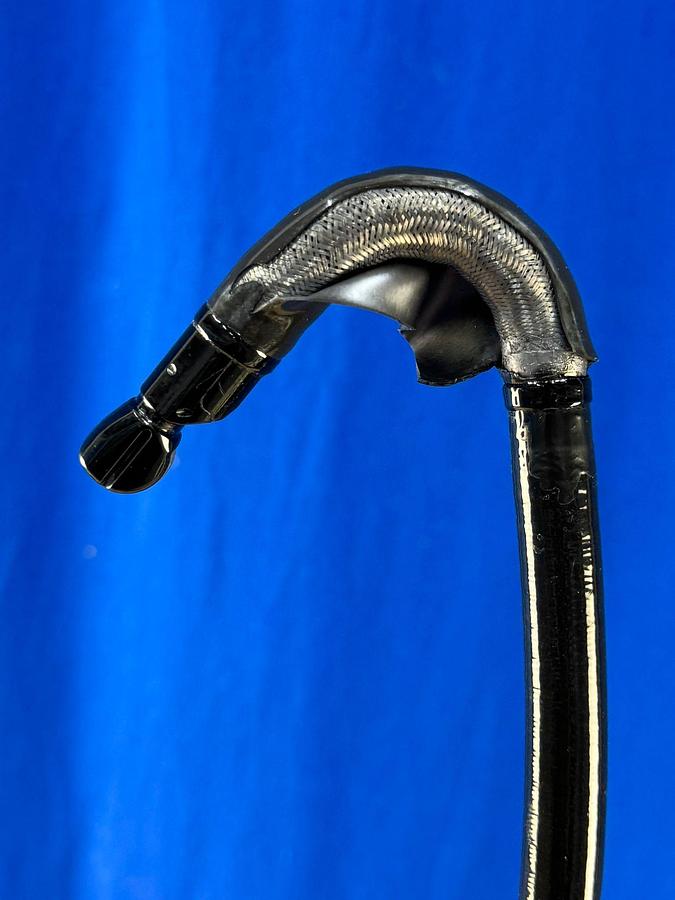

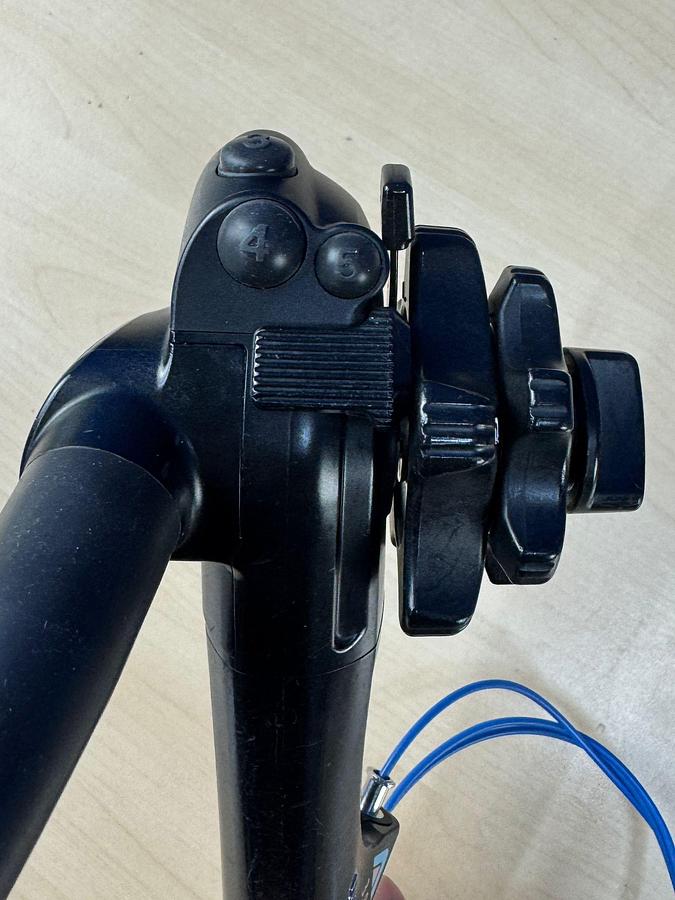

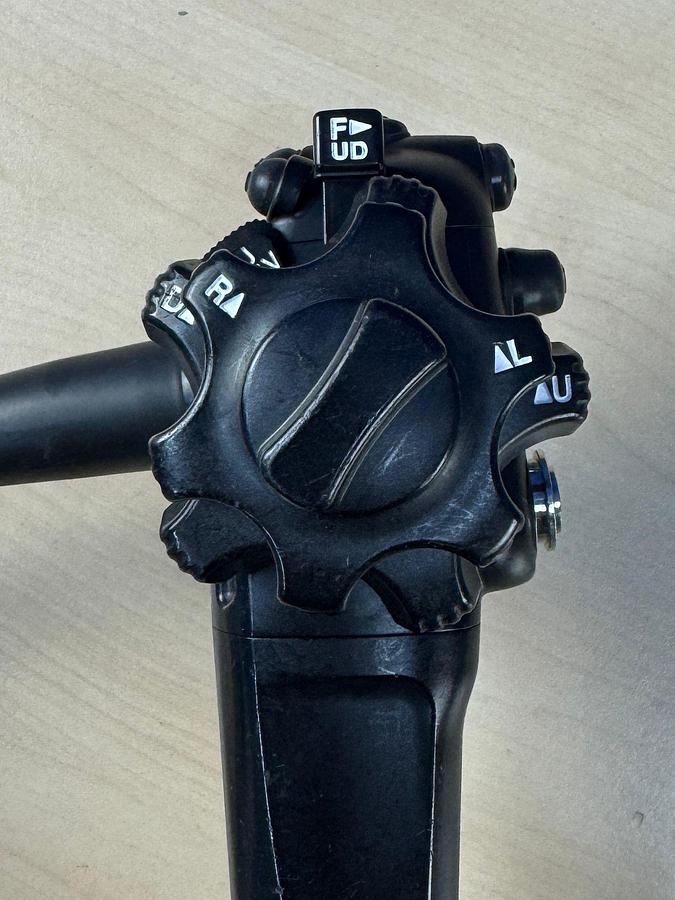

• Excellent Angulation: Up to 150° up/down and 120° left/right for improved access and manoeuvrability.
• Wide Puncture Range: Designed to support procedures such as EUS-guided FNA/FNB.

Technical Highlights:

The Fujinon EG-580UT Linear Ultrasonic Endoscope combines conventional endoscopic imaging with electronic curved linear-array ultrasound. It supports B-mode, M-mode, Colour Doppler, Power Doppler and Pulse Doppler imaging when used with the compatible ultrasonic processor.

Its 1,250 mm working length, flexible insertion tube and advanced angulation make it suitable for accessing targeted anatomical areas during diagnostic and therapeutic EUS procedures.

Applications:

• Endoscopic Ultrasonography (EUS)
• Pancreatic and hepatobiliary assessment
• Gastrointestinal ultrasound examination
• EUS-guided Fine Needle Aspiration (FNA)
• EUS-guided Fine Needle Biopsy (FNB)
• Diagnostic and therapeutic endoscopy

Key Benefits:

• Enhanced visualisation through combined endoscopic and ultrasound imaging.
• Precise anatomical assessment with multiple Doppler and ultrasound modes.
• Improved procedural access through wide angulation and curved linear-array scanning.
• Therapeutic versatility with a large 3.8 mm instrument channel.
• Suitable for facilities requiring a professional EUS endoscope for advanced diagnostic and interventional procedures.

Why Choose Fujinon Scope EG-580 UT Linear Ultrasonic Endoscope?

The Fujinon Scope EG-580 UT Linear Ultrasonic Endoscope is a sophisticated instrument designed for precise diagnostic and therapeutic procedures. This used model integrates advanced imaging technology with the capability for ultrasound guidance, making it a versatile tool for endoscopic ultrasound (EUS) exams. It offers high-resolution visualisation, which aids in the accurate assessment of gastrointestinal tract conditions. This scope features a linear array transducer, providing clear images that support fine-needle aspiration and other interventional procedures. Its ergonomic design allows for smooth maneuverability and operation, enhancing user comfort during lengthy procedures. The endoscope's construction is robust, suited for consistent performance in clinical settings. As a reliable option for medical professionals, the Fujinon EG-580 UT is particularly valuable for professionals seeking to expand their diagnostic capabilities without compromising on quality. Even though this is a pre-owned unit, it maintains Fujinon's standards in delivering effective and accurate patient assessments.
