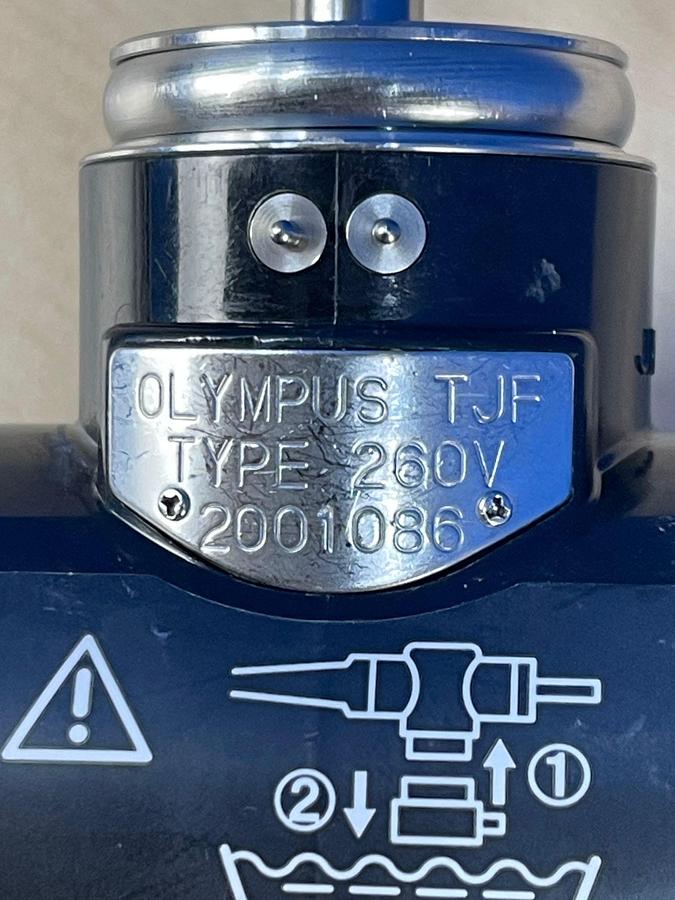

Olympus TJF 260V Duodenoscope

In good working condition.

Includes:

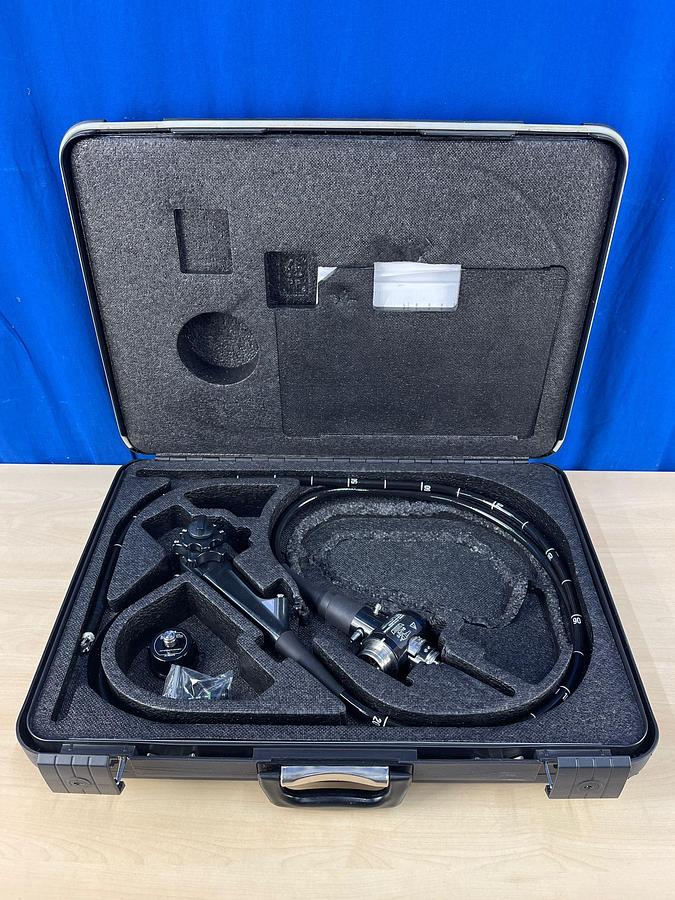

- Olympus TJF 260V Duodenoscope.

Test Report:

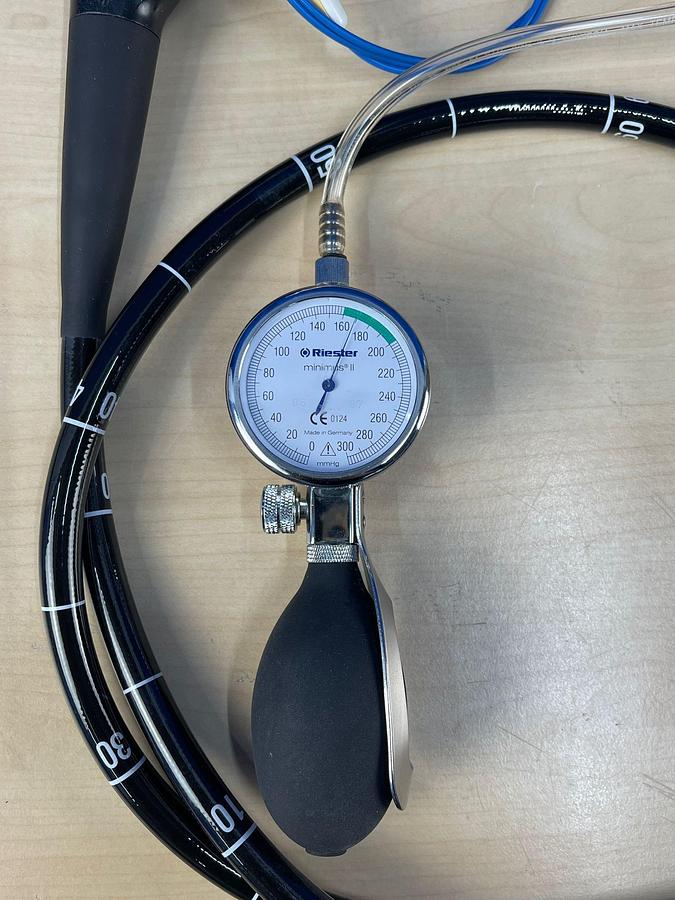

- Leak Test: Pass

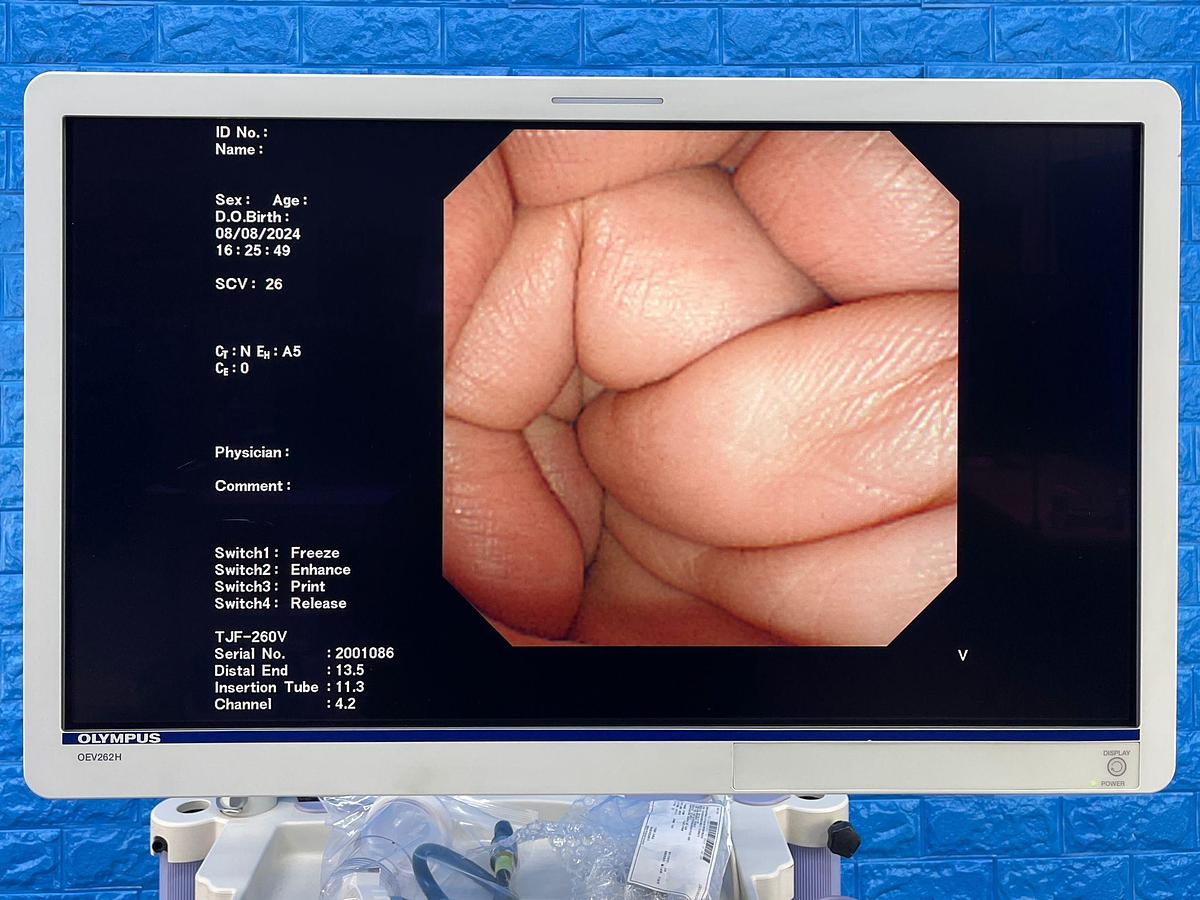

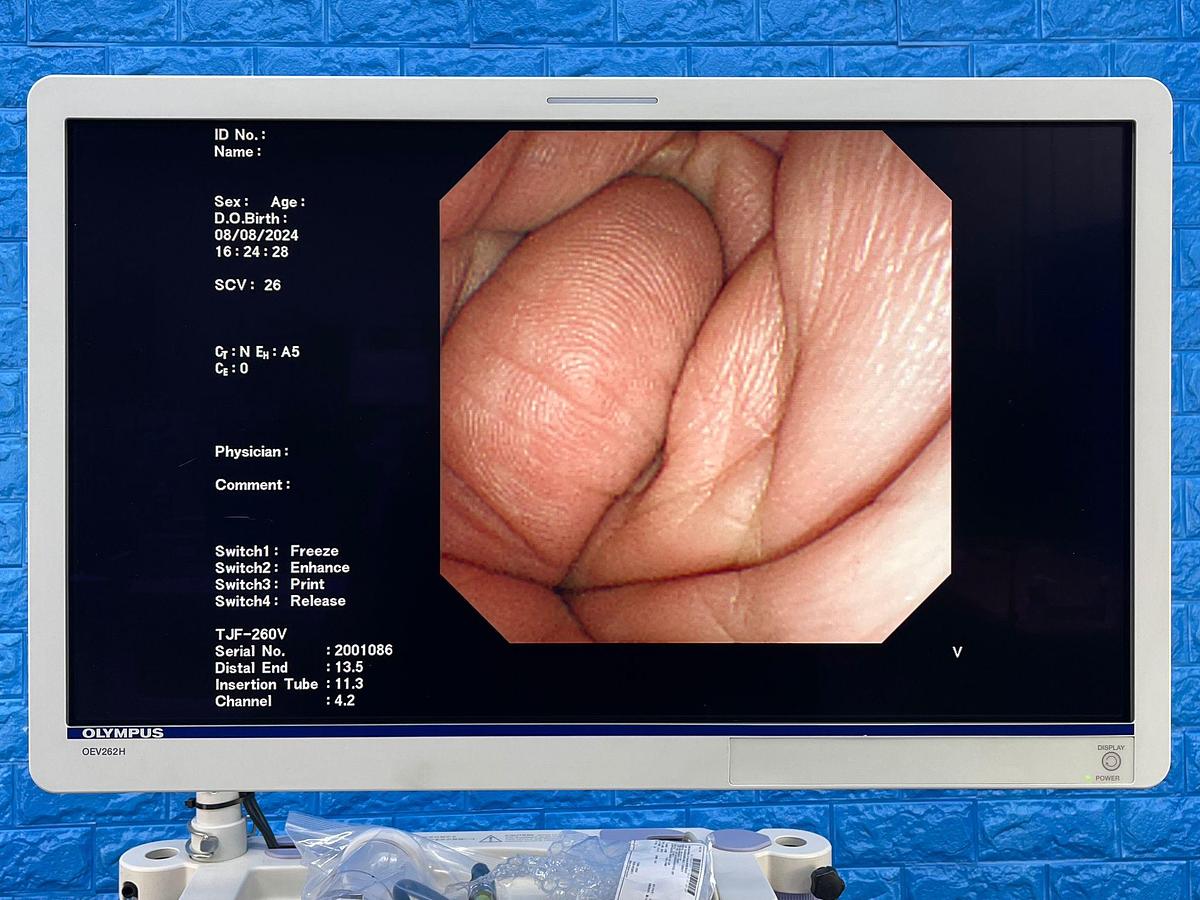

- Image Test: Pass

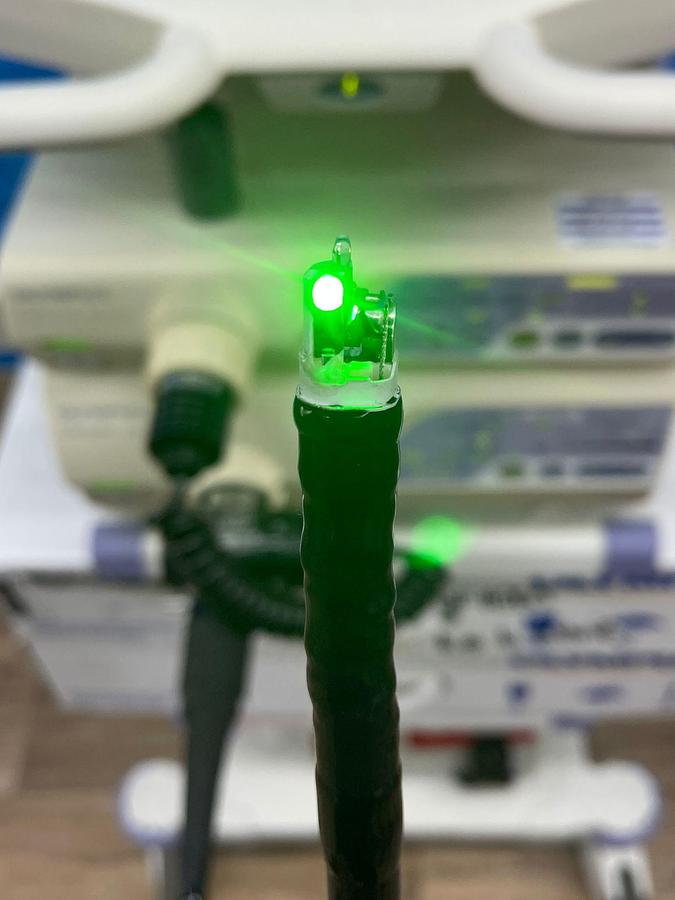

- Light Guide Test: Pass

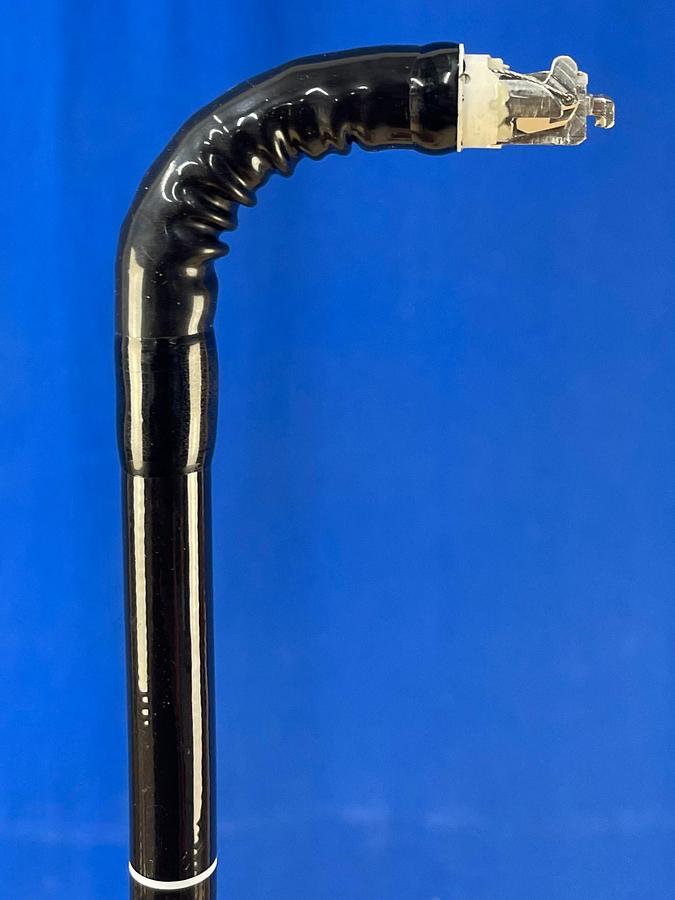

- Angulation Test: Pass

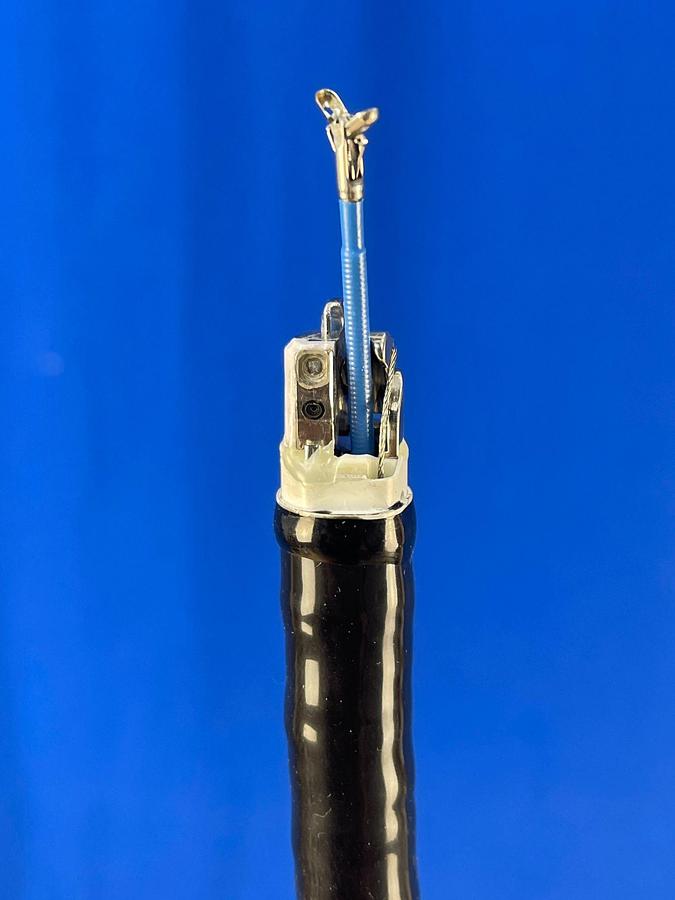

- ⁠Working Channel Test: Pass

We ship worldwide.

Please get back to us for further queries.

WE SPEAK ENGLISH -HABLAMOS ESPAÑOL -WIR SPRECHEN DEUTSCH.

Key Technical Specifications

- Optical System: 100° Field of View (FOV) with a 15° backward oblique direction of view.

- Depth of Field: 5 to 60 mm (sharp imaging at close and moderate ranges).

- Insertion Tube Diameter: 11.3 mm.

- Distal End Diameter: 13.5 mm.

- Working Length: 1240 mm.

- Working Channel (Instrument Channel): 4.2 mm, designed for easy passage of therapeutic devices.

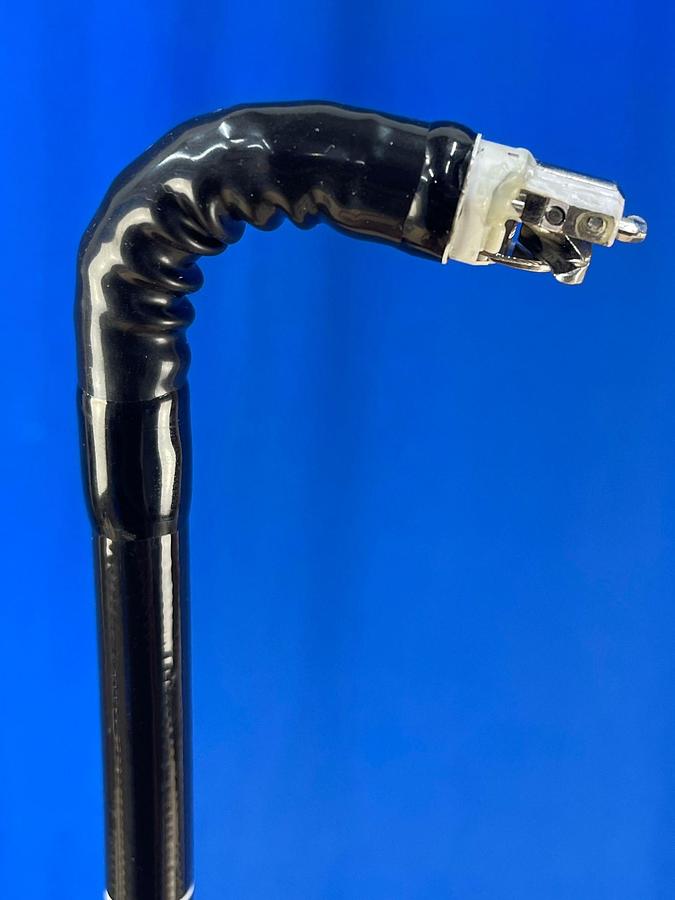

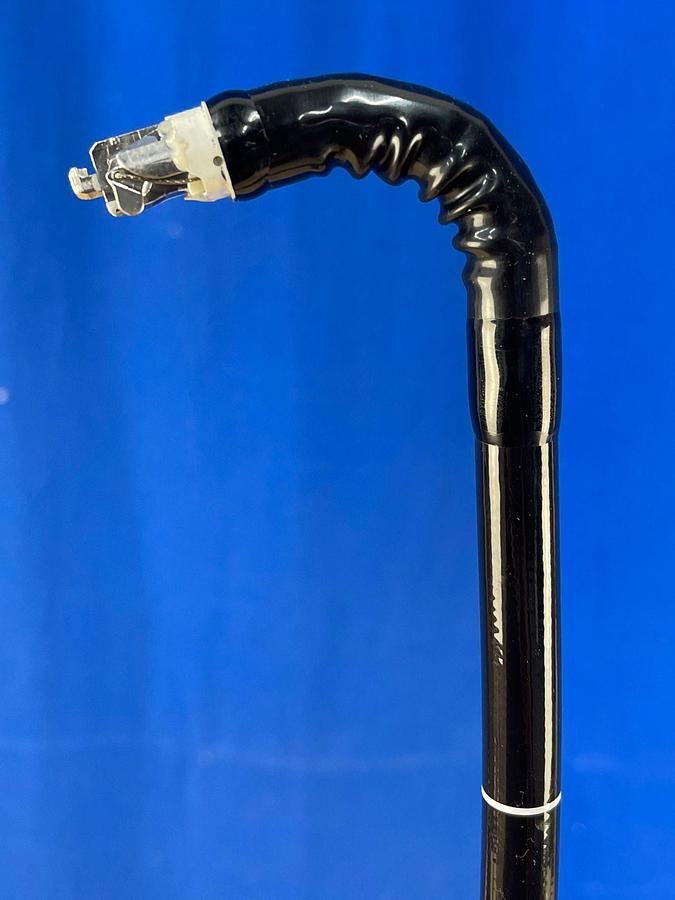

- Angulation Range: Up 120°, Down 90°, Right 110°/120°, Left 90°.

- Compatible Processors: CV-260SL, CV-260, and higher Olympus video systems.

Primary Features

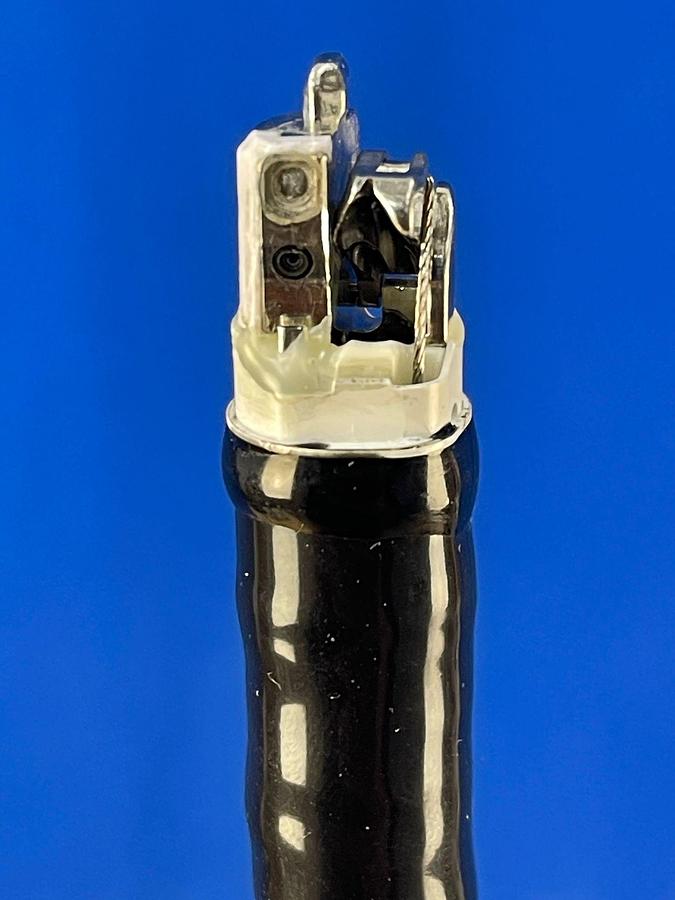

- V-System for ERCP: Features a V-groove forceps elevator that secures guidewires and enhances instrument stability during complex procedures.

- Narrow Band Imaging (NBI): Enhanced imaging technology that improves the contrast of vascular structures and mucosal surfaces to detect early abnormalities.

- High-Volume Channel: The 4.2mm channel accommodates a wide range of devices for bile and pancreatic duct treatment.

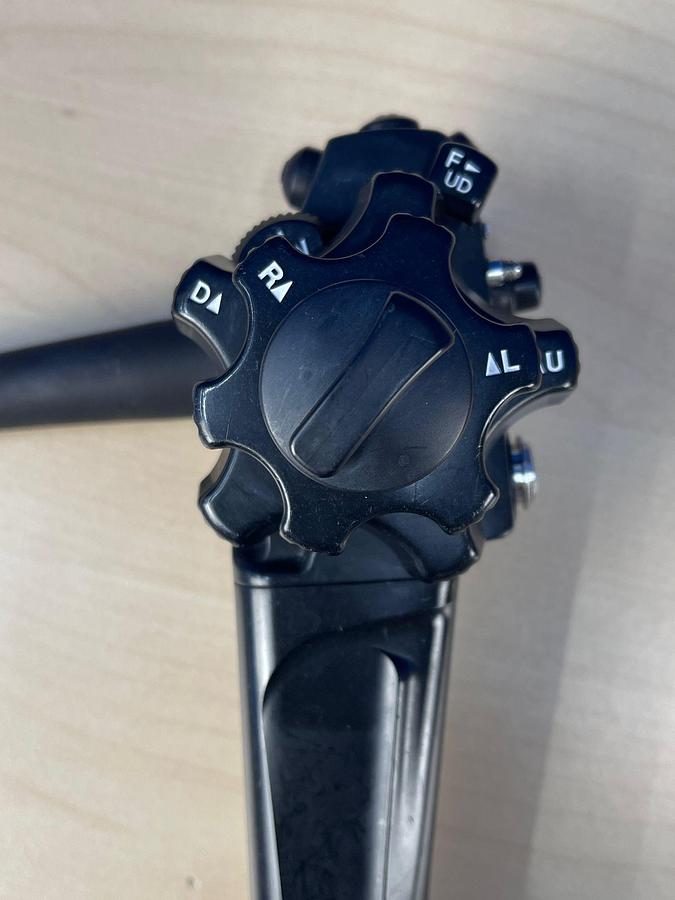

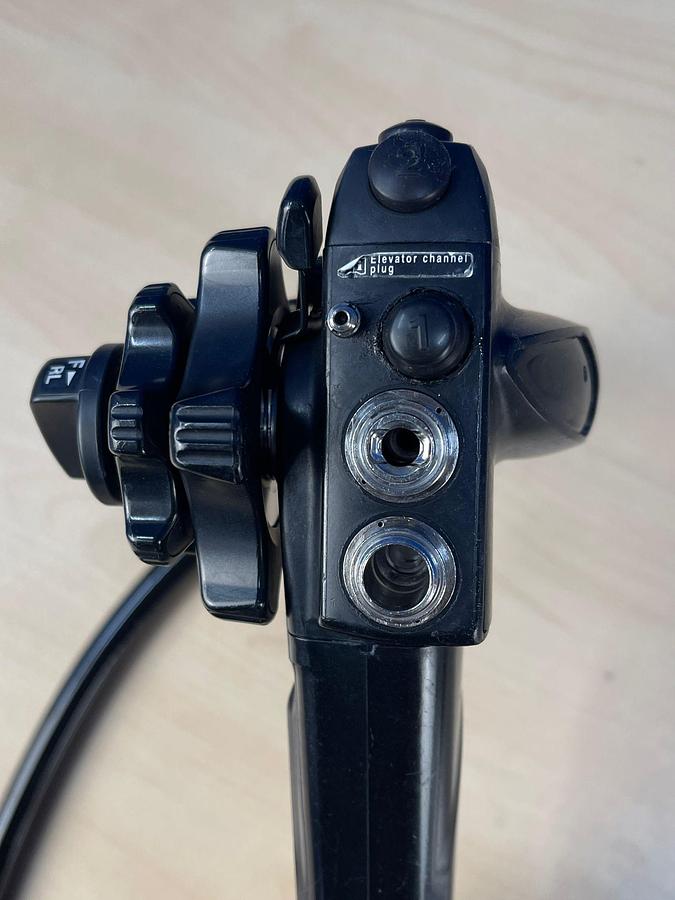

- Ergonomic Design: Includes an easy-to-access, 4-way angulation control knob and a lightweight, ergonomic grip for enhanced maneuverability.

- Reprocessing Features: Equipped with a detachable,, or in some iterations, fixed distal cap for better cleaning access (Note: FDA has recommended moving away from fixed endcaps to disposable ones).

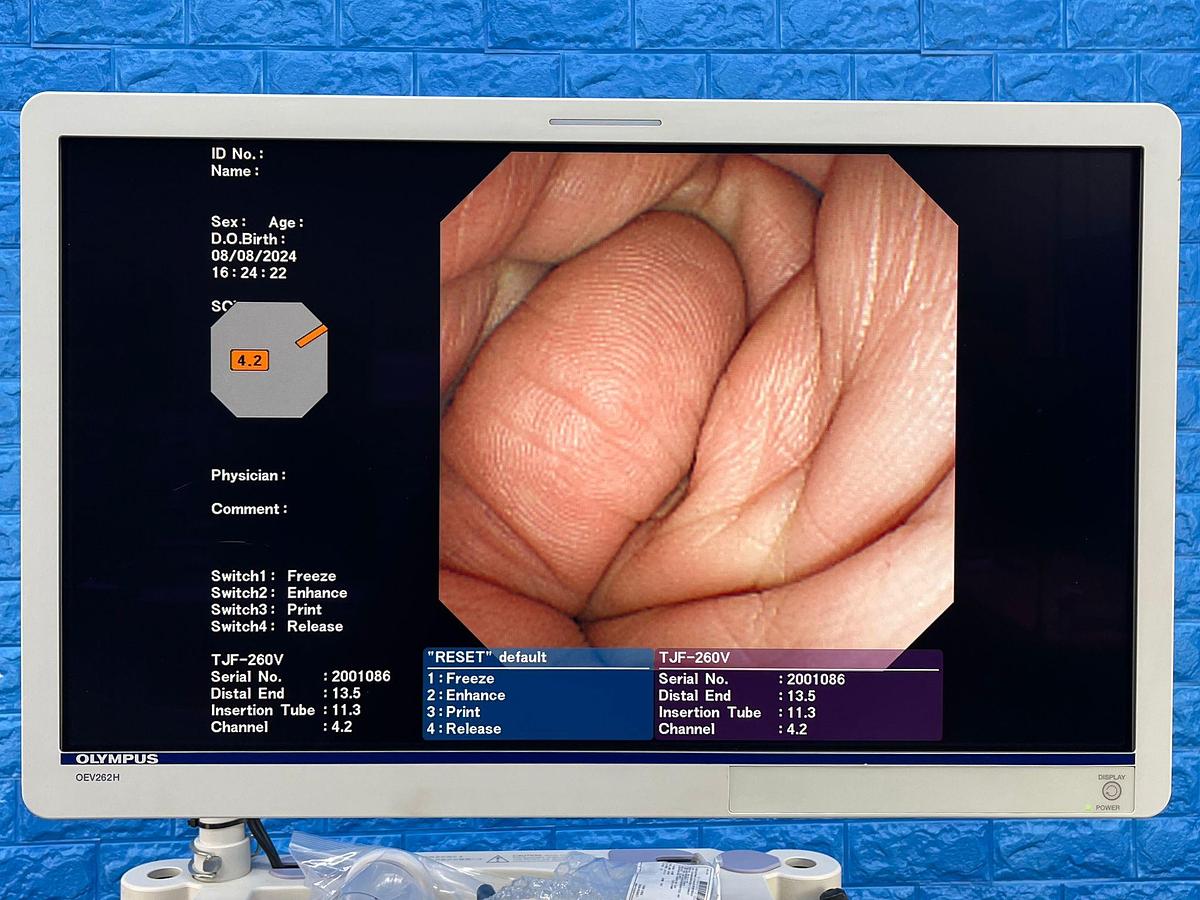

- Scope ID Function: A memory chip in the connector holds individual scope data and displays it on the monitor for better asset management.

Clinical Applications

The TJF-260V is primarily utilized in advanced gastroenterology for:

- ERCP (Endoscopic Retrograde Cholangiopancreatography): Bile and pancreatic duct cannulation.

- Therapeutic Interventions: Stent placement, stone removal, and stricture management.

- Diagnostic Imaging: High-resolution visualization of the papilla of Vater.

The Olympus TJF 260V Duodenoscope is a highly regarded endoscopic device used for diagnostic and therapeutic procedures within the gastrointestinal tract, specifically targeting the ampulla of Vater area. It offers precision and clarity that aids in the identification and management of bile duct and pancreatic duct issues. This used model continues to provide dependable performance while ensuring patient safety and comfort. This duodenoscope is designed with an ergonomic grip, enhancing control and maneuverability during procedures. Its high-definition optics allow for exceptional visualization, which is crucial for accurate diagnoses. The TJF 260V also incorporates advanced angulation capabilities, enabling physicians to navigate the complex anatomy of the duodenal papilla with ease. As a used device, it has been thoroughly inspected to ensure it meets industry standards for functionality and safety. This model maintains Olympus's reputation for durability and effectiveness in clinical settings. The TJF 260V is a valuable tool for medical professionals aiming to deliver precise and efficient care in endoscopic procedures.
