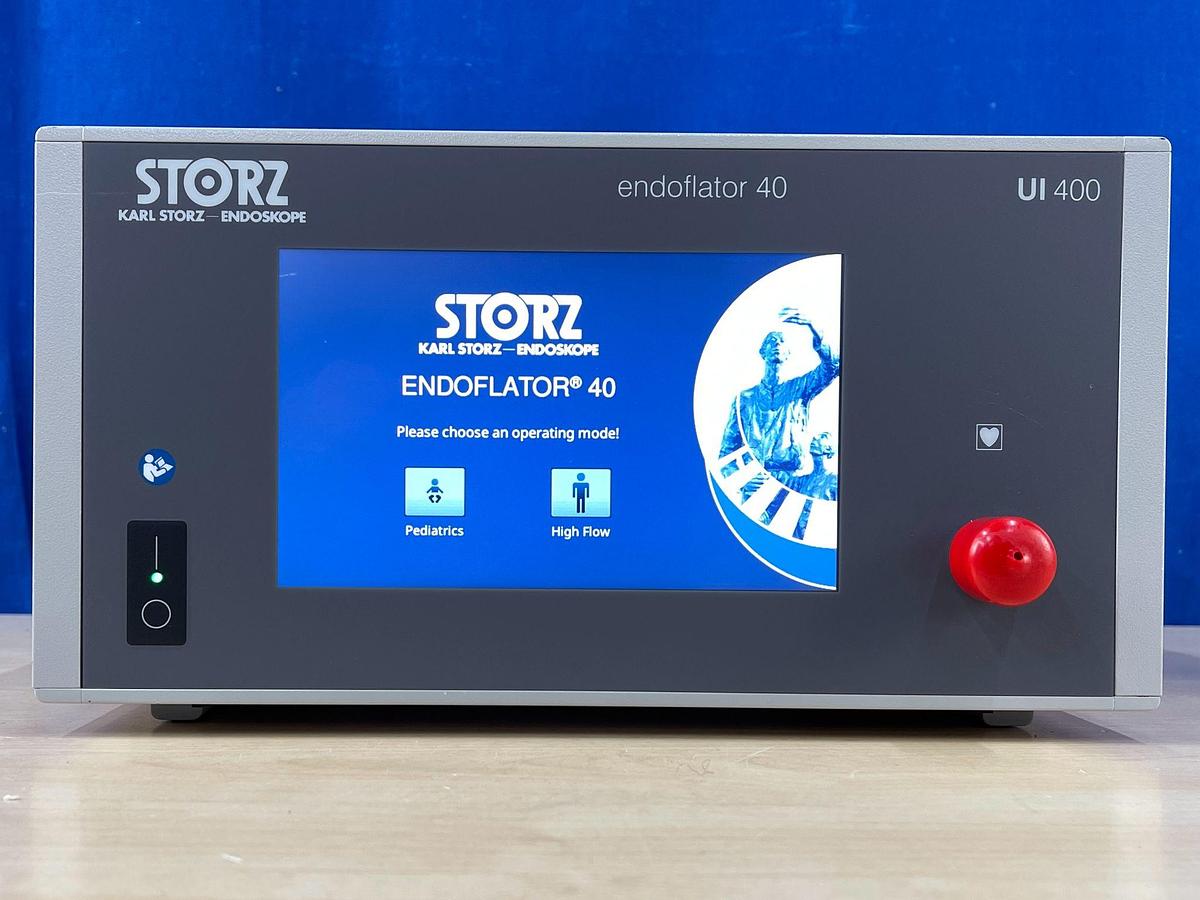

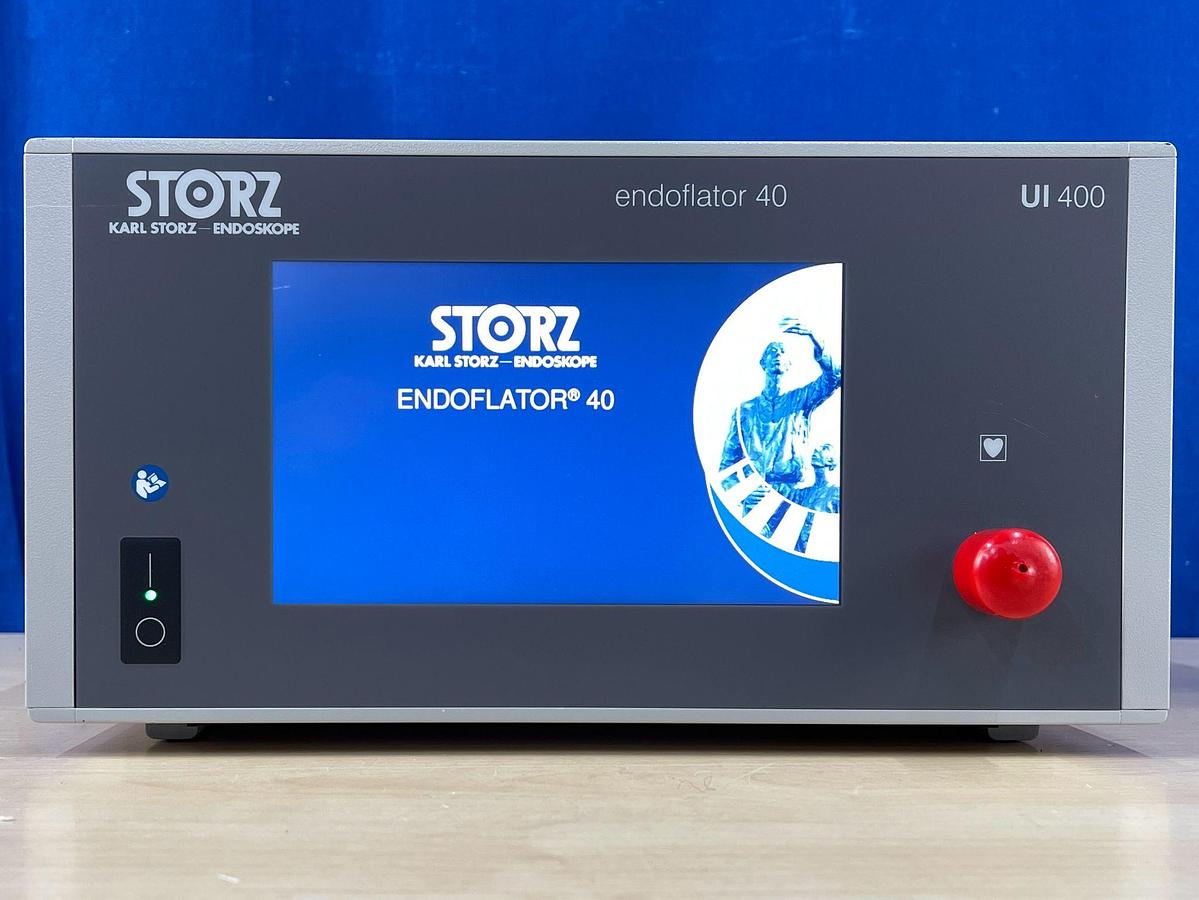

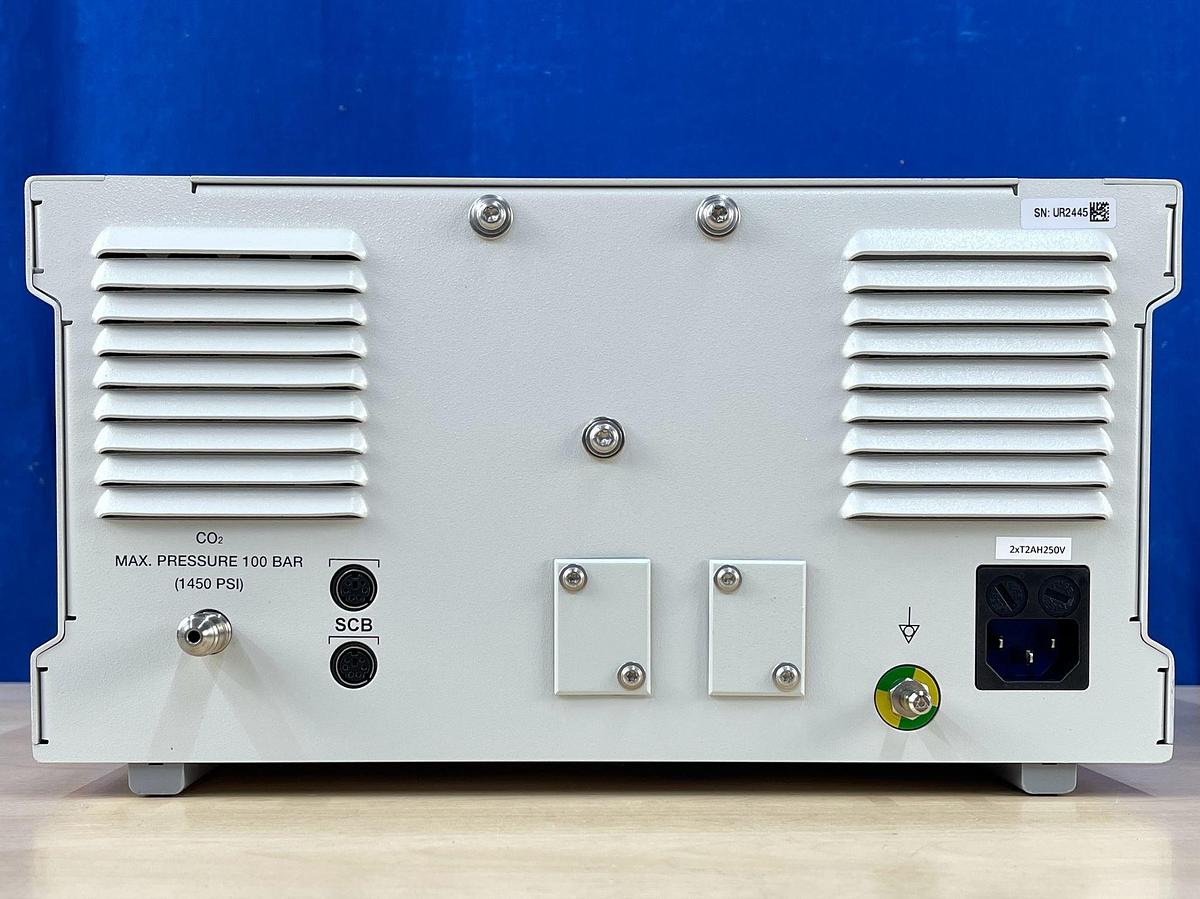

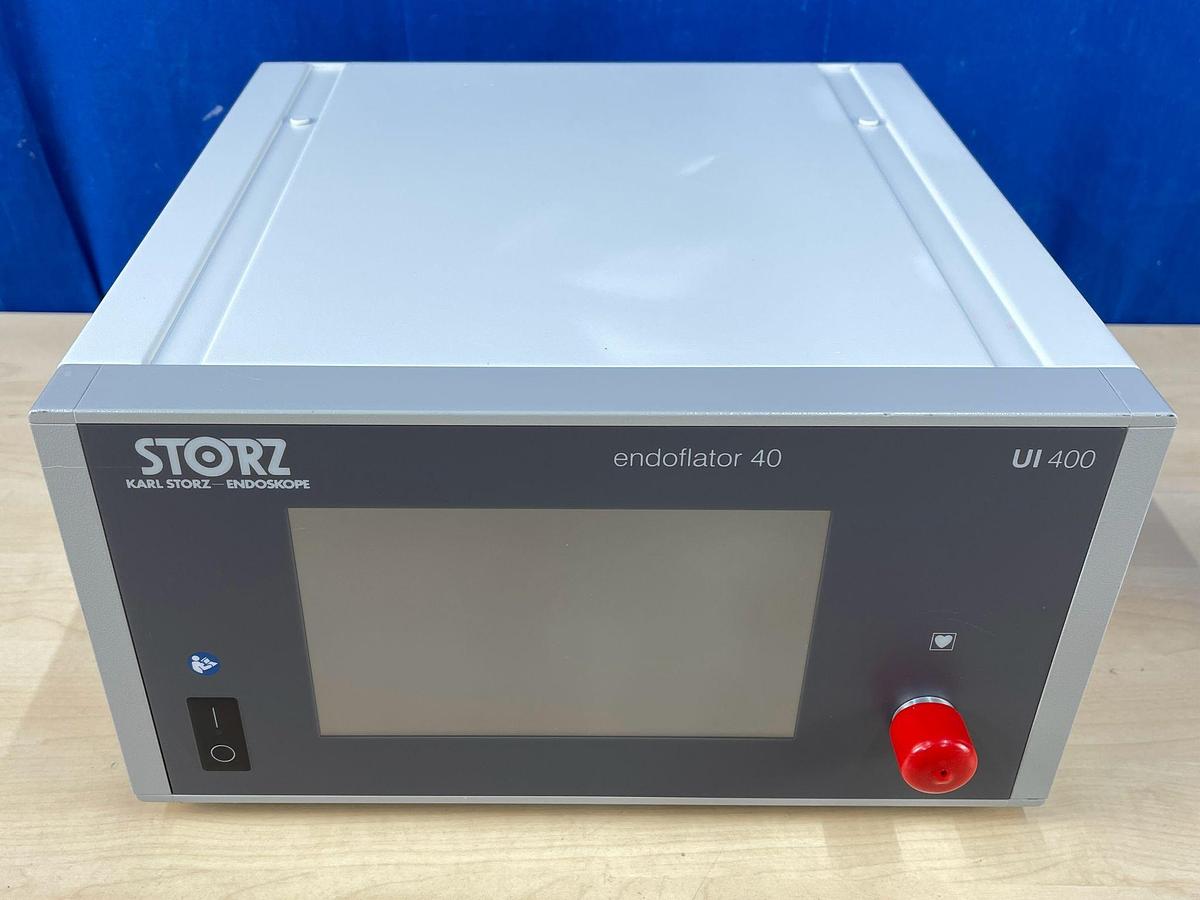

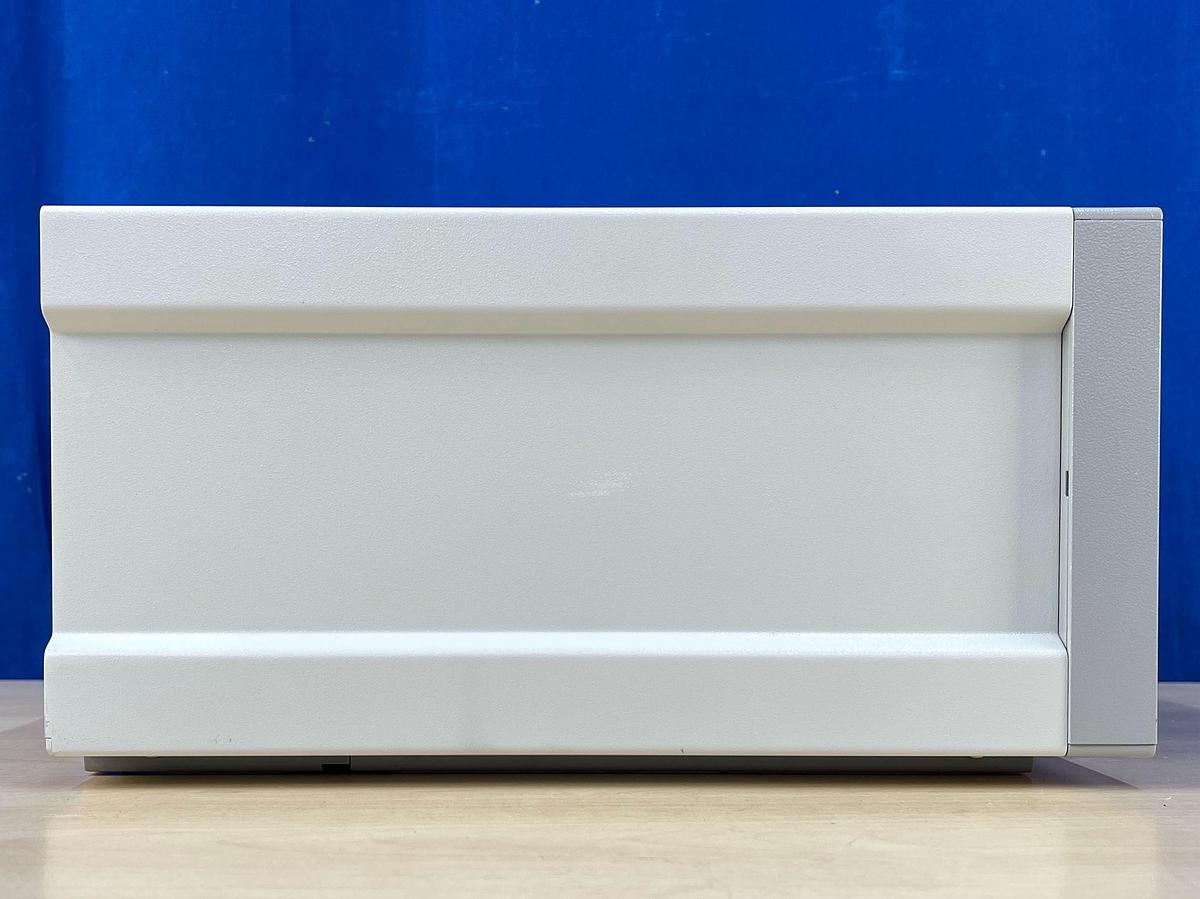

KARL STORZ Endoflator 40 UI400

In good working condition.

Includes:

- KARL STORZ Endoflator 40 UI400

We ship worldwide.

Please get back to us for further queries.

WE SPEAK ENGLISH -HABLAMOS ESPAÑOL -WIR SPRECHEN DEUTSCH.

The KARL STORZ ENDOFLATOR® 40 (Model UI400) is a high-flow, electronically controlled CO2 insufflator designed for endoscopic procedures, including laparoscopy, pediatrics, and endoscopy. It features a maximum insufflation pressure of 30 mmHg (15 mmHg in pediatrics) and a maximum flow rate of 40 l/min.

Technical Specifications

- Dimensions: 305 mm (W) x 164 mm (H) x 315 mm (D)

- Weight: 7.4 kg

- Flow Capacity: Up to 40 l/min (High Flow)

- Pressure Range: 1-30 mmHg (High Flow), 1-15 mmHg (Pediatrics)

- Power Supply: 100 – 240 VAC (50/60 Hz)

- Power Input: 160 Watt

- Max Gas Input Pressure: 100 bar

- Classification: IP21 (Protection Class I, Type CF)

Key Features & Capabilities

- High Flow & Pediatric Modes: Allows for rapid abdominal filling (High Flow) or low-pressure, fine-tuned insufflation (Pediatrics).

- SCB Communication: Equipped with KARL STORZ Communication Bus (SCB) to interact with other OR devices.

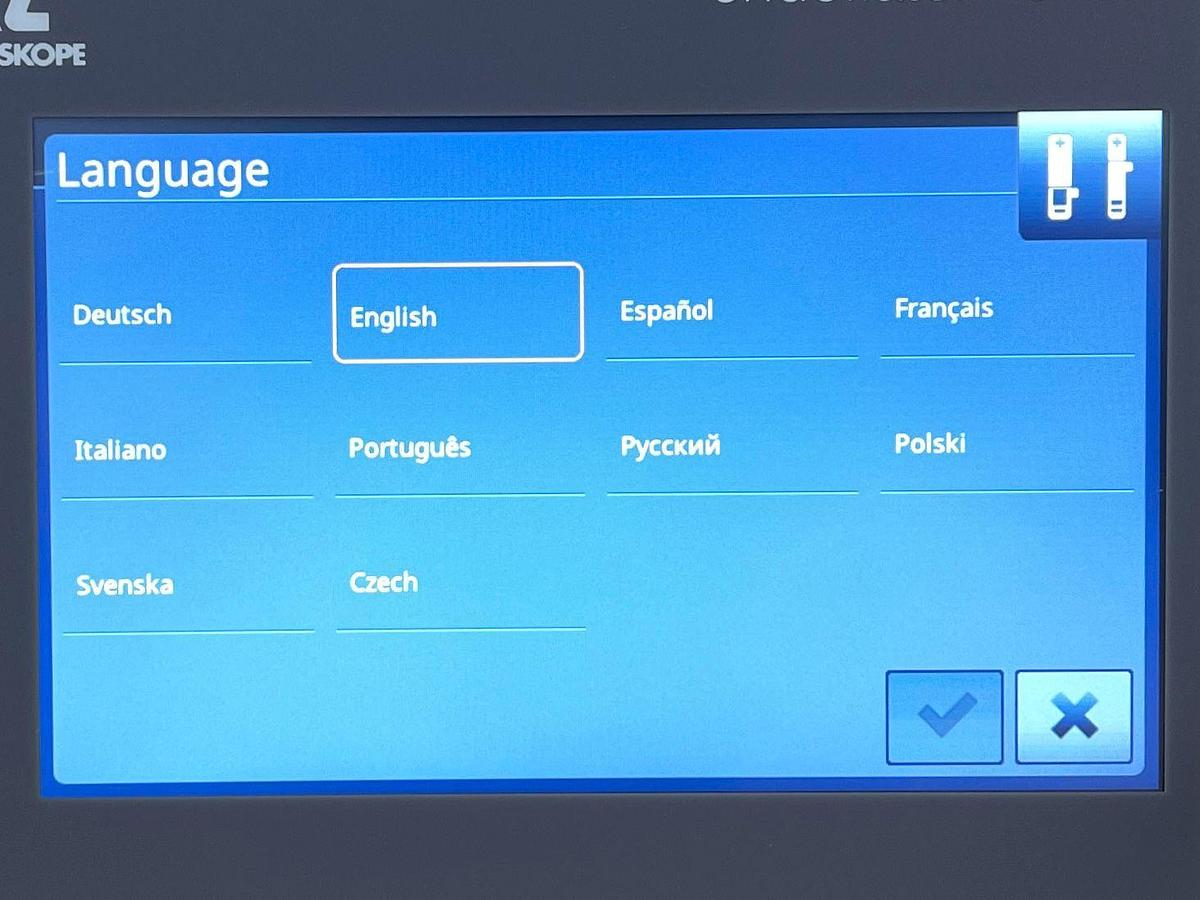

- User Interface: Touch screen interface for easy navigation and control.

- Safety System: Features the SECUVENT® system to relieve potential intra-cavity overpressure.

- Sterilisation/Cleaning: Designed for surface wipe disinfection.

- Gas Consumption: Optimised for high-flow, low-consumption usage in laparoscopy.

System Compatibility

- SCB Requirements: Requires SCB control NEO system, Software Release 20090001-45 or higher.

- Accessories: Compatible with standard KARL STORZ CO2 tubing sets (e.g., UI004).

- Camera Platform: Compatible with IMAGE1 S™ camera platform for integrated OR management.

The KARL STORZ Endoflator 40 UI400 is a reliable piece of equipment designed for use in laparoscopy. It is used to insufflate gas into the abdominal cavity, creating the necessary working space for laparoscopic procedures. This device is known for its precision and ease of operation, ensuring that medical professionals can achieve optimal results during surgeries. This model features intuitive controls that allow users to set and adjust pressure and flow settings with accuracy, meeting the needs of various surgical procedures. The Endoflator 40 UI400 is constructed with high-quality materials to ensure durability and performance, making it a sound choice for any clinical setting. It also supports enhanced safety features that help maintain desired pressure levels, minimizing any potential risks associated with insufflation. As a used piece of equipment, it has been inspected to ensure it operates to the high standards expected of KARL STORZ products. Overall, it presents a cost-effective solution for medical facilities seeking reliable laparoscopic tools without compromising on quality.
