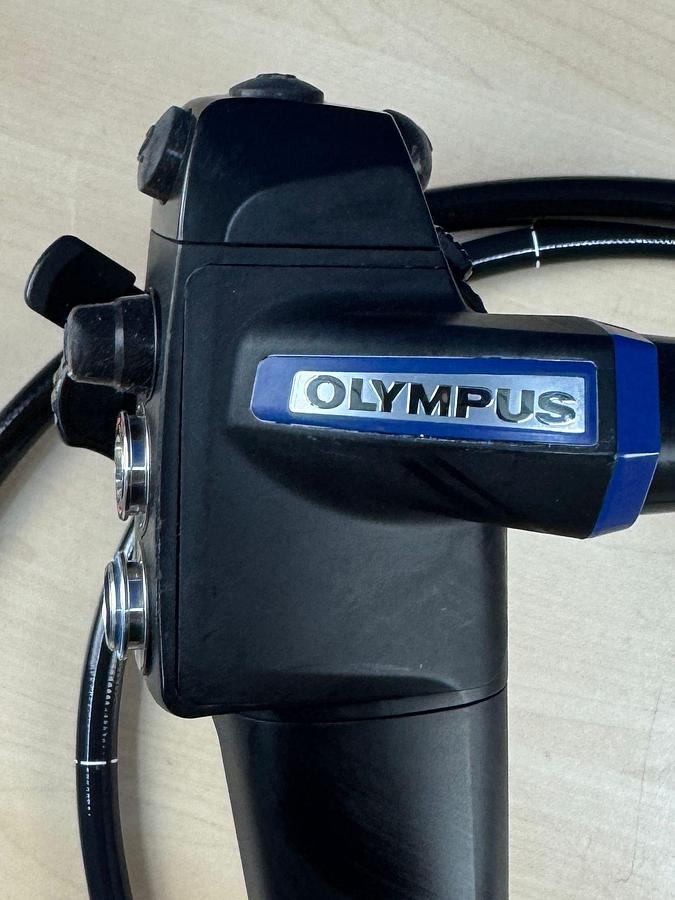

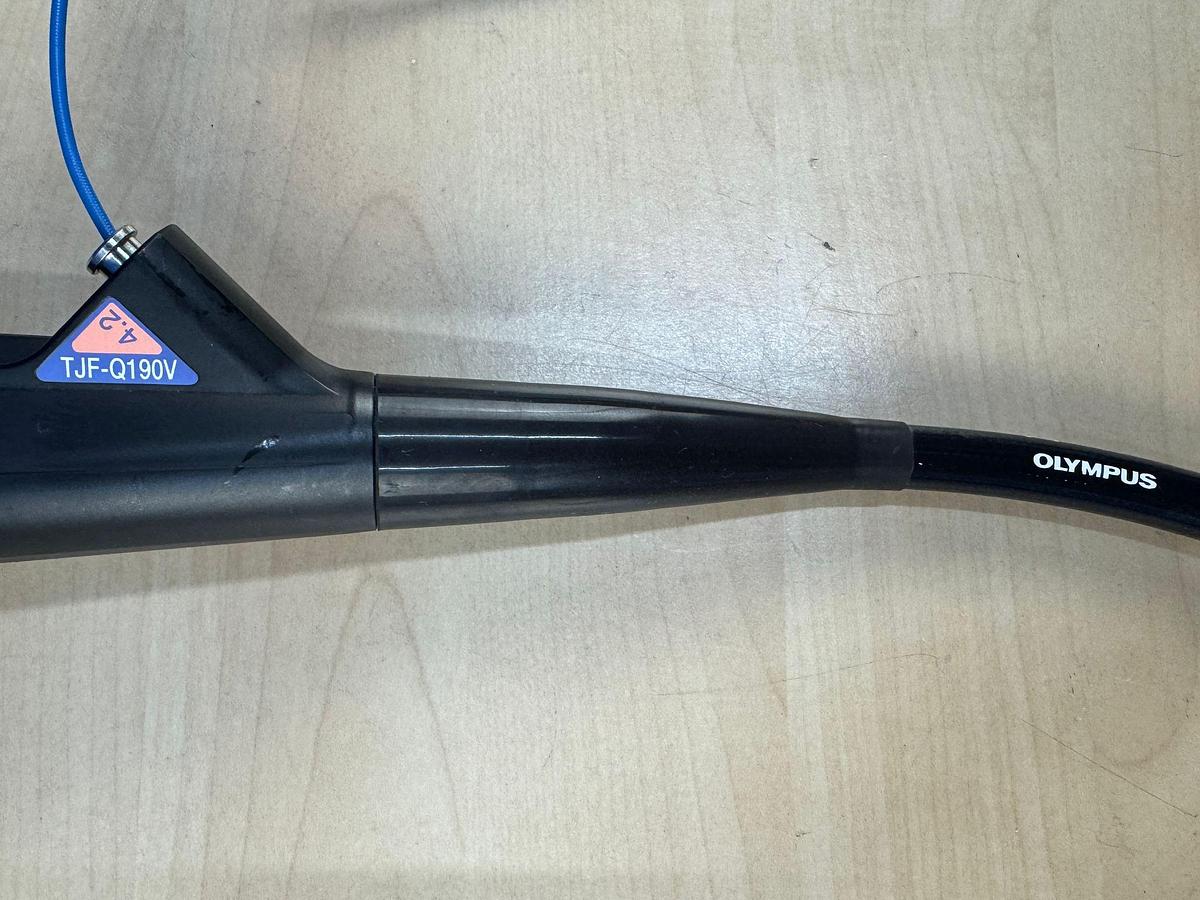

Olympus Scope Model: TJF-Q190V

In good working condition.

Includes:

- Olympus Scope Model: TJF-Q190V

Report:

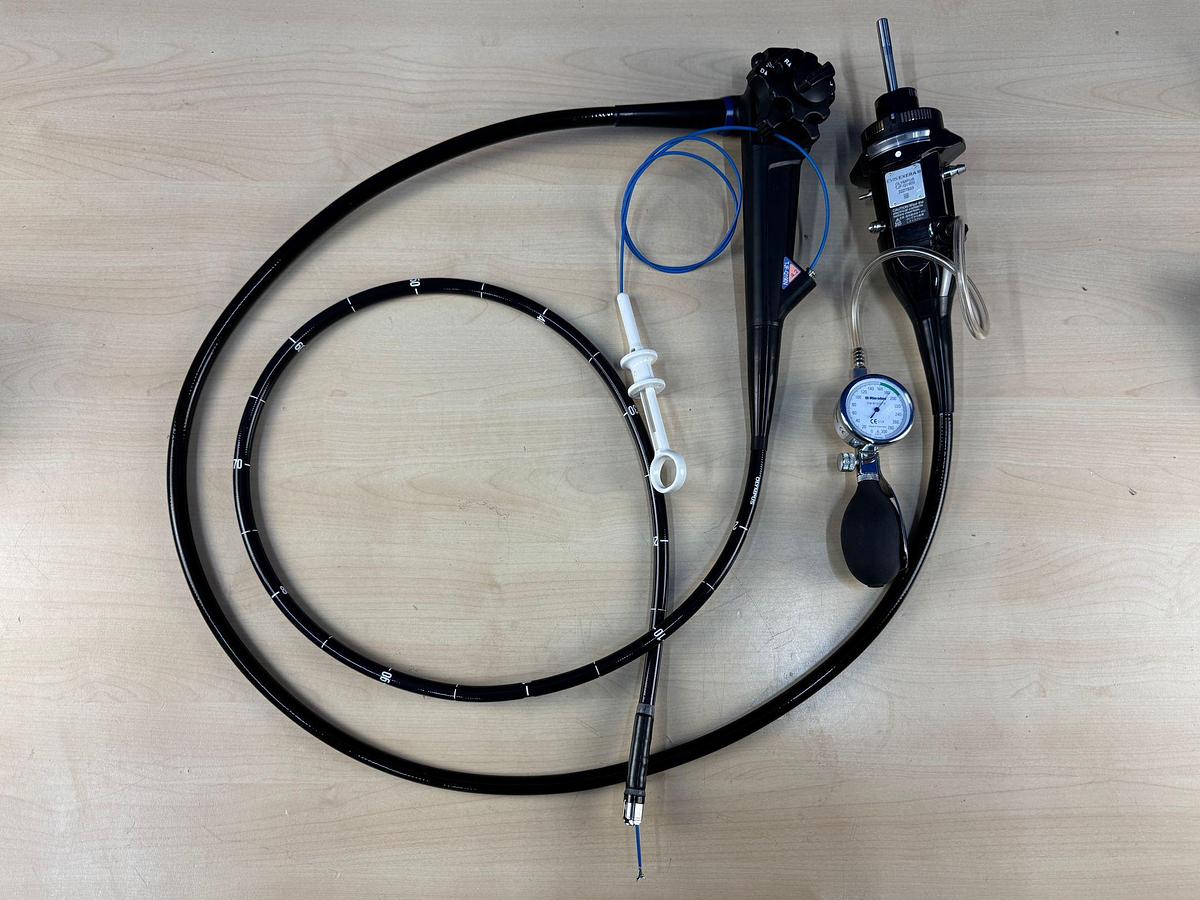

- Leak Test: Pass

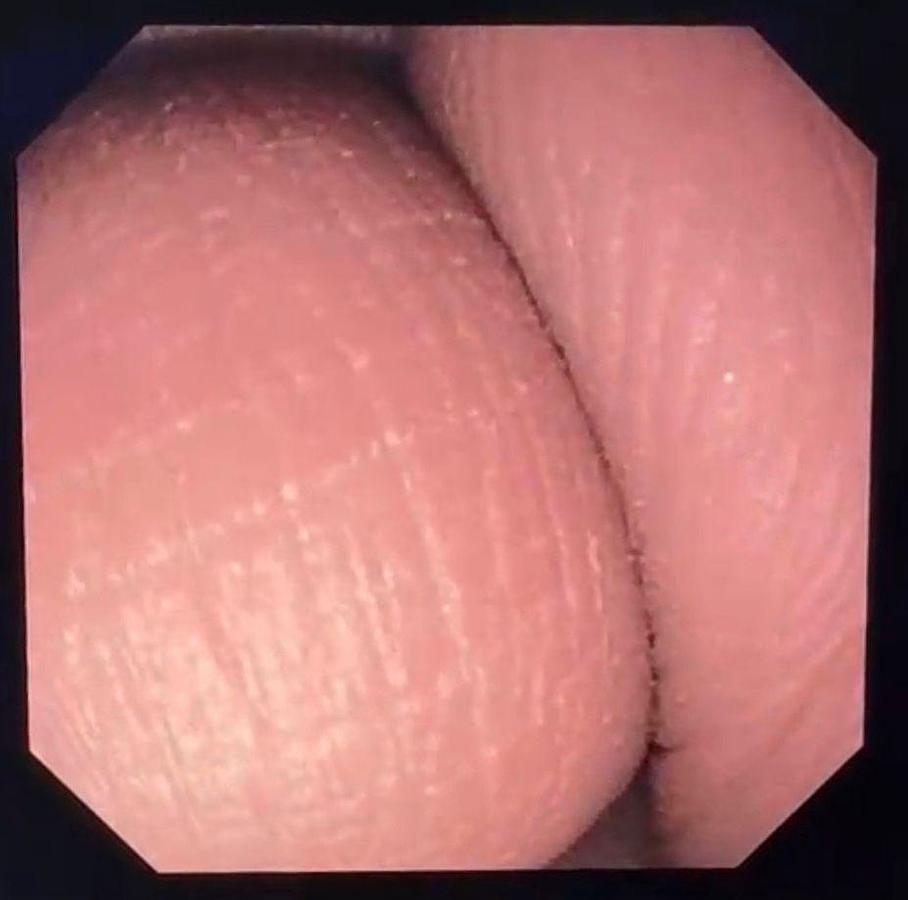

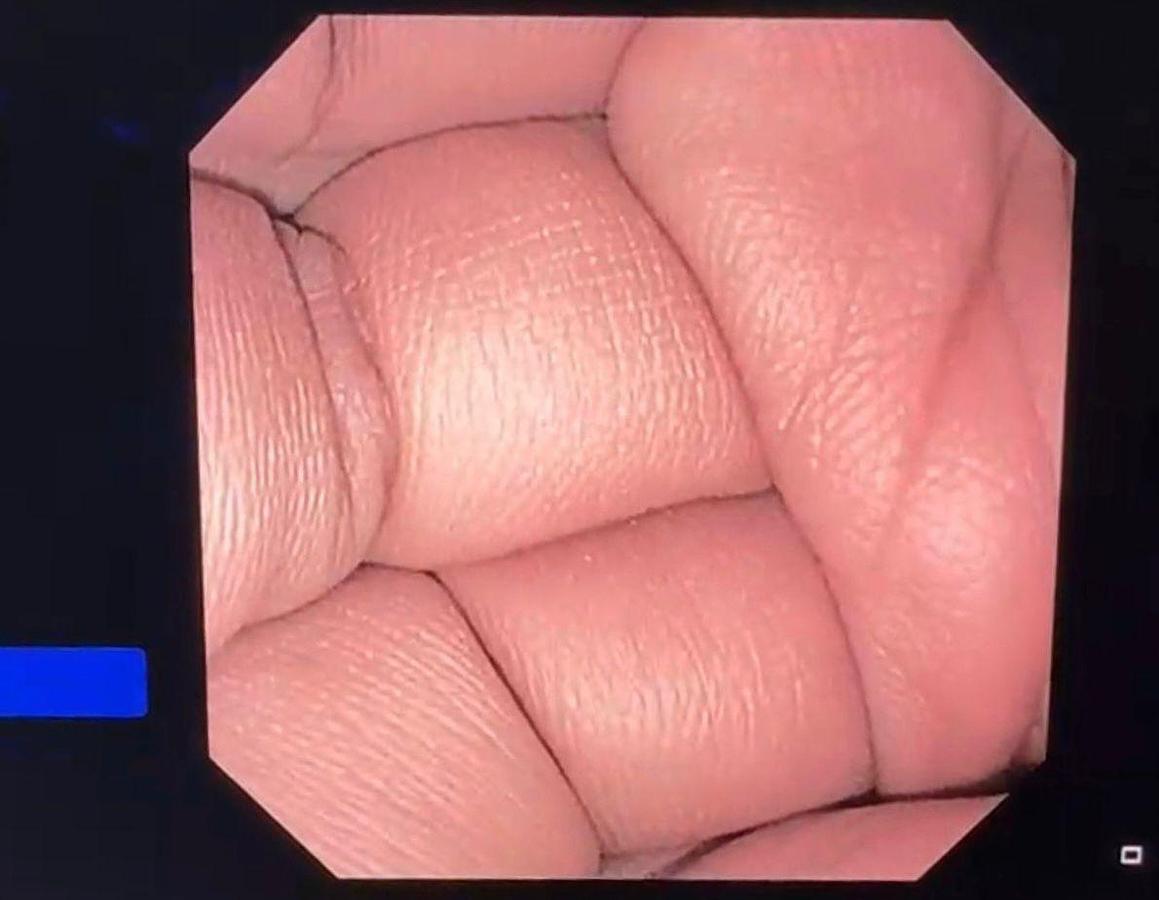

- Image Test: Pass

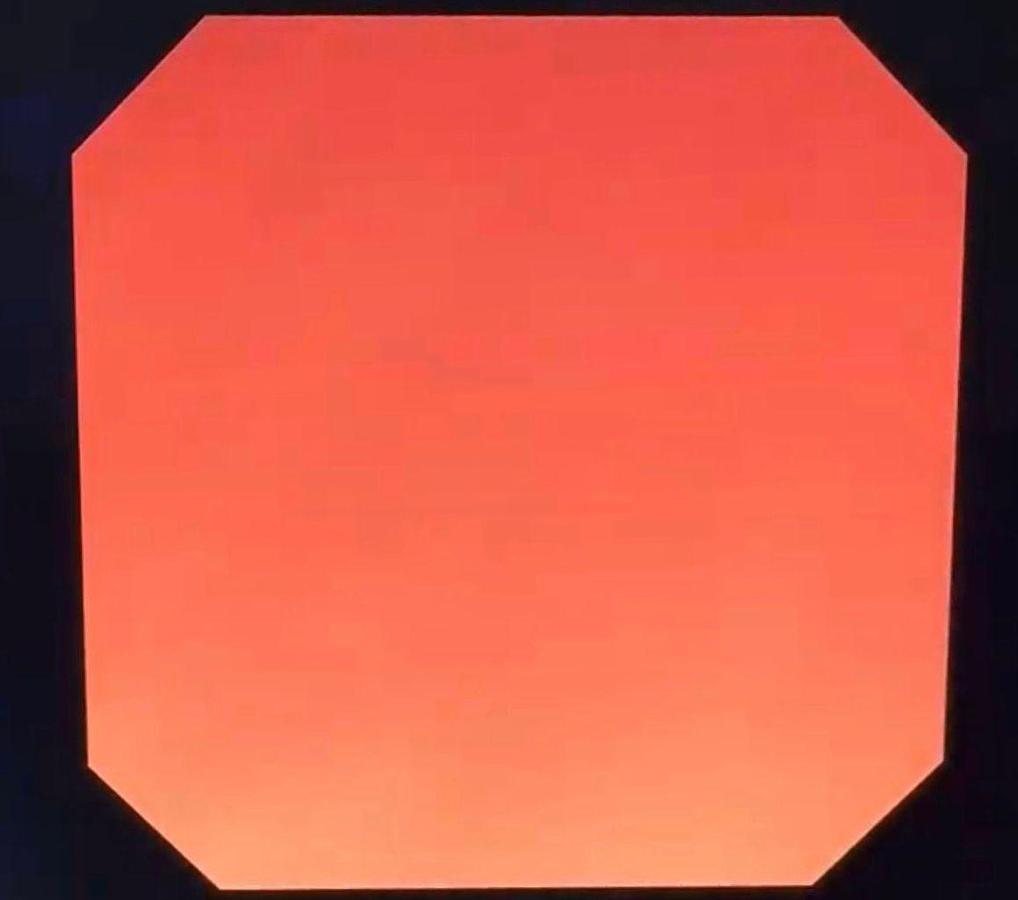

- Light Guide: Pass

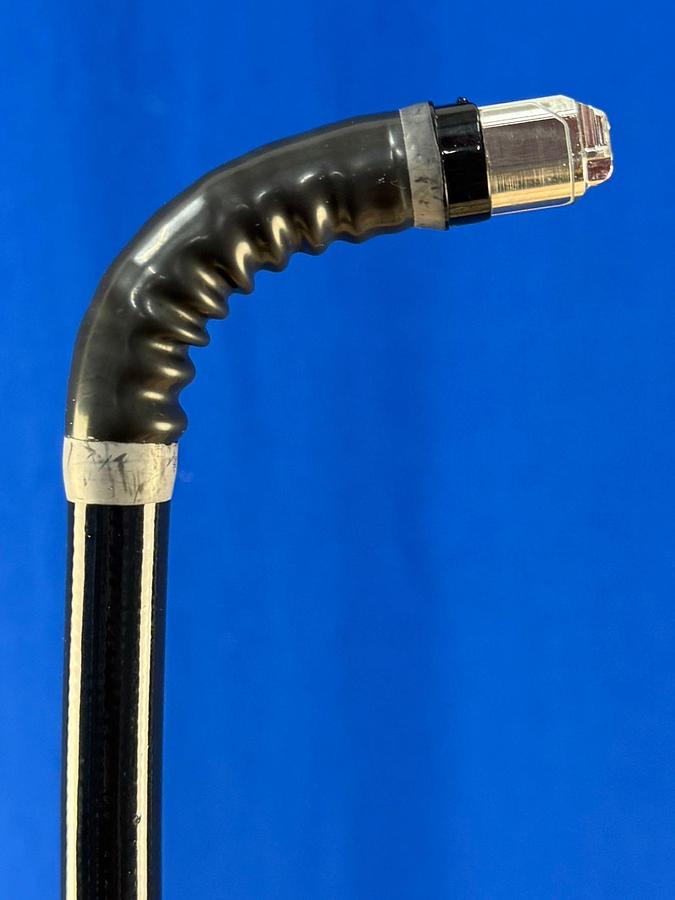

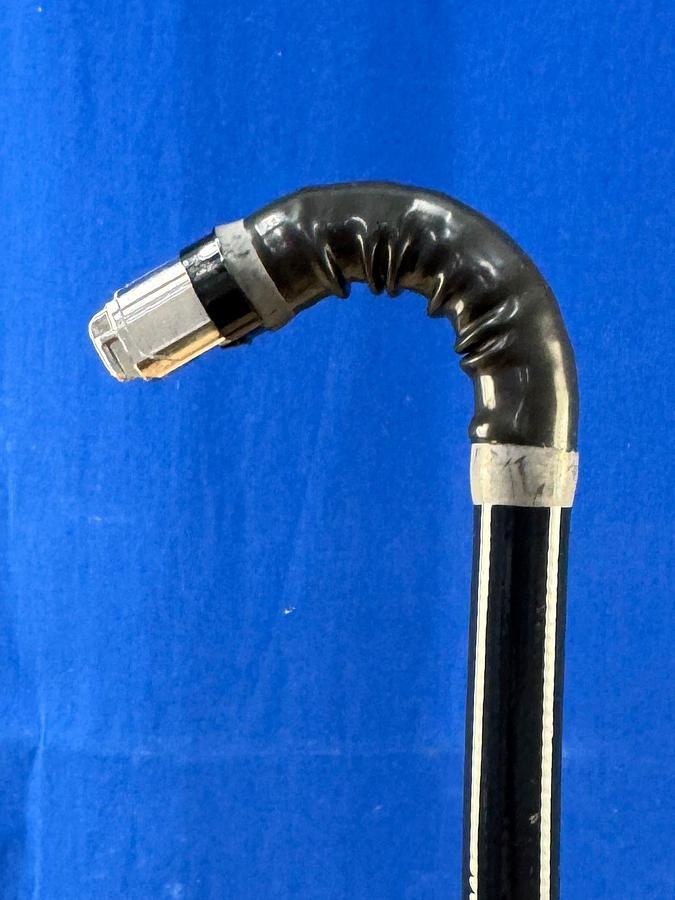

- Angulation Test: Pass

We ship worldwide.

Please get back to us for further queries.

WE SPEAK ENGLISH -HABLAMOS ESPAÑOL -WIR SPRECHEN DEUTSCH.

The Olympus TJF-Q190V is a next-generation therapeutic video duodenoscope designed for Endoscopic Retrograde Cholangiopancreatography (ERCP), featuring enhanced imaging, improved maneuverability, and advanced infection control mechanisms. It is designed to meet FDA recommendations for using disposable components to facilitate easier and more thorough reprocessing.

Key Technical Specifications

- Field of View: 100°

- Direction of View: 15° Backward side viewing

- Depth of Field: 5 to 60 mm

- Distal End Outer Diameter: 13.5 mm

- Insertion Tube Outer Diameter: 11.3 mm

- Working Length: 1,240 mm

- Channel Inner Diameter: 4.2 mm

- Angulation Range: Up 120°, Down 90°, Right 110°, Left 90°

- Mayo Clinic School of Continuous Professional Development

Key Features & Clinical Benefits

- Disposable Distal Cover (MAJ-2315): Enhances patient safety by allowing for better access to the forceps elevator during manual cleaning and is replaced after each procedure.

- Improved Cannulation: Utilizes a square image shape and 15° backward viewing for an expanded vertical field of view, designed to improve cannulation efficiency.

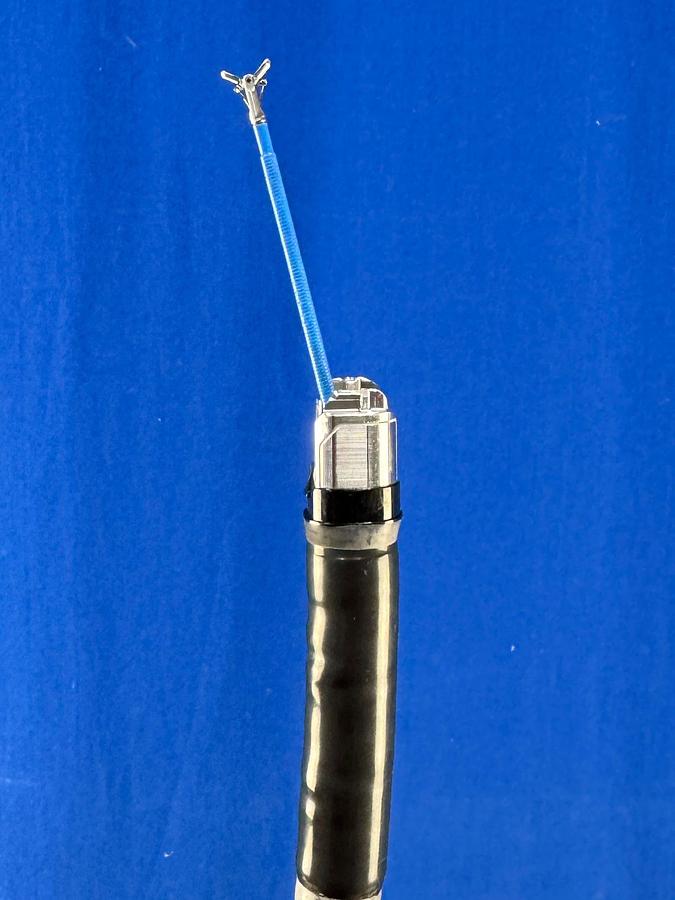

- Guidewire Locking: Features a dual-system at the distal end for secure, one-person, short-guidewire locking (0.035 and 0.025 inch).

- High Force Transmission (HFT): Provides better scope responsiveness and maneuverability, allowing for improved control during complex anatomy navigation.

- Distal-end Flushing Adaptor (MAJ-2319): Ensures controlled, direct, and efficient cleaning of the elevator mechanism during reprocessing.

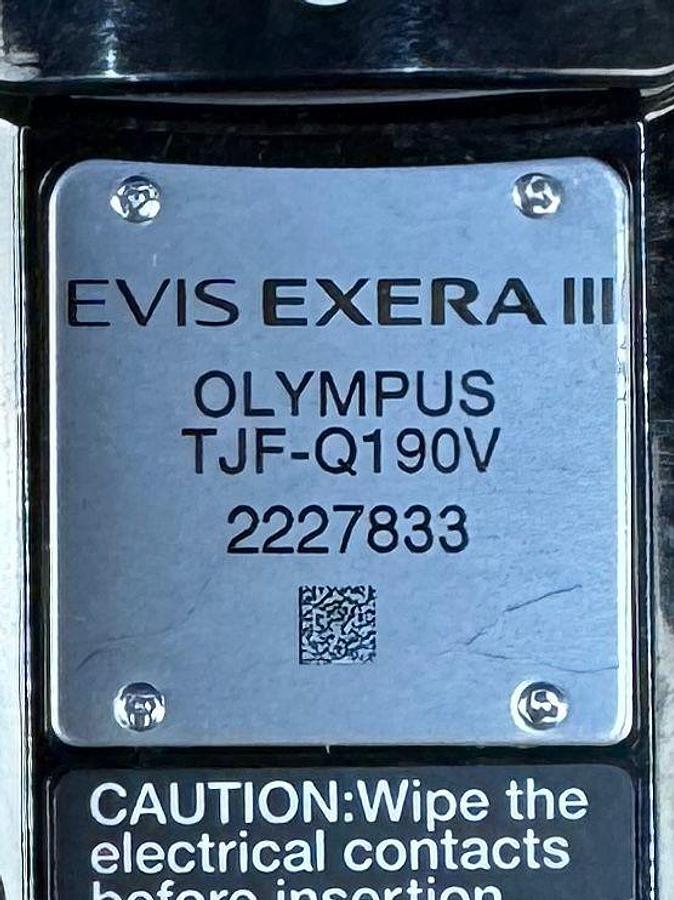

- Image Quality: Compatible with the EVIS EXERA III system, providing bright, clear, high-quality images with Narrow Band Imaging (NBI).

Reprocessing and Compatibility

- Compatibility: Designed for use with the Olympus CV-190 or CV-1500 video system centers and CLV-190 xenon light source.

- Reprocessing: Features a, waterproof one-touch connector that reduces the risk of water damage and eliminates the need for a separate water-resistant cap.

- FDA Alignment: The design aligns with FDA recommendations for reducing infection risk through disposable components.

The Olympus TJF-Q190V endoscope is a robust piece of medical equipment perfect for advanced endoscopic procedures. It features a high-quality imaging system that ensures precise visualization during examinations. This model is designed for efficiency in therapeutic and diagnostic procedures, offering exceptional image clarity and sharpness. The TJF-Q190V has been engineered for flexibility and ease of use, ensuring that even complex tasks can be performed smoothly. The insertion tube is durable and made for repeated use in clinical settings. Despite being a used model, this scope remains in excellent condition, providing reliable performance consistent with Olympus's high standards. For those looking for advanced imaging capability in endoscopy, the Olympus TJF-Q190V is an excellent choice. It balances performance with dependability, offering advanced features sought in modern medical diagnostics.
