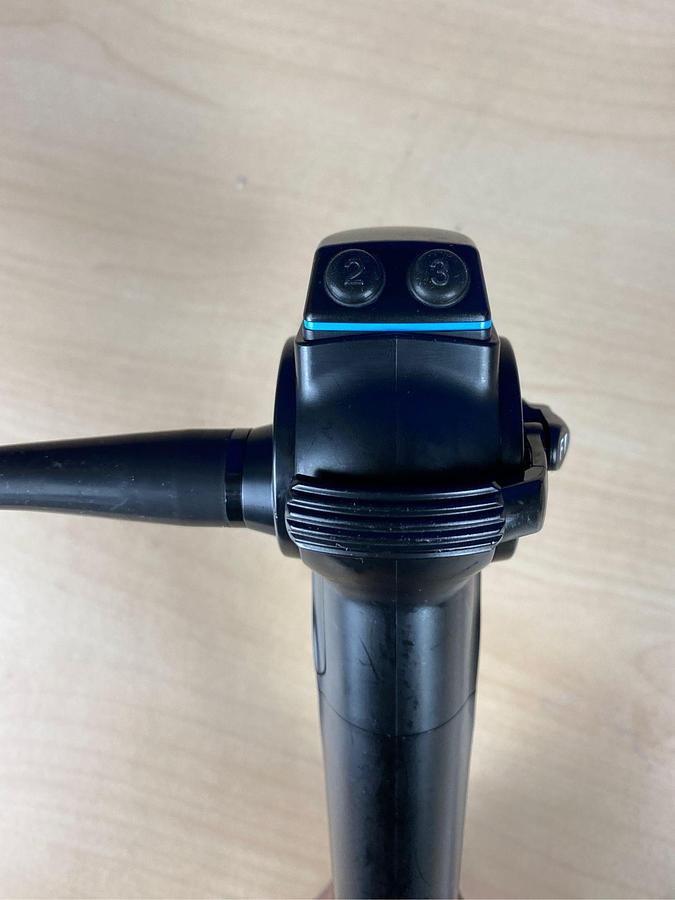

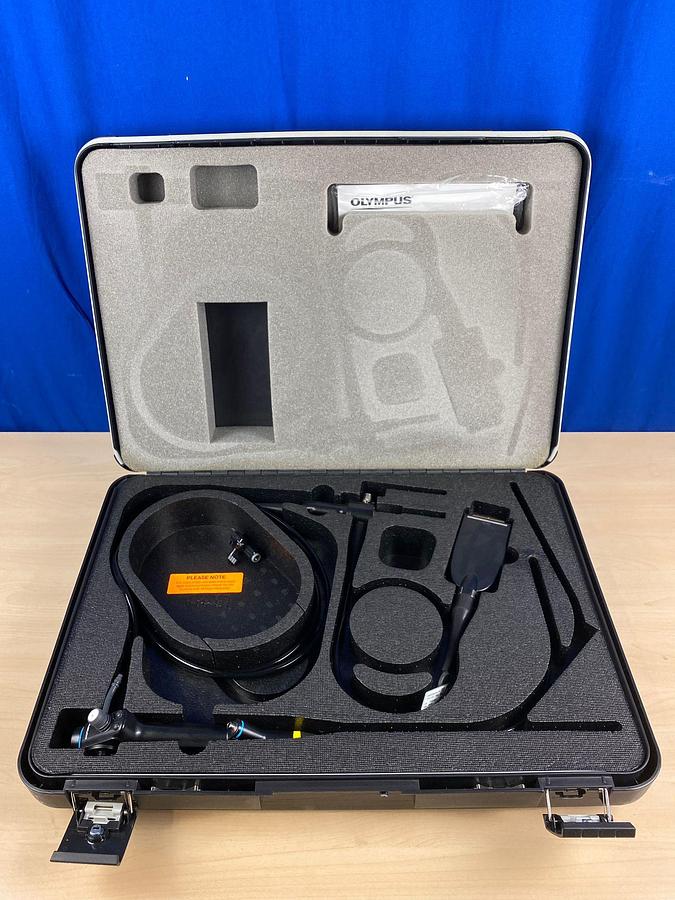

OLYMPUS CHF-V Choledochoscope

In good working condition.

Includes:

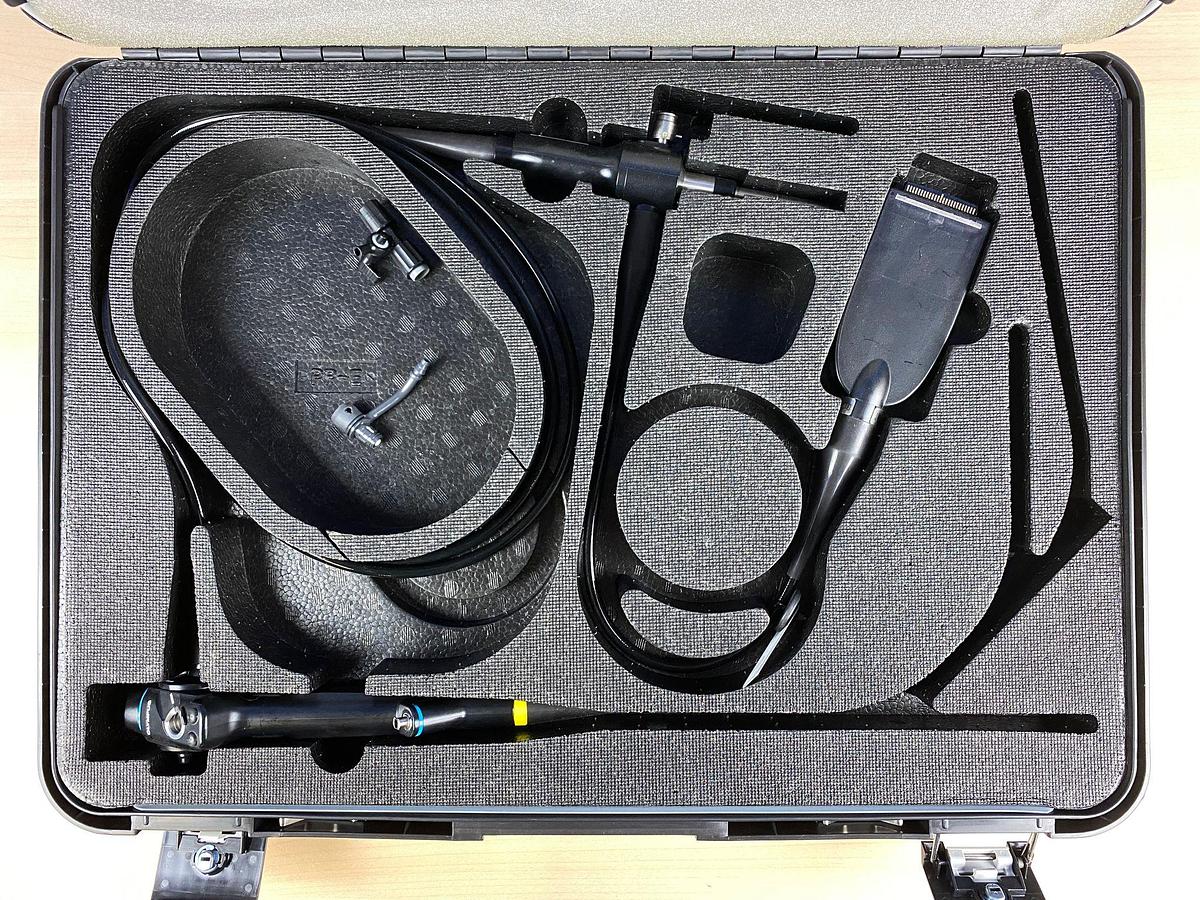

- OLYMPUS CHF-V Choledochoscope

Report:

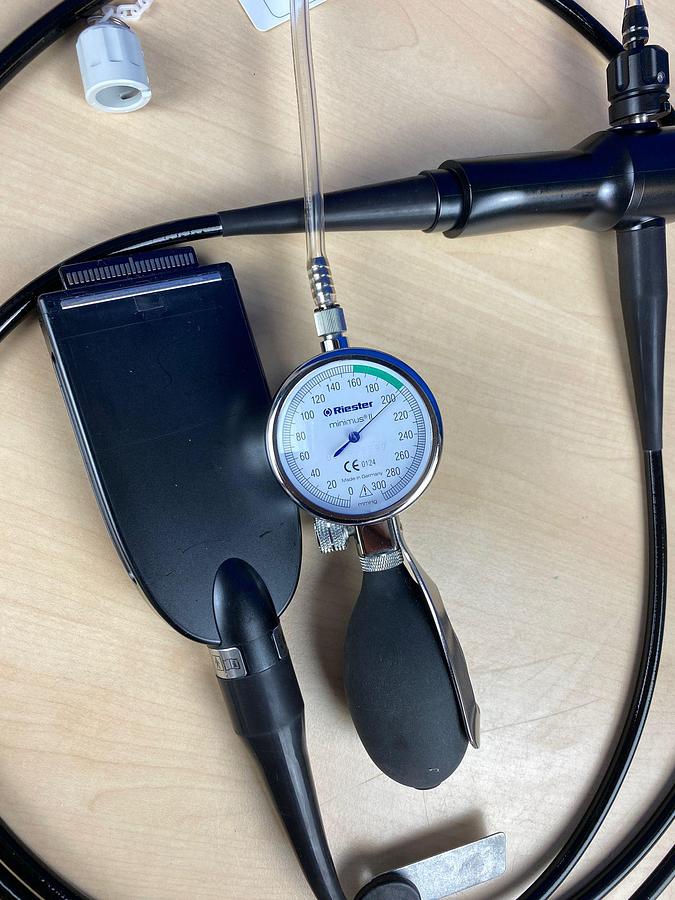

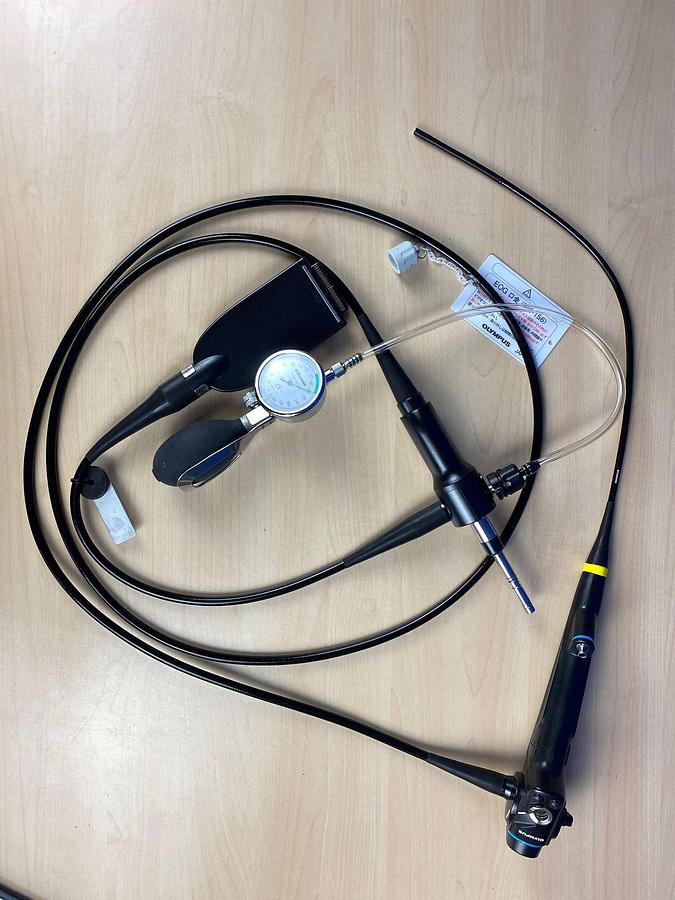

-Leak Test: Pass

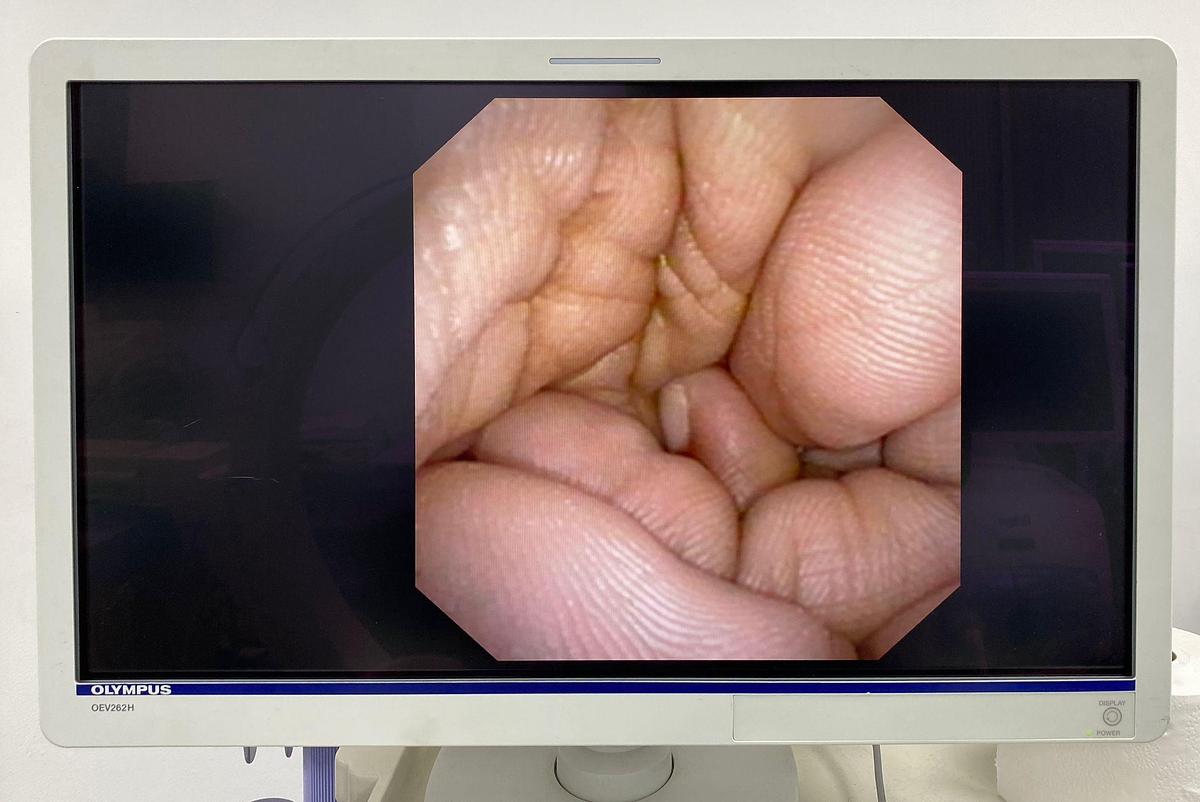

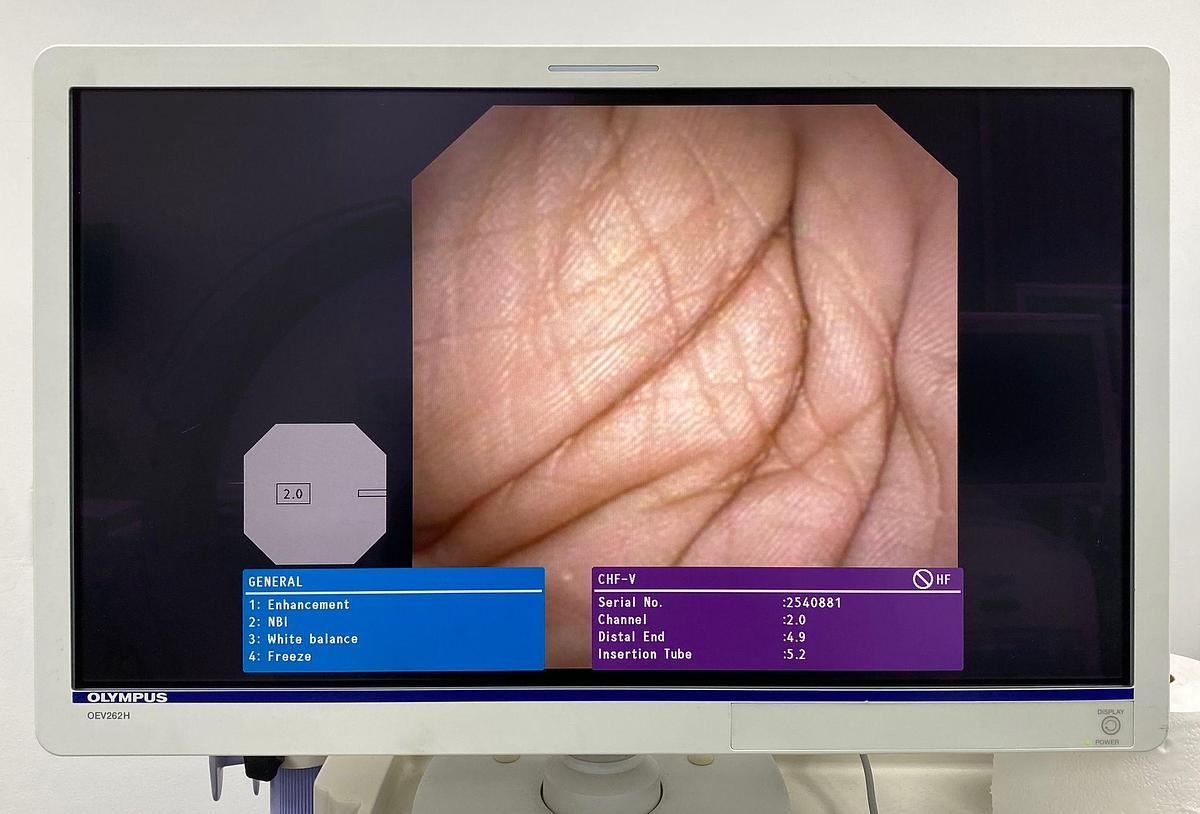

-Image Test: Pass

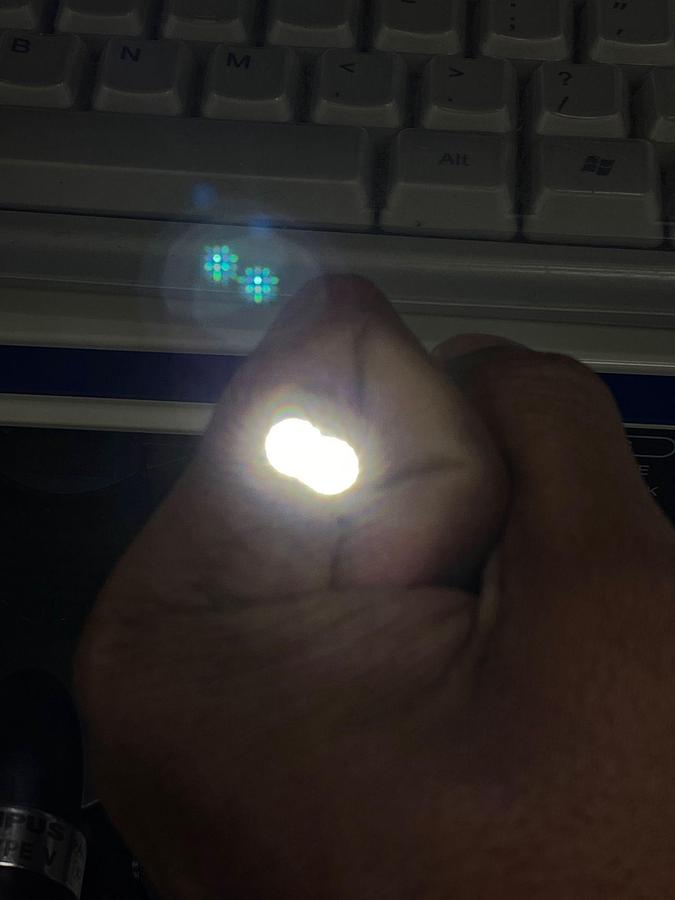

-Light Guide: Pass

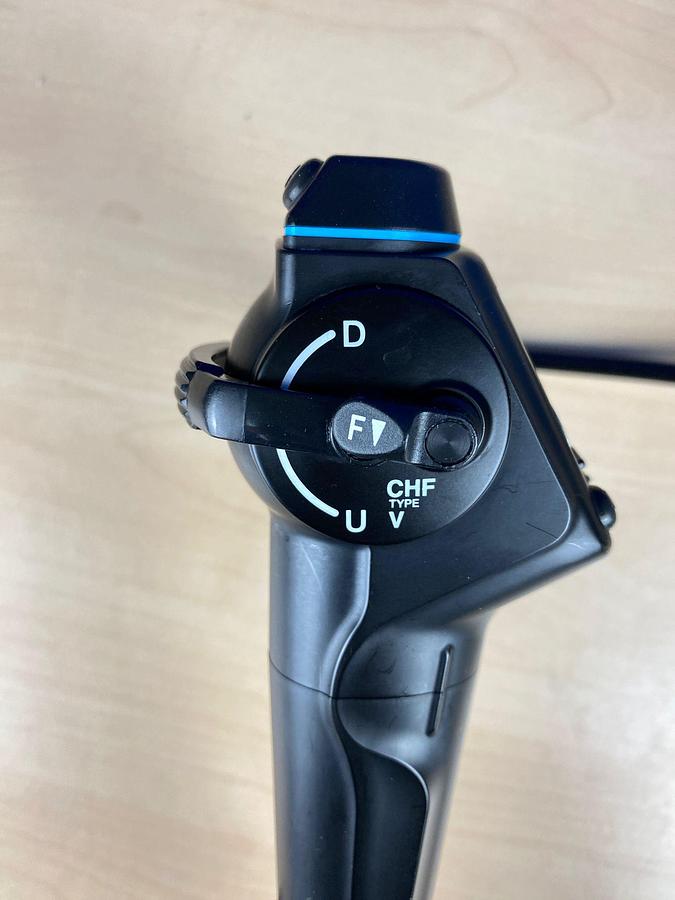

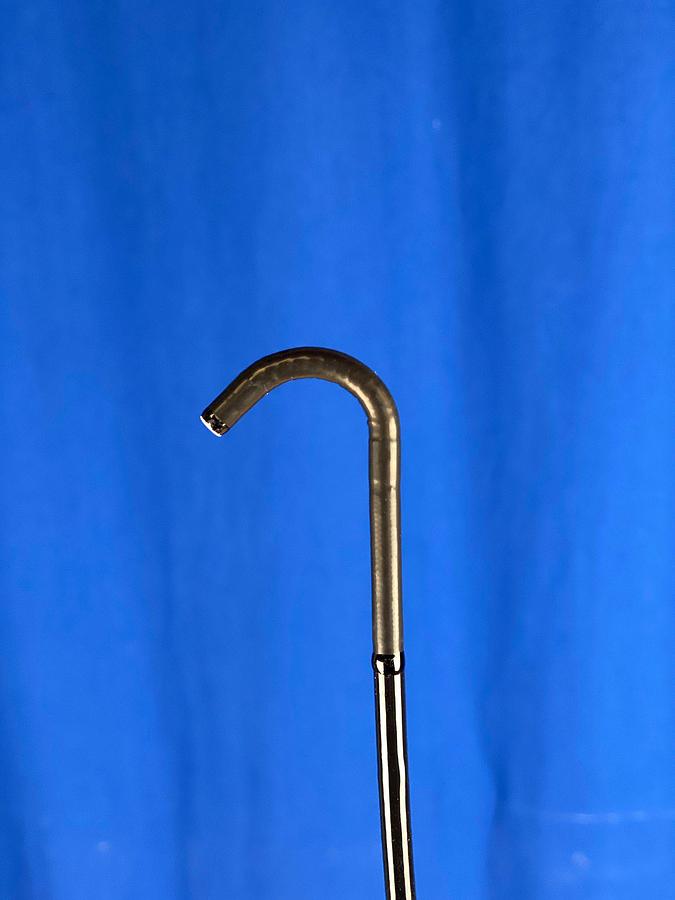

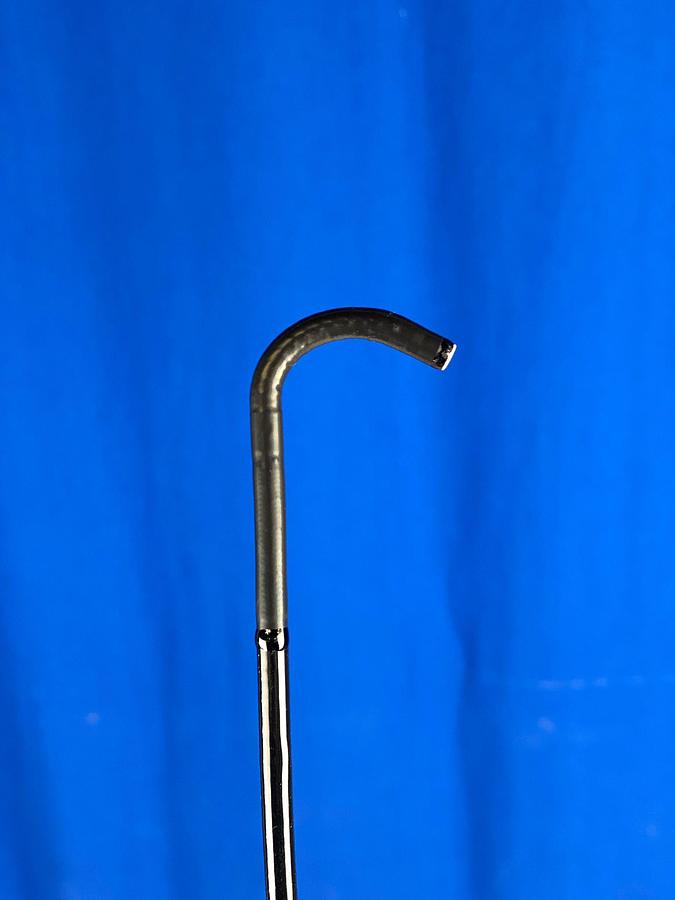

-Angulation Test: Pass

We ship worldwide.

Please get back to us for further queries.

WE SPEAK ENGLISH -HABLAMOS ESPAÑOL -WIR SPRECHEN DEUTSCH.

The OLYMPUS CHF-V Choledochoscope is a flexible video endoscope used for endoscopic diagnosis and treatment within the bile duct, featuring a CCD camera at the tip for high-quality imaging and a deep depth of field.

Key Technical Specifications

- Field of View 120°

- Direction of ViewForward viewing

- Depth of Field3–50 mm

- Distal End Outer Diameter4.9 mm

- Insertion Tube Outer Diameter5.2 mm

- Instrument Channel Inner Diameter2.0 mm

- Working Length380 mm

- Total Length660 mm

- Angulation Range (Up/Down)160° / 130°

Key Features

- Advanced Imaging: Employs a CCD (Charge-Coupled Device) on the tip for high-resolution, multi-color, and less distorted images, which is an improvement over conventional fiberscopes.

- Enlarged Depth of Field: A key benefit is the extended depth of field (3-50mm), which eliminates the need for inconvenient intra-operative focusing.

- Compatibility: The choledochoscope is compatible with Olympus video systems such as the EVIS EXERA II and VISERA Pro, allowing it to integrate into existing endoscopy setups.

- Minimally Invasive Design: Designed for percutaneous biliary tract surgery and provides access for various EndoTherapy accessories like biopsy and grasping forceps through its 2.0 mm channel.

The OLYMPUS CHF-V Choledochoscope is a high-quality medical device designed for endoscopy procedures. Manufactured by Olympus, this used choledochoscope offers reliable performance for examining the bile duct. It is expertly engineered to assist medical professionals in diagnosing and managing conditions related to the biliary system. This model is known for its precise imaging capabilities, making it a critical tool in clinical settings. The CHF-V provides clear visual access, ensuring that healthcare providers can accurately assess areas of interest. Although it's a used item, it maintains the exceptional standards expected of Olympus products, renowned for their durability and functionality in medical environments. Ideal for hospitals and clinics, the CHF-V Choledochovideoscope delivers excellent results with ease of use. Its design is optimized for seamless integration into existing endoscopy suites. For those in need of a reliable endoscopic solution, this Olympus choledochovideoscope offers a dependable and cost-effective option for enhancing diagnostic procedures.
