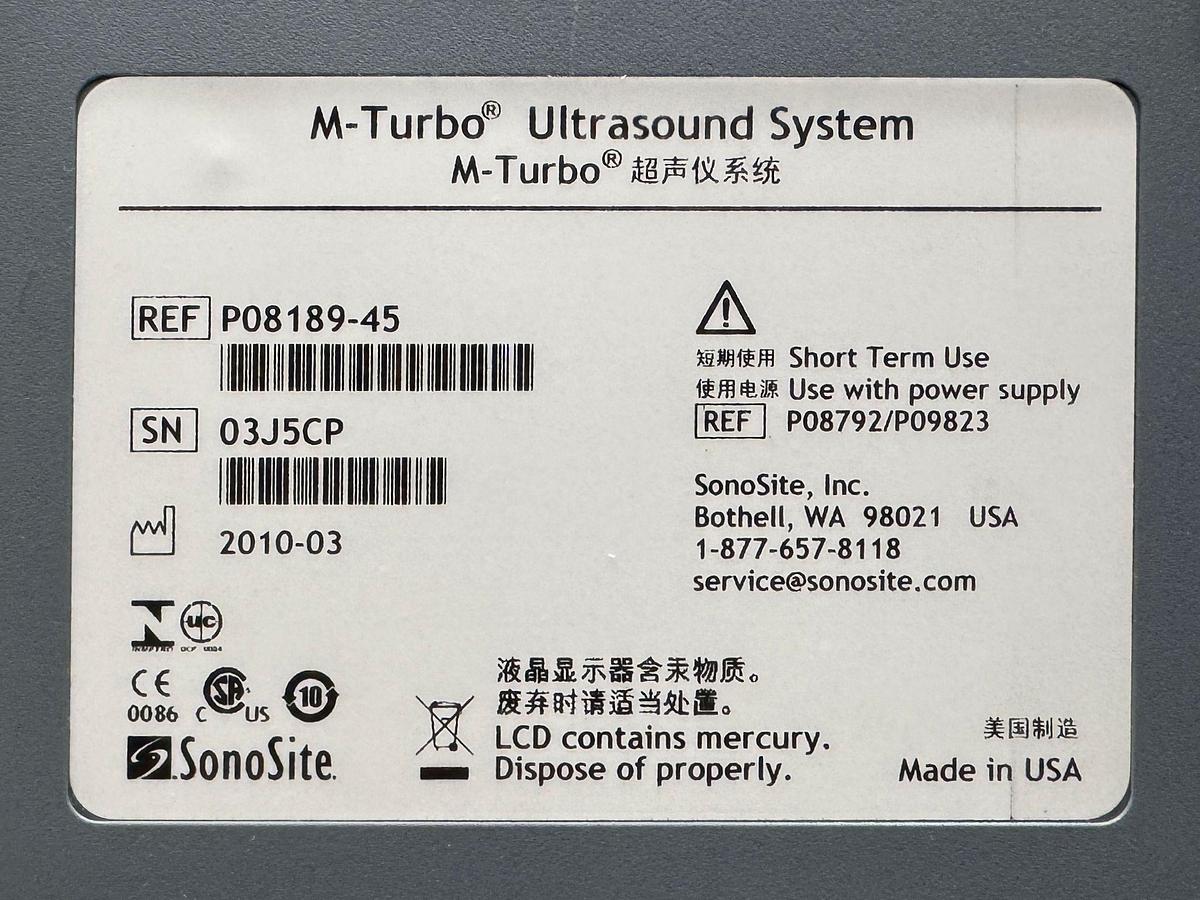

SonoSite Fujifilm M-Turbo Ultrasound REF: P08189-45 YOM: 2010

In good working condition.

Includes:

- SonoSite Fujifilm M-Turbo Ultrasound REF: P08189-45 YOM: 2010

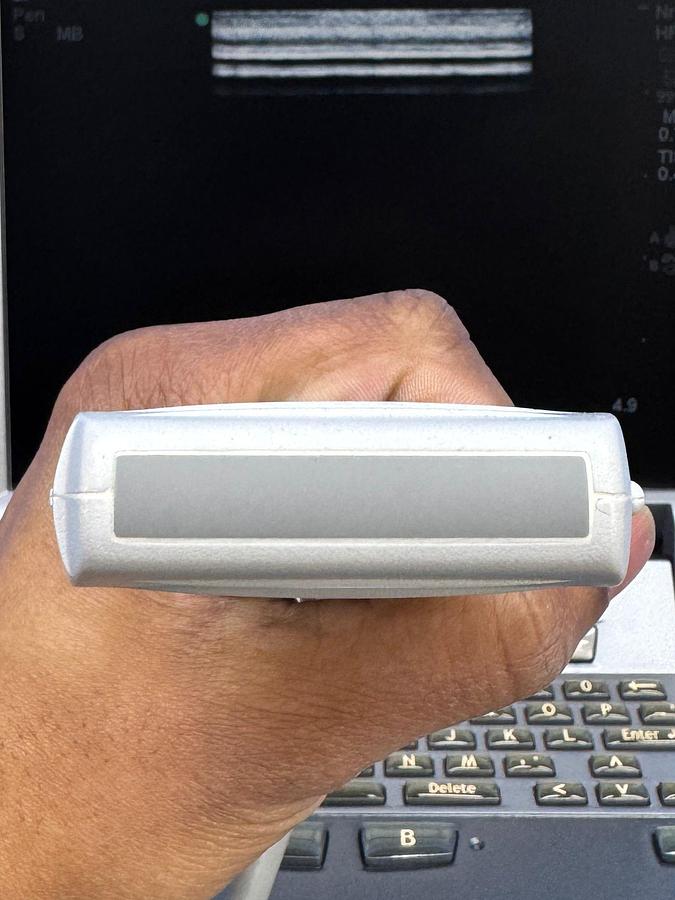

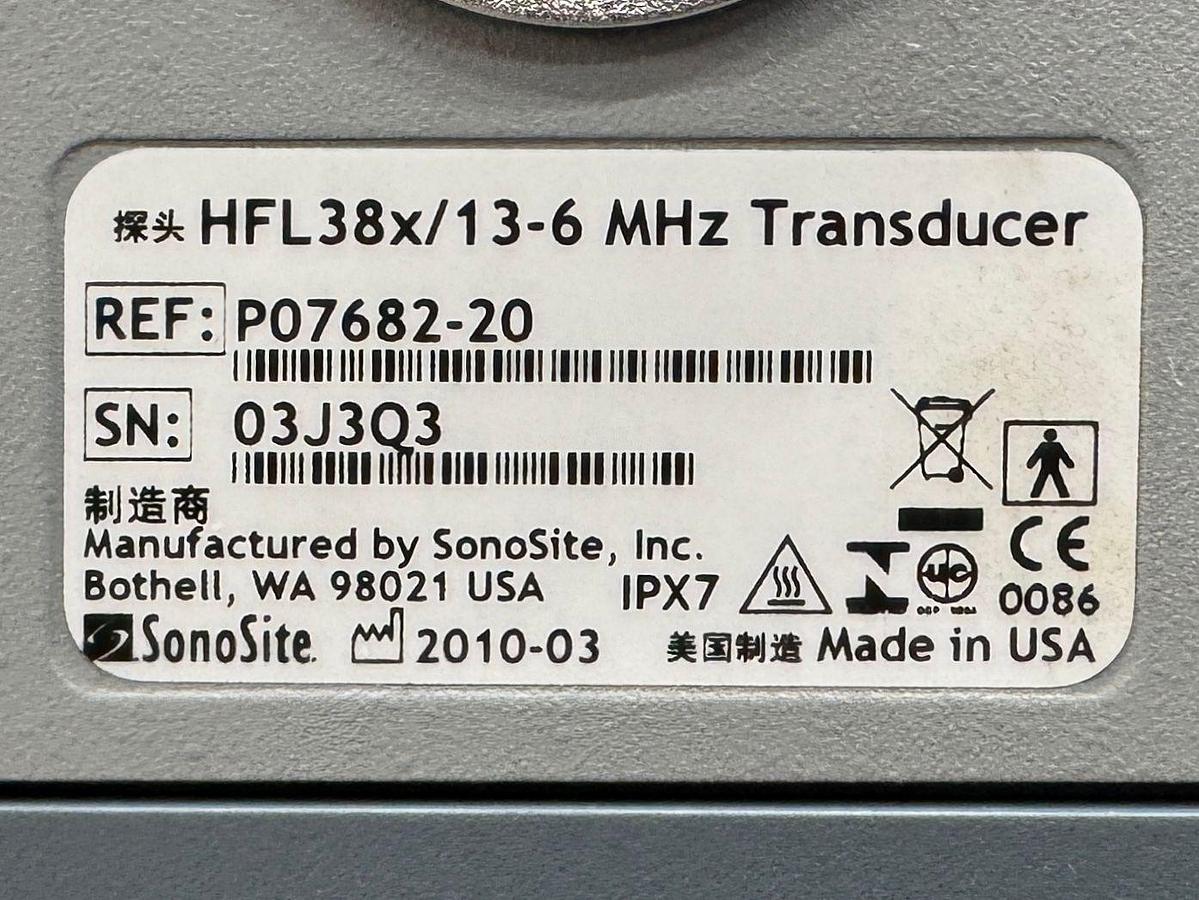

- Probe HFL38x/13-6 MHz REF: PO7682-20 YOM: 2010

We ship worldwide.

Please get back to us for further queries.

WE SPEAK ENGLISH -HABLAMOS ESPAÑOL -WIR SPRECHEN DEUTSCH.

The Fujifilm SonoSite M-Turbo (REF: P08189-45) is a versatile, portable ultrasound system designed for high-resolution imaging across various point-of-care applications, including emergency medicine, anaesthesia, and musculoskeletal diagnostics.

Key Technical Specifications

- Physical Dimensions: 30.2 cm x 27.4 cm x 7.9 cm (11.9" x 10.8" x 3.1").

- Weight: Approximately 3.4 kg (7.5 lbs) with the battery included.

- Display: 10.4-inch (26.4 cm) diagonal LCD screen with a tiltable monitor.

- Power: Operates on AC power (100-240 VAC) or a rechargeable lithium-ion battery providing up to 2 hours of runtime.

- Storage: 8 GB to 16 GB internal flash memory, capable of storing up to 30,000–40,000 images or nearly 1,000 short video clips.

- Boot-up Time: Ready for use in under 15 seconds.

Imaging & Processing Technologies

The system uses an all-digital broadband architecture with a dynamic range of up to 165 dB and 256 shades of grey. Key proprietary technologies include:

- SonoADAPT™: Automatically optimises tissue imaging parameters, reducing the need for manual adjustments.

- SonoHD™: Reduces speckle noise and artifacts to sharpen tissue information.

- SonoMB® Multi-beam Imaging: Enhances the resolution of small structures and border delineation.

- Advanced Needle Visualisation (SonoMBe™): Improves needle visibility during guided procedures without degrading the surrounding anatomy's image quality.

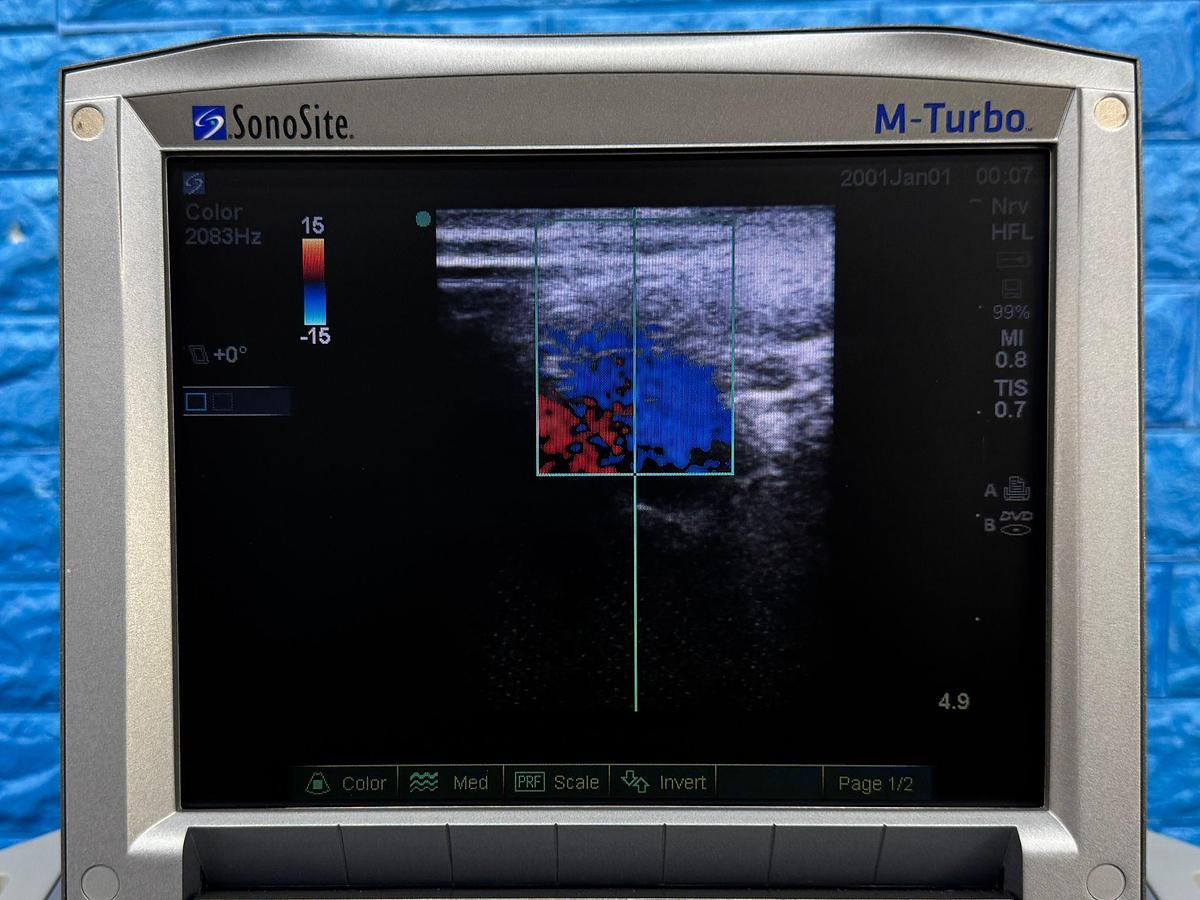

- ColorHD™: Provides enhanced colour performance and sensitivity for diagnostic flow information.

Connectivity & Durability

- Data Management: Supports DICOM (Print, Store, Modality Work List) and wireless image/data transfer.

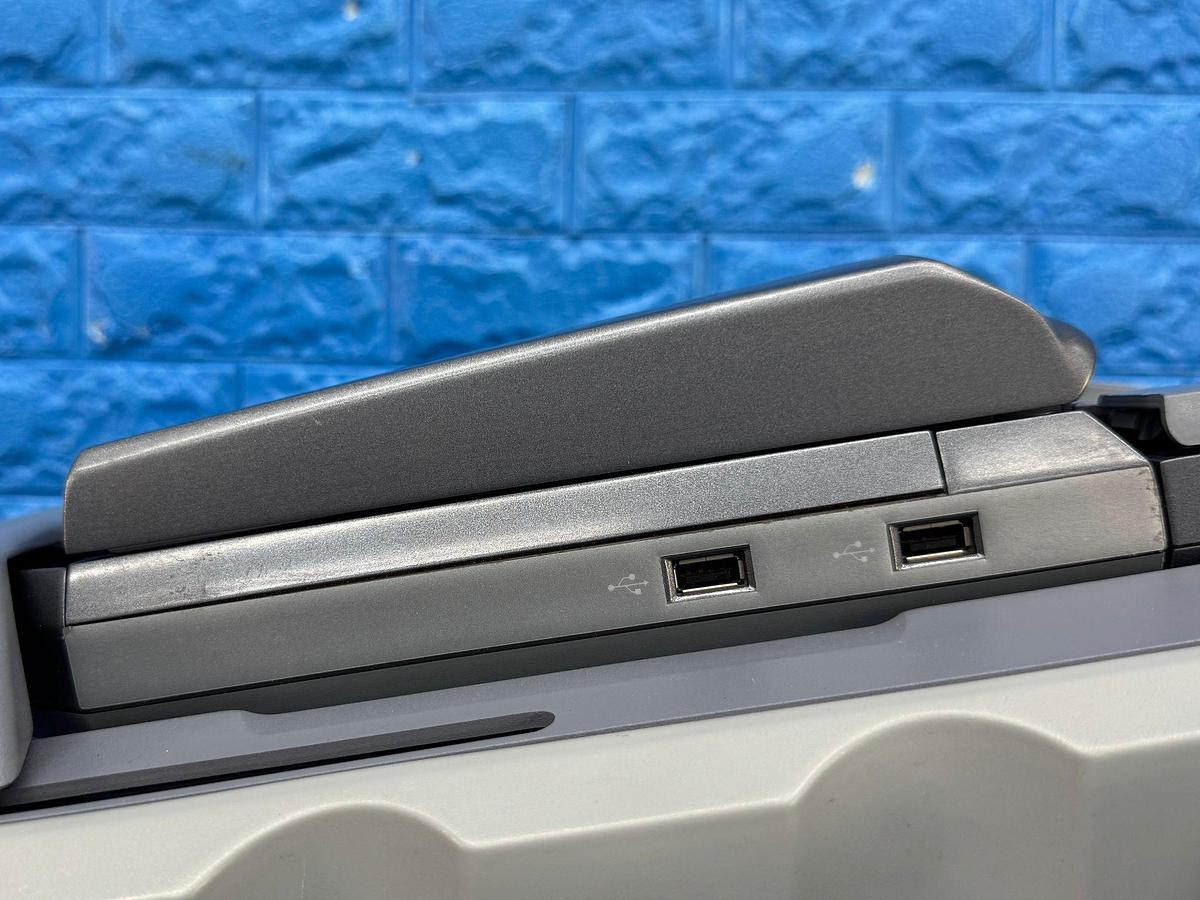

- I/O Ports: Includes two high-speed USB 2.0 ports, S-Video, DVI, and Ethernet.

- Rugged Design: Drop-tested from 3 feet (91.4 cm) and features a splash-resistant user interface and a durable magnesium case.

Compatible Transducers

The M-Turbo supports a wide range of broadband, multi-frequency transducers, including:

- Linear Array: For vascular, nerve, and small parts (e.g., HFL38x, HFL50x, L25x).

- Curved Array: For abdominal and OB/GYN imaging (e.g., C60xi, C11x).

- Phased Array: For cardiology and TCD (e.g., P21x, P10x).

- Specialty Probes: Including multiplane TEE (TEExi) and transrectal (C8x).

The SonoSite Fujifilm M-Turbo Ultrasound is a reliable imaging device designed for high performance in medical environments. Manufactured in 2010, this device remains a trusted choice for diagnostic imaging. It features a compact and portable design, enabling easy transportation and use across various medical settings. Accompanied by the HFL38x/13-6 MHz probe, this unit provides clear and precise imaging for diverse diagnostic purposes. The probe, also from 2010, operates over a frequency range of 13-6 MHz, which is suitable for a range of applications, including vascular and small parts examinations. The synergy between the M-Turbo unit and the HFL38x probe ensures high-quality image resolution and diagnostic accuracy. The system is used but maintained to meet clinical needs efficiently. Its intuitive interface supports quick learning and operation, making it an excellent addition to any medical facility requiring dependable ultrasound technology without the investment in brand-new equipment.
