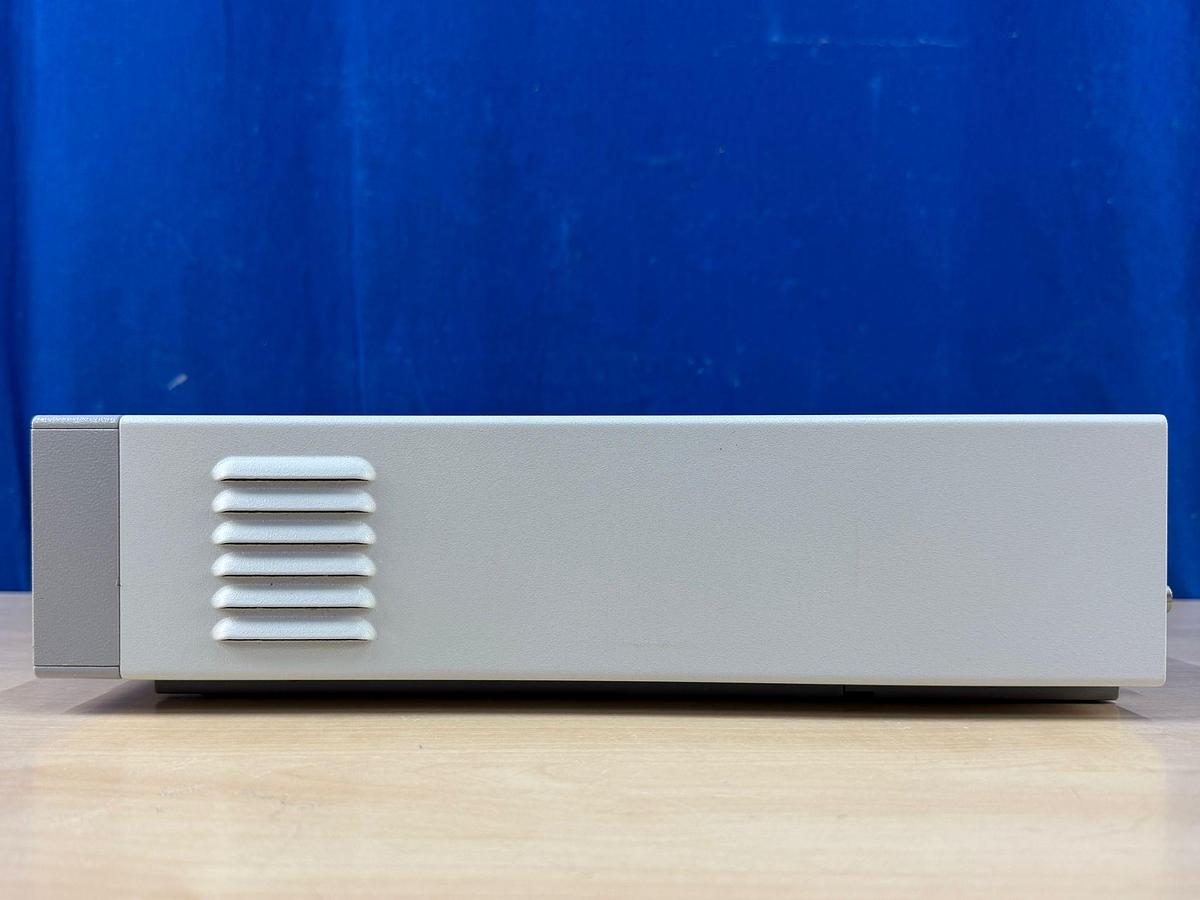

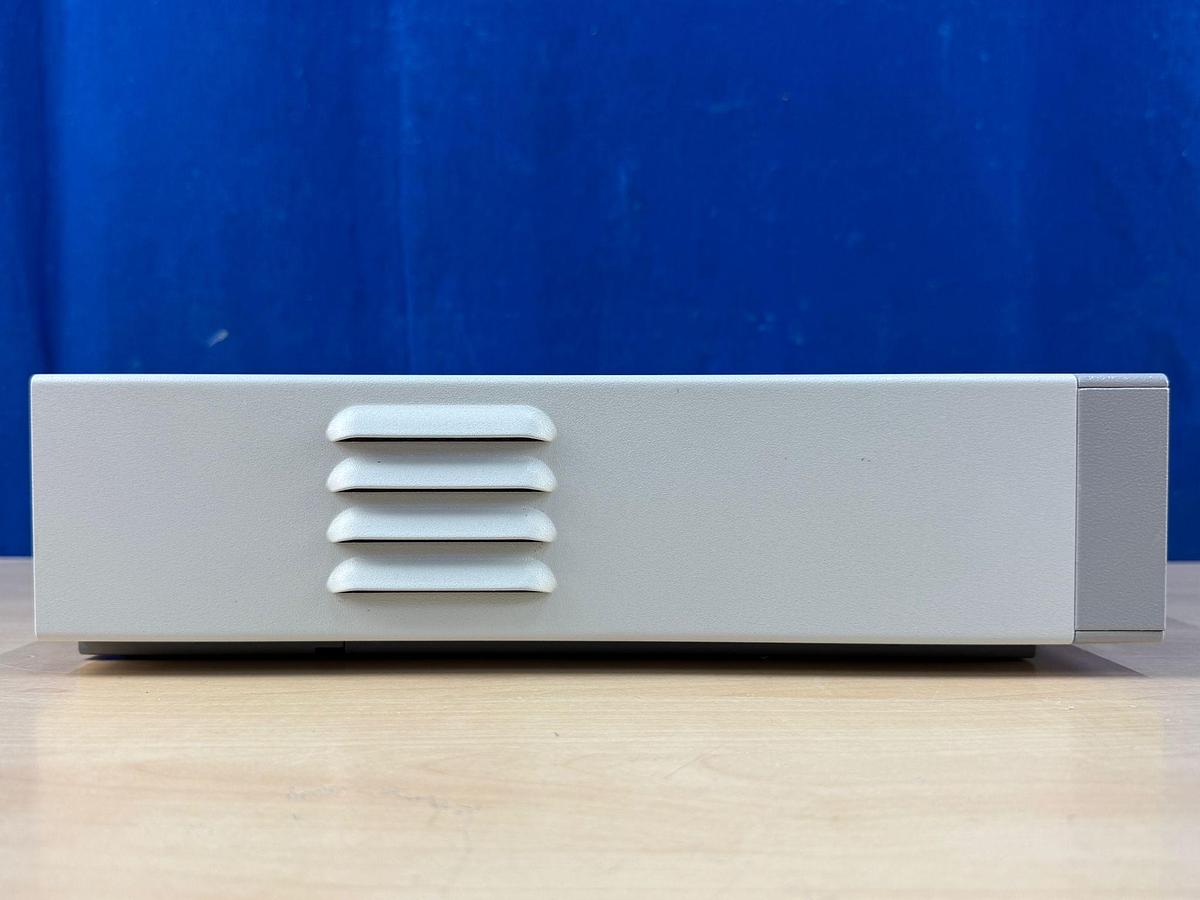

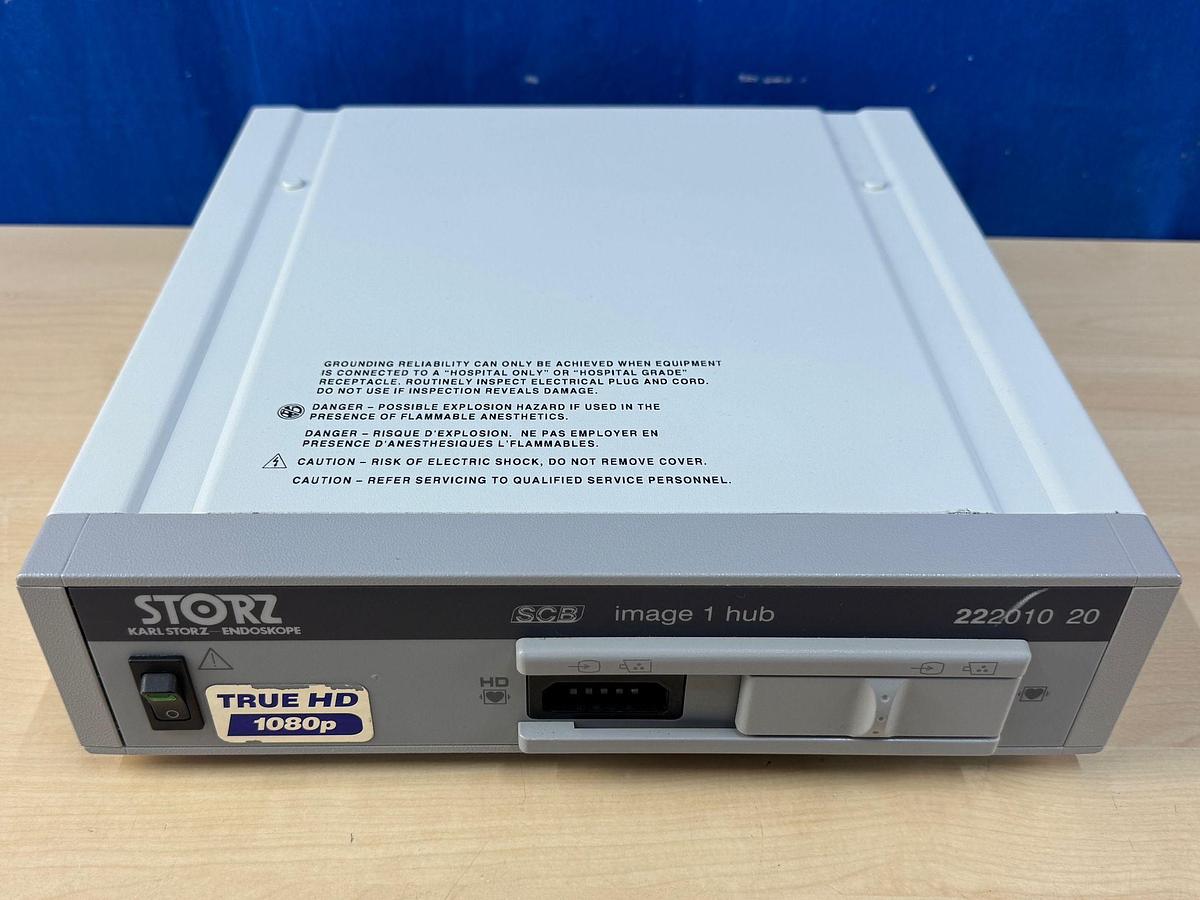

Karl Storz Image Hub 1 processor 222010 20

Includes:

- Karl Storz Image Hub 1 processor 222010 20.

Technical Specifications:

- Model/Part Number: Image 1 HUB 222010 20

- Resolution: 1920 x 1080 pixels (Full HD)

- Scanning System: Progressive Scan

- Color System: PAL/NTSC compatible

- Voltage: 100-240 VAC, 50/60 Hz

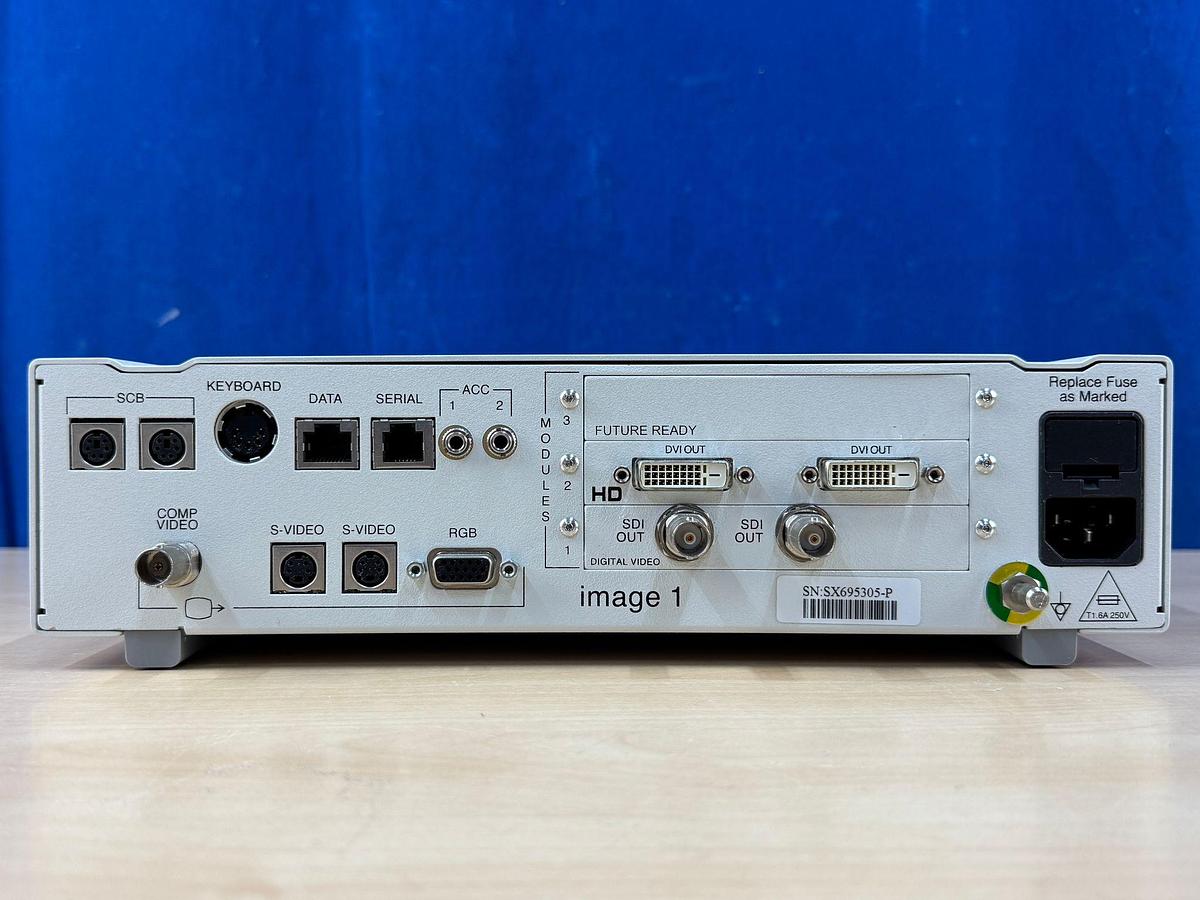

- Inputs/Outputs: HD-SDI (optional), DVI-D, S-Video (Y/C), BNC, SCB (6-pin Mini-Din), USB

- Dimensions: Approx. 305 x 89 x 335 mm

- Weight: ~4 kg

Key Features:

• 1920 x 1080 Full HD resolution with progressive scan for crystal-clear, flicker-free endoscopic images
• Universal camera head compatibility — works with all IMAGE 1 FULL HD, standard one-chip and three-chip camera heads on a single CCU
• Integrated Image Capture Module (ICM) for instant photo and video documentation
• Karl Storz SCB (Storz Communication Bus) for seamless integration with other Karl Storz equipment
• Front and rear USB ports — connect printers and USB storage devices simultaneously
• SDI and DVI video outputs for high-quality monitor and recording connectivity
• Natural colour reproduction with digital image processing for accurate tissue visualisation

Technical Highlights:

Advanced Imaging Engine

Built-in digital Image Processing Module ensures smooth, artefact-free visuals with zero-lag performance — critical for precise surgical navigation.

Integrated Documentation

The integrated ICM module streamlines photo and video capture, eliminating the need for external documentation hardware.

Future-Proof Platform

One IMAGE1 HUB CCU supports every IMAGE 1 camera head generation — from standard definition to FULL HD — protecting your long-term investment.

Applications:

• Laparoscopy and general surgery
• Arthroscopy and orthopaedic procedures
• ENT and sinus endoscopy
• Gynaecology and urology
• Veterinary endoscopy and teaching hospitals

Key Benefits:

• Maximum patient safety through real-time, high-fidelity imaging
• Time efficiency — intuitive operation with minimal setup
• Reduced equipment costs — one processor for all camera heads
• Simplified workflow — integrated capture and USB connectivity on one unit

Why Choose the Karl Storz IMAGE1 HUB 222010 20?

The Karl Storz Image Hub 1 Processor 222010 20 is a reliable used unit designed for use in laparoscopic procedures. This image processor delivers high-quality visuals essential for precise diagnostics and surgical interventions. With its robust construction from a reputable manufacturer like Karl Storz, it ensures durability and consistent performance over time. This model supports vivid imaging with its advanced processing capabilities, aiding medical professionals in achieving optimal results. It is straightforward to integrate into existing systems, making it a convenient choice for facilities looking to upgrade or expand their laparoscopic imaging capabilities without incurring the costs of new equipment. While the unit is used, it maintains functionality and efficiency, being thoroughly inspected and prepared for clinical use. This Karl Storz Image Hub 1 processor offers reliability and performance that meet the demanding needs of modern surgical environments.
