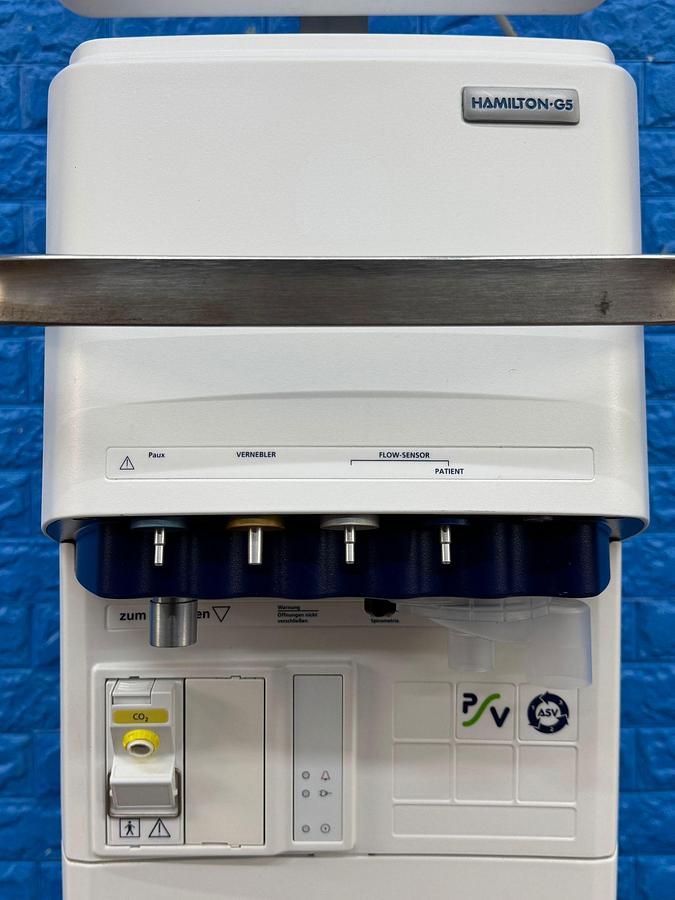

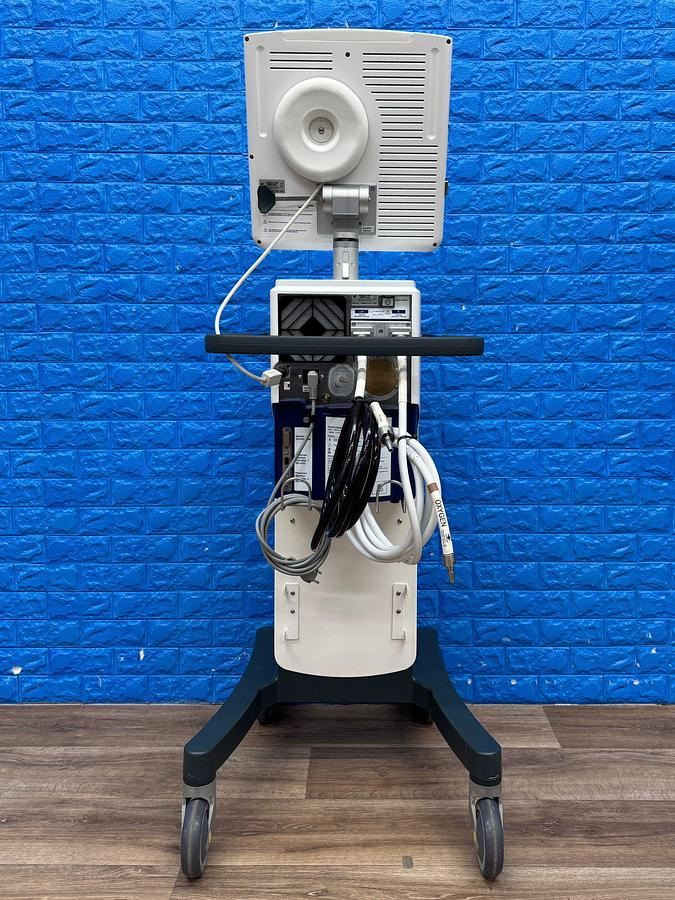

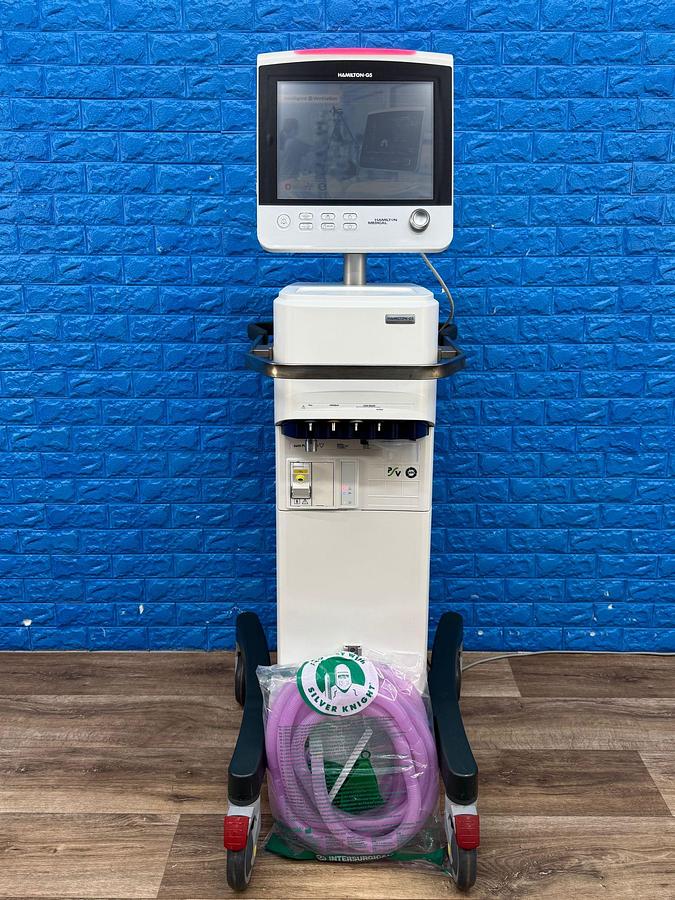

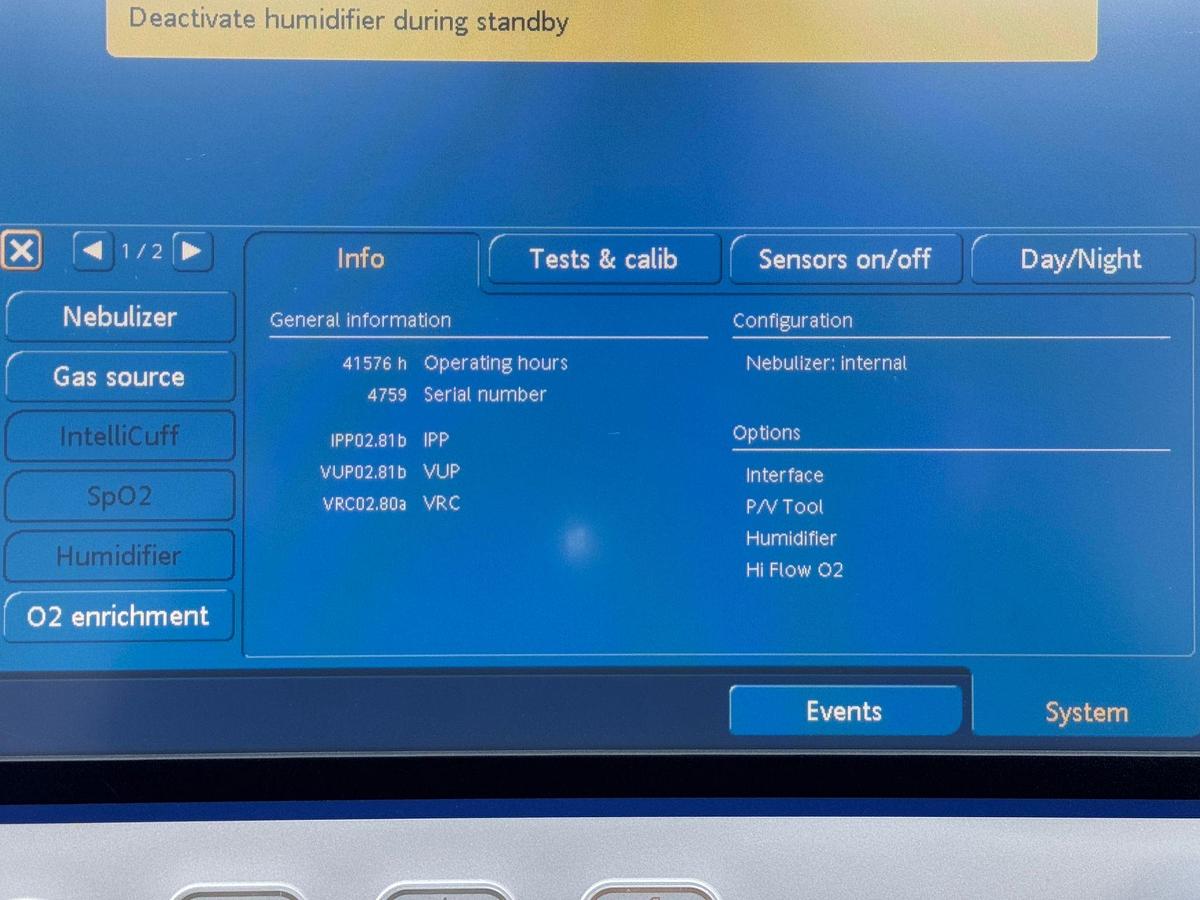

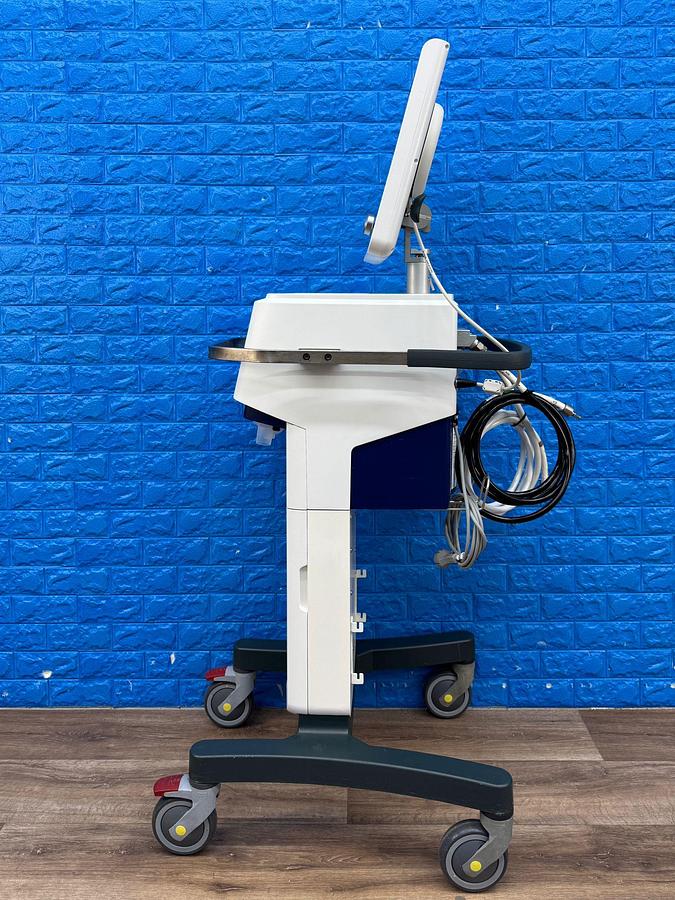

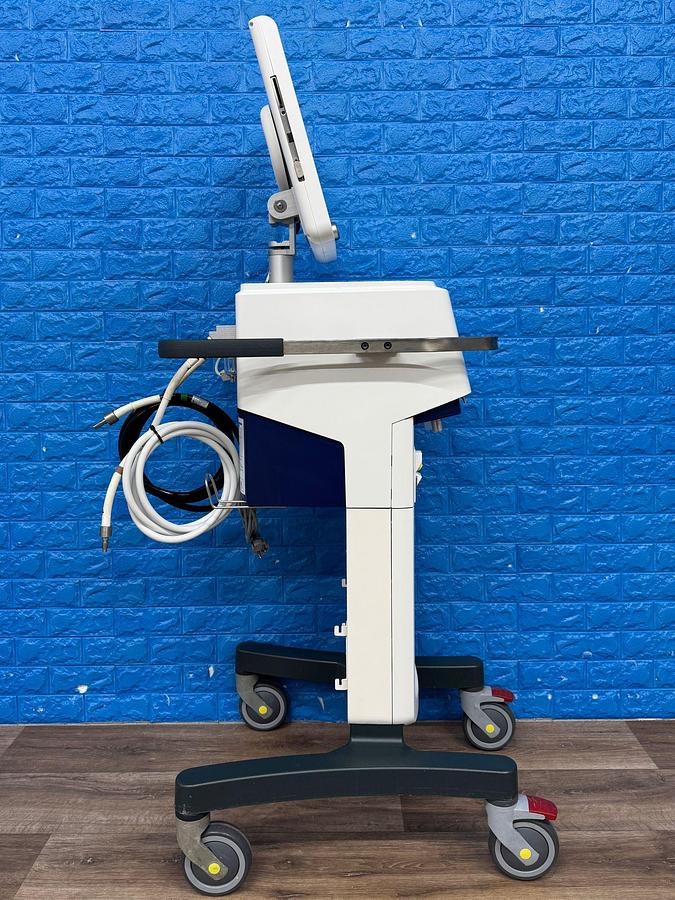

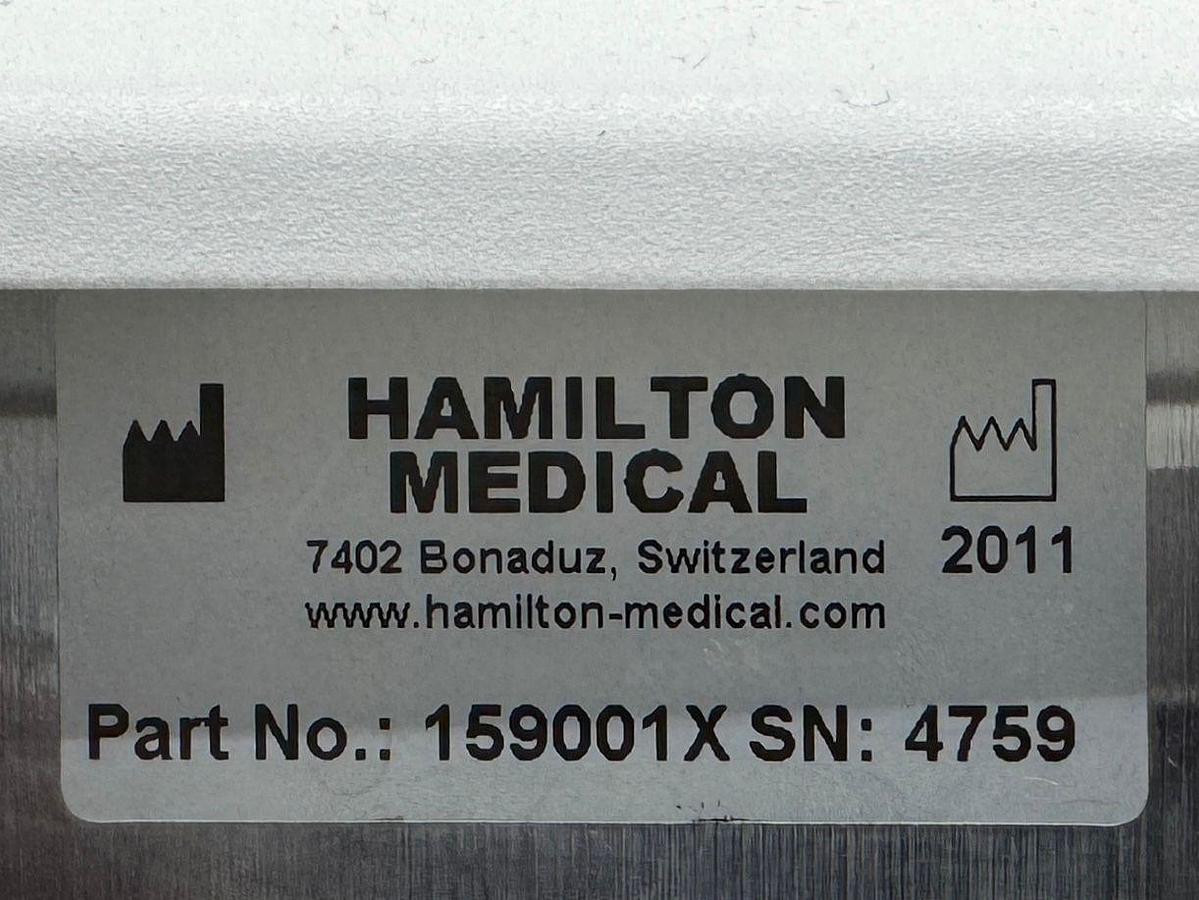

Hamilton G5 Ventilator Hours: 41576 YOM: 2011

In good working condition.

Includes:

- Hamilton G5 Ventilator Hours: 41576 YOM: 2011

We ship worldwide.

Please get back to us for further queries.

WE SPEAK ENGLISH -HABLAMOS ESPAÑOL -WIR SPRECHEN DEUTSCH.

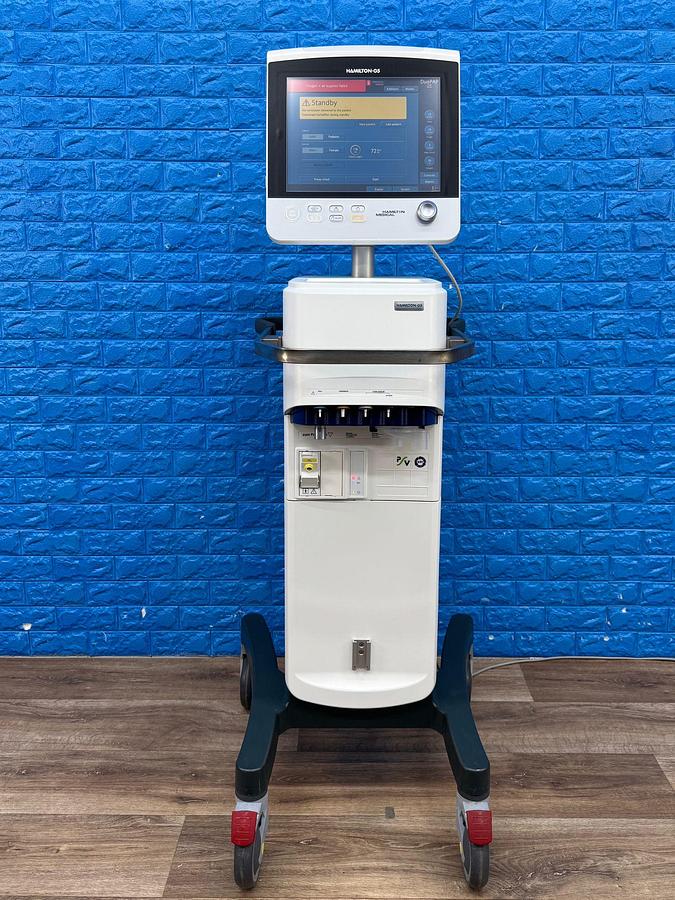

The Hamilton G5 is a modular, high-end mechanical ventilator designed for intensive care across adult, paediatric, and neonatal patient populations. It is recognized for its Ventilation Cockpit interface, which provides intuitive real-time monitoring and automated clinical decision support.

Core Technical Specifications

- Patient Groups: Adult, paediatric, and neonatal (tidal volumes as low as 2 ml).

- Dimensions (Ventilation Unit): 500 x 450 x 440 mm.

- Weight: Approximately 38 kg (unit only) to 57 kg (with standard trolley and monitor).

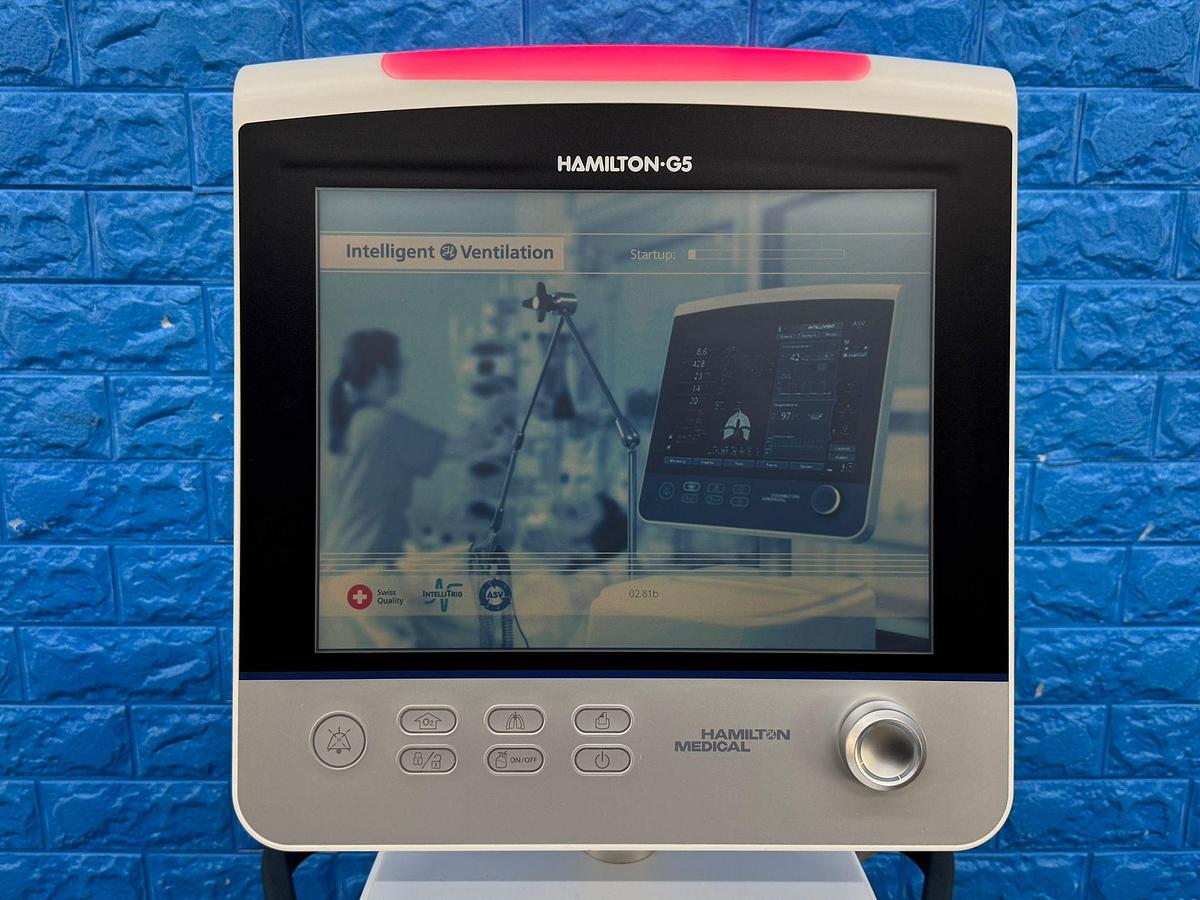

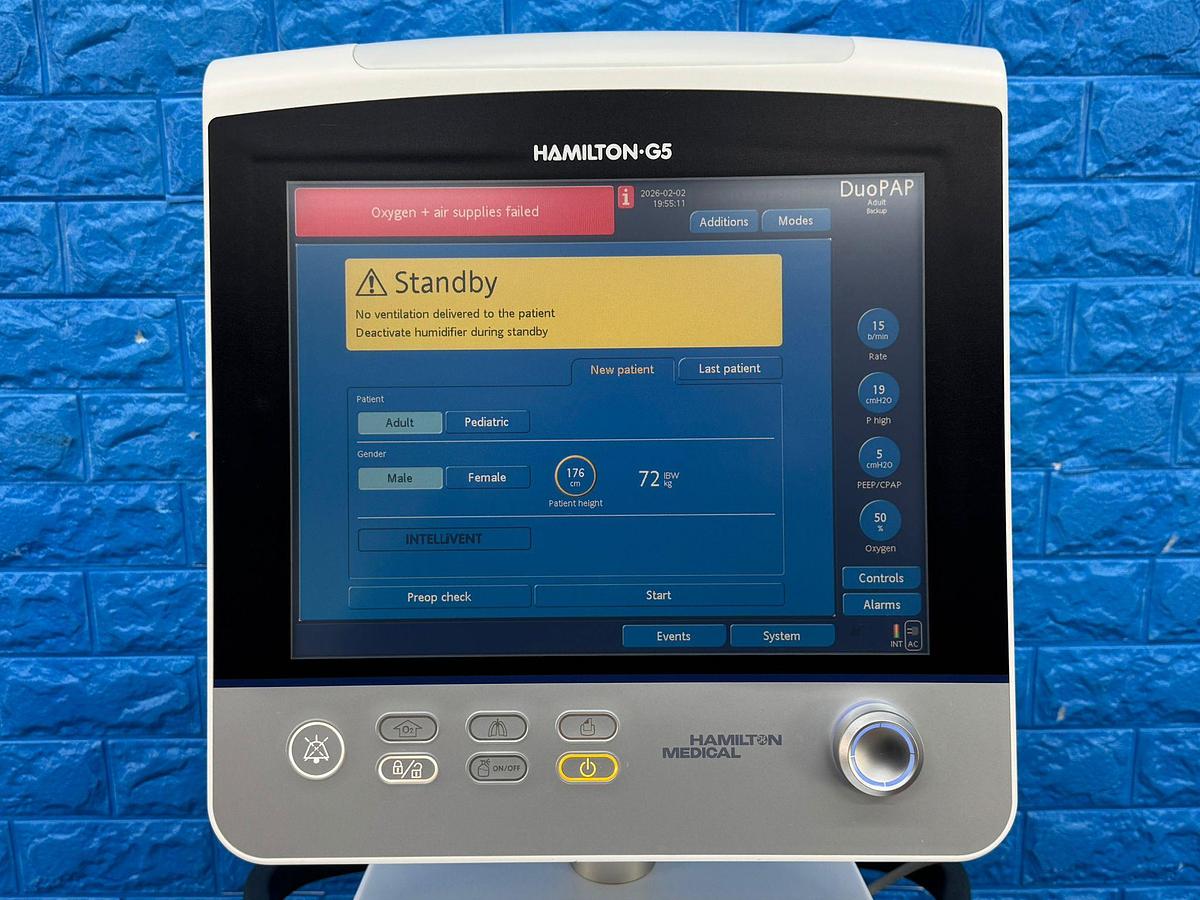

- Display: 15-inch XGA TFT colour touchscreen (1024 x 768 pixels); detachable with a 3m cable.

- Battery Life: 1 hour with one battery; features a hot-swappable battery option for extended use.

- Gas Supply: Requires compressed air and oxygen (200 to 600 kPa / 29 to 86 psi).

- Connectivity: USB, CompactFlash, DVI, COM (RS-232), and special interfaces for data export and screenshots.

Advanced Ventilation & Automation

- ASV® (Adaptive Support Ventilation): Automatically adjusts respiratory rate, tidal volume, and inspiratory time breath-by-breath based on patient lung mechanics.

- INTELLiVENT-ASV®: An advanced "bedside assistant" mode that automates ventilation and oxygenation based on set targets for PetCO2 and SPO2.

- IntelliSync+: Uses waveform analysis hundreds of times per second to detect patient effort and cycling for immediate synchronization.

- IntelliCuff: Integrated controller that continuously monitors and maintains user-set cuff pressure in real-time.

Clinical Monitoring & Tools

- P/V Tool Pro: A protective ventilation tool used to assess lung recruitability and perform recruitment maneuvers.

- Dynamic Lung: Real-time visual representation of lung compliance, resistance, and patient triggering.

- Vent Status Panel: Displays six parameters related to ventilator dependence to assist in weaning decisions.

- Transpulmonary Pressure: Supports measurement and monitoring to optimize PEEP and tidal volume.

- Volumetric Capnography: Integrated CO2 and flow measurement for assessing ventilation quality and metabolic activity.

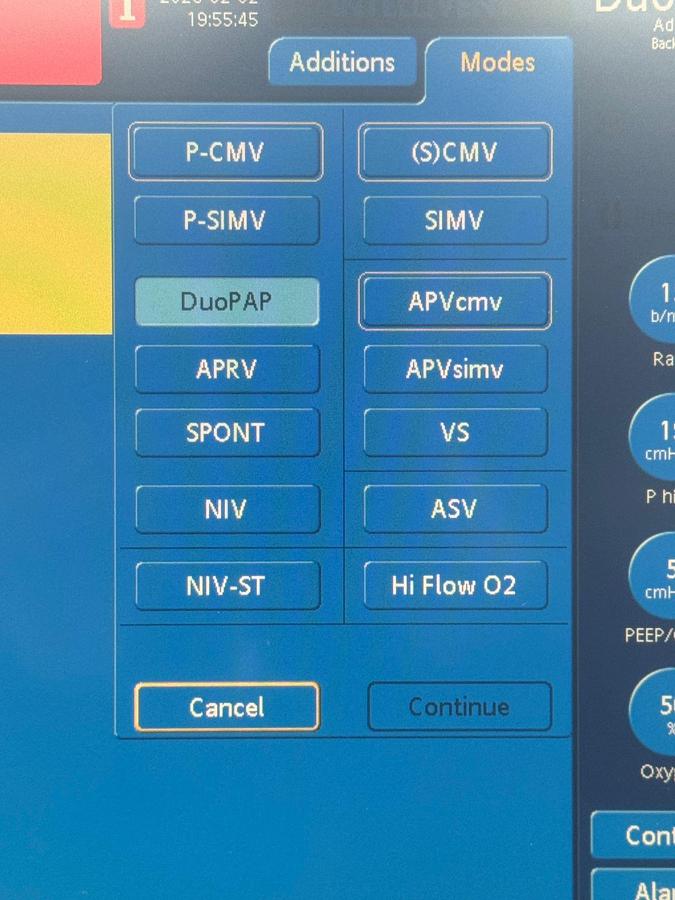

Standard Ventilation Modes

Type  Modes Available

Closed-loop. ASV, INTELLiVENT-ASV

Pressure P-CMV, P-SIMV, DuoPAP, APRV, SPONT

Volume (S)CMV, SIMV, APVcmv, APVsimv

Noninvasive NIV, NIV-ST, nCPAP-PS, High Flow O2

The Hamilton G5 Ventilator is a sophisticated and reliable ICU ventilator designed to support a wide range of patient populations from neonates to adults. With 41,576 hours of prior use since its year of manufacture in 2011, this unit has been optimized for versatility and patient-friendly operation. The G5 is renowned for its advanced adaptive volume ventilation technology, promoting lung protective strategies and improving patient outcomes. This used ventilator features an intuitive user interface for ease of operation and a comprehensive monitoring system to ensure accurate clinical diagnostics. It is equipped with various ventilation modes, which can be customized to the individual needs of the patient, making it suitable for various clinical situations. Additionally, it supports optimal weaning processes, enhancing patient comfort and reducing ventilation-related complications. Despite its previous usage, the Hamilton G5 remains a highly functional piece of equipment, available for medical facilities aiming to enhance their critical care capabilities. It represents a cost-effective solution for those seeking dependable respiratory support technology without compromising on performance or reliability.
