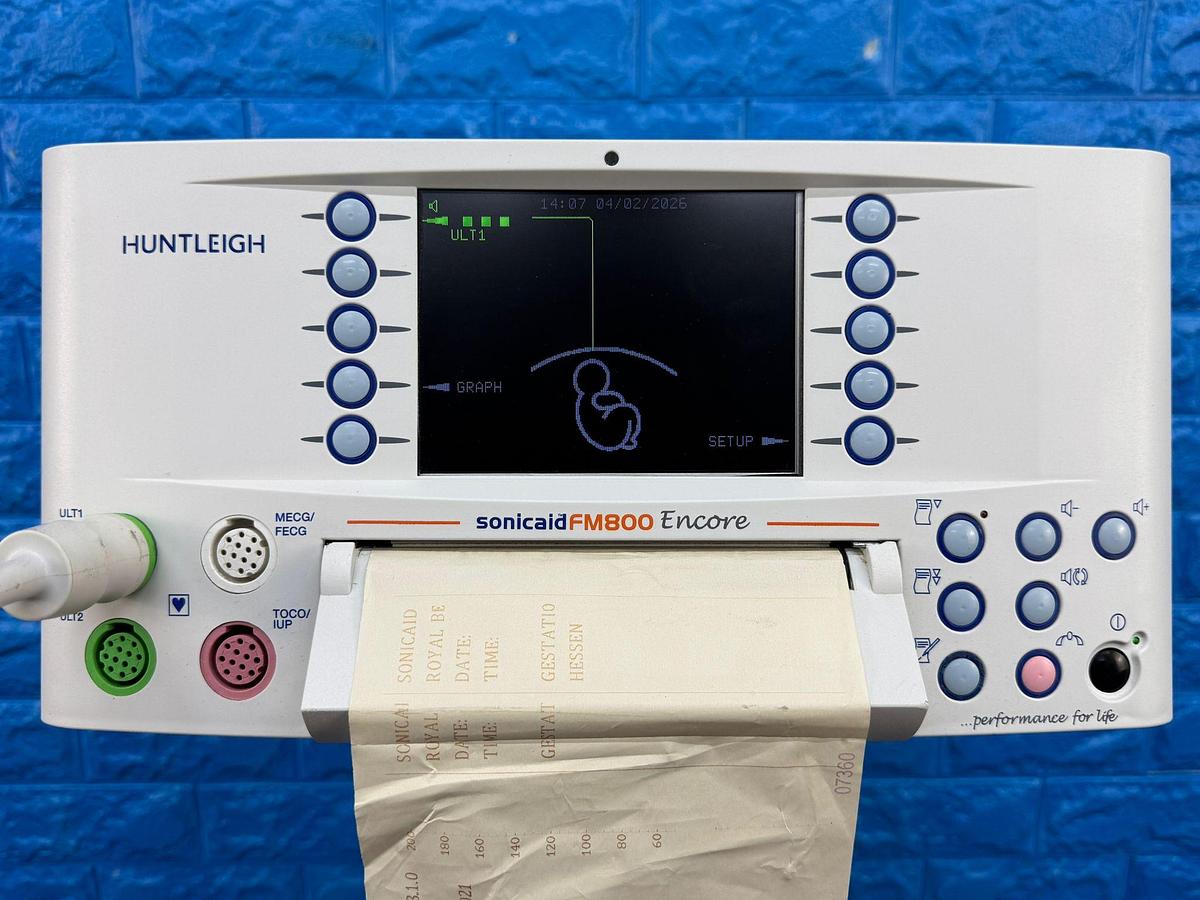

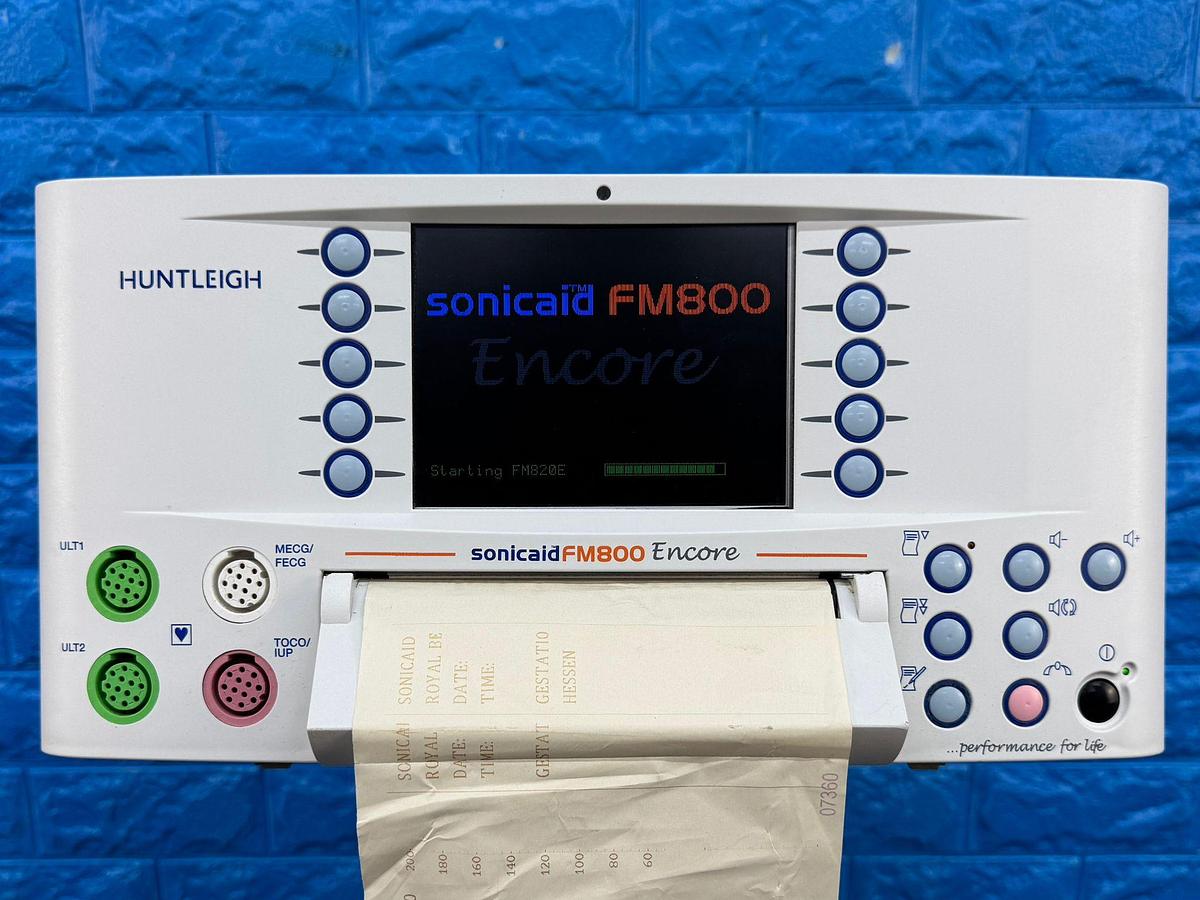

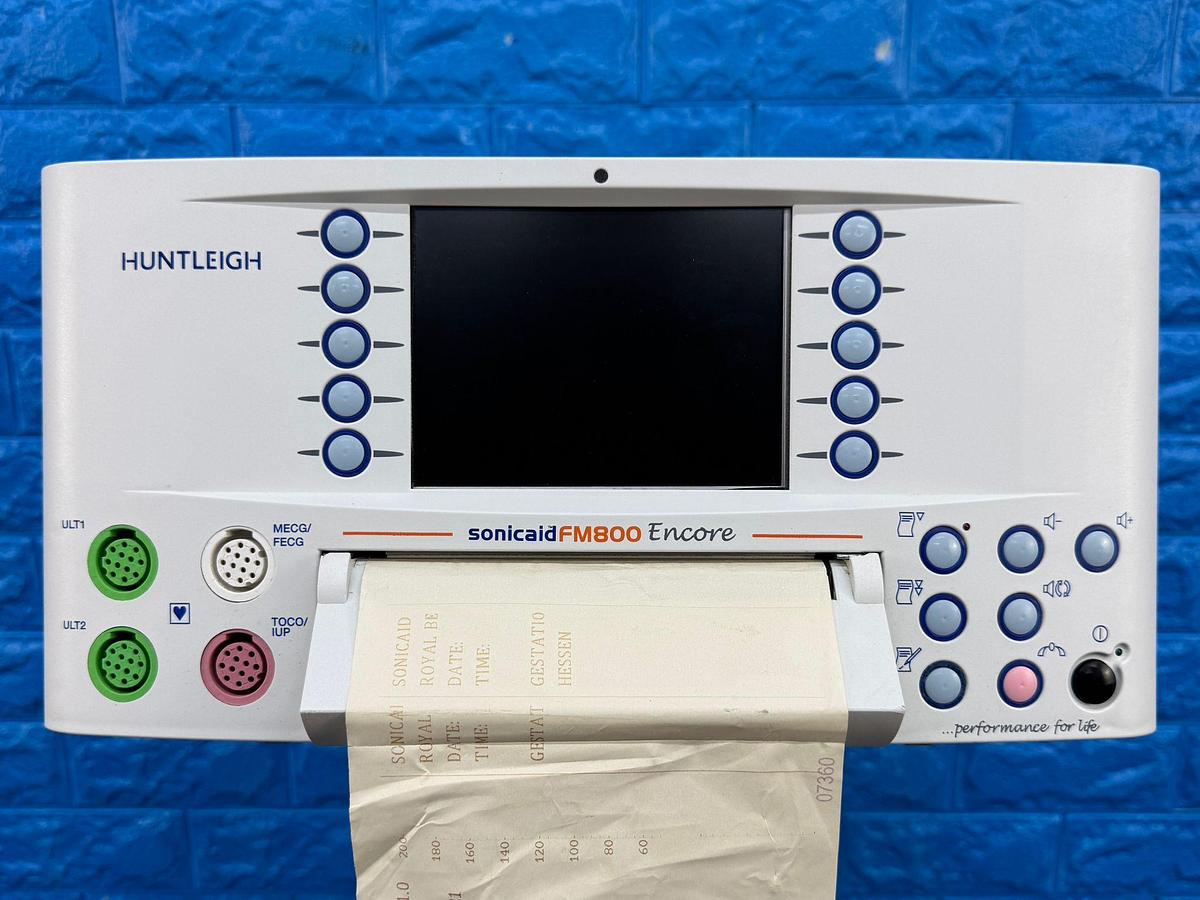

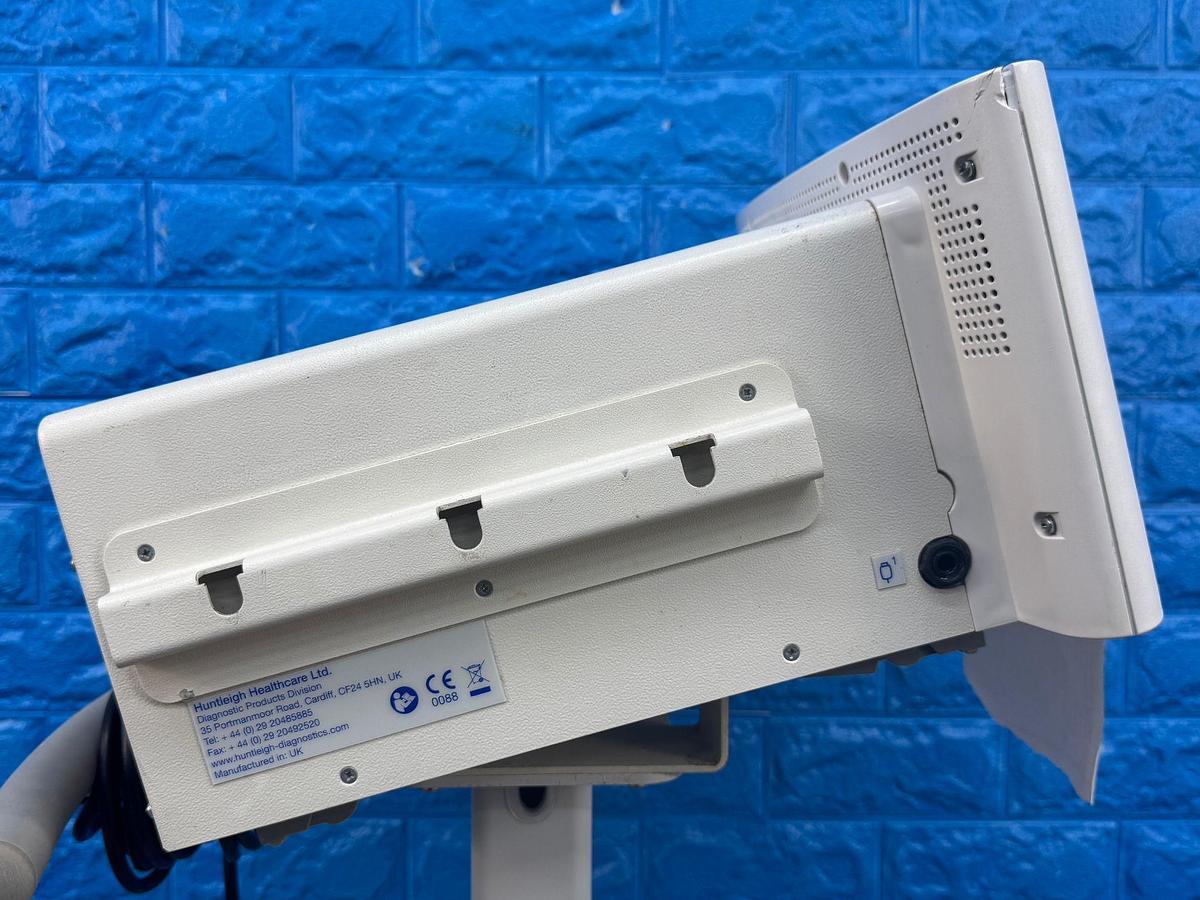

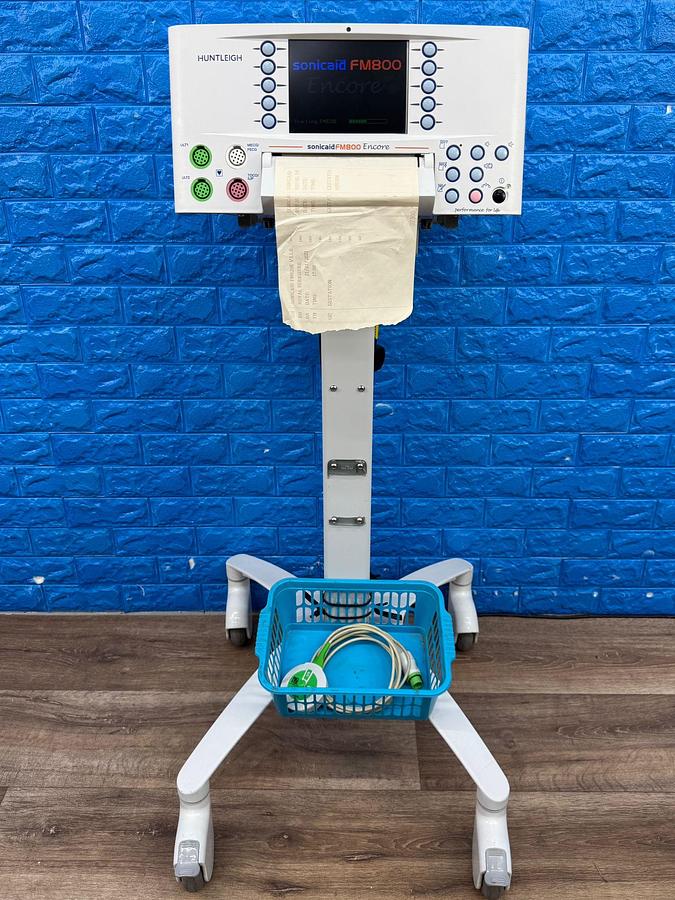

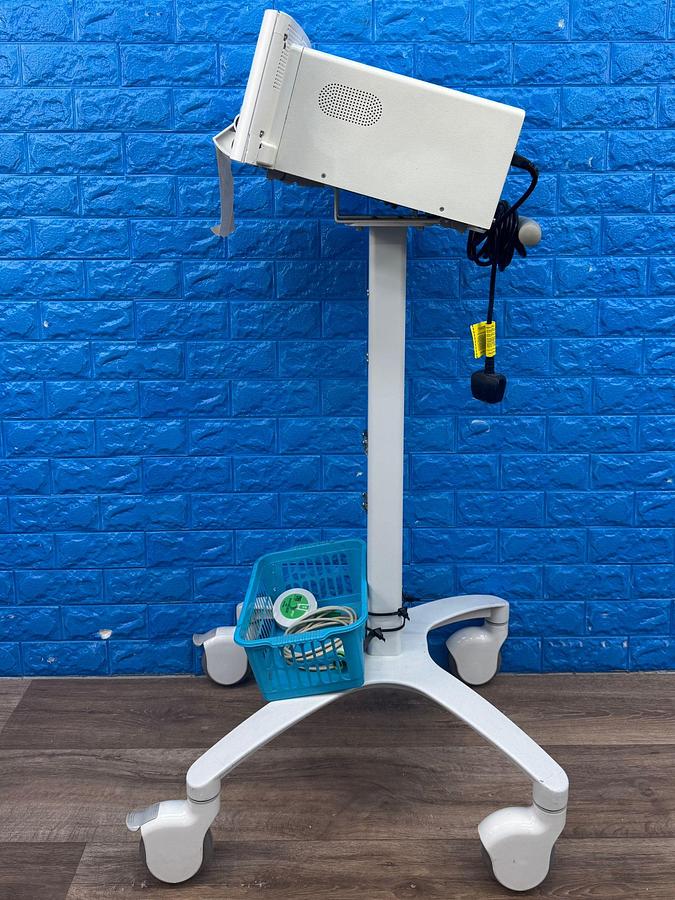

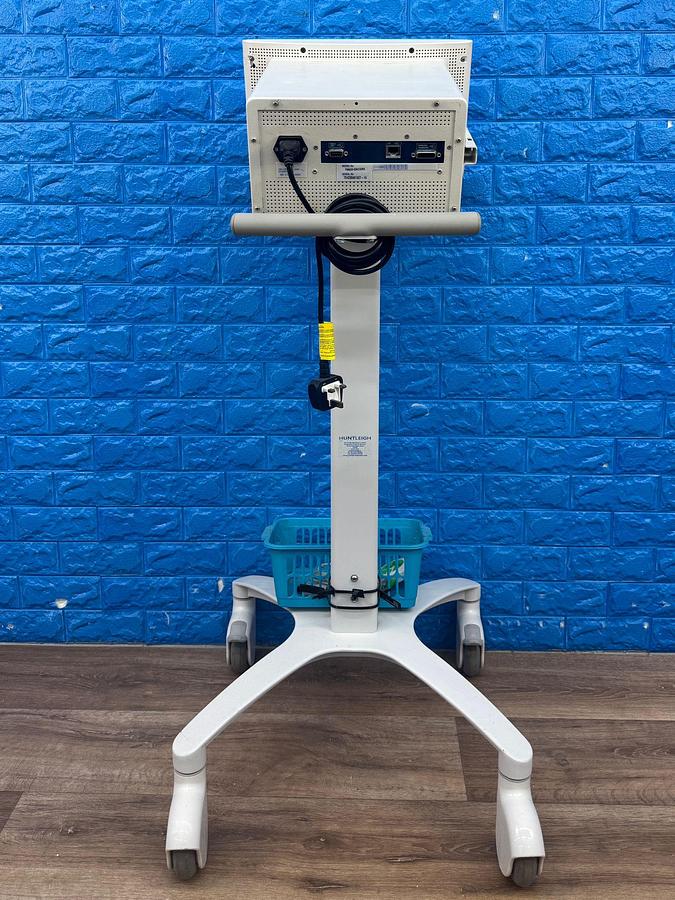

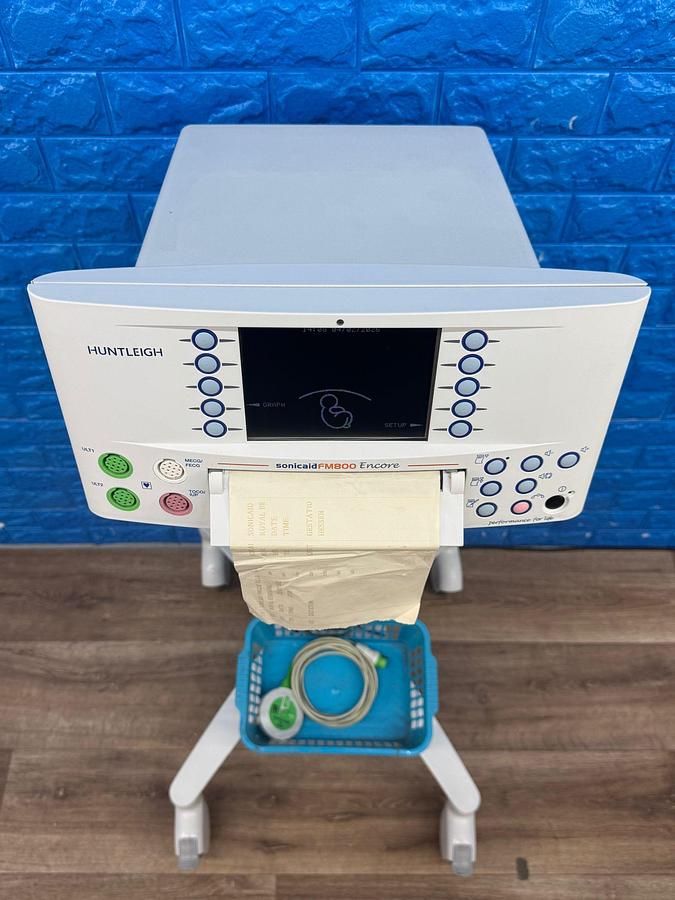

Huntleigh Sonicaid FM 800 Encore Fetal monitor

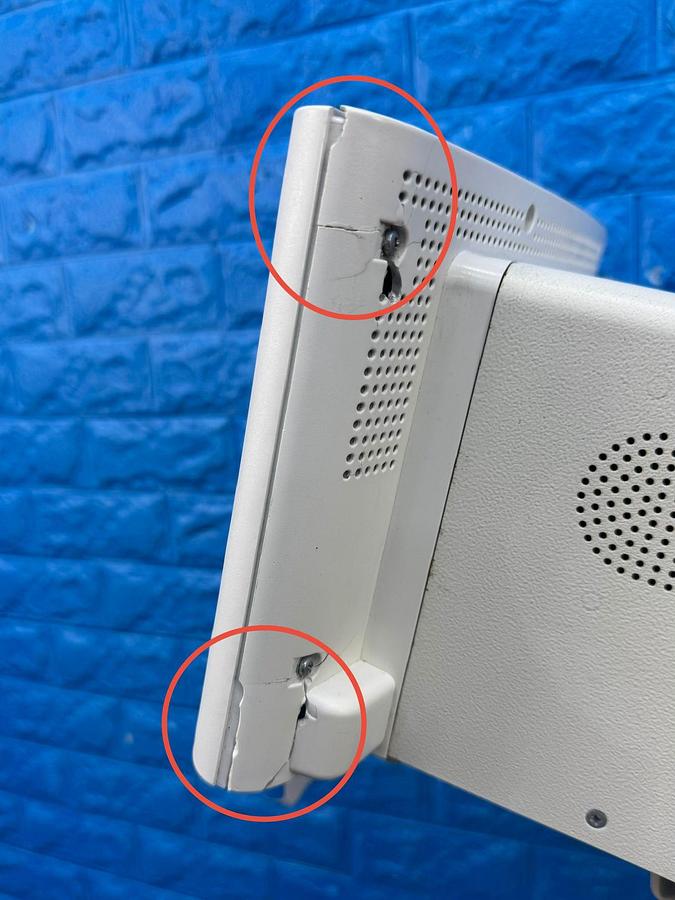

In good working condition.

Includes:

- Huntleigh Sonicaid FM 800 Encore Fetal monitor

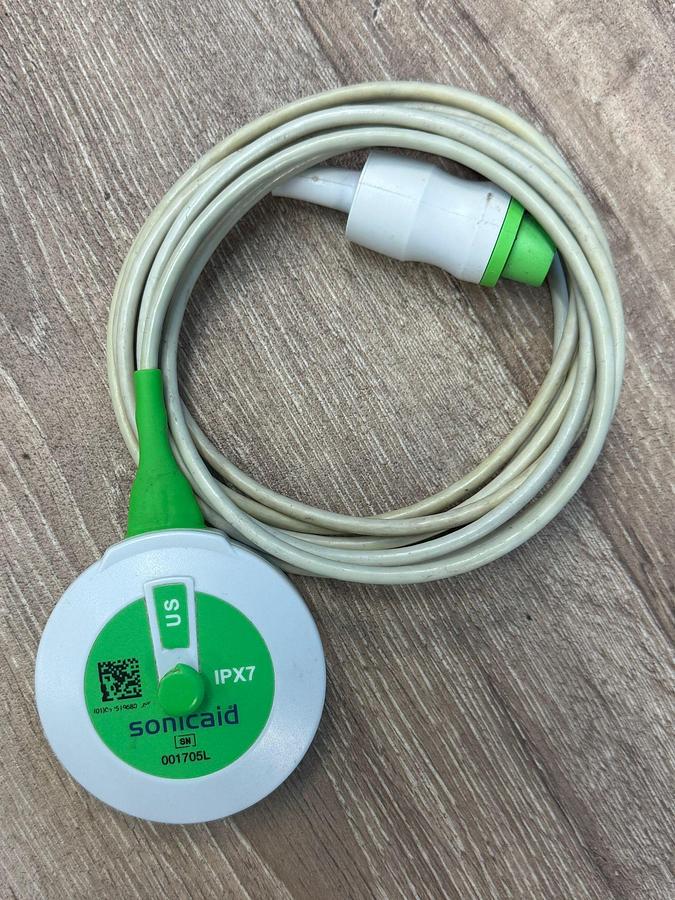

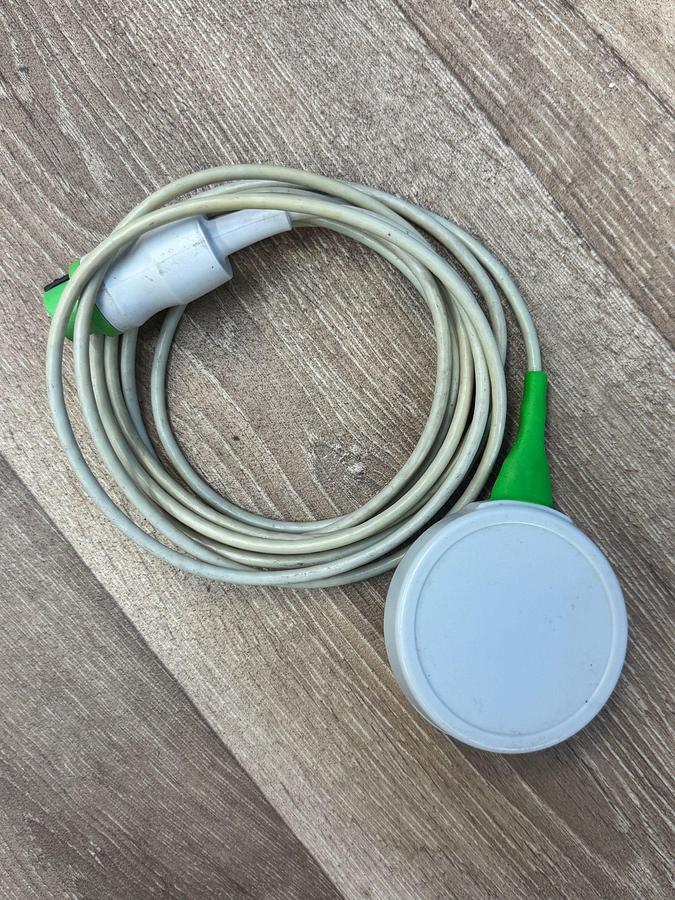

- Sonicaid IPX7 US Probe

We ship worldwide.

Please get back to us for further queries.

WE SPEAK ENGLISH -HABLAMOS ESPAÑOL -WIR SPRECHEN DEUTSCH.

The Huntleigh Sonicaid FM800 Encore is a high-performance fetal and maternal monitor designed for both antepartum and intrapartum clinical settings. It integrates advanced "Location and Tracking" technology to lock onto fetal cardiac signals, significantly reducing the need for invasive direct fetal ECG monitoring.

Core Technical Specifications

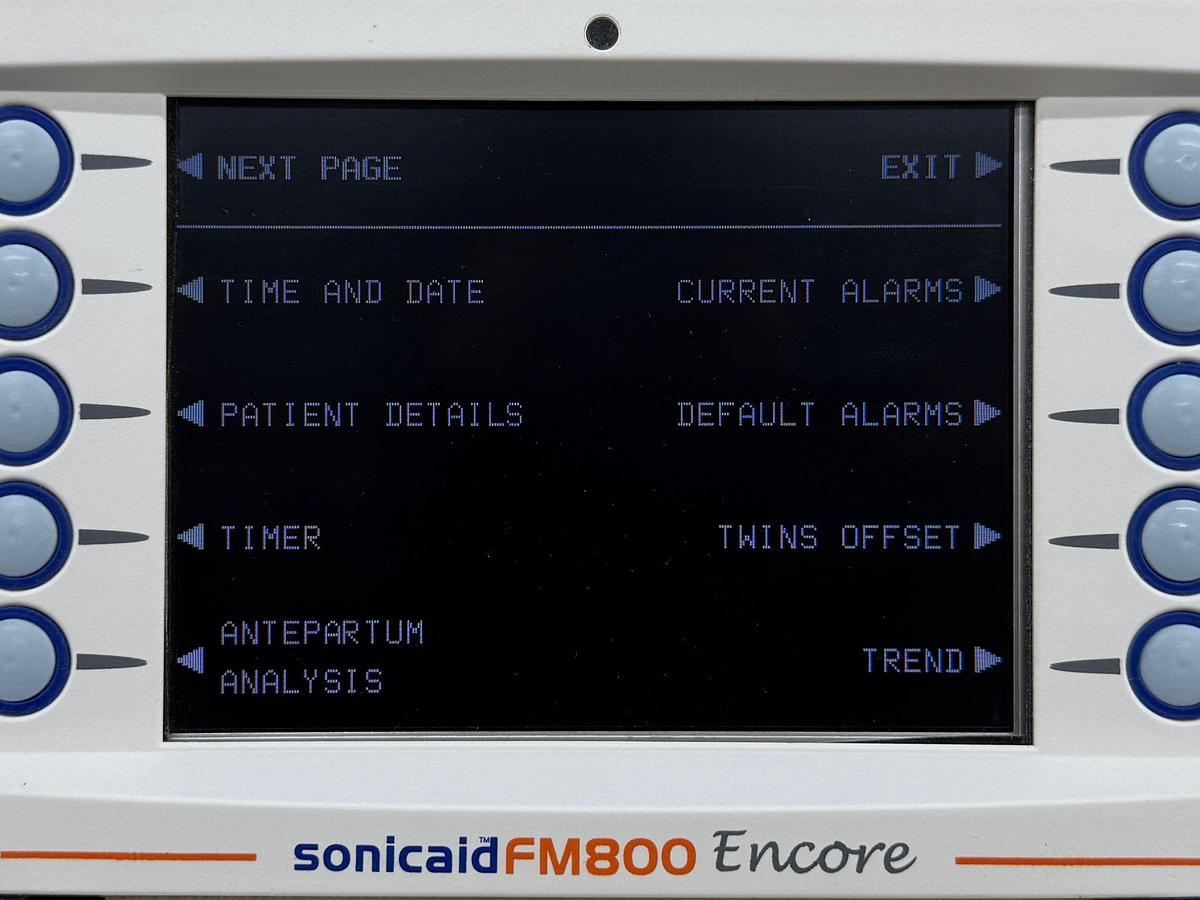

- Display: 11.5 cm x 8.6 cm color LCD screen with 1/4 VGA resolution (320x240)

- Dimensions & Weight: 353 x 382 x 310 mm; weighs approximately 9.5 kg.

- Ultrasound Frequency: 1 MHz using "Widebeam" technology for easier heart rate localization.

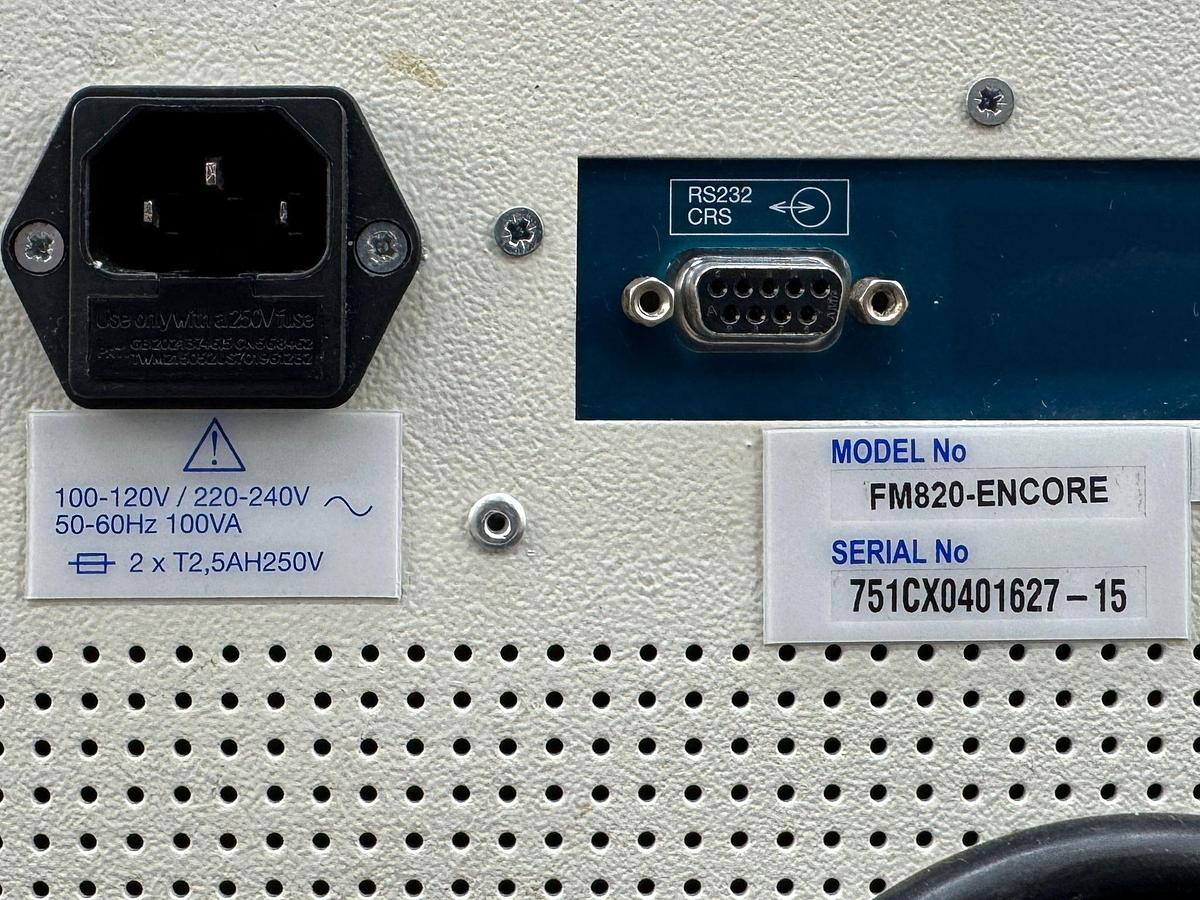

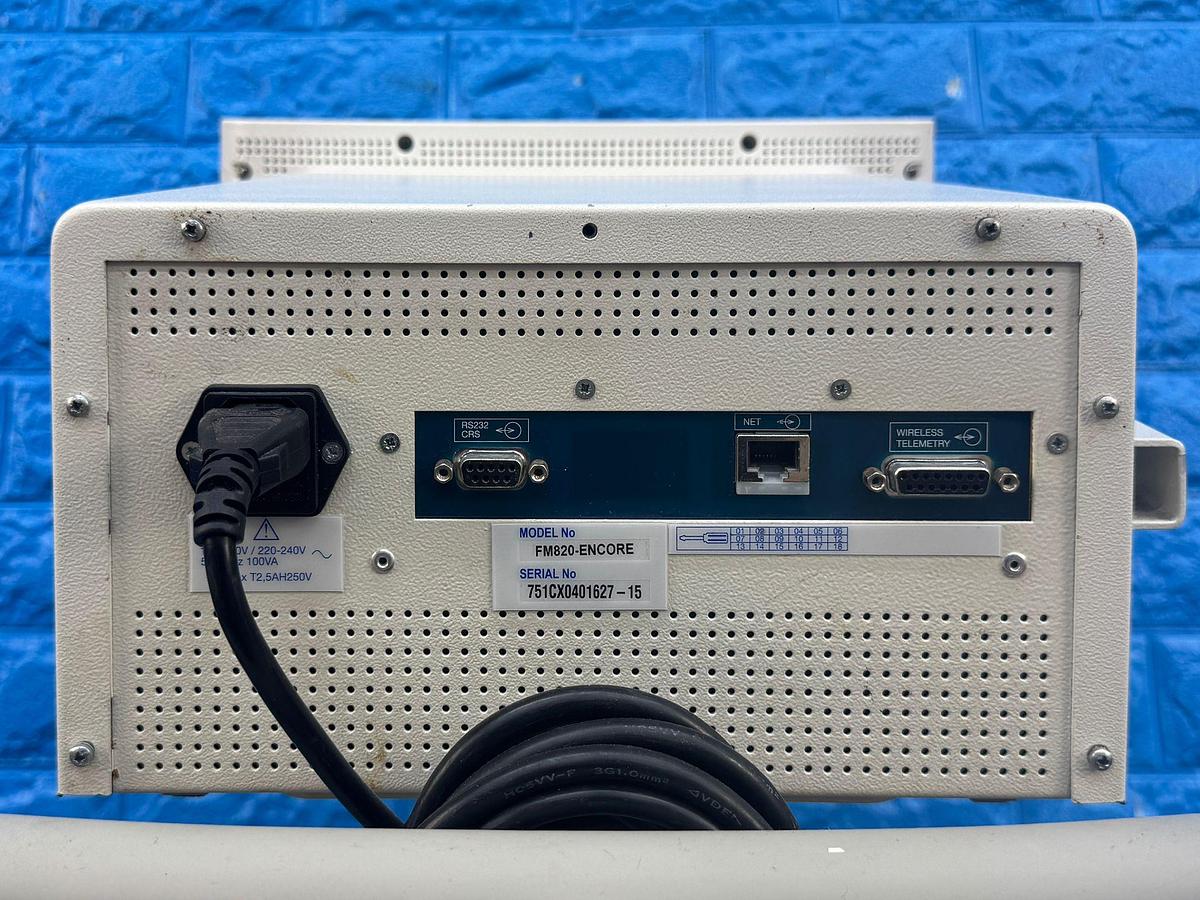

- Power Supply: 110–240V, 50/60Hz; maximum power consumption of 100VA.

- Thermal Printer: High-resolution (8 dots/mm) with 128mm thick film print head.

Monitoring Capabilities

- Fetal Monitoring:Dual Ultrasound Channels: Supports simultaneous twins monitoring.

- Fetal ECG (FECG): Capable of monitoring triplets when used in conjunction with ultrasound.

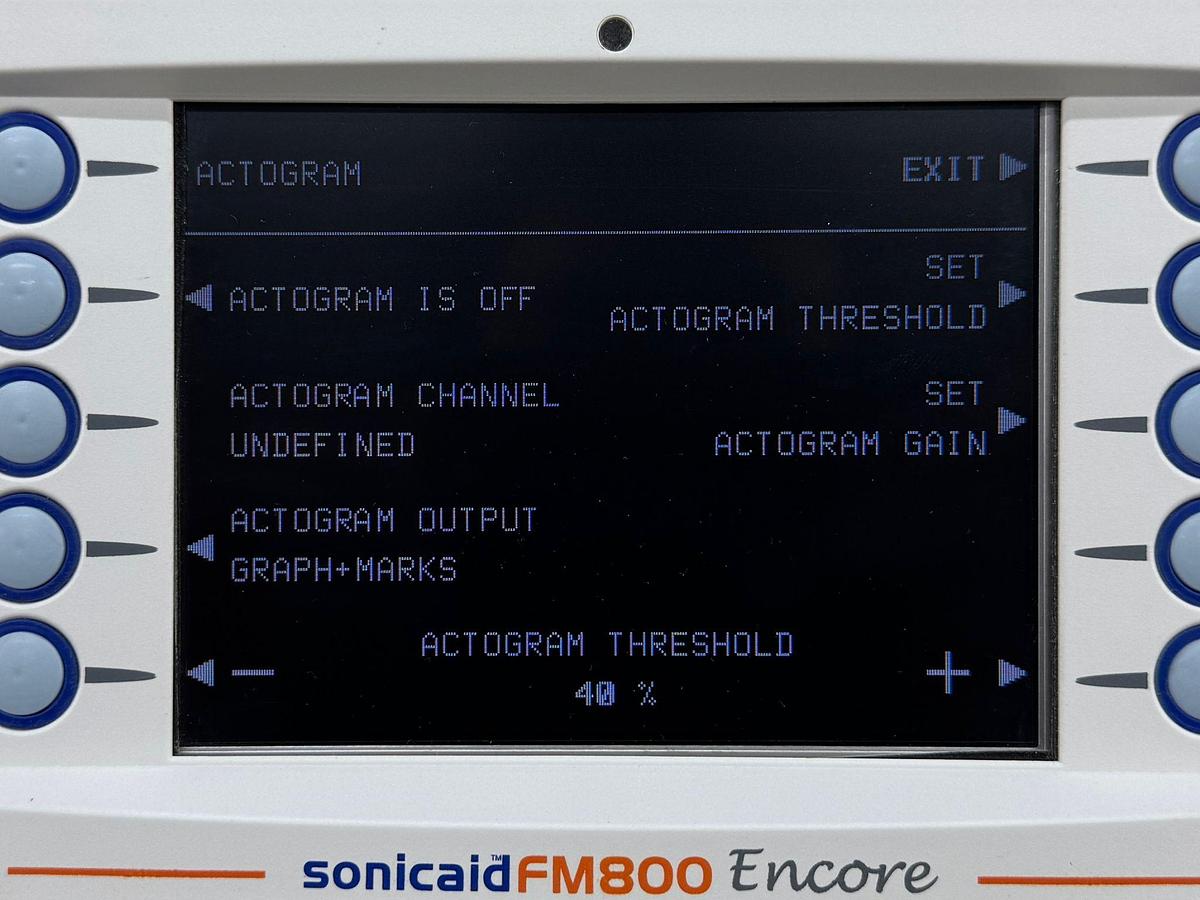

- Fetal Movement: Features both maternally sensed (manual) and automatic Actogram markers.

- Maternal Monitoring (Integrated):Vital Signs: Simultaneously monitors maternal ECG (MECG), pulse oximetry (SPO2), and non-invasive blood pressure (NIBP).

- Uterine Activity: Uses external Toco transducers with an optional Intrauterine Pressure (IUP) sensor.

Key Features & Analysis Tools

- Clinical Support: Includes Antepartum CTG Analysis (Dawes-Redman compliant) and Intrapartum Trend analysis for the first stage of labor.

- Visual Modes: Includes a "BIG Numbers" mode for high-contrast visibility from a distance or in dimly lit environments.

- Ambulatory Support: Compatible with the Sonicaid Freedom (T840) wireless telemetry system for mobile monitoring during labor.

- Data Integrity: Incorporates artifact rejection algorithms and Dynamic Digital Noise Reduction (DDNR) to clarify heart sounds.

The Huntleigh Sonicaid FM 800 Encore Fetal Monitor is a reliable and robust device designed for comprehensive fetal monitoring. This used unit includes the Sonicaid IPX7 ultrasound probe, known for its water-resistant capability, ensuring durability during clinical use. The monitor is ideal for tracking fetal heart rates and uterine contractions, making it essential in both prenatal clinics and hospital maternity wards. The FM 800 Encore offers a clear display for easy observation of fetal and maternal parameters, which is crucial for real-time assessment. Its user-friendly design is beneficial for busy medical professionals needing efficient and hassle-free operation. The inclusion of the IPX7 probe further enhances its suitability for varied environments, providing confidence in performance and longevity. This fetal monitor has been widely trusted for its accuracy, contributing to better prenatal care. The monitor's design ensures ease of maintenance and cleaning, making it a practical choice for healthcare facilities seeking consistent and reliable monitoring solutions at a reasonable cost.
