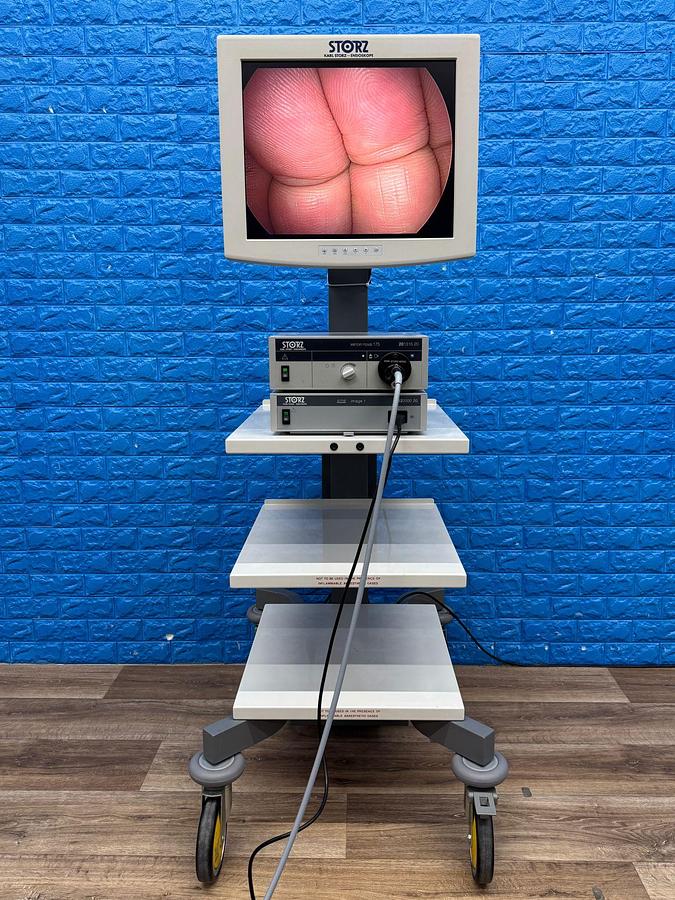

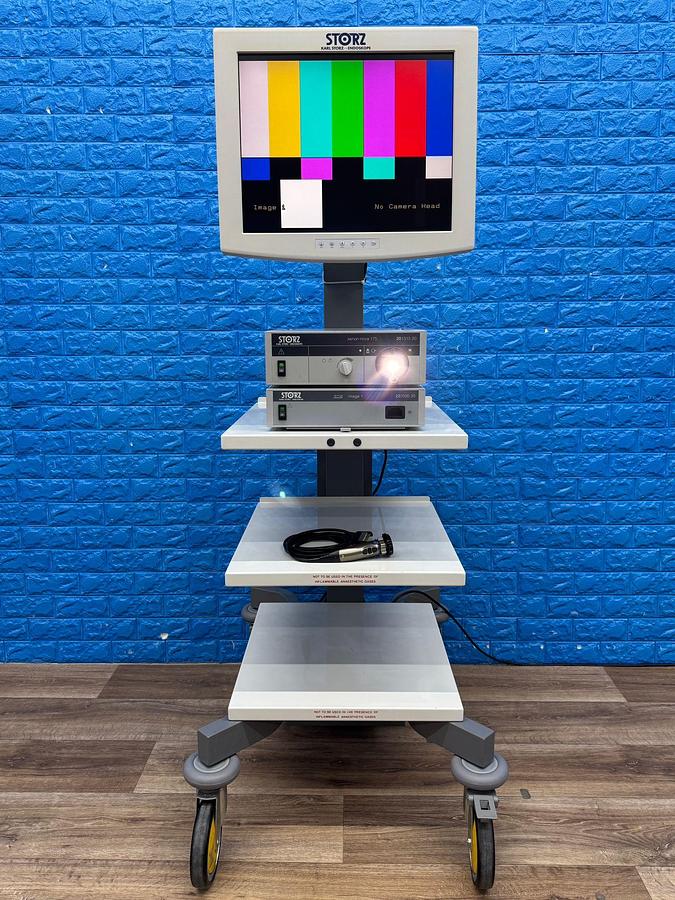

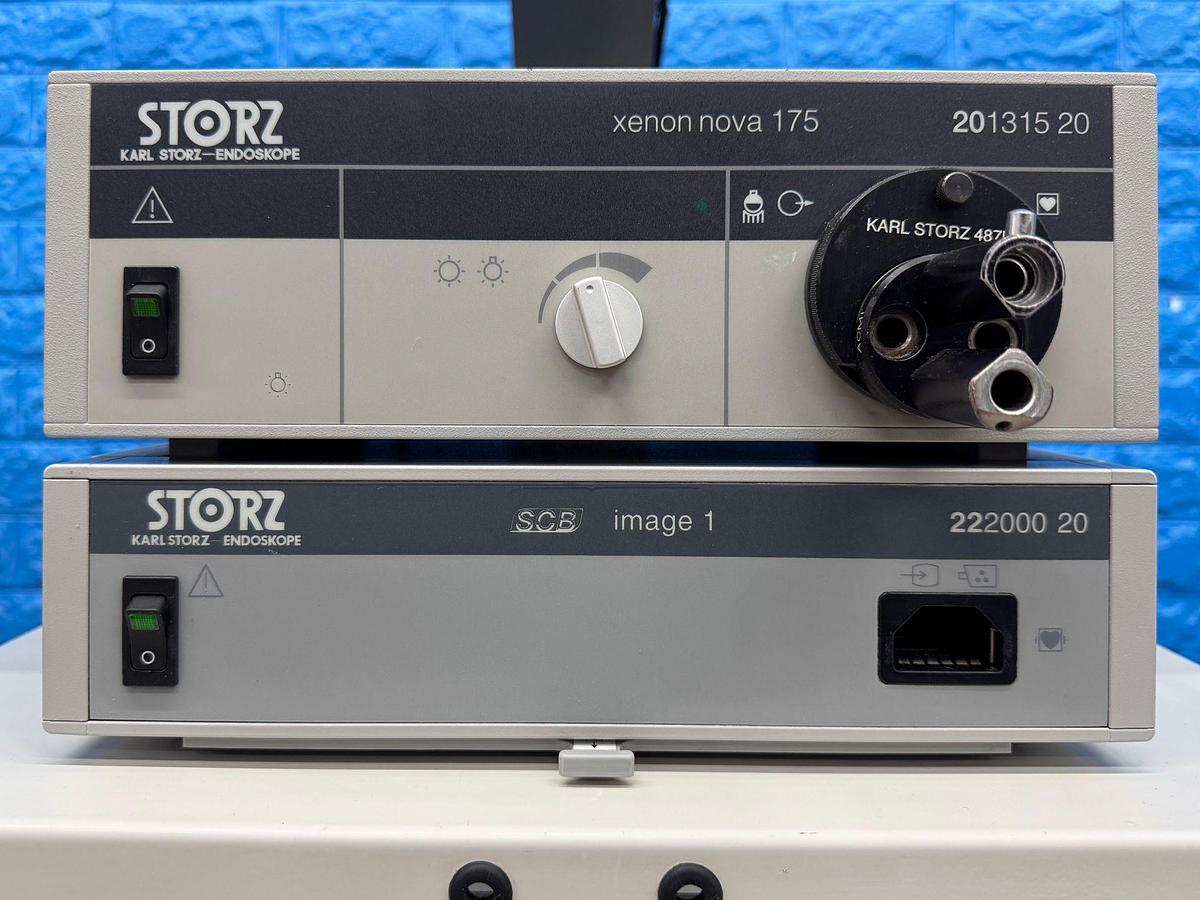

Karl Storz Image 1 Hub with S3 Camera head Laparoscopy Tower

Includes:

- Karl Storz S3 Tower

- Karl Storz Image 1 222000 20

- Karl Storz Xenon Nova 175 201315 20

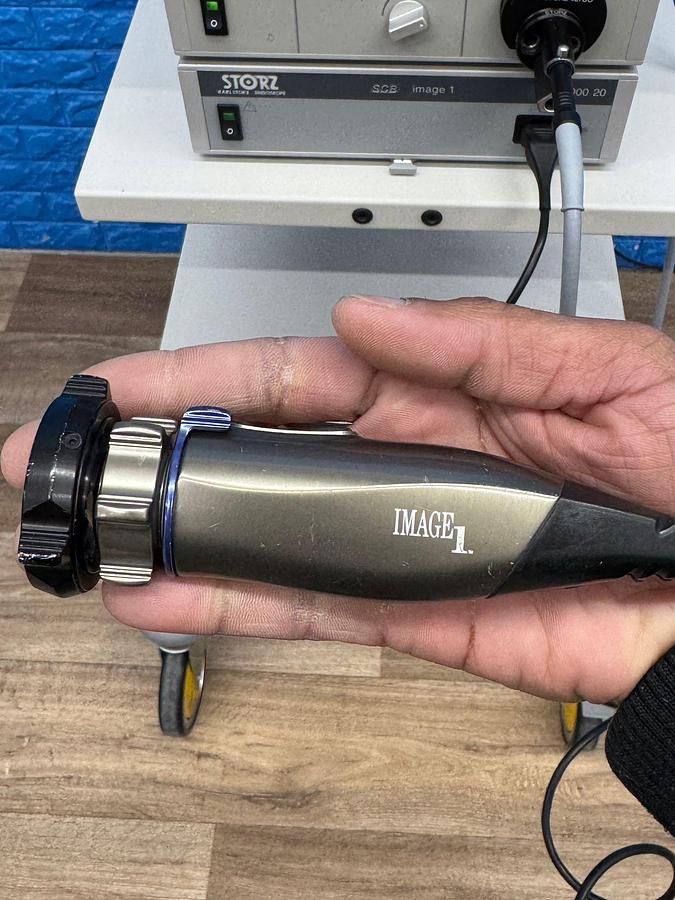

- Karl Storz S3 Camera Head

- Karl Storz 19 Inch LCD

System Component Overview:

1. Camera Control Unit (CCU): Image 1 Hub (222000 20)

The Image 1 Hub serves as the central processor for the tower, featuring backward compatibility with both high-definition (HD) and standard-definition (SD) camera heads.

- Resolution: Supports Full HD (1920 x 1080p) when used with compatible HD heads.

- Documentation: Integrated ICM (Image Capture Module) allows for still image capture and video recording via front and rear USB ports.

- Communication: Equipped with the Storz Communication Bus (SCB), enabling centralized control of other SCB-enabled devices (like light sources and insufflators) directly from the camera head buttons.

- Video Outputs: Includes DVI, SDI, S-Video, and RGB-sync for flexible monitor connections.

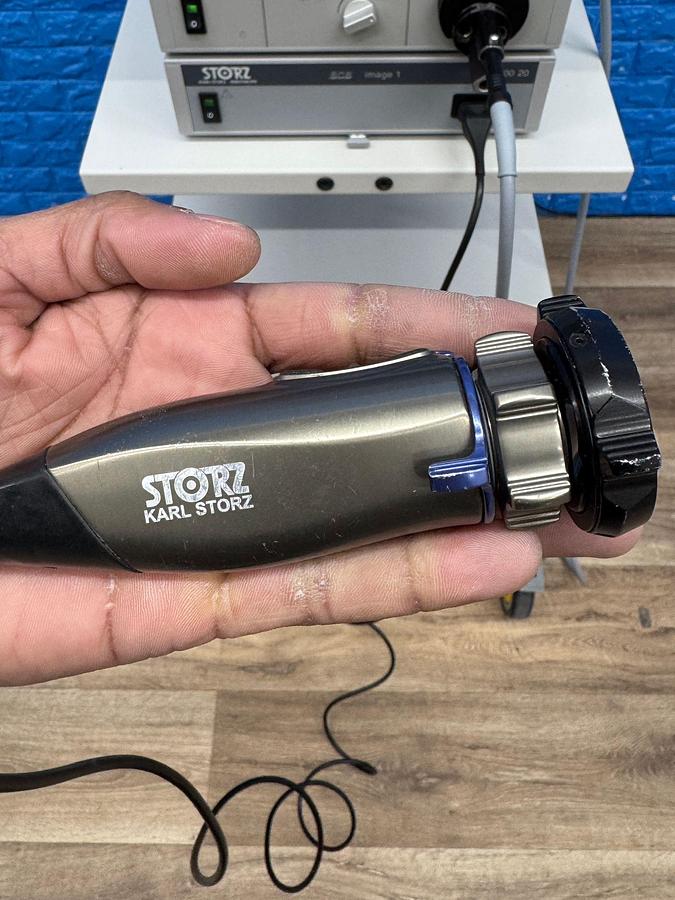

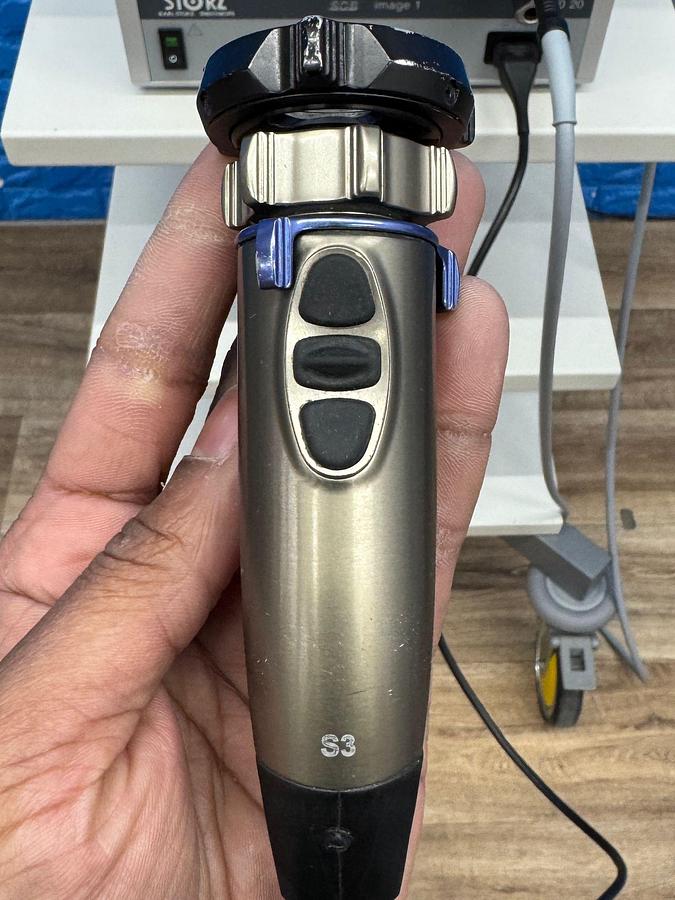

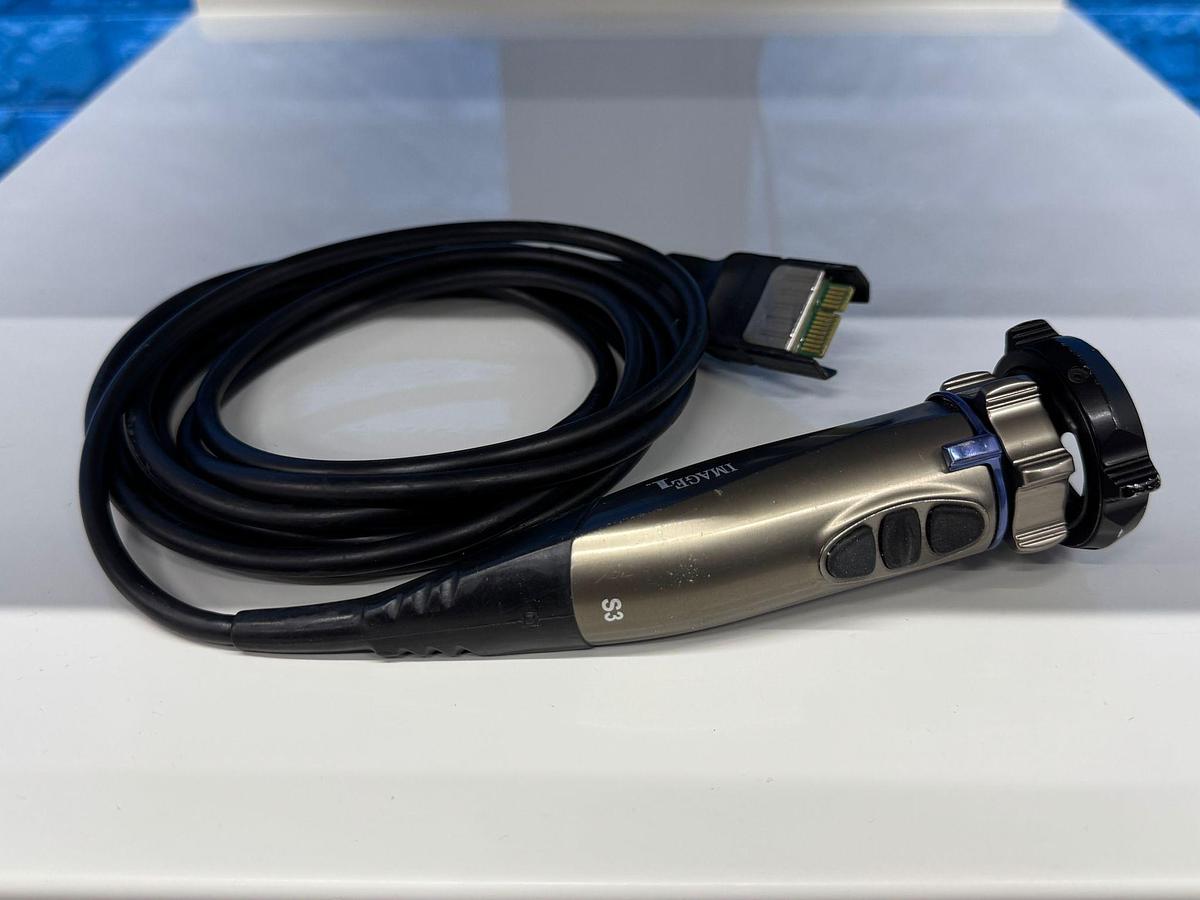

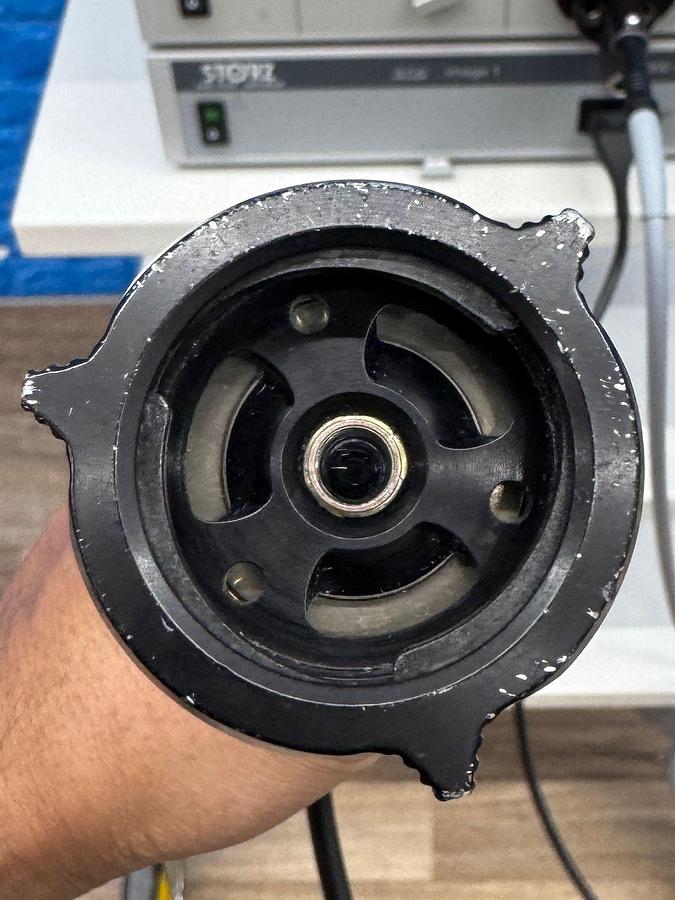

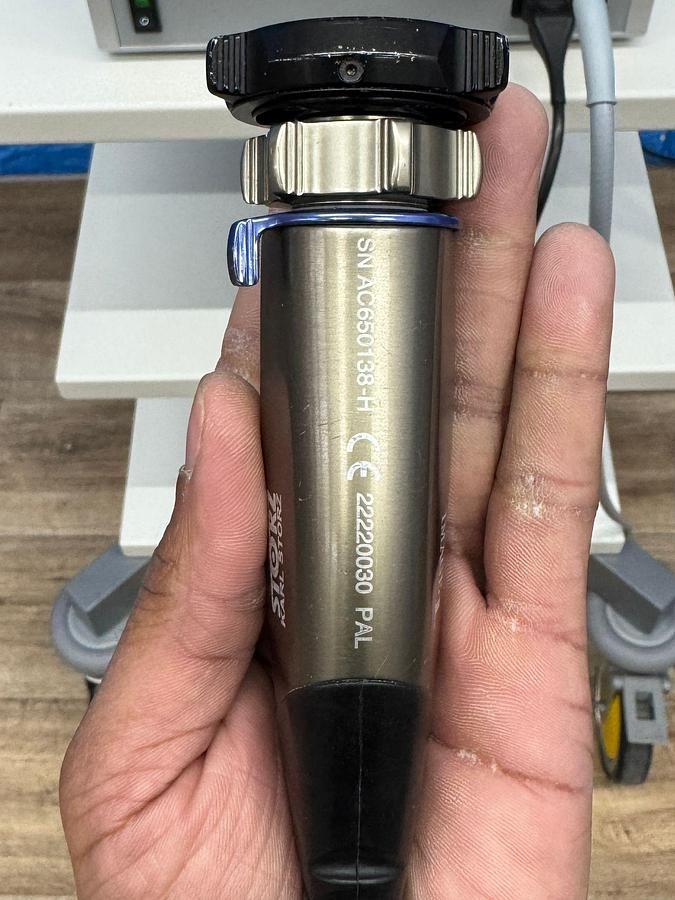

2. Camera Head: S3 (Standard Definition)

While the Image 1 Hub is HD-capable, the S3 camera head is a three-chip standard definition head known for its reliability in general laparoscopic procedures.

- Buttons: Features two freely programmable buttons for functions like white balance and image capture.

- Ergonomics: Designed for a comfortable grip during long procedures.

3. Light Source: Xenon Nova 175 (201315 20)

A compact and portable cold light source ideal for various endoscopic applications.

- Lamp: 175W Xenon arc lamp.

- Color Temperature: Approximately 6000K, providing bright, natural light that mimics sunlight for accurate tissue representation.

- Lamp Life: Average bulb life is roughly 1000 hours, with a warning indicator that glows red after 450 hours of use.

- Control: Features a manual brightness control knob.

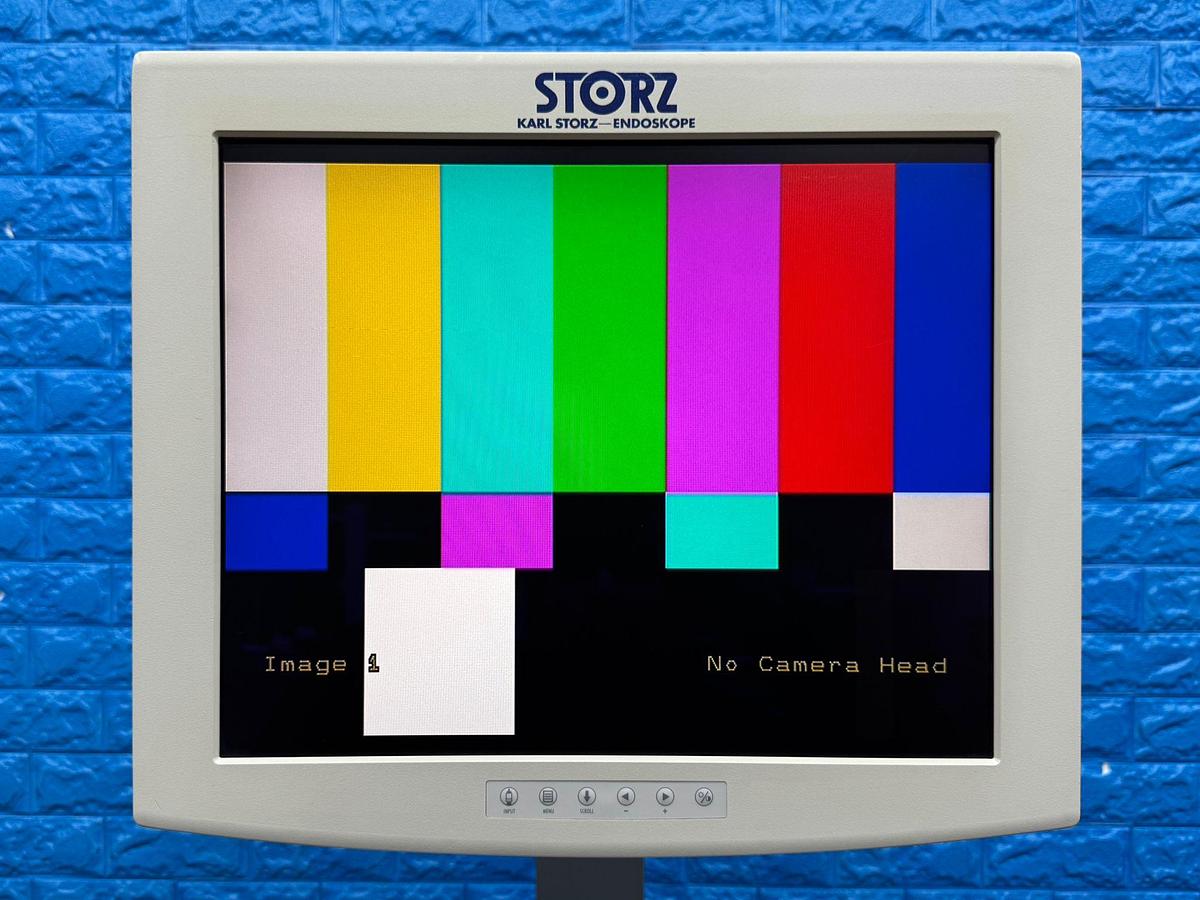

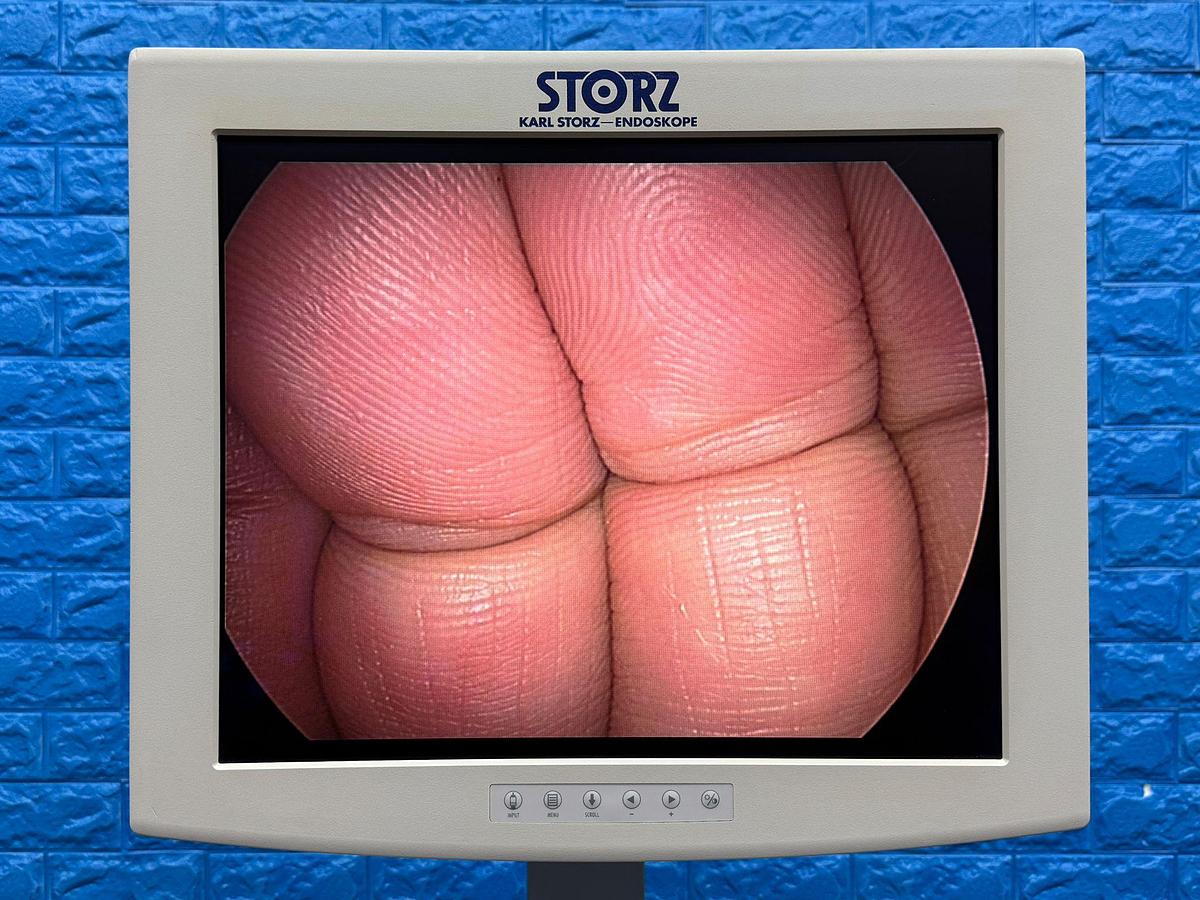

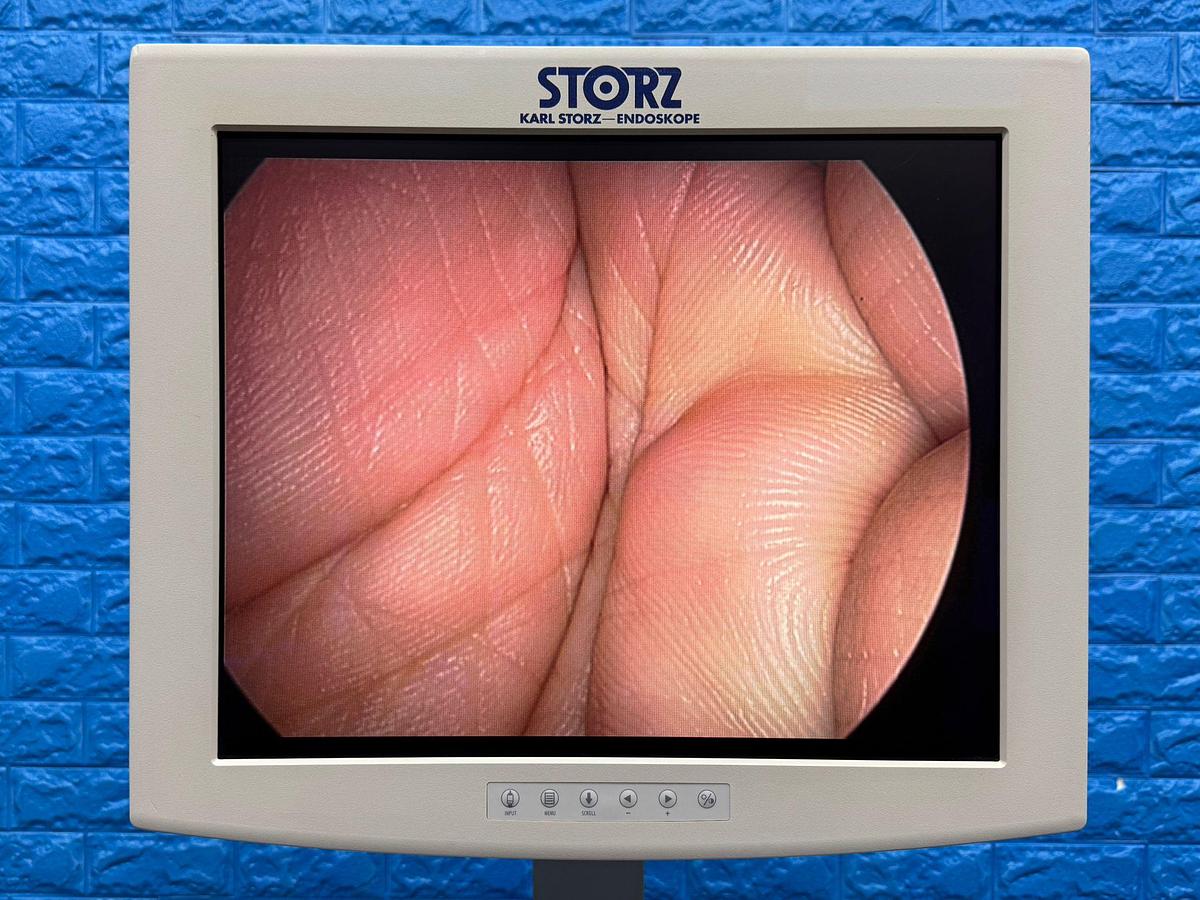

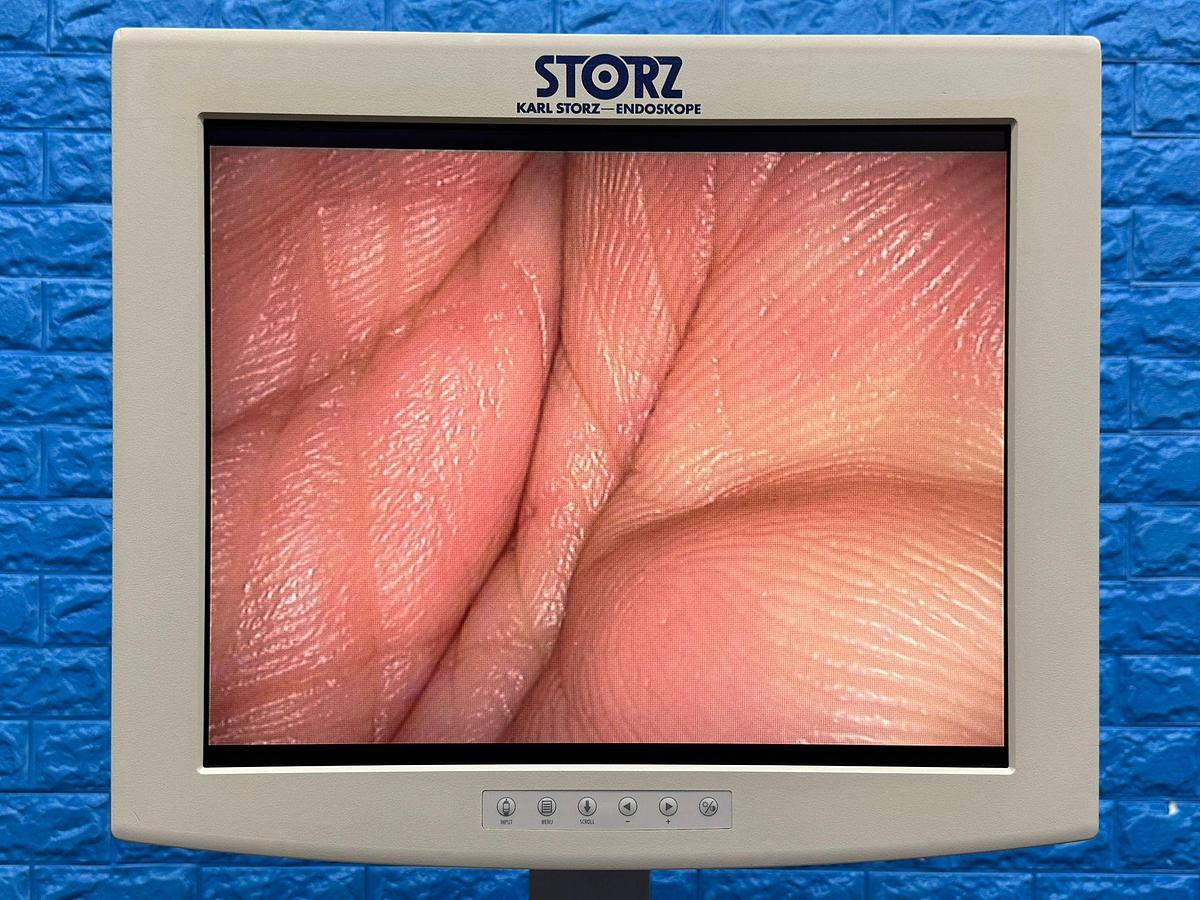

4. Display: 19 Inch LCD Monitor (Radiance 9419 NB/DR)

- Panel Type: Typically a medical-grade Radiance flat panel display.

- Resolution: Generally supports up to 1920 x 1080 px.

- Design: Features a protective filter and easy-to-clean surface suitable for surgical environments.

Key Features:

• IMAGE 1 HUB camera control unit – the central processor of the tower, compatible with HD and SD camera heads
• S3 three-chip camera head with parfocal zoom lens for sharp, true-colour imaging
• 2 freely programmable camera head buttons for white balance and image capture
• Integrated Image Capture Module (ICM) – capture still images and video via front and rear USB ports
• Storz Communication Bus (SCB) for centralised control of the light source and connected devices
• Multiple video outputs – DVI, SDI, S-Video, and RGB-sync for flexible monitor connectivity

Technical Highlights:

• Resolution: Hub supports Full HD 1920 × 1080p (with compatible HD heads); S3 head delivers high-quality three-chip SD imaging
• Progressive scan with natural colour reproduction and lag-free visualisation
• 6000K colour temperature xenon illumination for bright, natural tissue representation
• Compact, lightweight camera head designed for comfortable handling during long procedures
• Soakable camera head construction for straightforward reprocessing

Applications:

Ideal for use in:

• General laparoscopy and minimally invasive abdominal surgery
• Gynaecology – diagnostic and operative hysteroscopy and laparoscopy
• Urology and thoracic surgery
• ENT and gastroenterology endoscopic procedures

Key Benefits:

• Proven reliability – the trusted Karl Storz platform used in operating theatres worldwide
• Future-ready design – upgrade to Full HD camera heads anytime using the same hub
• Streamlined workflow – capture, document, and control everything from the camera head buttons
• Cost-effective – one laparoscopy tower serving multiple surgical specialities
• Ergonomic and compact – suits busy theatres and day-surgery units

Why Choose the Karl Storz Image 1 Hub with S3 Camera Head Laparoscopy Tower?

The Karl Storz Image 1 Hub with S3 Camera head laparoscopy tower is designed for precision in minimally invasive procedures. Central to the system is the Image 1 222000 20 hub, which supports high-definition imaging for clear visualisation during surgical procedures. Complementing the hub is the S3 Camera Head, known for its exceptional image quality and ergonomic handling, ensuring accuracy and comfort for the surgical team. Included in this setup is the Karl Storz Xenon Nova 175 201315 20, providing reliable illumination with consistent brightness for unobstructed visibility. The system is capped off with a 19-inch LCD monitor, allowing for real-time display of detailed surgical images. This pre-owned unit has been maintained to meet professional standards, ensuring dependable performance. Ideal for healthcare facilities seeking a robust imaging solution for laparoscopy, this comprehensive setup provides the tools necessary for efficient and effective surgical interventions.
