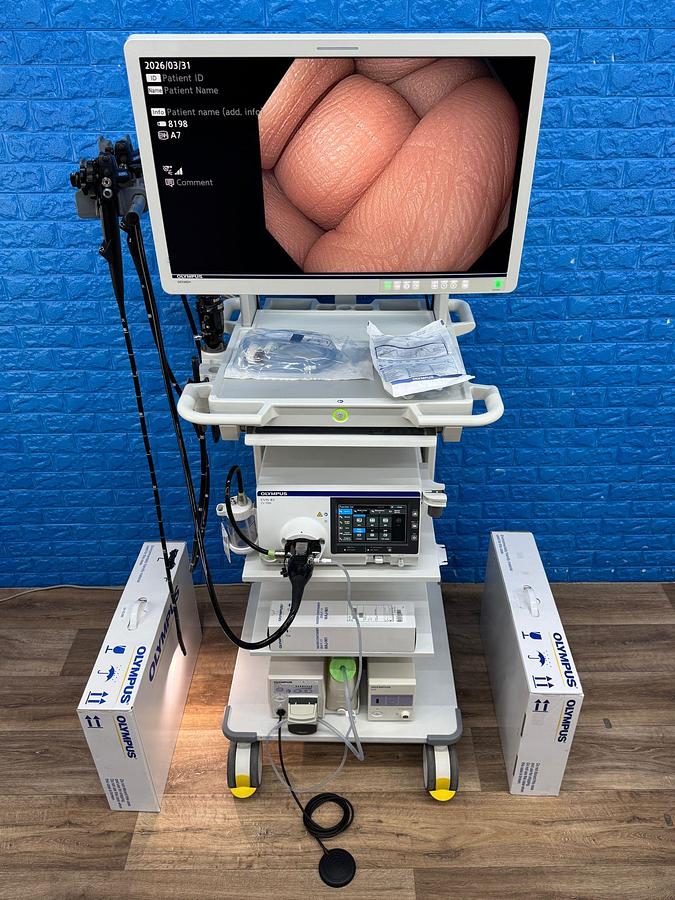

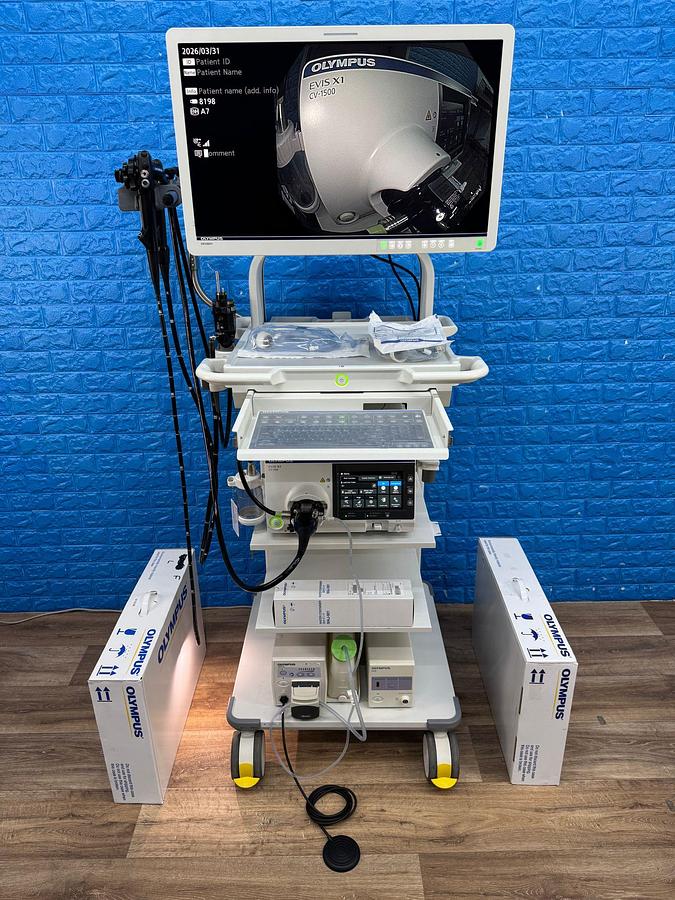

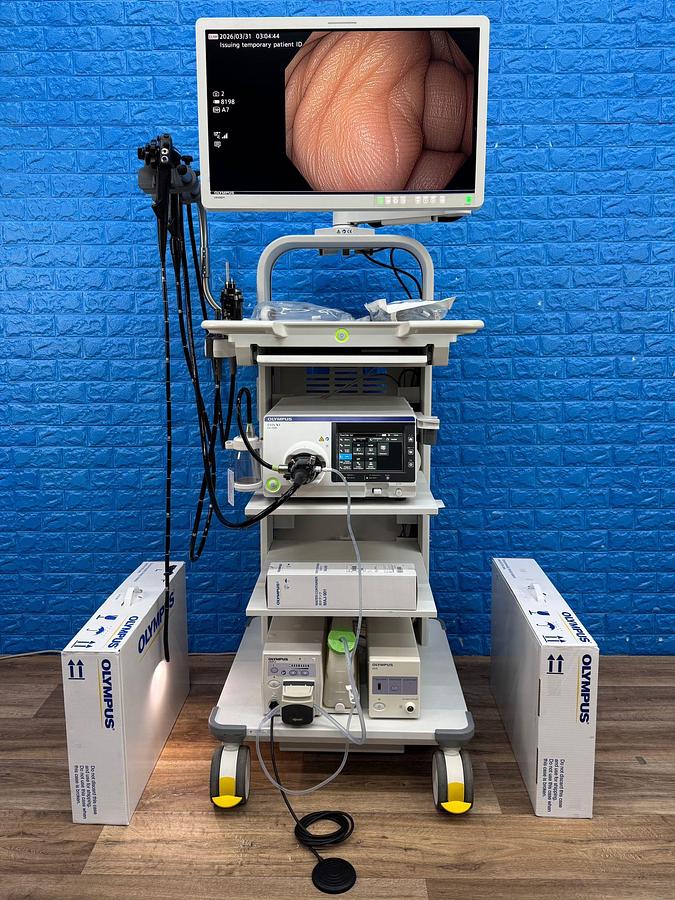

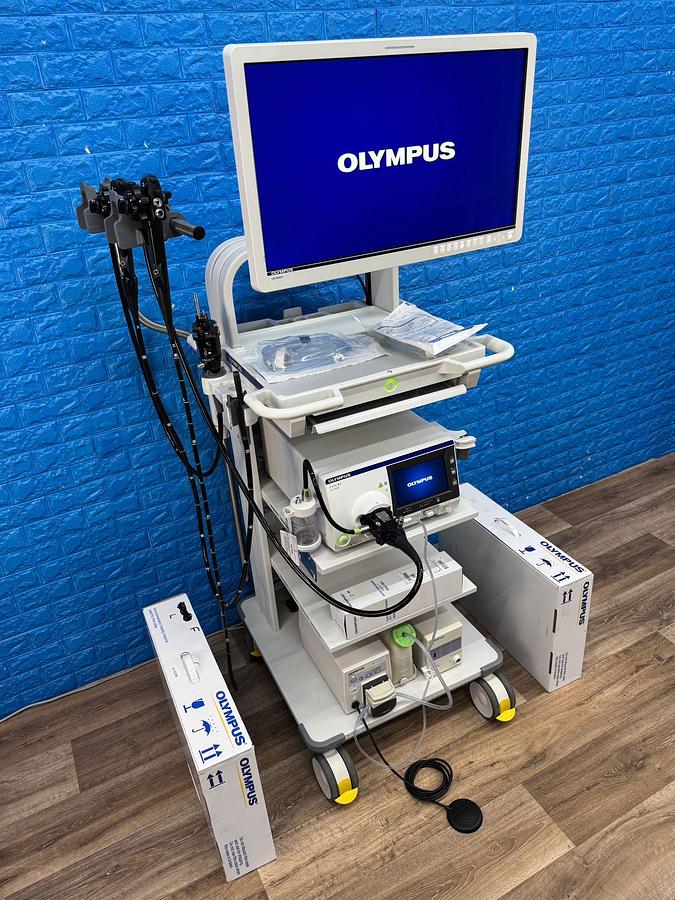

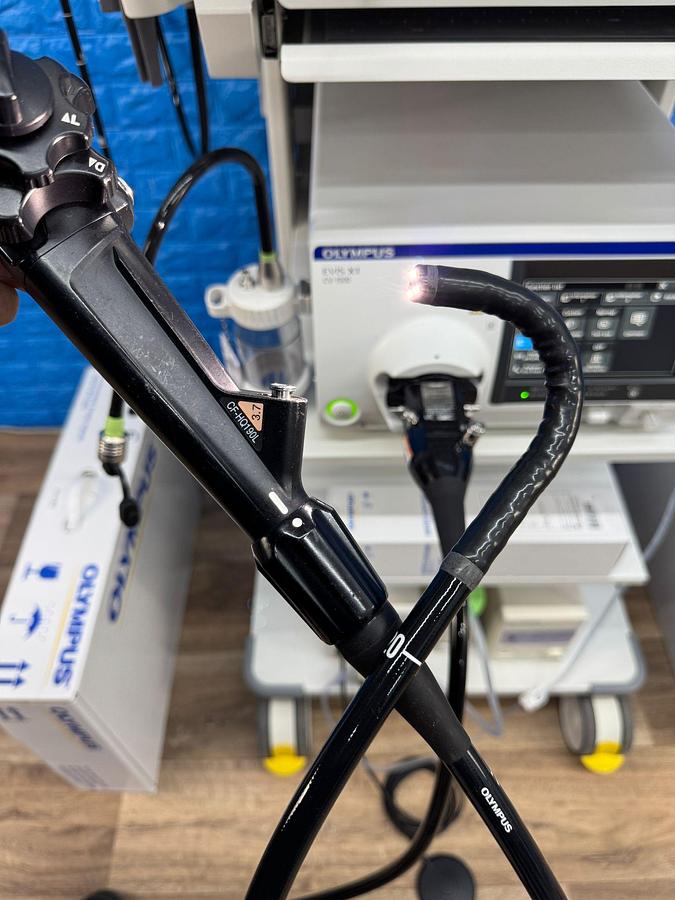

OLYMPUS Evis X1 CV-1500 Endoscopy Tower 2021 with GIF-HQ190 / CF-HQ190L

In good working condition.

Includes:

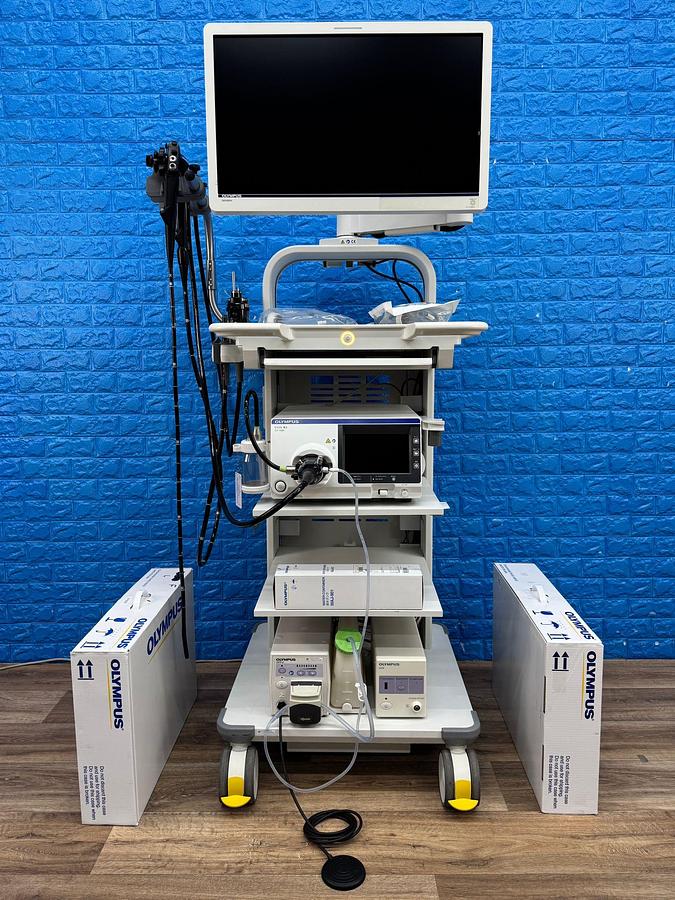

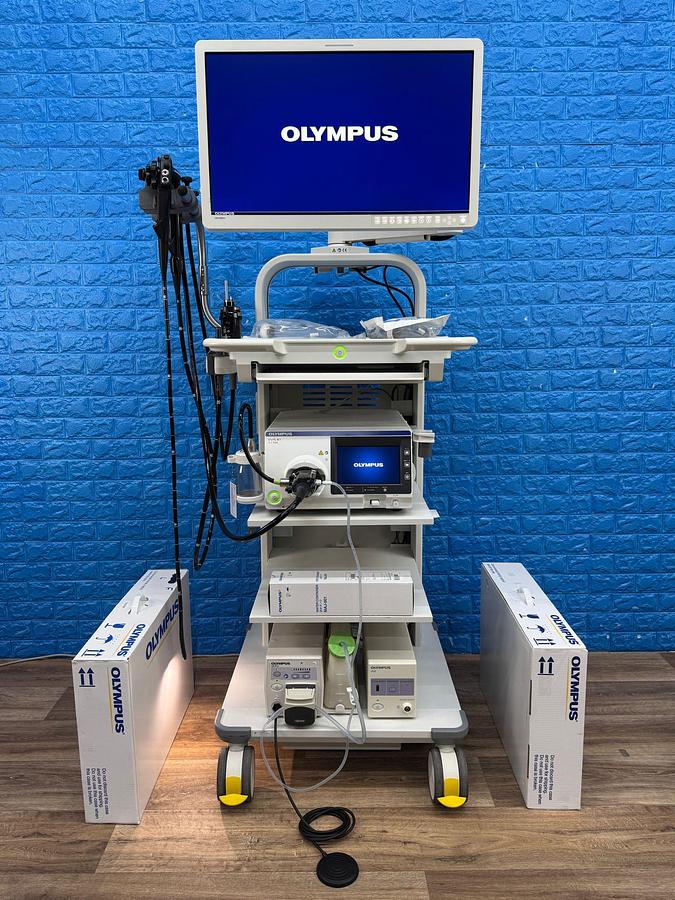

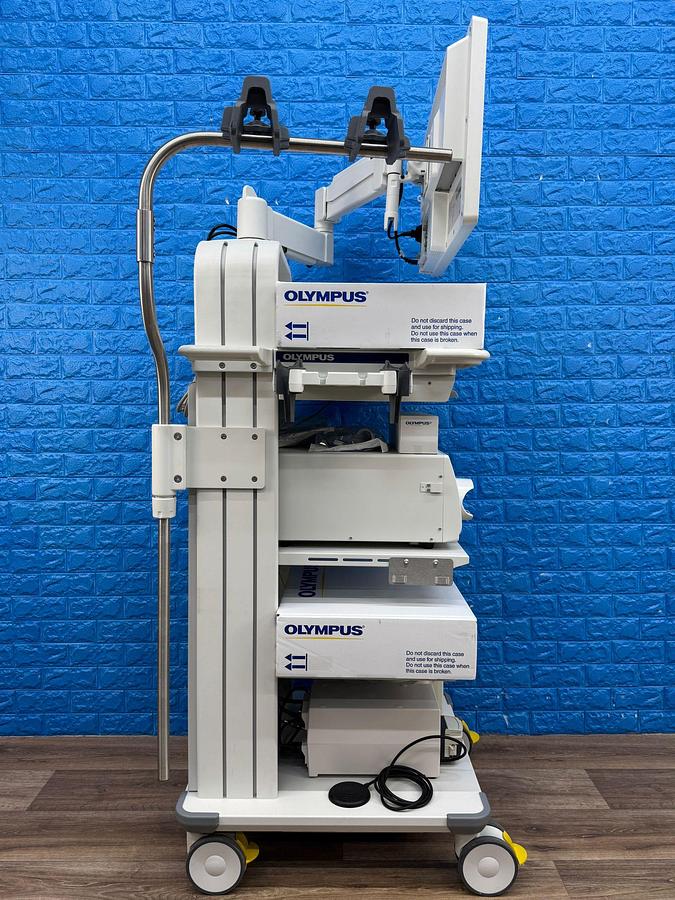

- Olympus Evis X1 CV-1500 Endoscopy Tower 2021 with Gastro GIF-HQ190 / Colo CF-HQ190L

- Olympus CV-1500 Processor

- Olympus MAJ-1921 Keyboard

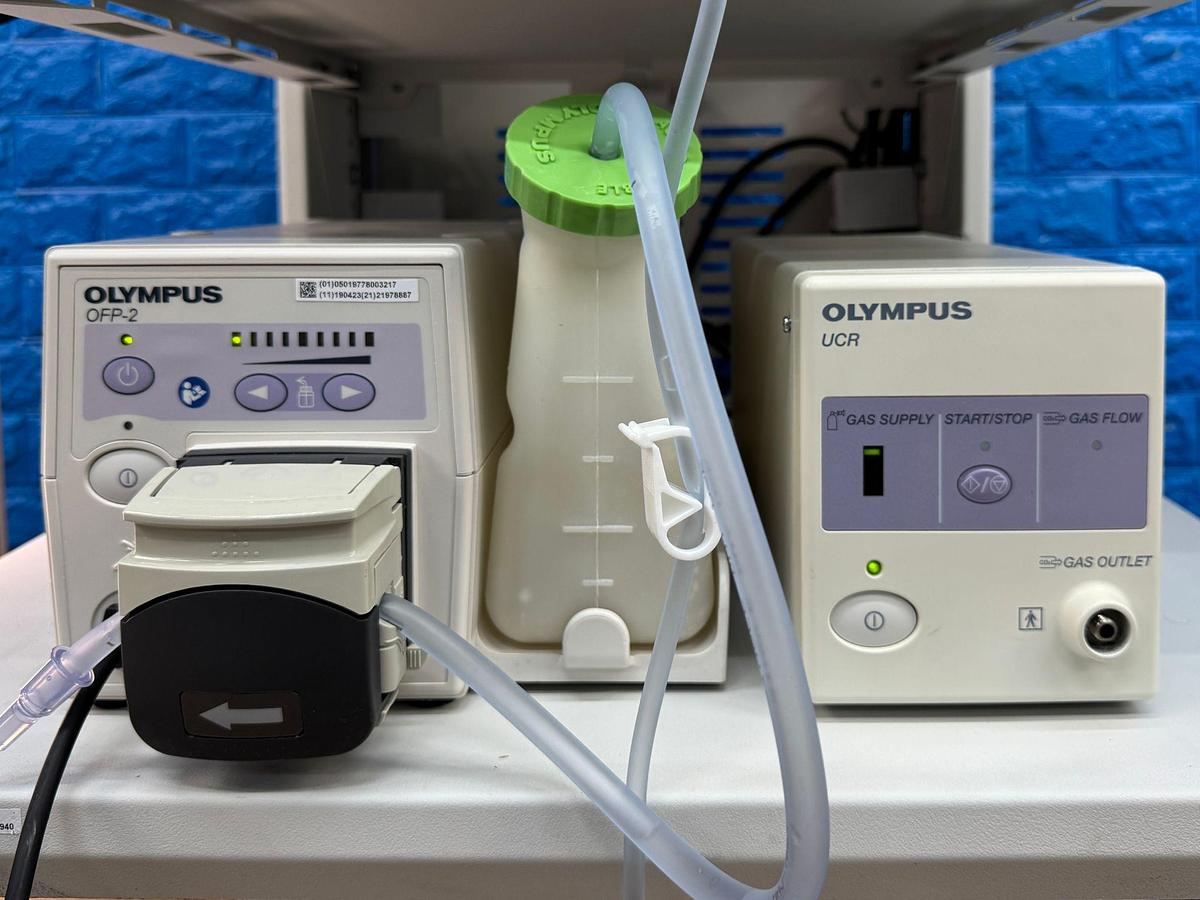

- Olympus OFP-2 Flushing Pump

- Olympus UCR Gas Insufflator with hose

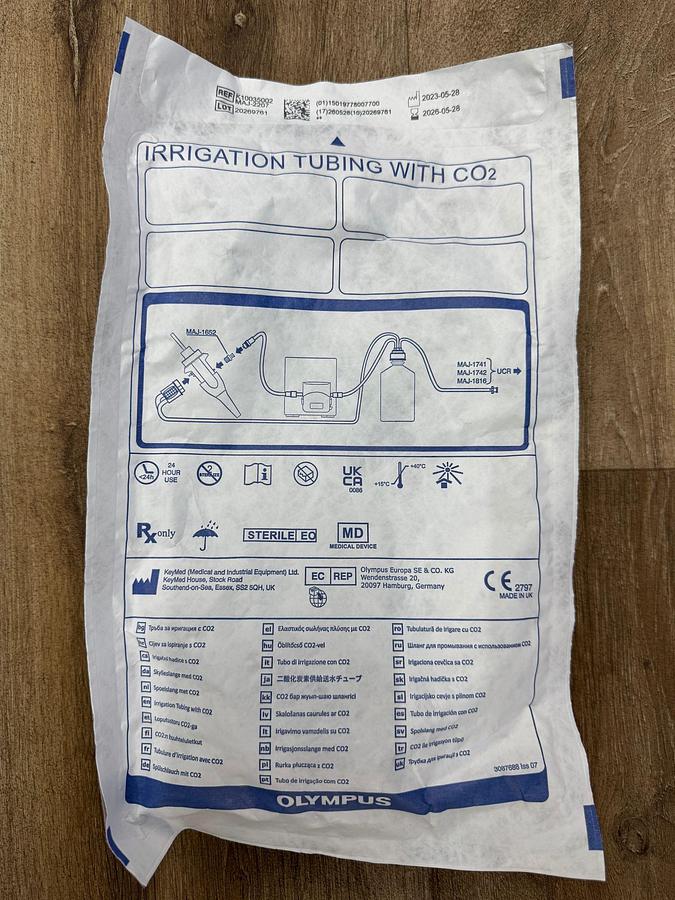

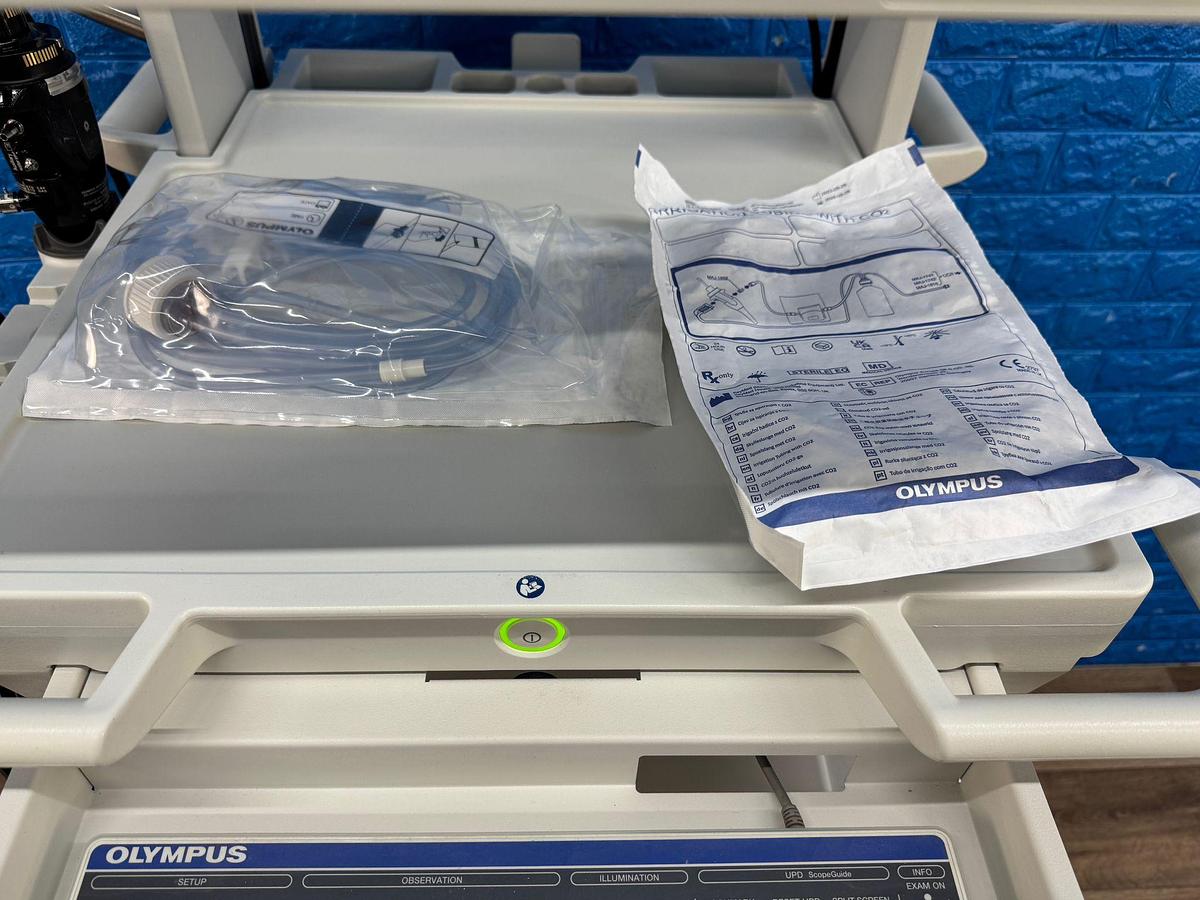

- Olympus MAJ-2207 Tubing

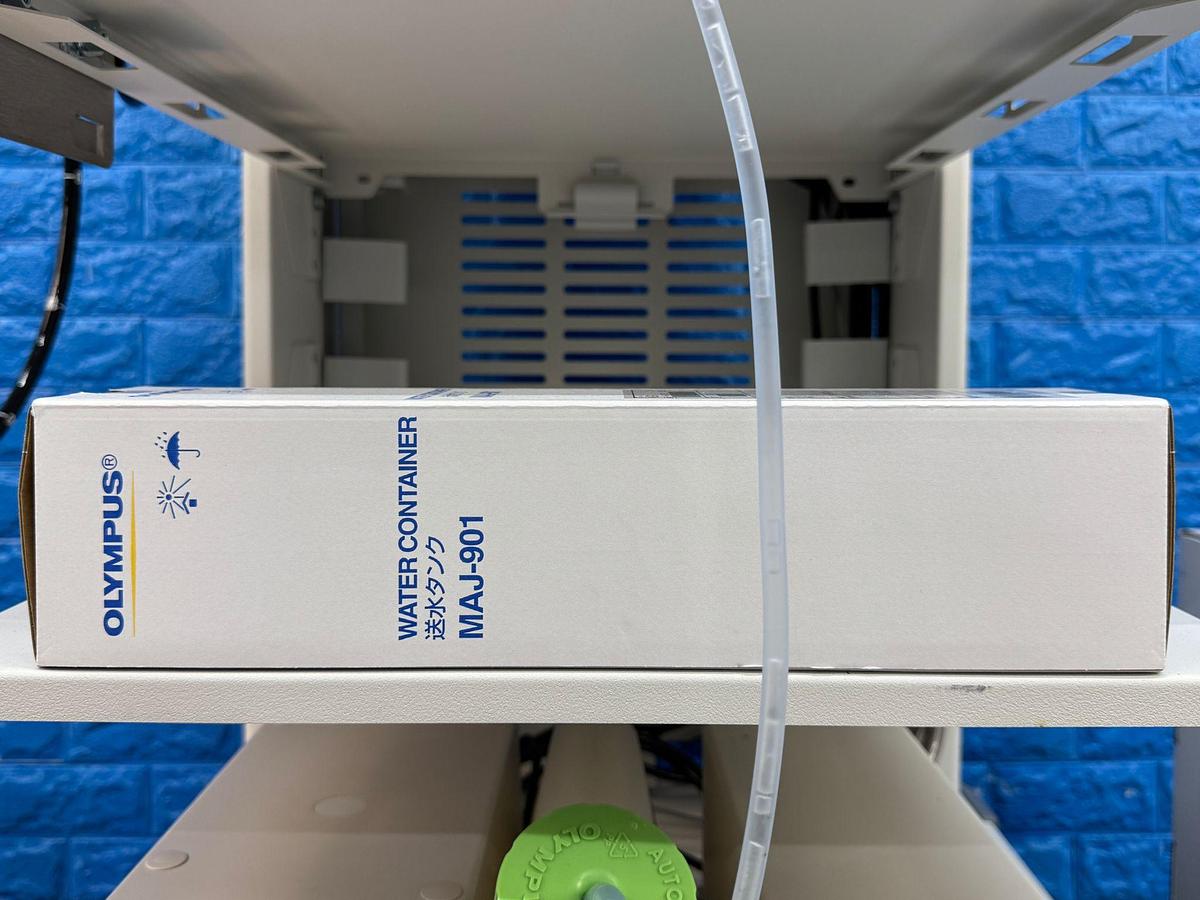

- Olympus MAJ-901 Water Bottle

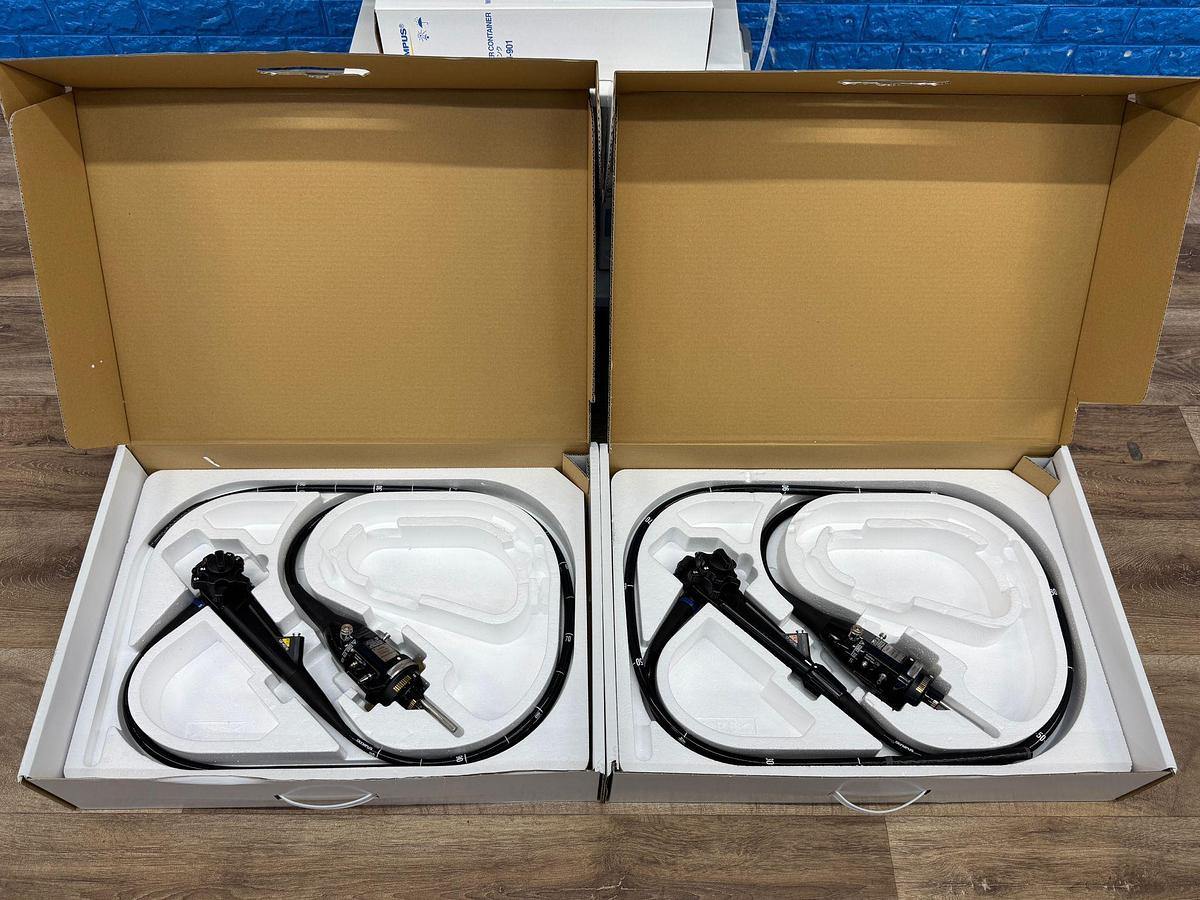

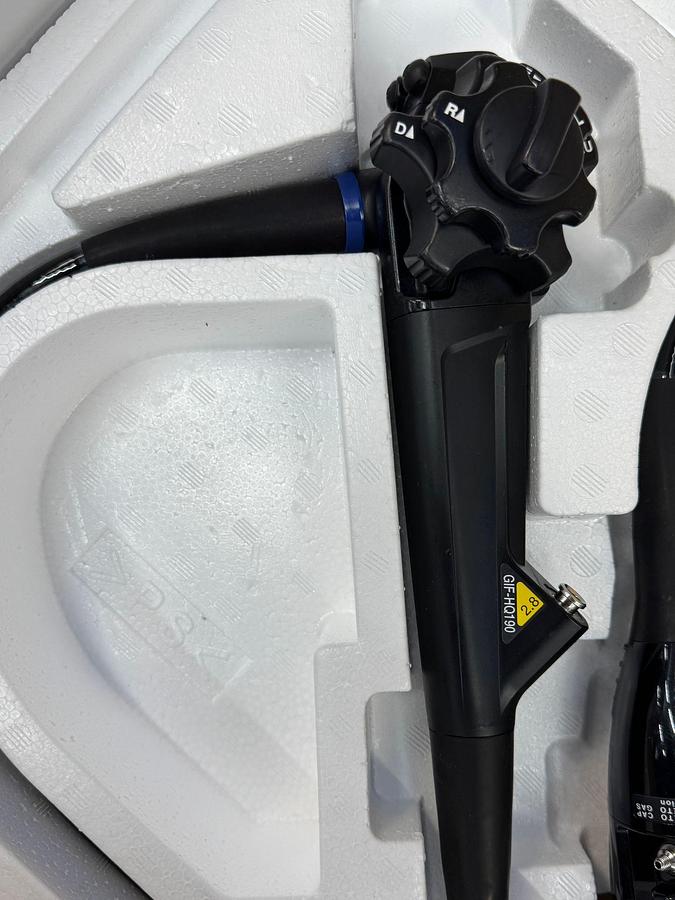

- Olympus GIF-HQ190 Gastroscope with case and Air/Water/Suction valve

- Olympus CF-HQ190L Long Colonoscope with case and Air/Water/Suction valve

We ship worldwide.

Please get back to us for further queries.

WE SPEAK ENGLISH -HABLAMOS ESPAÑOL -WIR SPRECHEN DEUTSCH.

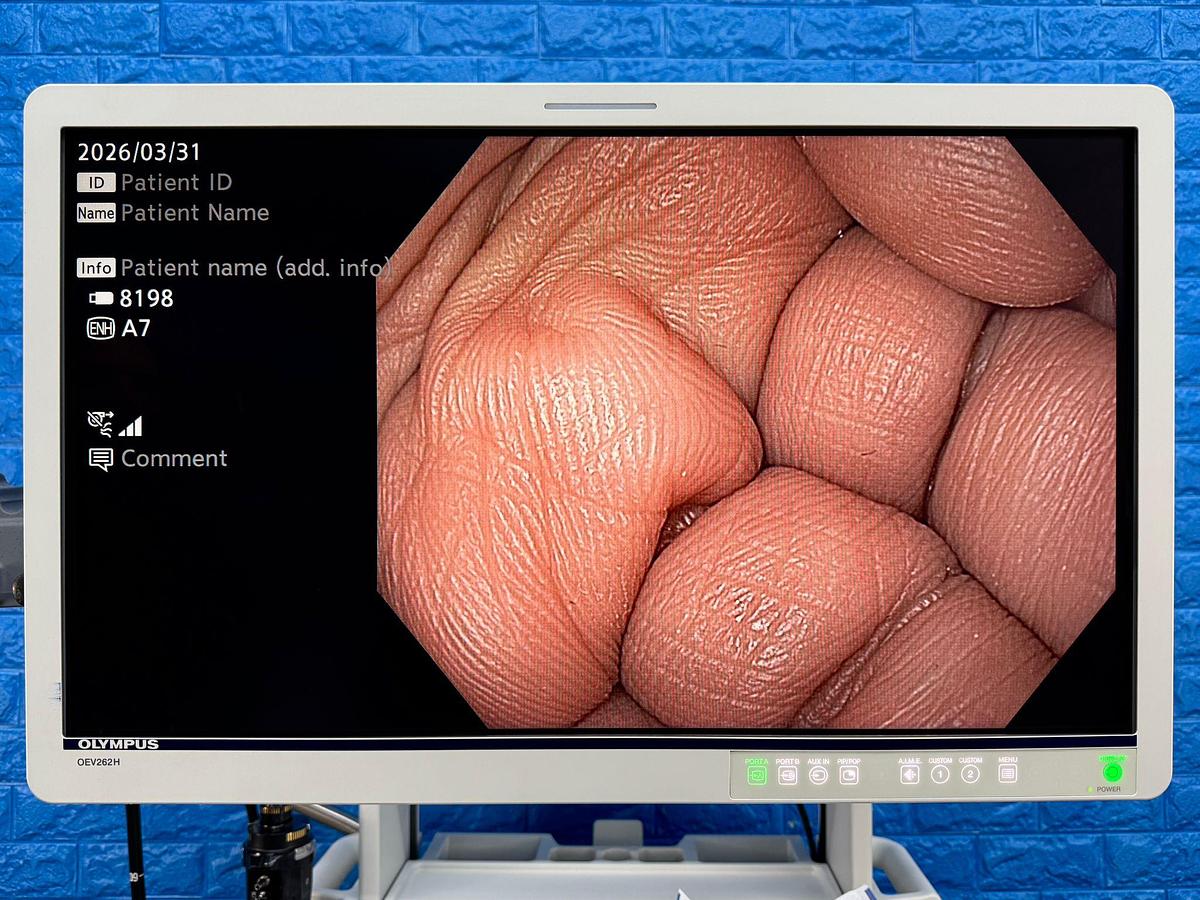

This Olympus Evis X1 endoscopy tower, often configured around 2021, is a high-end gastrointestinal diagnostic system combining the CV-1500 video processor (which integrates LED light source technology) with 190-series HQ high-definition scopes. The system leverages AI-powered imaging, such as Texture and Colour Enhancement Imaging (TXI) and Red Dichromatic Imaging (RDI), to enhance lesion detection and characterisation.

Core Components & Technical Specifications

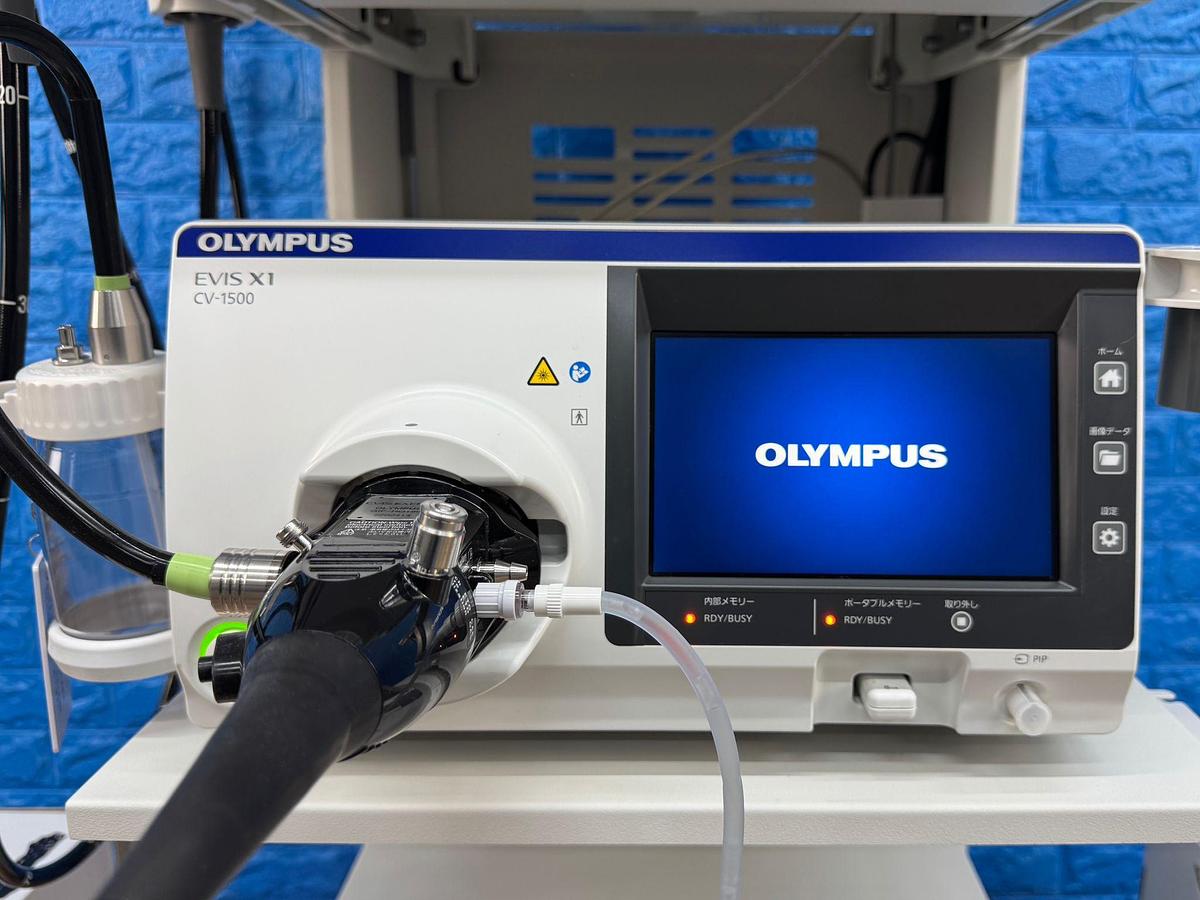

1. Olympus CV-1500 Video System Center (Processor + LED Light Source)

- Imaging Technology: Utilises a 5-LED spectrum system (including an amber LED).

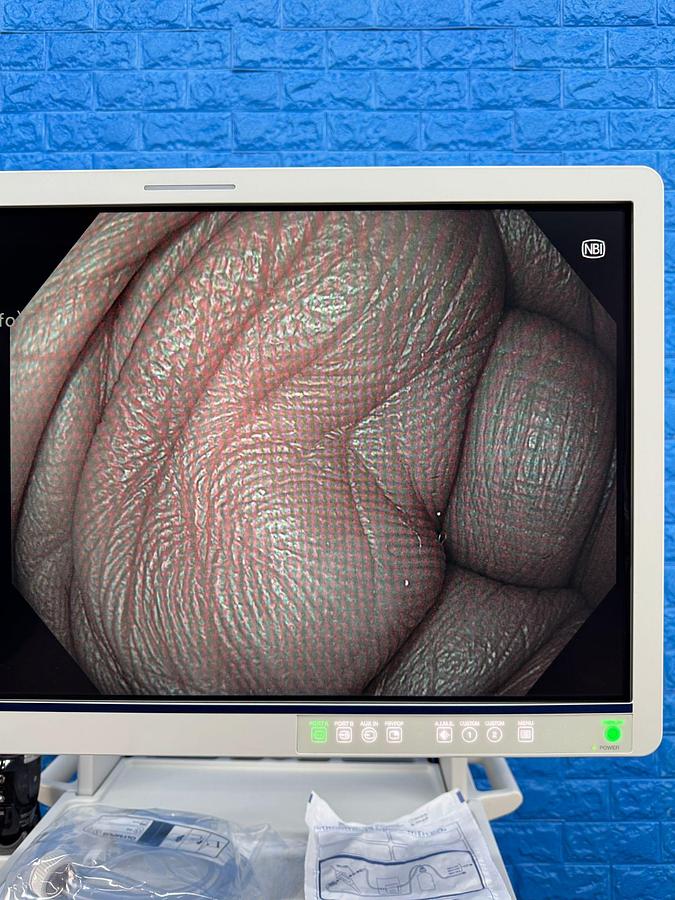

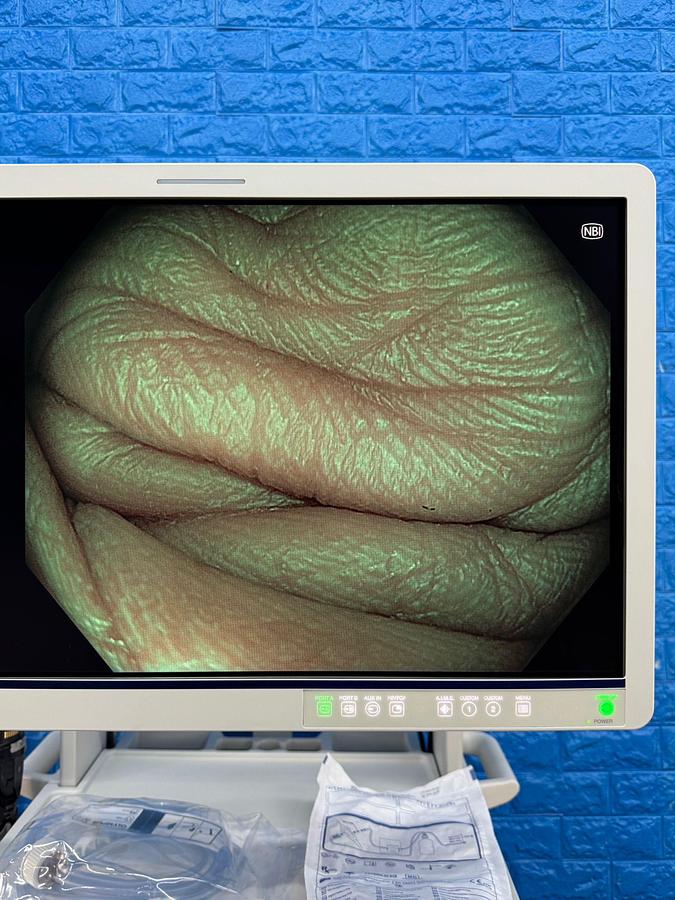

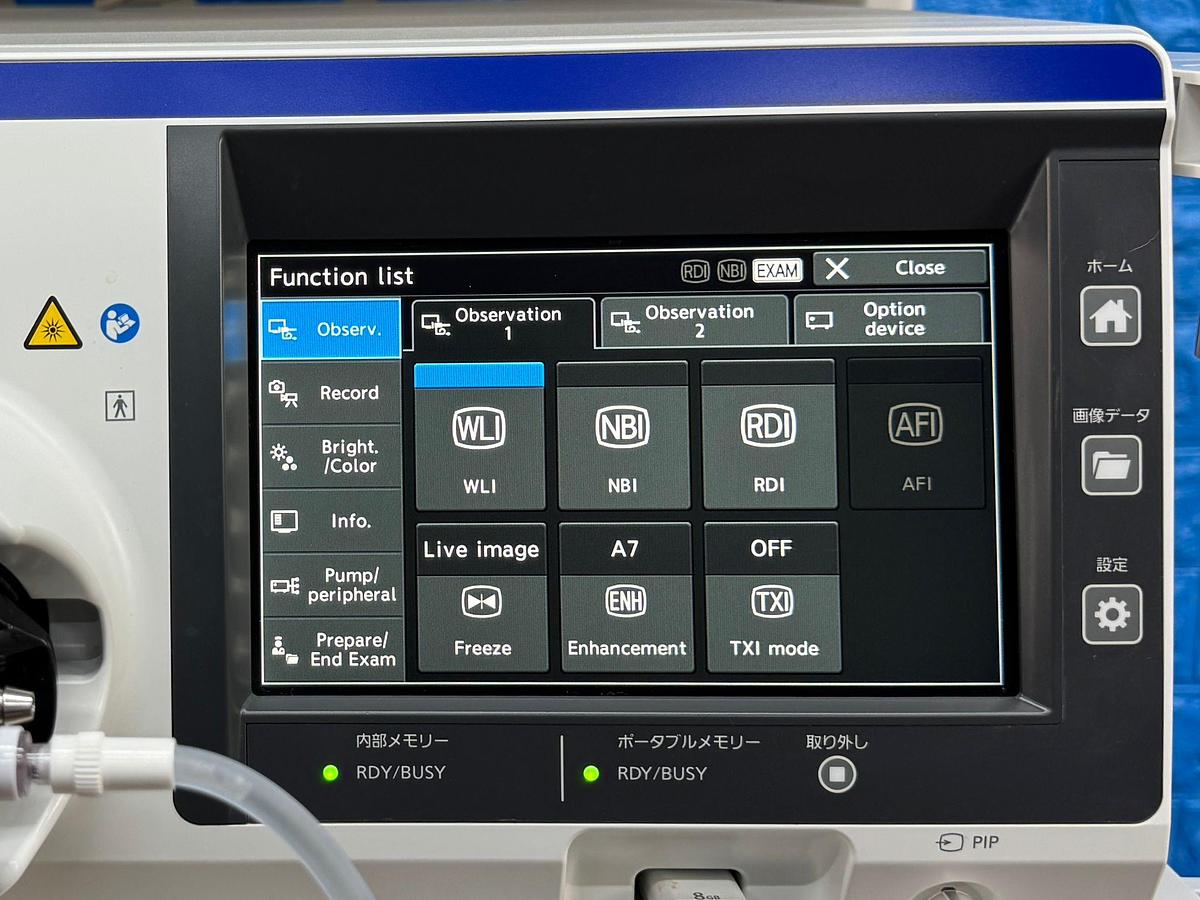

- Key Features: TXI (enhances structure and colour), RDI (improves visibility of deep blood vessels), NBI (Narrow Band Imaging for enhanced vessel/mucosal contrast).

- BAI-MAC: Brightness Adjustment Imaging with Maintenance of Contrast, improving visibility in dark areas.

- Design: Compact, all-in-one design (processor and light source combined).

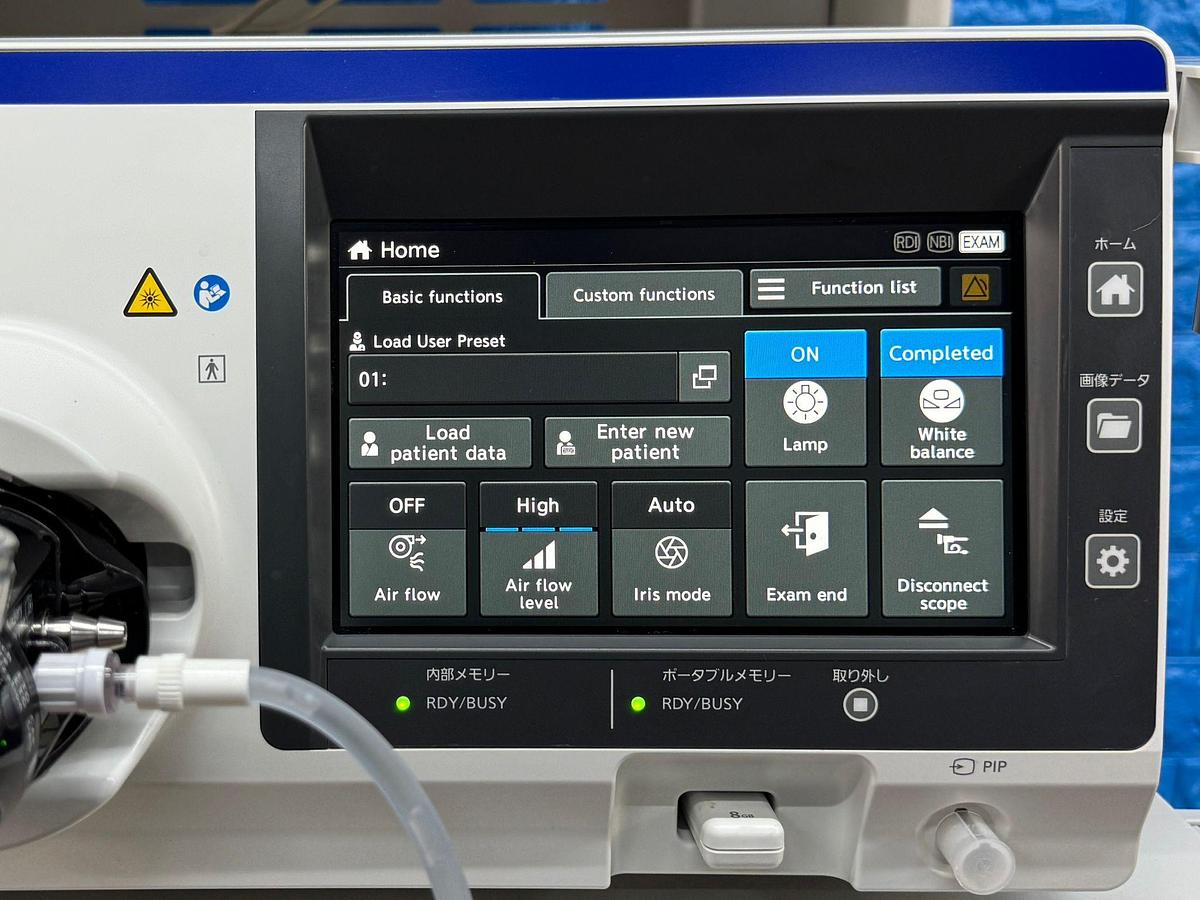

- Interface: Touch panel for direct input and 12G-SDI output for 4K display.

- Compatibility: Cross-compatible with EVIS EXERA III (190) and EVIS LUCERA ELITE (700) series scopes.

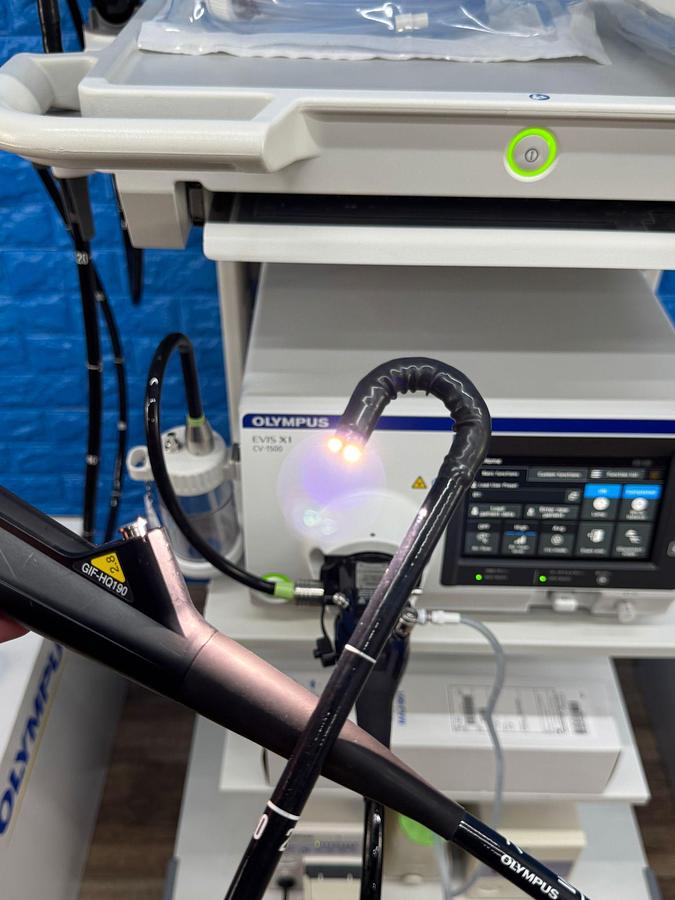

2. Olympus GIF-HQ190 Gastroscope (EVIS EXERA III)

- Field of View: 140° (normal/near).

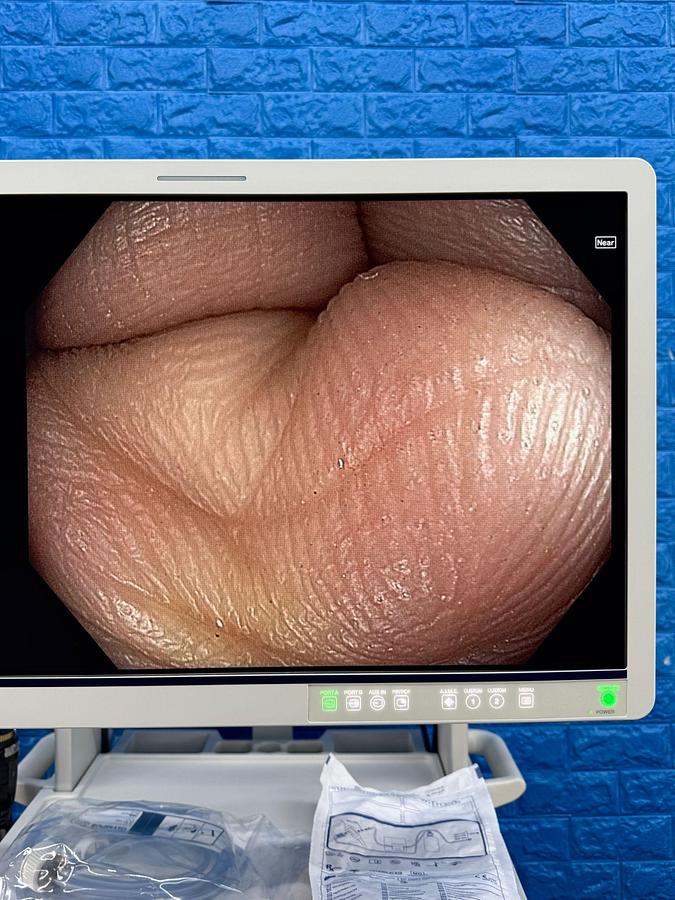

- Depth of Field: Dual Focus (Normal 5–100 mm, Near 2–6 mm).

- Distal End Diameter: 9.9 mm.

- Working Length: 1,030 mm.

- Instrument Channel: 2.8 mm.

- Angulation: Up 210°, Down 90°, Right 100°, Left 100°.

- Feature: Integrated Water Jet.

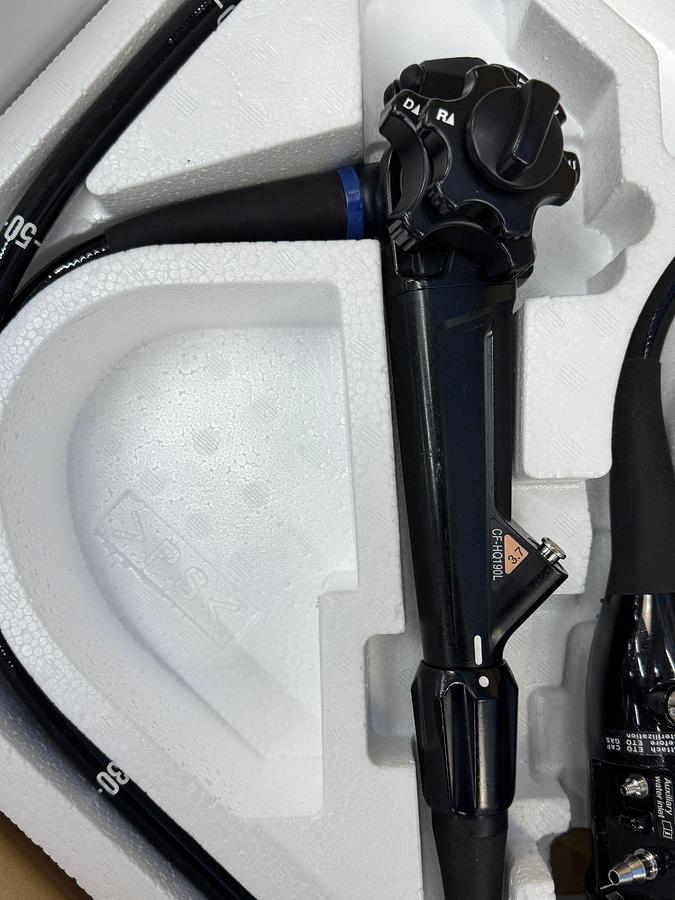

3. Olympus CF-HQ190L Long Colonoscope (EVIS EXERA III)

- Field of View: 170° (Normal), 160° (Near).

- Depth of Field: Dual Focus (Normal 5–100 mm, Near 2–6 mm).

- Distal End Diameter: 13.2 mm.

- Insertion Tube Diameter: 12.8 mm.

- Working Length: 1,680 mm.

- Instrument Channel: 3.7 mm.

- Angulation: Up 180°, Down 180°, Right 160°, Left 160°.

- Features: ScopeGuide (3D visualisation), Responsive Insertion Technology (RIT).

4. Peripherals & Accessories

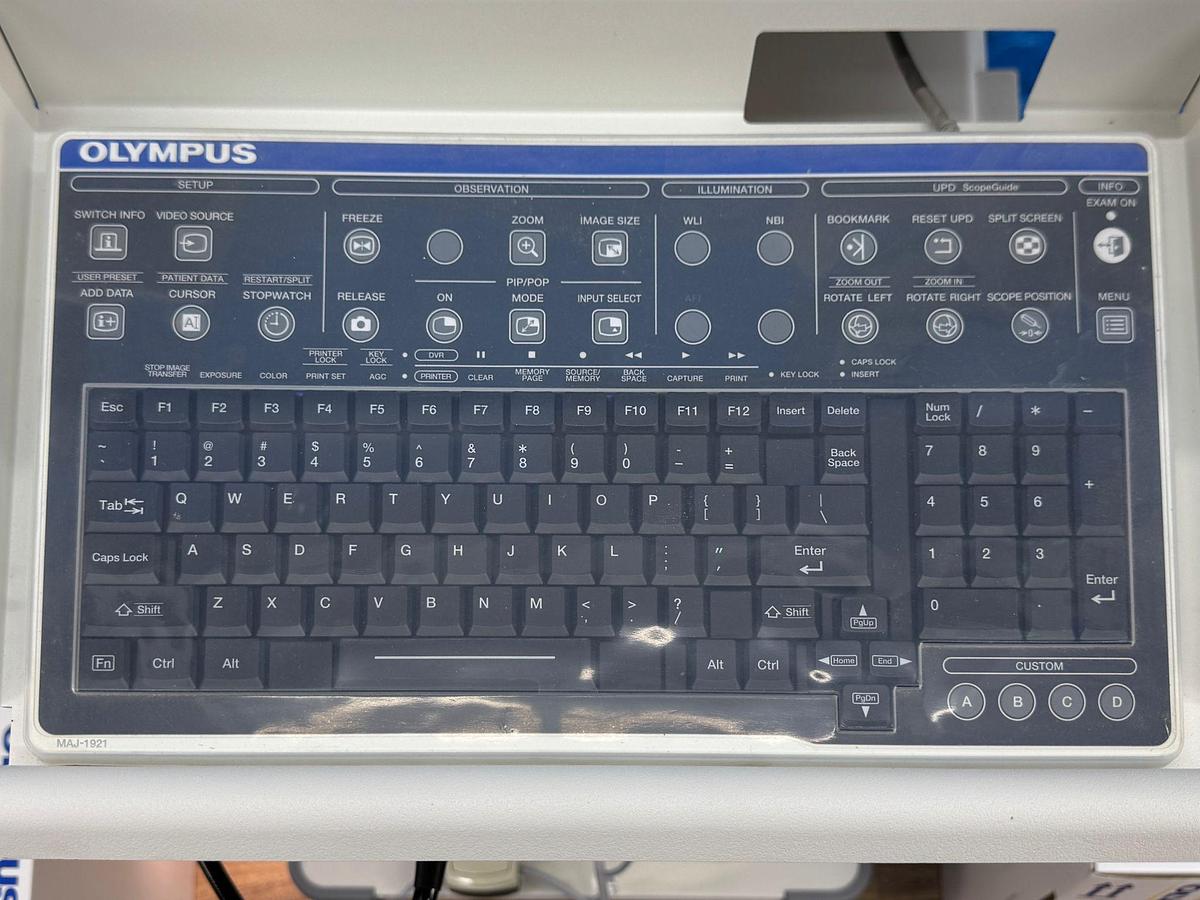

- Olympus MAJ-1921 Keyboard: For patient data entry and system control.

- Olympus OFP-2 Flushing Pump: Provides water supply to the aux water channel for mucosal cleaning.

- Olympus UCR Gas Insufflator with Hose: CO2 regulation for patient comfort [system dependency].

- MAJ-901 Water Bottle & MAJ-2207 Tubing: For irrigation systems.

Key Technical Advantages

- 5-LED Technology: Provides a longer lifespan and better colour reproduction compared to conventional xenon light sources.

- RDI (Red Dichromatic Imaging): Increases contrast of deep blood vessels, aids in identifying bleeding points.

- TXI (Texture and Colour Enhancement Imaging): Optimises mucosal surface structure and colour for improved lesion detection.

Waterproof Connector: One-touch connector minimises set-up time and eliminates the need for a water-resistant cap.

The Olympus Evis X1 CV-1500 Endoscopy Tower from 2021 offers premium capabilities for gastroenterological procedures. This equipment set includes the Olympus CV-1500 Processor, ensuring high-resolution image processing and advanced visualisation. With the inclusion of the Olympus GIF-HQ190 Gastroscope and the CF-HQ190L Long Colonoscope, it covers both diagnostic and therapeutic needs efficiently. These scopes come with air, water, and suction valves and are housed in protective cases, enhancing their safety and transport. This complete system also features the Olympus MAJ-1921 Keyboard for intuitive operation and the OFP-2 Flushing Pump, which facilitates essential irrigation during procedures. Aiding in insufflation, the Olympus UCR Gas Insufflator is complemented with a hose, optimising the workspace. Further supporting equipment functionality, the Olympus MAJ-2207 Tubing and MAJ-901 Water Bottle are included, ensuring maintained hygiene and operational efficiency. Lightly used and well-maintained, this setup represents a cost-effective option for an entire endoscopy suite. It balances advanced features with user-friendly design, providing reliability essential for consistent clinical application. This comprehensive package is suited for practitioners requiring dependable, quality equipment.
