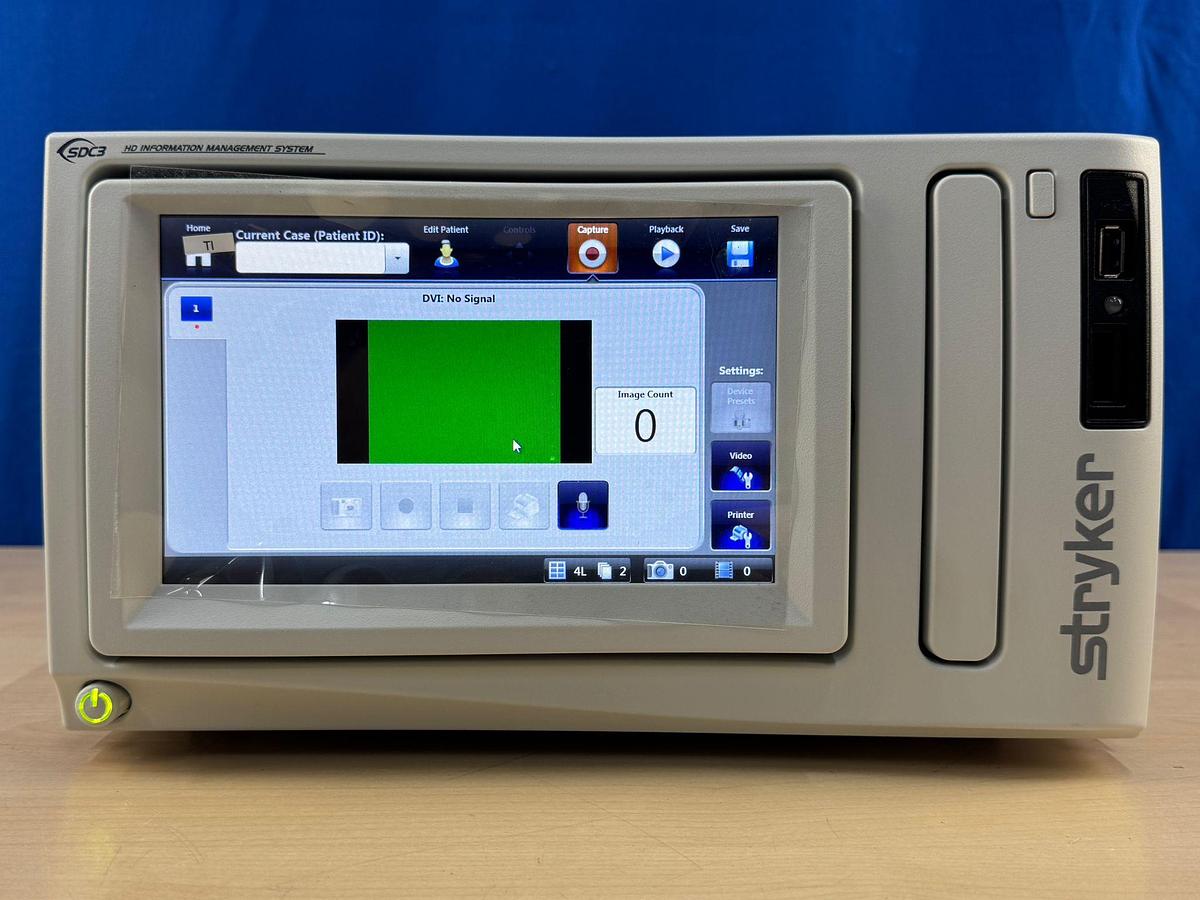

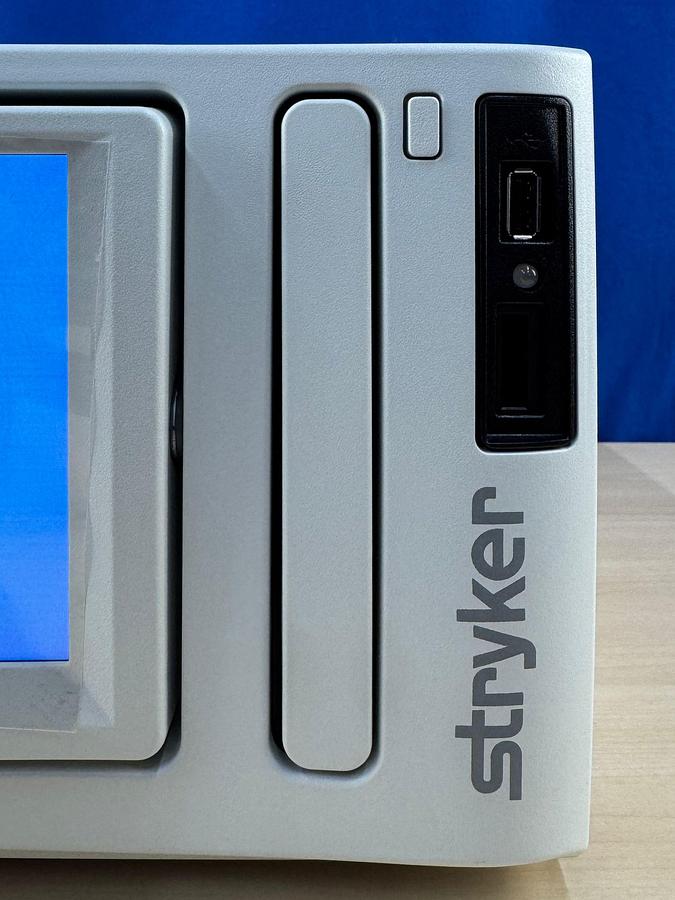

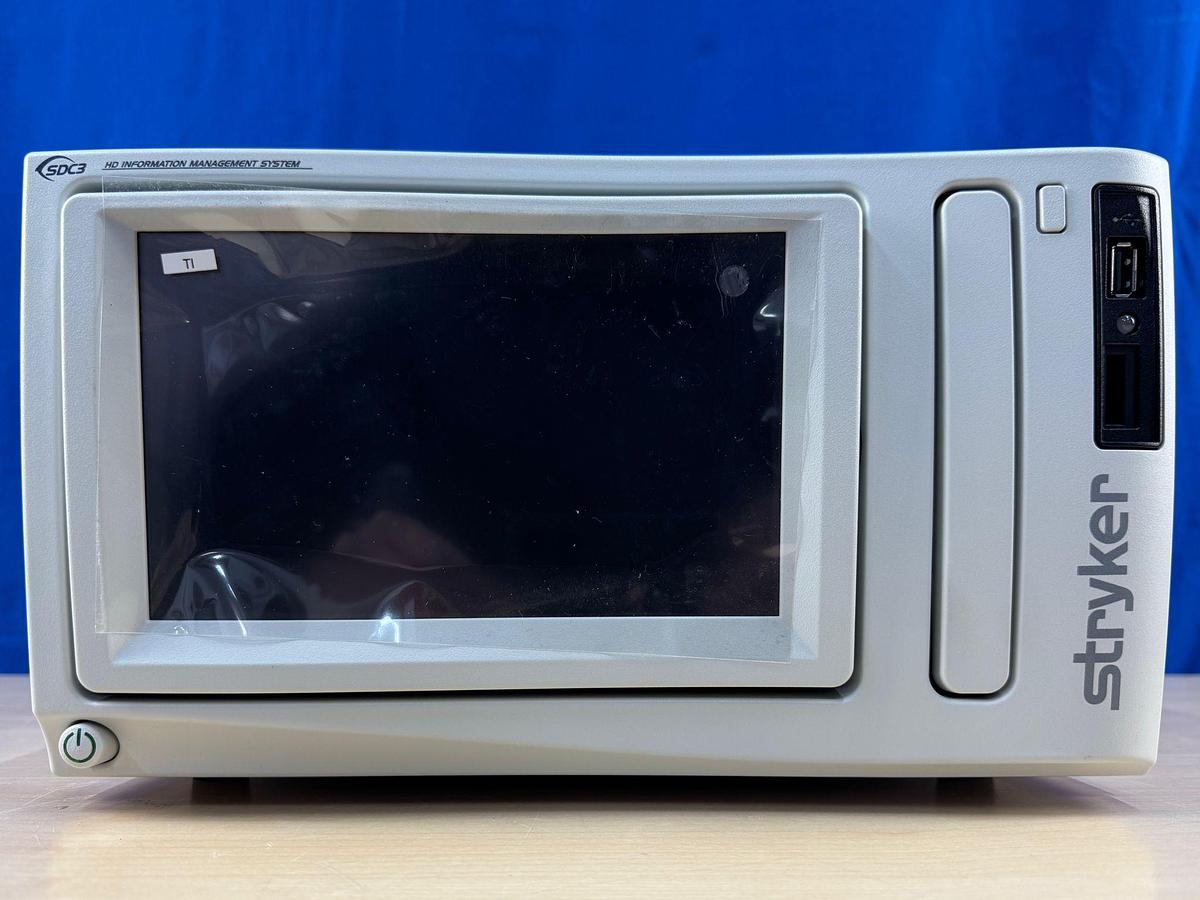

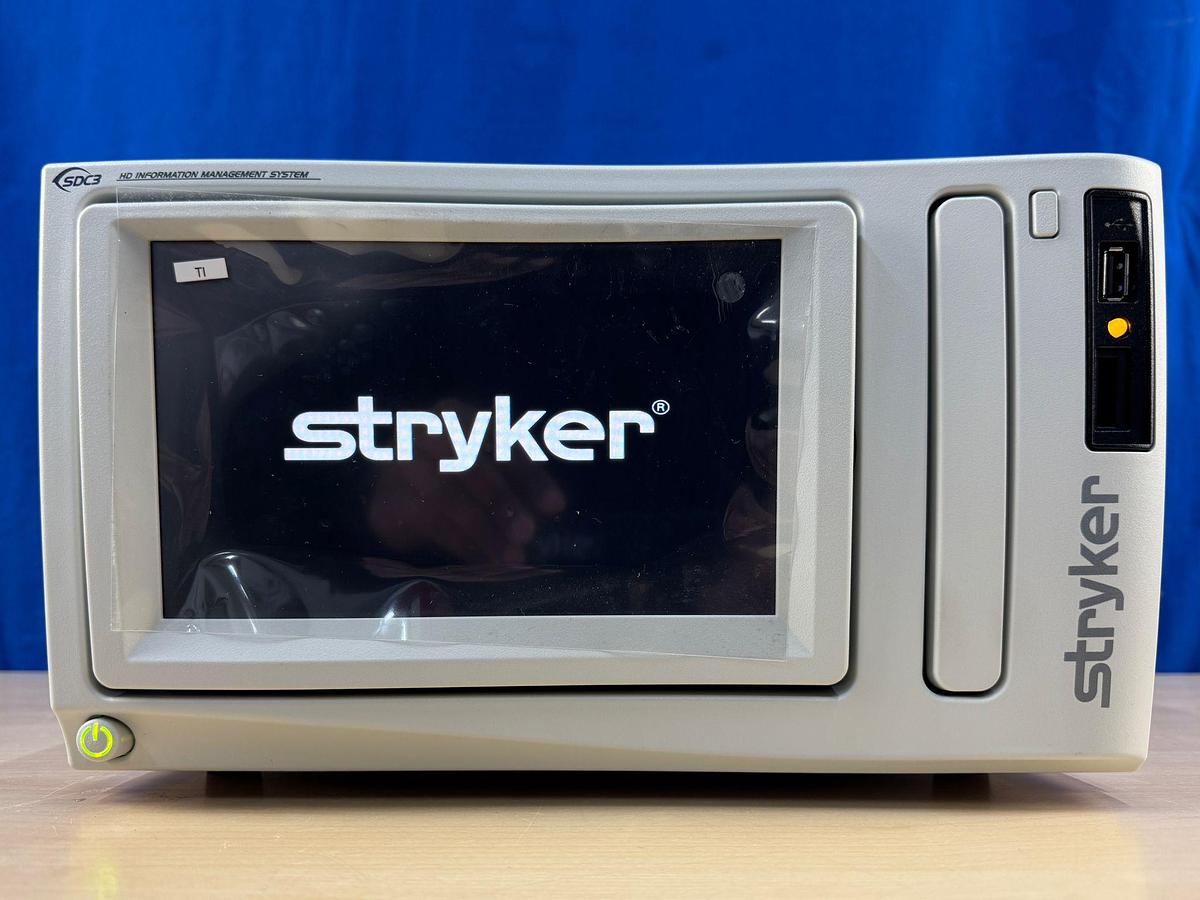

Stryker SDC3 HD Information Management System YOM: 2019

In good working condition.

Includes:

- Stryker SDC3 HD Information Management System YOM: 2019

We ship worldwide.

Please get back to us for further queries.

WE SPEAK ENGLISH -HABLAMOS ESPAÑOL -WIR SPRECHEN DEUTSCH.

The Stryker SDC3 HD Information Management System is a digital capture and data management console designed for intraoperative video and image documentation in the operating room. It functions as a central hub for surgical visualisation, allowing surgeons to record, store, and share high-definition media from two independent video sources.

Core Features

- Dual-Channel HD Recording: Simultaneously captures 1080p video from two separate video signals in MPEG4/H.264 format.

- On-Screen Device Status: Displays the real-time status of connected surgical devices (e.g., insufflators, cameras, light sources) directly on OR monitors.

- User Profiles: Stores customised presets for individual surgeons, including print settings and custom annotations.

- Voice Control & Annotation: Allows surgeons to annotate images on-the-fly using a wireless headset, touchscreen, or camera head controls.

- Studio3 Integration: Directly connects with Stryker's Studio3 ecosystem and iPad app for HIPAA-compliant archiving and sharing of surgical media.

Technical Specifications

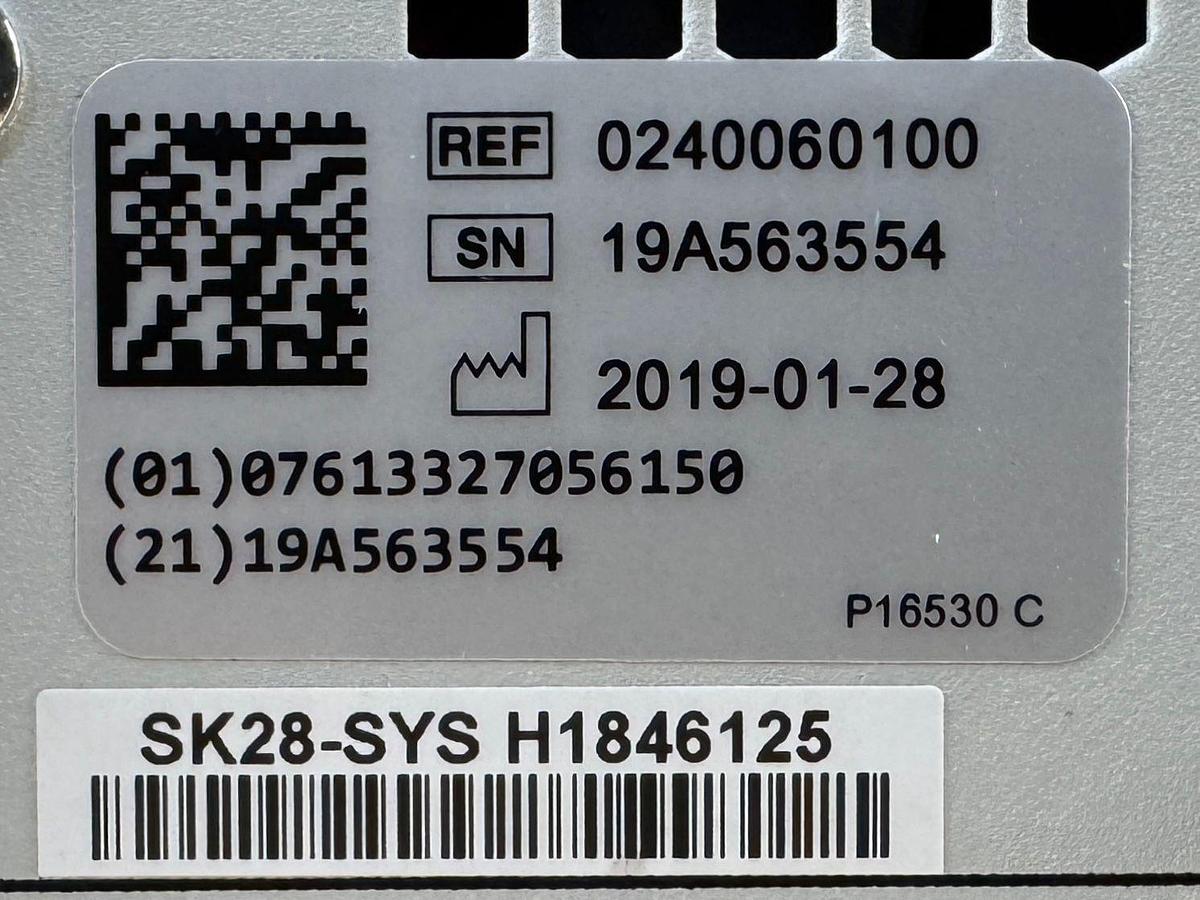

Model Number 0240060100

Video Resolution Supports up to 1920 x 1080 (HD 1080p)

Internal Storage 1 Terabyte (approx. 500 surgical cases)

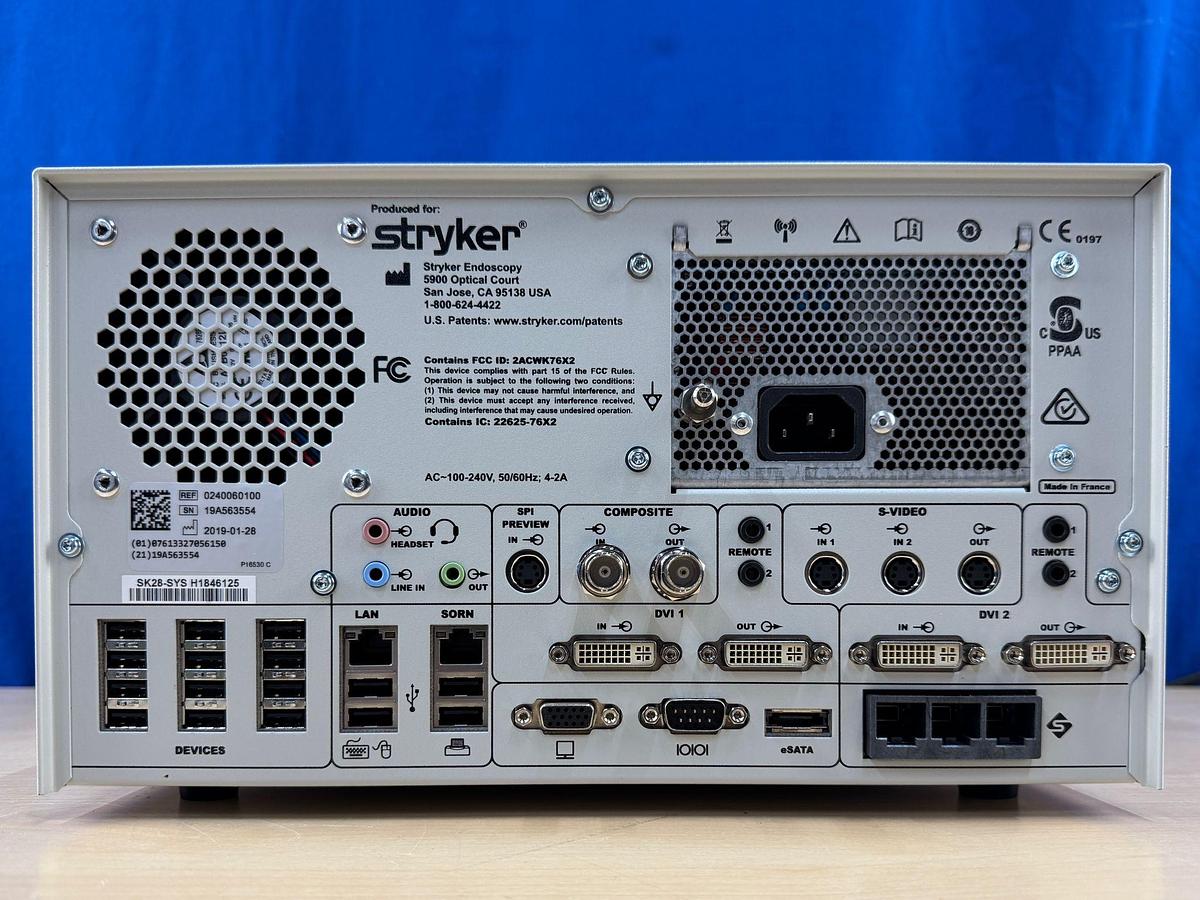

Video Inputs 2 DVI-I, 2 RGBHV, 1 S-Video, 1 Composite, FireWire, USB

Dimensions 12.5" (W) x 16.5" (D) x 7.25" (H)

Weight ~22.5 lbs (10.2 kg)

Power Supply 100–240 VAC, 50/60 Hz

Supported Media USB, CD/DVD, Blu-ray, Network (LAN/FTP)

Operational Workflow

- Surgical Time-Out: Displays a customised electronic surgical time-out at the start of procedures, which can be saved to the patient file.

- Connectivity: Integrated with hospital networks including PACS and EMR systems for seamless data transfer.

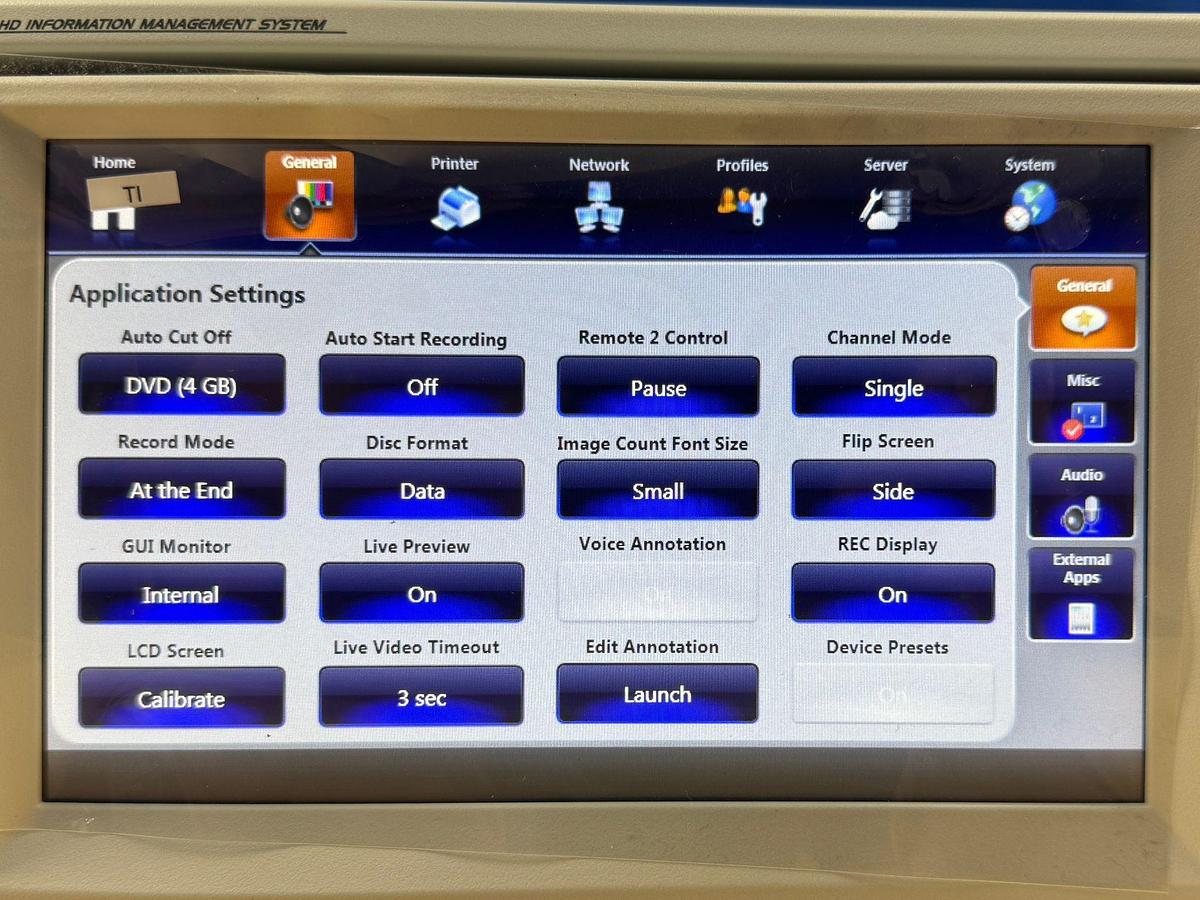

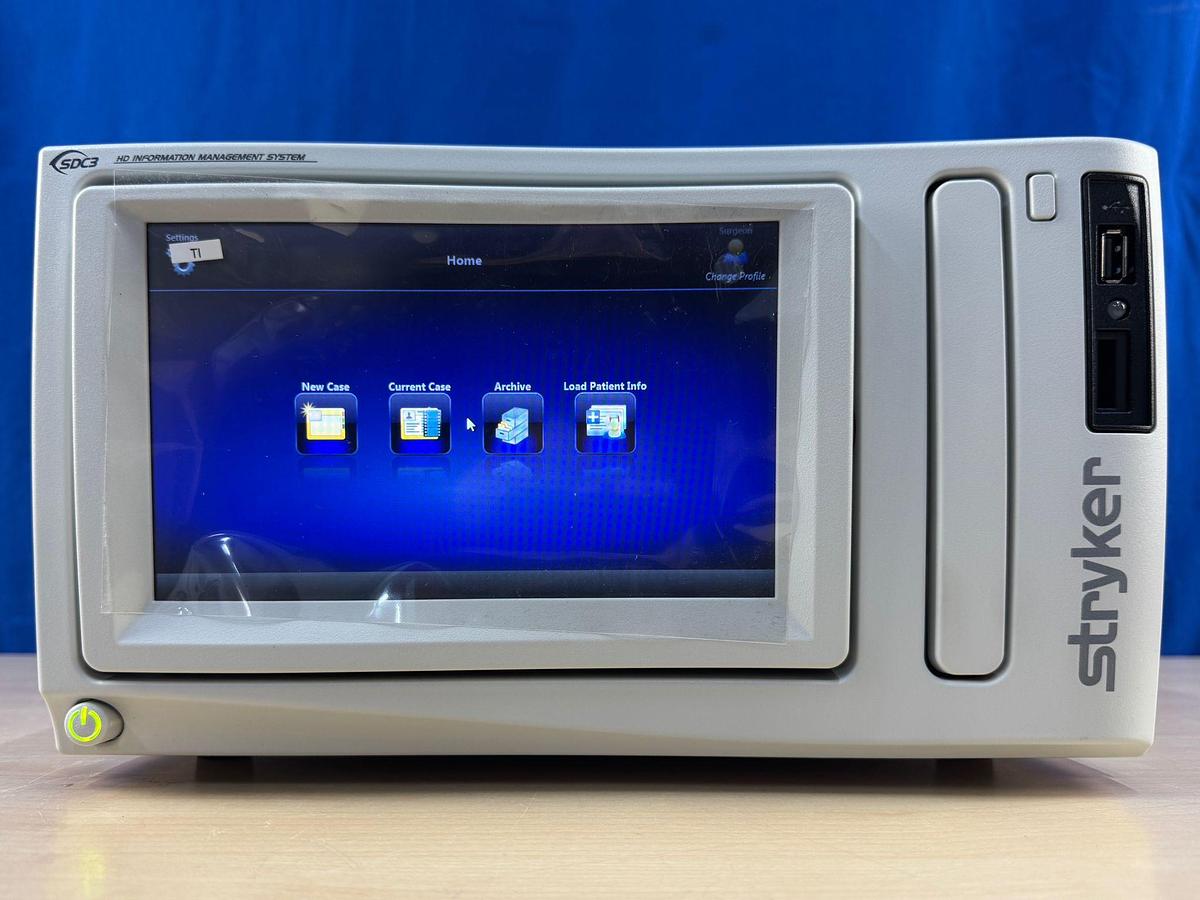

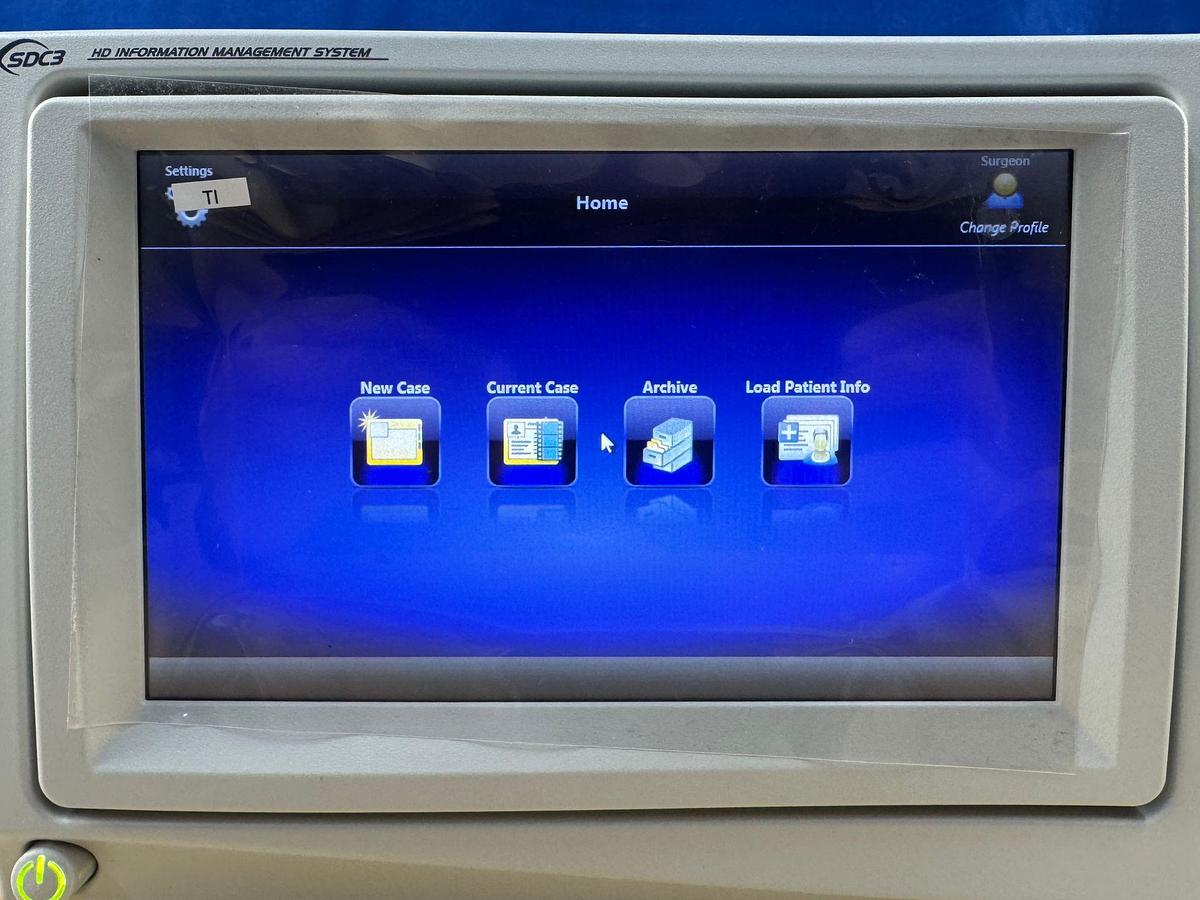

- Interface: Features an icon-driven touchscreen interface designed for ease of use by qualified OR personnel.

The Stryker SDC3 HD Information Management System, manufactured in 2019, is a used but reliable device designed to streamline the management of endoscopic procedures. This system allows for seamless integration with various imaging and patient data, ensuring efficient workflow and enhanced patient care. It is suitable for capturing and managing high-definition video, which can be vital for procedural documentation and review. Equipped with advanced features, the SDC3 HD simplifies data collection and storage with user-friendly interface options. Its compatibility with networking capabilities enables easy sharing and accessibility of records within medical facilities. Although used, this system maintains its operational quality, reflecting Stryker's reputation for durability and precision in medical technology. Ideal for healthcare providers seeking cost-effective options, this model offers a practical solution for managing surgical documentation needs. Its robust design ensures longevity, making it a valuable addition to any clinical environment.
