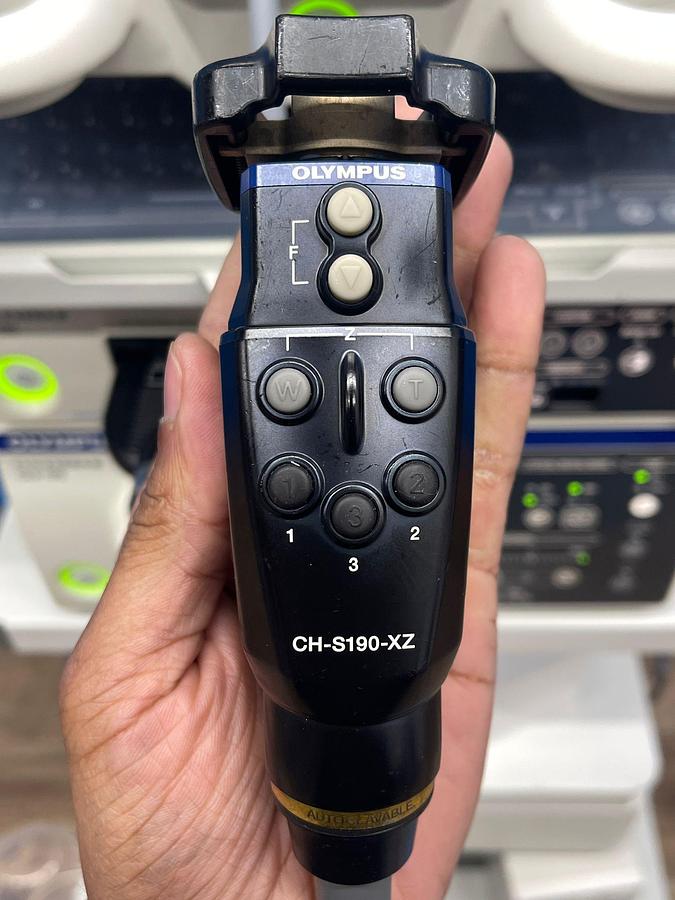

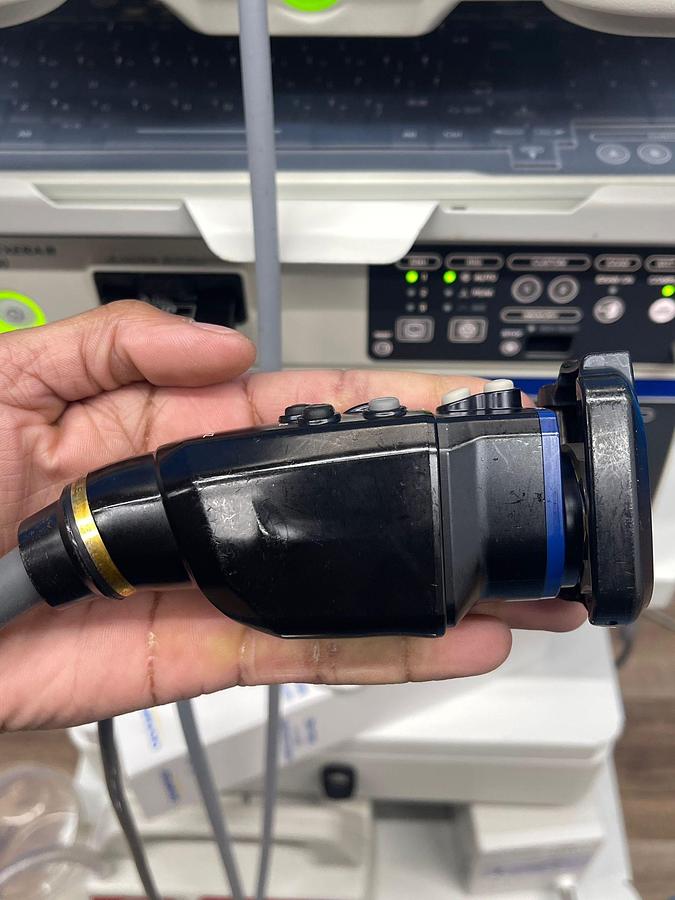

Olympus Camera Head Model: CH-S190-XZ-E

In good working condition.

Includes:

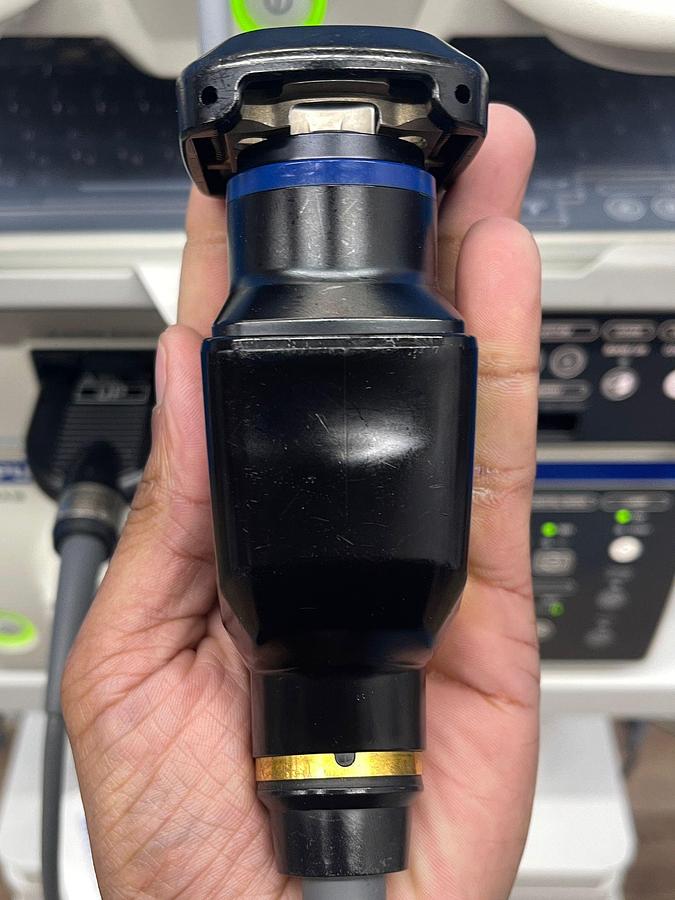

- Olympus Camera Head Model: CH-S190-XZ-E

We ship worldwide.

Please get back to us for further queries.

WE SPEAK ENGLISH -HABLAMOS ESPAÑOL -WIR SPRECHEN DEUTSCH.

The Olympus CH-S190-XZ-E is a high-definition autoclavable camera head designed for multispecialty surgical endoscopy, including ENT, Gynaecology, General Surgery, Urology, and Thoracic Surgery. It is a component of the VISERA ELITE system and is known for delivering "Full HD" quality through a 3CCD sensor system.

Key Technical Specifications

- Sensor Type 0.85 cm (0.33 inch) solid-state image pickup (3CCD)

- Output Resolution HD-SDI (1080i), DVI (1080p)

- Magnification Focal distance \(f = 15.8\) – \(31.3\) mm; Zoom ratio 0.9 – 1.8x

- Dimensions 50 x 63 x 142 mm

- Weight 350 g

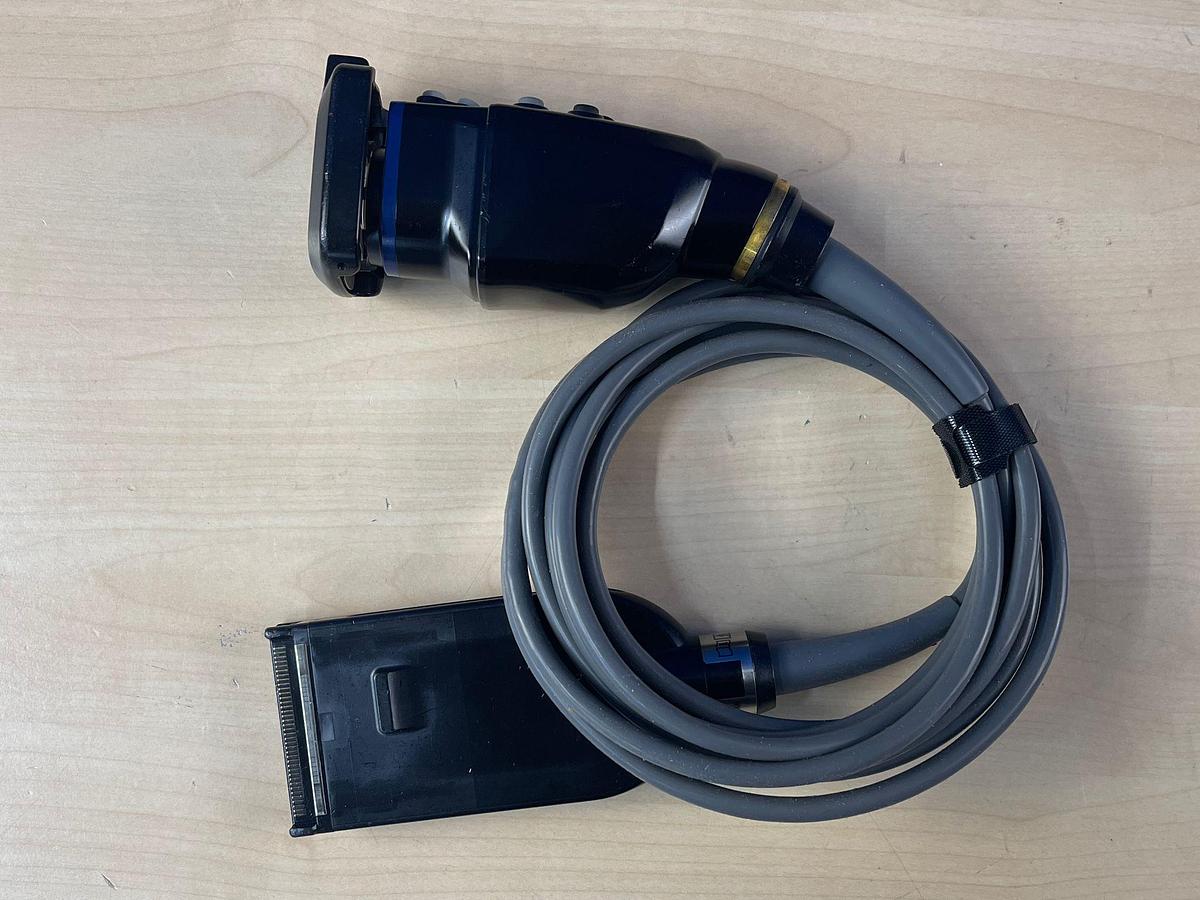

- Cable 3 metres length, 6.8 mm diameter

Core Features & Benefits

- 3CCD Full HD Imaging: Uses three separate charge-coupled devices to capture high-definition video with superior colour reproduction and fine detail.

- Narrow Band Imaging (NBI): Features Olympus' proprietary optical technology, which is 20% brighter than previous models, to enhance the visualisation of vessels and mucosal surface tissues.

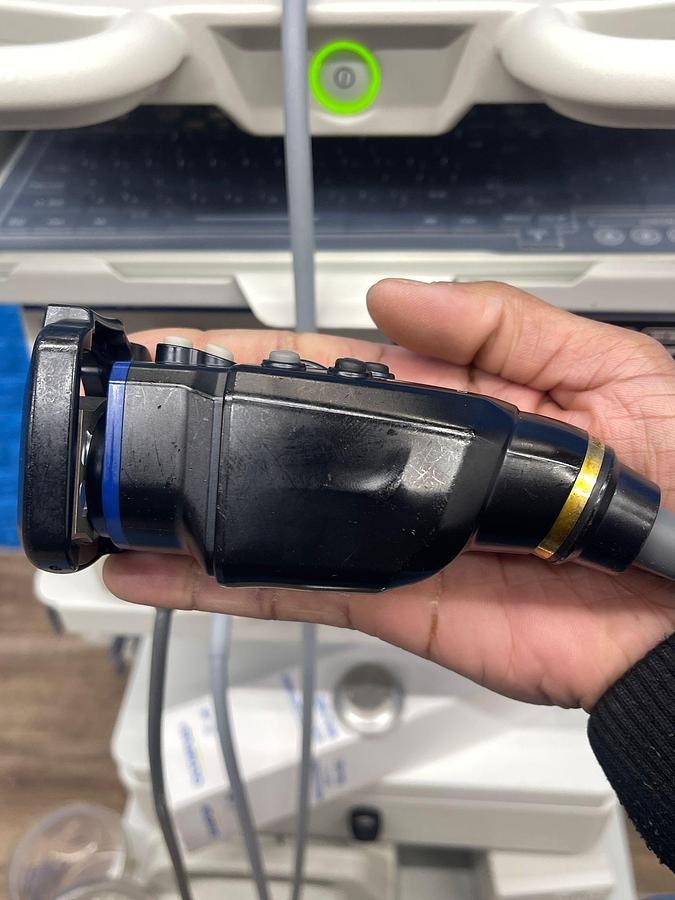

- One-Handed Operation: Incorporates motor-driven Power Zoom and Power Focus that can be controlled directly from the camera head using one hand.

- Programmable Controls: Includes three fully programmable remote switches on the control section for quick access to frequently used functions.

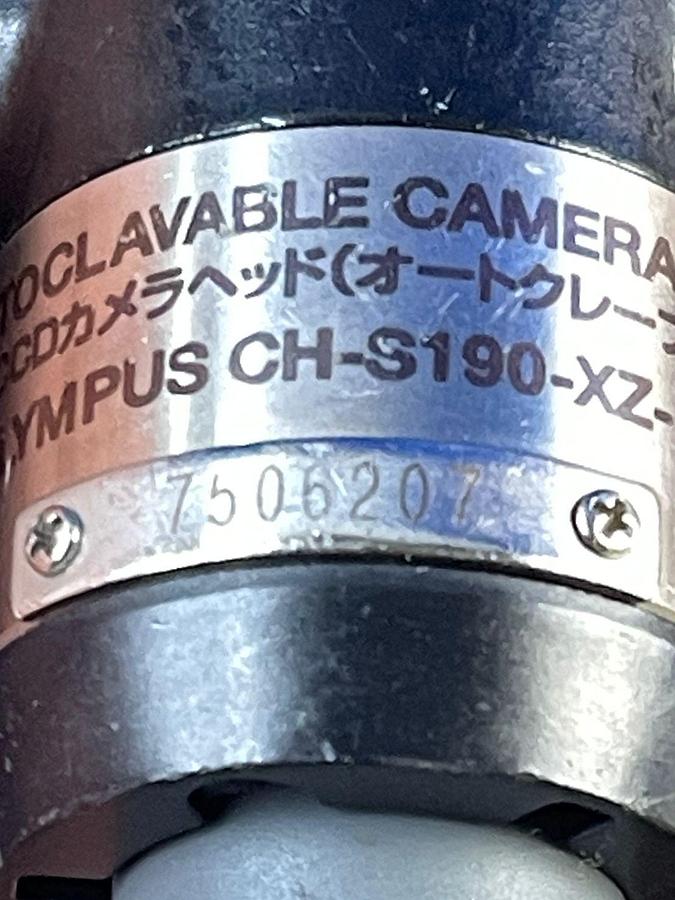

- Autoclave Design: Specifically engineered to withstand autoclave sterilisation, providing a cost-effective and hygienic reprocessing option. It is also compatible with ETO and Sterrad sterilisation.

Compatibility

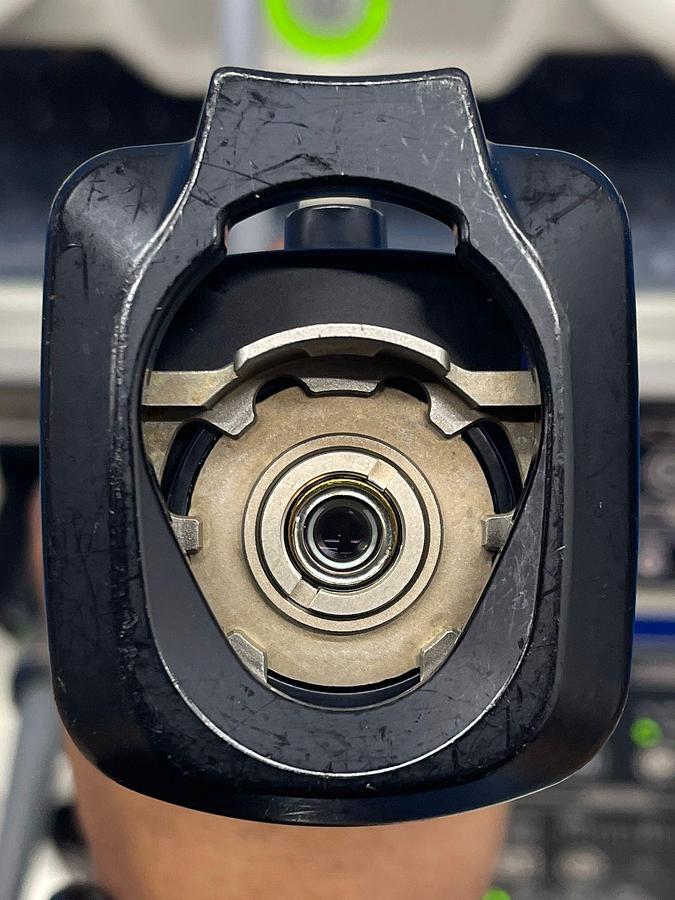

The CH-S190-XZ-E is an "eyepiece type" camera head (clamping connector). It is typically used with the OTV-S190 video processor and CLV-S190 light source within the VISERA ELITE system.

The Olympus Camera Head Model CH-S190-XZ-E is a high-performance imaging device designed for medical endoscopy applications. This used unit retains its optimal functionality, providing excellent clarity and precision in capturing images within endoscopic procedures. The camera head is compatible with the Olympus imaging system, ensuring seamless integration and operation within existing setups. Known for its reliability and performance, this model delivers sharp, high-resolution images essential for accurate diagnosis and treatment. The camera ensures crisp video output, making it a valuable tool in clinical environments where precision is paramount. Compact and user-friendly, the CH-S190-XZ-E enhances ease of use for medical professionals. This unit has been thoroughly inspected to meet quality standards, ensuring that it remains a dependable choice for healthcare facilities seeking robust imaging solutions. Its compatibility with various endoscopic instruments and systems further enhances its versatility and utility in diverse medical situations.
