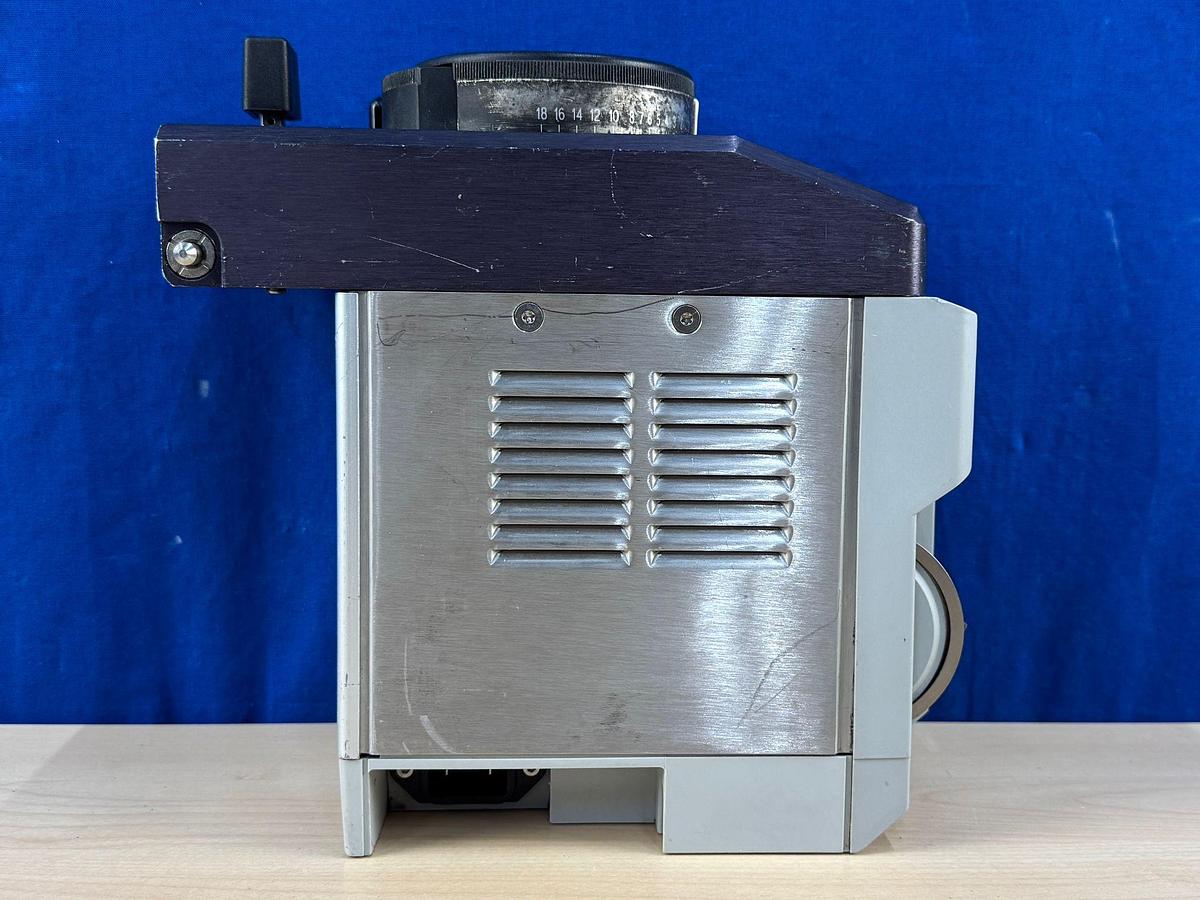

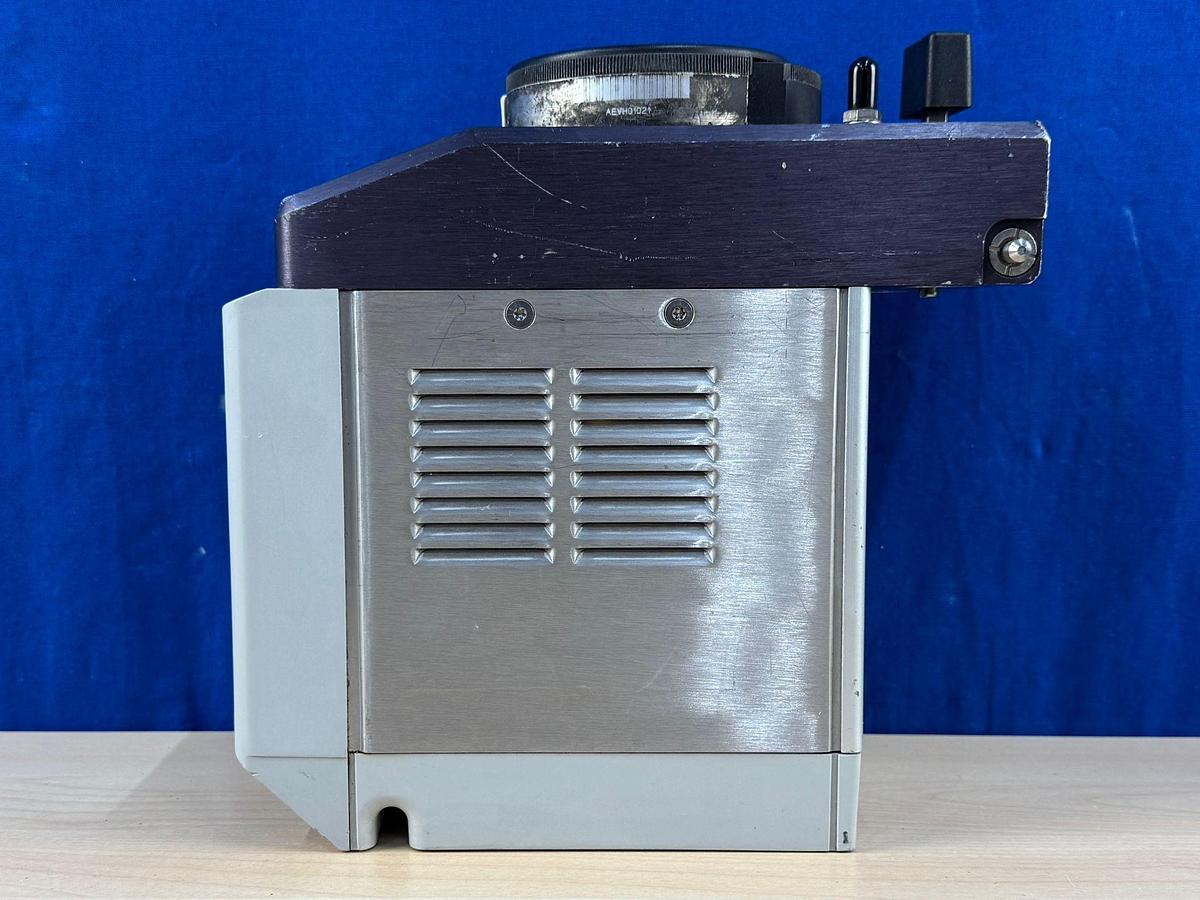

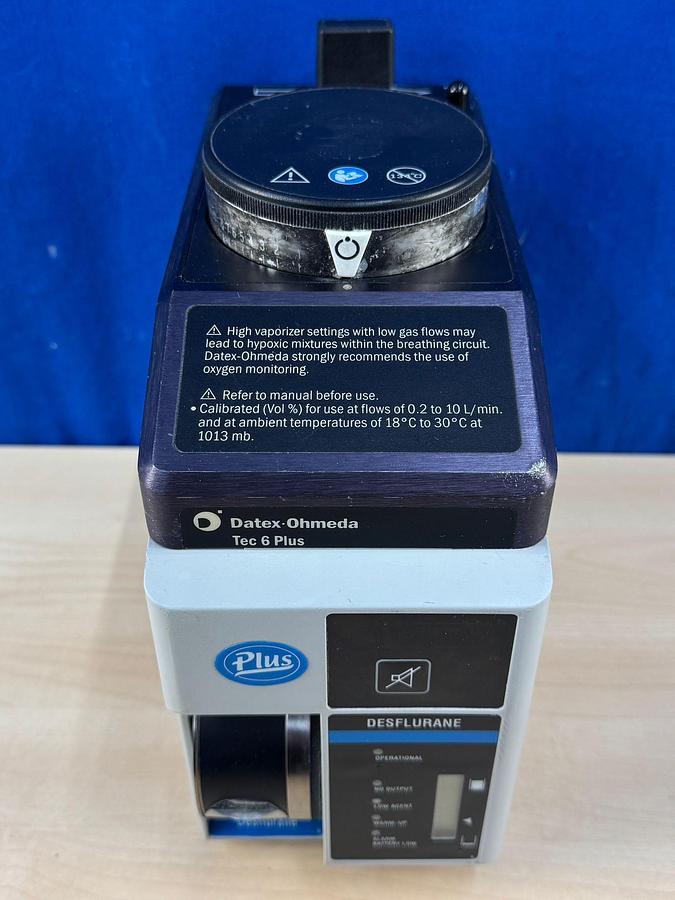

GE Datex-Ohmeda Tec 6 Plus Desflurane

In good working condition.

Includes:

- GE Datex-Ohmeda Tec 6 Desflurane

We ship worldwide.

Please get back to us for further queries.

WE SPEAK ENGLISH -HABLAMOS ESPAÑOL -WIR SPRECHEN DEUTSCH.

The GE Datex-Ohmeda Tec 6 Plus is an electronic, heated, and agent-specific vaporizer designed specifically to deliver Desflurane (Suprane) anaesthesia, managing its high vapor pressure through precise heating and electronic control. It serves as a, "electrically heated, thermostatically controlled, constant temperature, pressurised, electromechanical coupled dual circuit, gas/vapor blender".

Key Technical Features

- Operating Principle: Heats desflurane to 39°C (102°F) to create a stable vapor pressure of 2 atmospheres (1500 mmHg). It uses a differential pressure transducer system rather than a standard flow-over system to regulate delivery.

- Safety Features: Includes "Saf-T-Fill" agent-specific filling system to prevent incorrect agent filling.

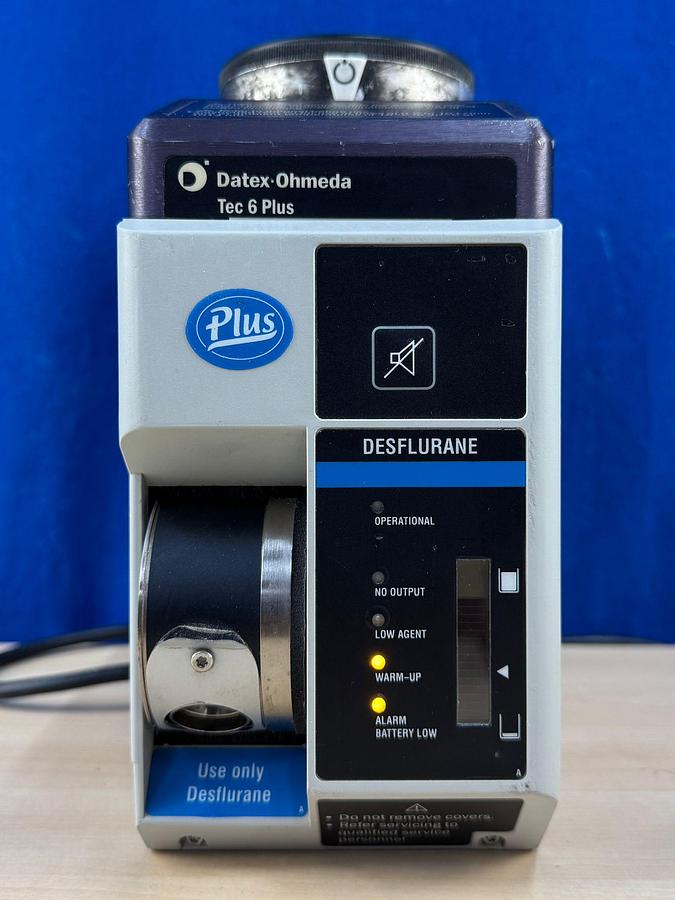

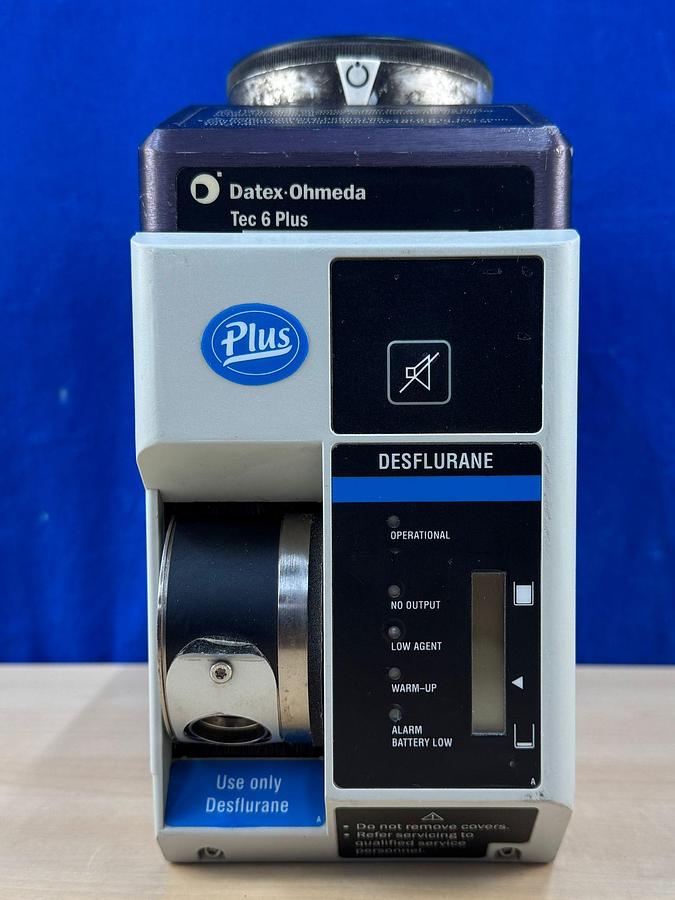

- LED Display/Alarms: Monitors operational status, including "No Output," "Low Agent," "Warm-up,"

"Alarm," and "Battery Low".

- Mounting: Uses the Selectatec interlock system, allowing it to connect securely to anaesthesia workstations and preventing multiple vaporisers from being on at once.

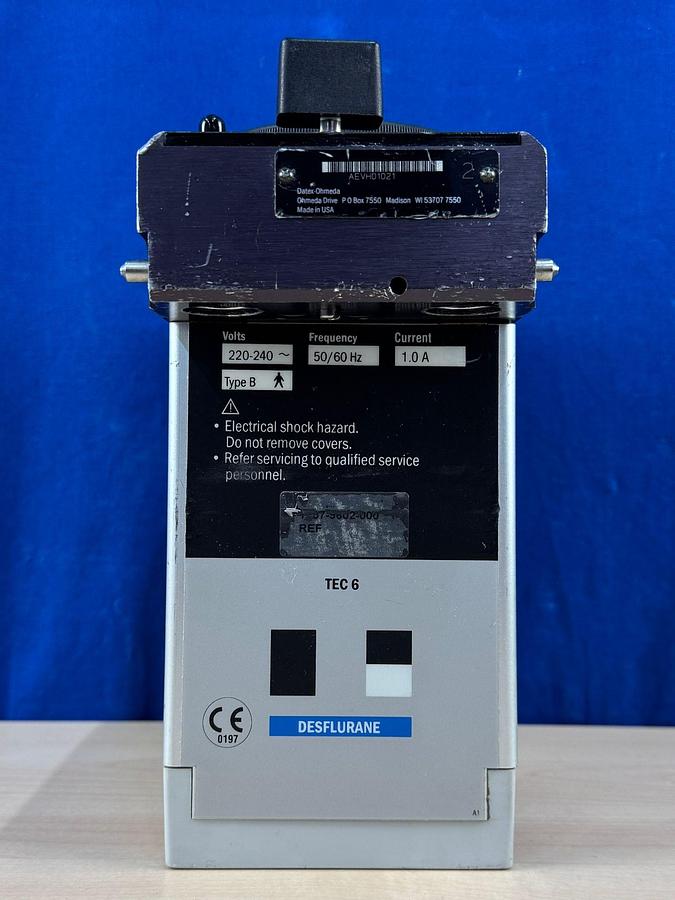

- Power Requirements: Requires AC electrical power (100–120V or 220–240V) to heat the agent.

- Refill During Use: The vaporiser can be refilled while in operation, and it has a large sump capacity of 425 mL, holding nearly two full bottles of desflurane.

Performance Specifications

- Concentration Range: 1 to 18% v/v.

- Accuracy: ± 0.5% v/v of delivered agent or ± 15% dial setting (whichever is greater).

- Flow Range: Calibrated for flows of 0.2 to 10 L/min.

- Warm-up Time: Approximately 10 minutes.

- Liquid Capacity: 390 mL (nominal), with a 240 mL refill indicator.

- Flow Resistance: < 50 cm H2O at 5 L/min O2 at 21°C.

Physical Dimensions

- Weight: ~21 lbs (9.5 kg) empty.

- Dimensions: ~9.84 in (250mm) Height, 4.33 in (110mm) Width, 9.25 in (235mm) Depth.

Operational Requirements

- Agent: Must only be used with Desflurane.

- Orientation: Must remain upright.

- Environmental: 18°C to 30°C (64°F to 86°F) operating temperature.

- Alarm: A distinct audible tone sounds if the vaporiser can no longer deliver the agent, such as during a power loss.

The GE Datex-Ohmeda Tec 6 Plus is a desflurane vaporiser designed for precise and reliable delivery of anaesthesia. This model is engineered for use in anaesthesia machines and is specifically calibrated for desflurane, ensuring efficient and consistent vaporisation. As a used unit, it offers a cost-effective solution for healthcare facilities looking to maintain high standards of care without incurring the costs of new equipment. The Tec 6 Plus features robust construction and dependable performance. It operates with an enriched air supply, which is essential for the accurate administration of desflurane. The vaporiser is equipped with a self-diagnostic system to ensure functionality and facilitate maintenance, which aids in minimising downtime in clinical settings. The unit's intuitive control interface supports ease of use for both seasoned professionals and those newer to the equipment. This vaporiser, known for its reliability, integrates seamlessly into a variety of anaesthesia delivery systems. Practitioners choosing the Tec 6 Plus can expect consistent, accurate delivery of anaesthetic agents, making it a trusted component within any anaesthesia practice.
