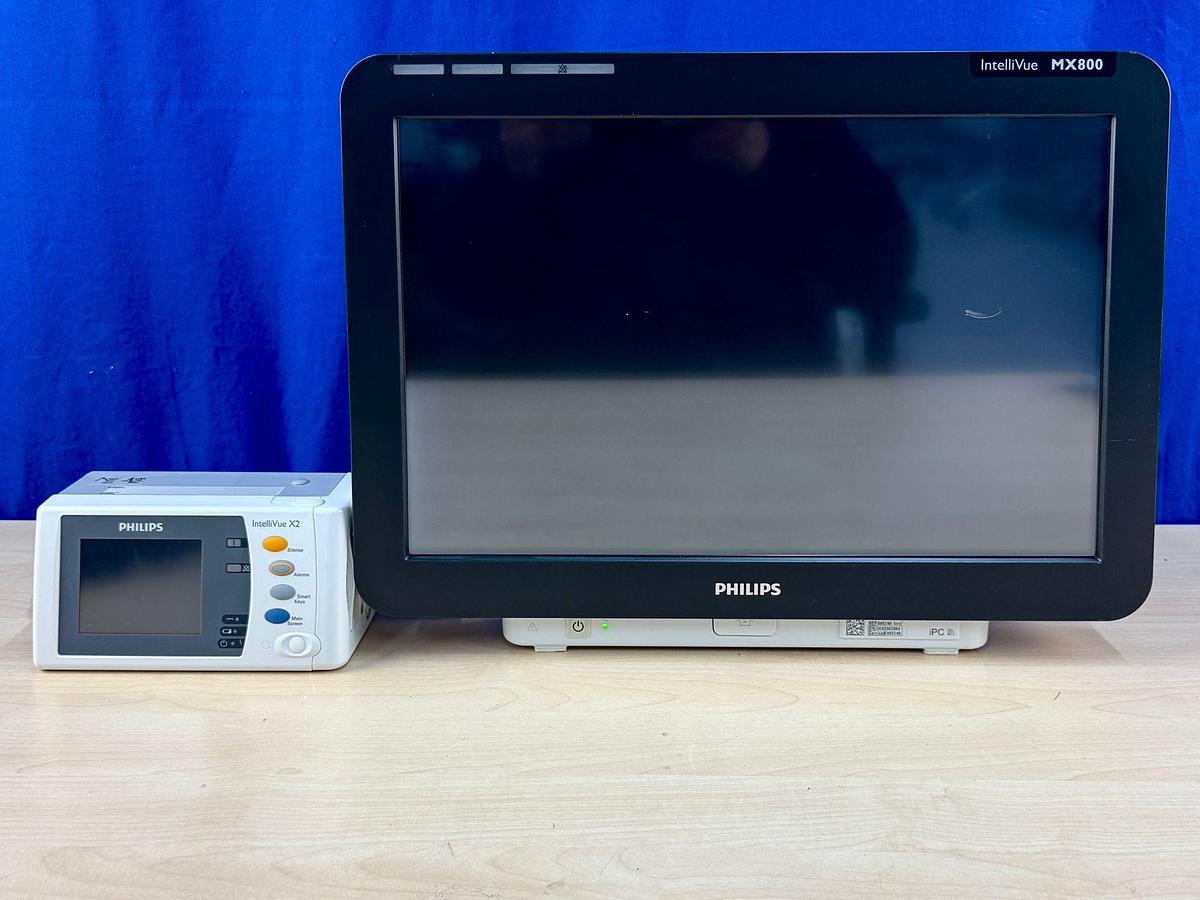

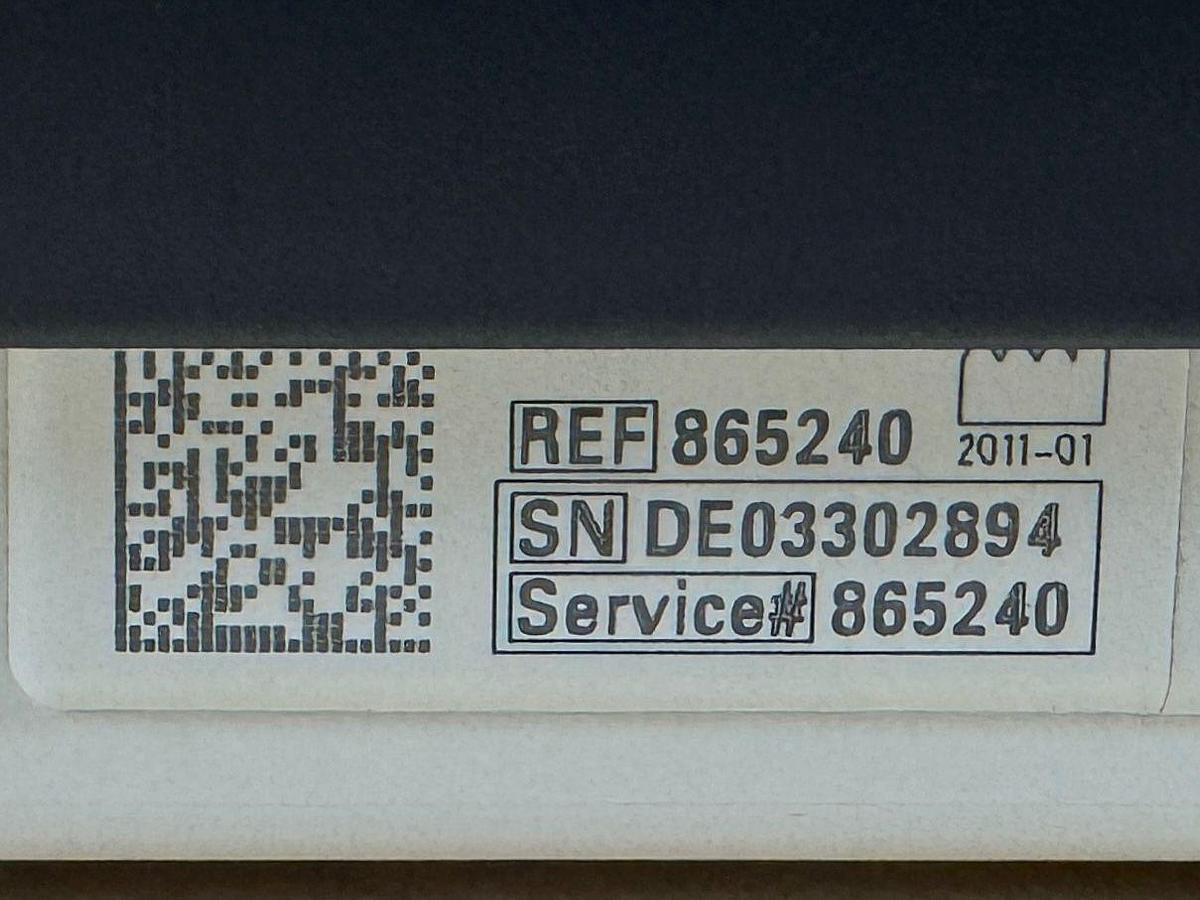

Philips IntelliVue MX800 Patient Monitor REF: 865240 YOM: 2011

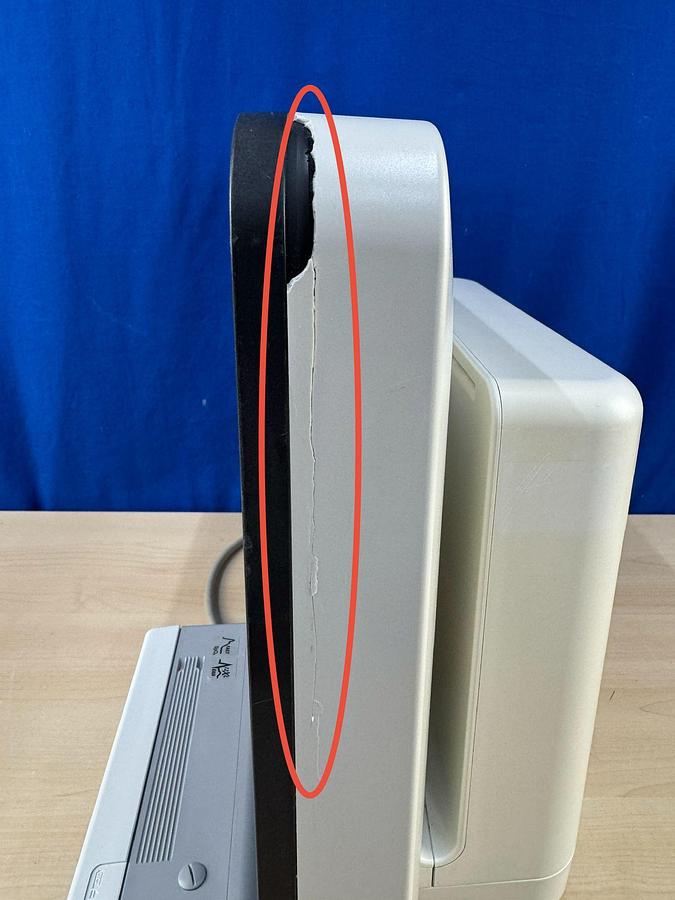

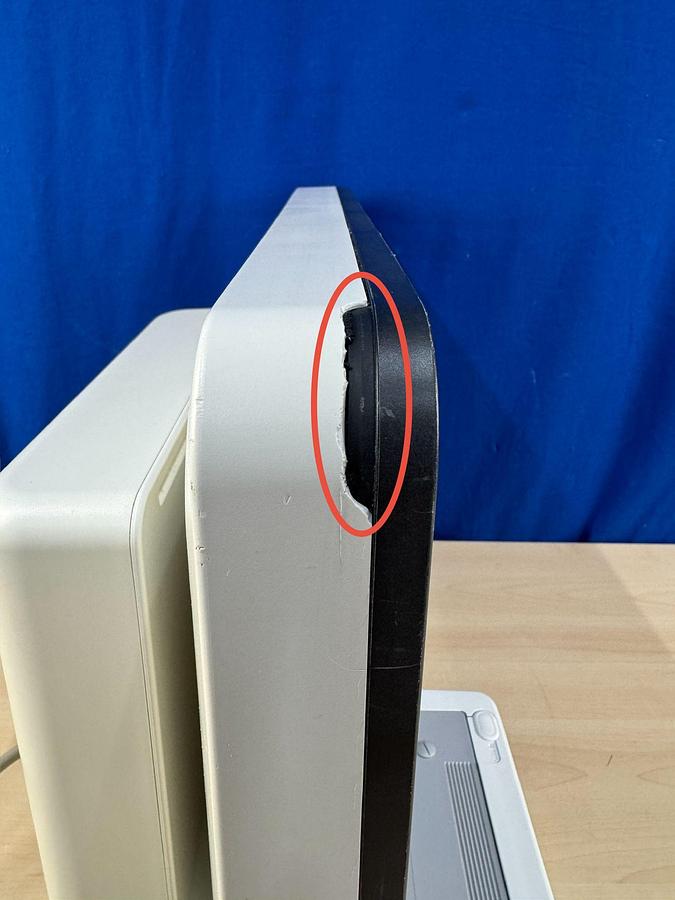

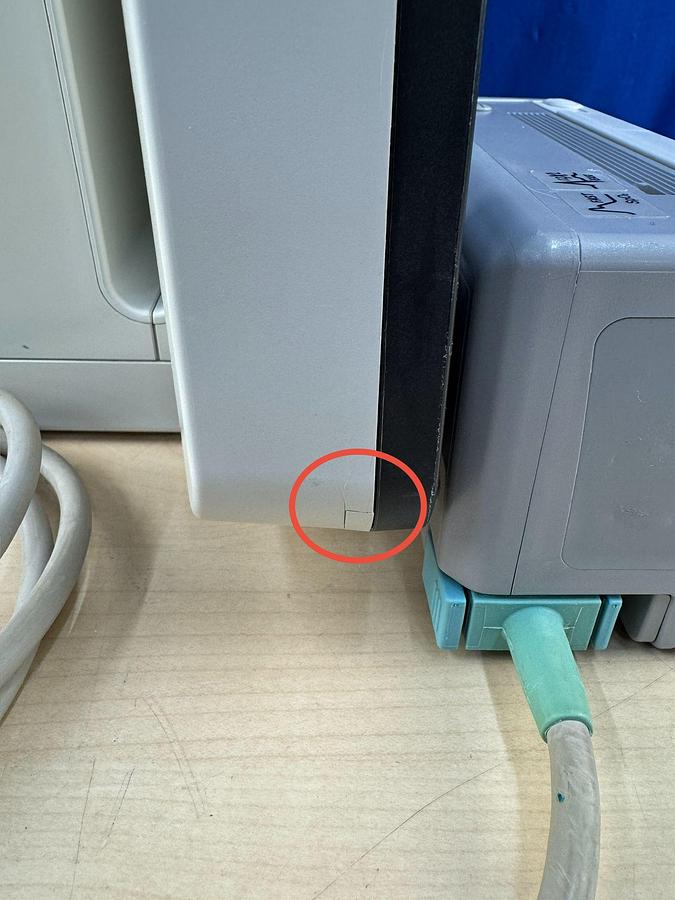

This unit has been fully tested and is in good working condition. Please review the images carefully and contact us for further information.

Includes:

- Philips IntelliVue MX800 Patient Monitor YOM: 2011

We ship worldwide.

WE SPEAK ENGLISH -HABLAMOS ESPAÑOL -WIR SPRECHEN DEUTSCH.

The Philips IntelliVue MX800 Patient Monitor (Model 865240) is a high-acuity bedside monitor that bridges the gap between real-time patient monitoring and clinical informatics. It is specifically designed to support complex, high-needs environments like ICUs, operating rooms, and cardiac care, with an integrated PC (iPC) that allows clinicians to access patient EMRs, hospital intranets, and IT applications directly on the bedside screen.

Key Technical Specifications

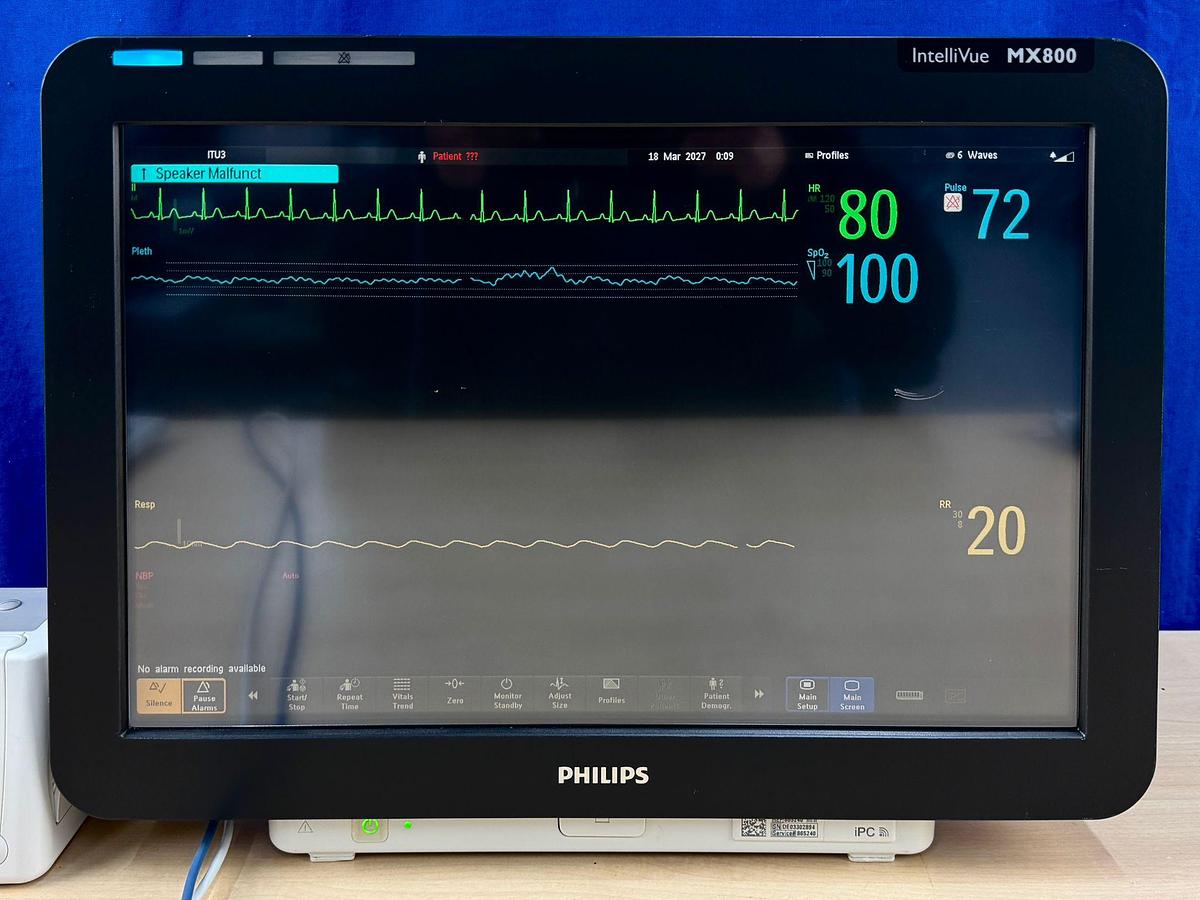

- Display: 19-inch color LCD TFT widescreen touchscreen (1680 x 1050 WSXGA+) with high-resolution waveform data.

- Integrated PC (iPC): Fan-less, medical-grade PC embedded for continuous operation, running Windows 7/XP (or higher) to support third-party applications and clinical IT systems.

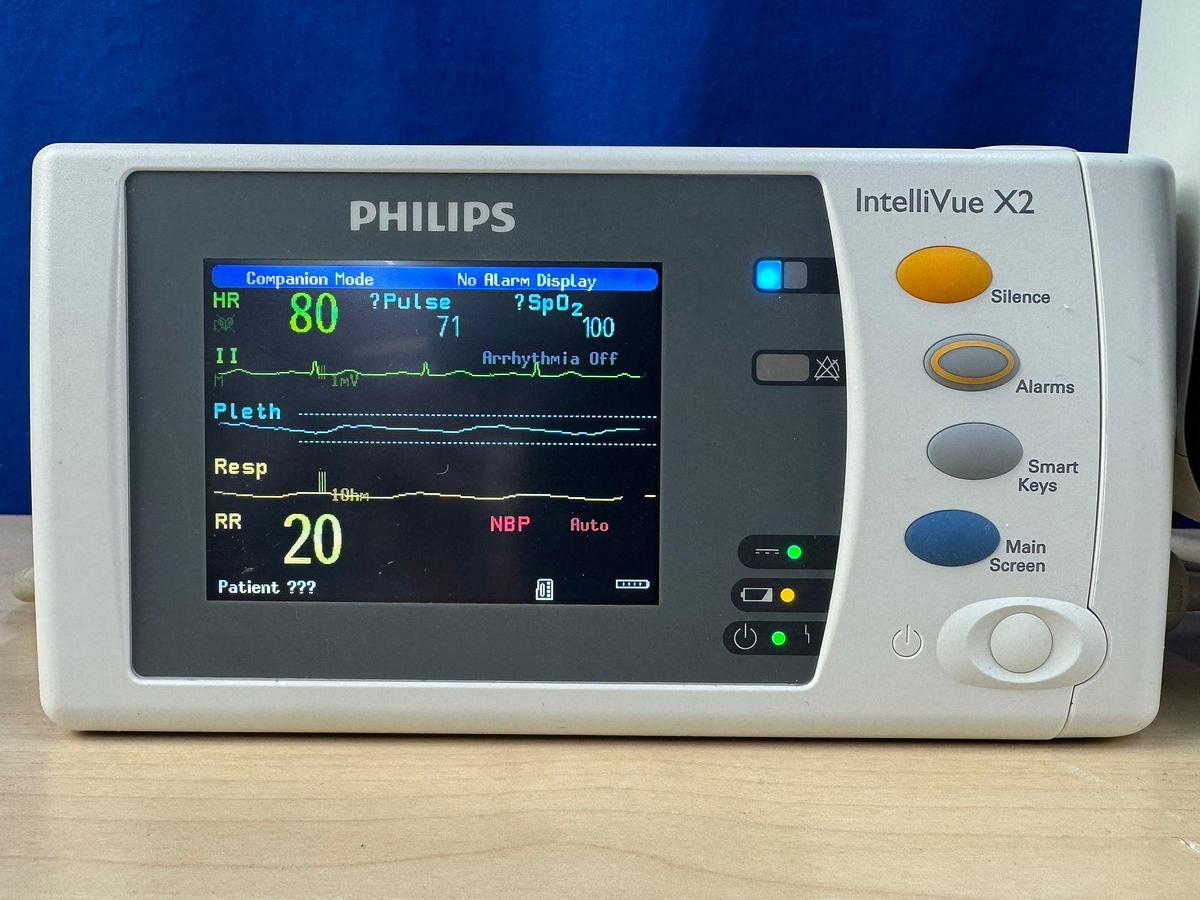

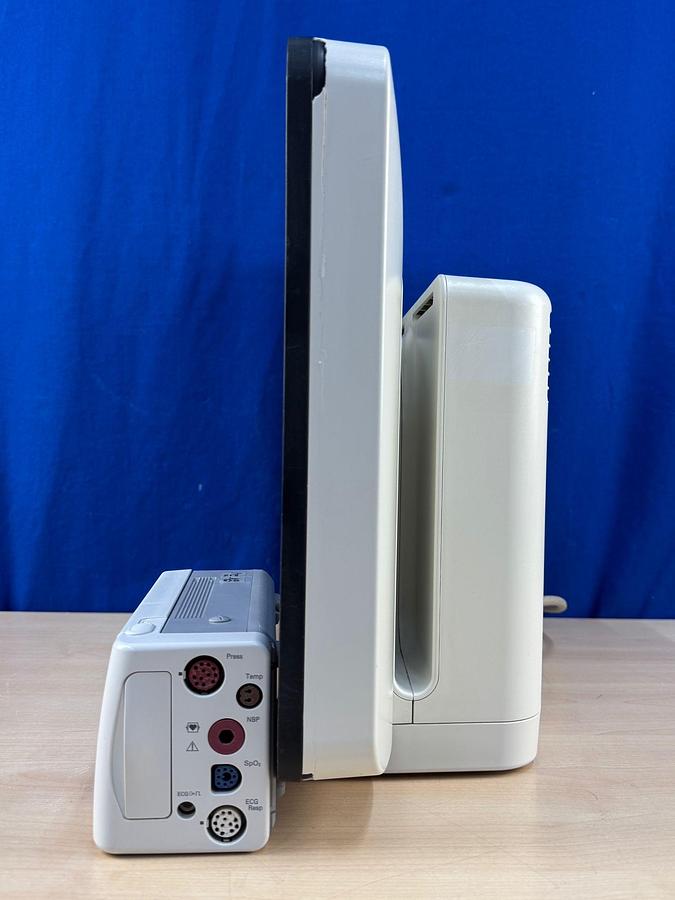

- Modularity: Compatible with Philips Multi-Measurement Modules (MMS) family (M3001A, X2 M3002A, X3), plug-in modules, and G5 gas analyzers.

- Measurements: 12-lead ECG (standard/EASI), respiration, SpO2 (high-performance), NBP, invasive pressure/temperature, and EEG.

- Input Devices: Supports touchscreen, remote control, trackball, mouse, barcode reader, and keyboard.

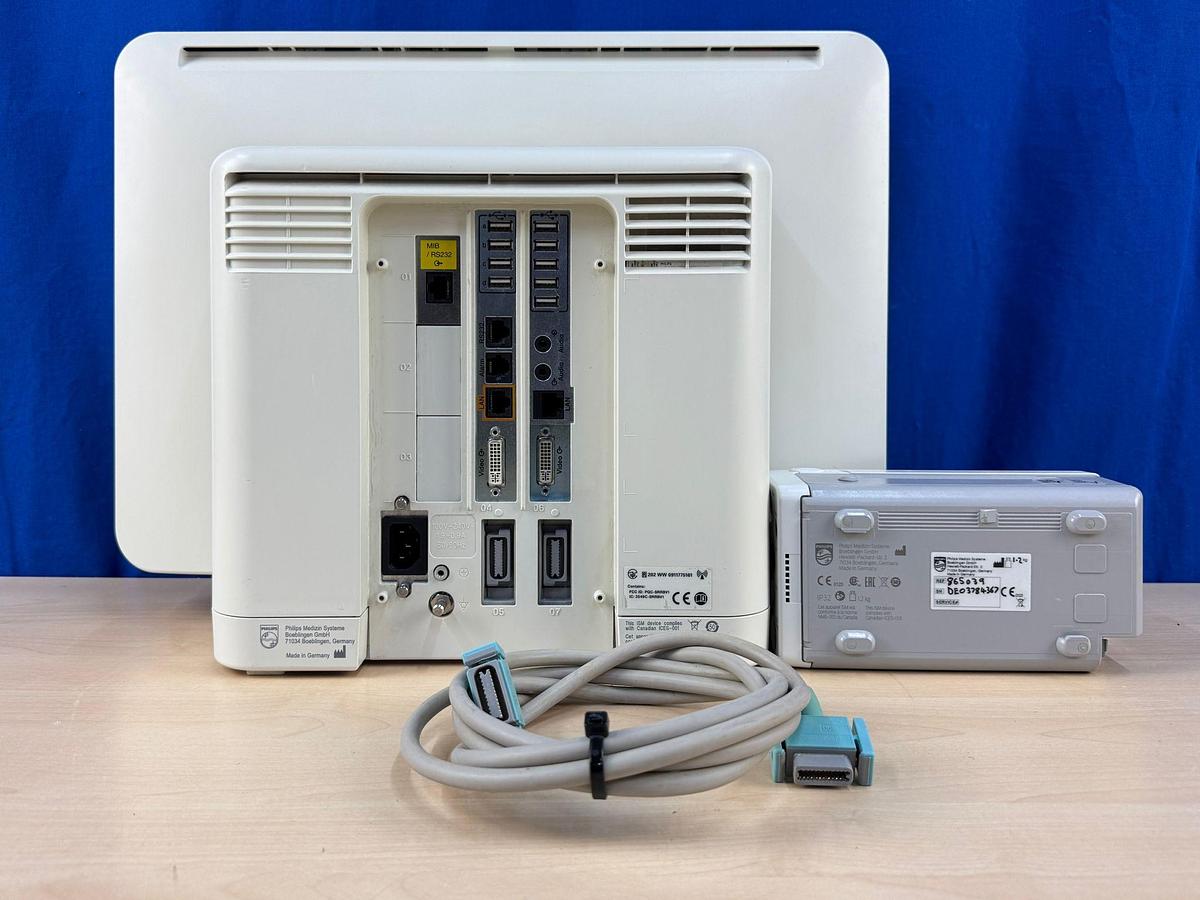

- Connectivity: Wired and optional wireless 802.11, with 6 USB 2.0 ports and a DVI-I video output for a second display.

- Dimensions: Height: 14.33” (36.4 cm); Width: 18.82” (47.8 cm); Depth: 5.98” (15.2 cm).

- Weight: Approximately 26.4 lbs (12 kg).

AI-Enabled & Clinical Decision Support (CDS) Features

The MX800 uses sophisticated algorithms to assist in proactive clinical decisions:

- Advanced Event Surveillance: Automatically detects changes in patient status and stores episodic data, including 15 seconds of high-resolution waveforms.

- ProtocolWatch: Monitors and manages clinical protocols, such as the Severe Sepsis and Septic Shock Protocol.

- ST Map: Provides a graphical, multi-axis overview of ST segment changes for rapid recognition of ischemic events.

- Alarm Advisor: Analyzes alarms to suggest customization strategies, reducing "alarm fatigue" in critical care.

- Visual Patient Avatar (optional/enhanced): Provides at-a-glance information to improve situational awareness.

Workflow & Integration Benefits

- Integrated Informatics: Reduces the need for multiple screens at the bedside by combining patient vitals and hospital data in one view.

- Infection Control: Features smooth surfaces and minimal seams, allowing for easy cleaning and disinfection.

- Scalability: Allows adding capabilities to meet changing clinical requirements (e.g., adding gas modules for anesthesia).

- IT Integration: The iPC is designed for independent operation, allowing the IT department to maintain it without affecting real-time patient monitoring functionality.

Common Use Environments

- Intensive Care Units (ICU): Continuous, comprehensive monitoring.

- Operating Rooms (OR): Anaesthesia gas monitoring and BIS integration.

- Cardiac Care Units: 12-lead ST segment analysis and hemodynamic calculations.

- Neonatal Care: Specialised event surveillance (NER) and tc Gas monitoring.

The Philips IntelliVue MX800 Patient Monitor, released in 2011, is a reliable and comprehensive solution for monitoring patient vital signs. It combines high performance with a user-friendly interface, designed to deliver clear and precise patient data. This model features a large, integrated touchscreen display that provides easy access to patient information and supports efficient workflow in clinical settings. The IntelliVue MX800 is equipped with advanced measurement capabilities, including ECG, SpO2, NBP, and temperature monitoring. It also offers optional modules for CO2 and respiratory monitoring, making it adaptable to various healthcare needs. This flexibility ensures it can meet the demands of critical care environments, from emergency departments to intensive care units. In used condition, the MX800 continues to offer robust performance, maintaining Philips' standards of accuracy and dependability. Its ergonomic design facilitates easy cleaning and maintenance, which is crucial for maintaining hygiene in medical environments. The Philips IntelliVue MX800 stands as a valuable tool for clinicians seeking consistent, high-quality patient monitoring technology.
