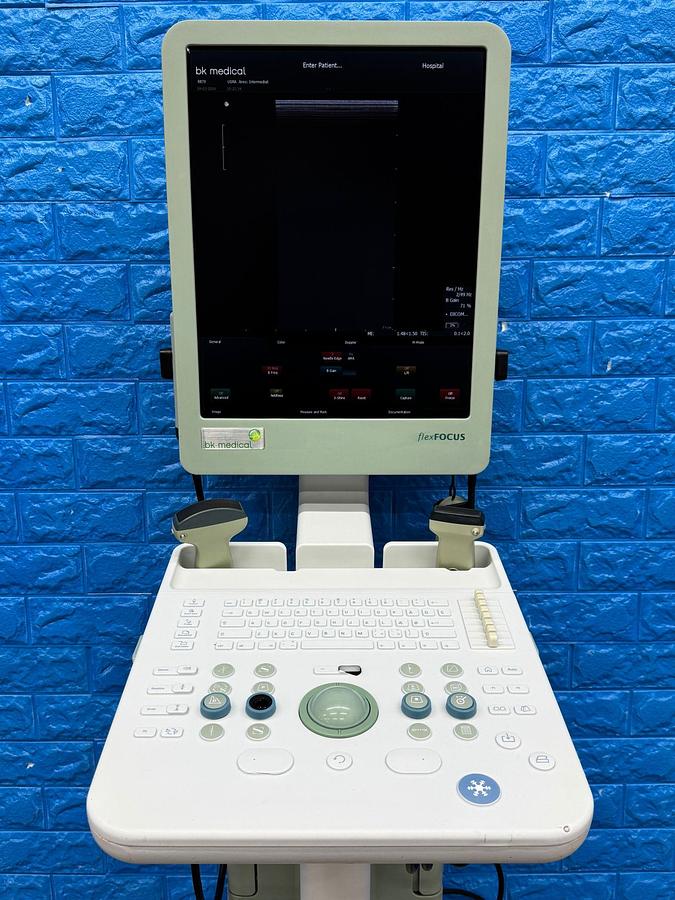

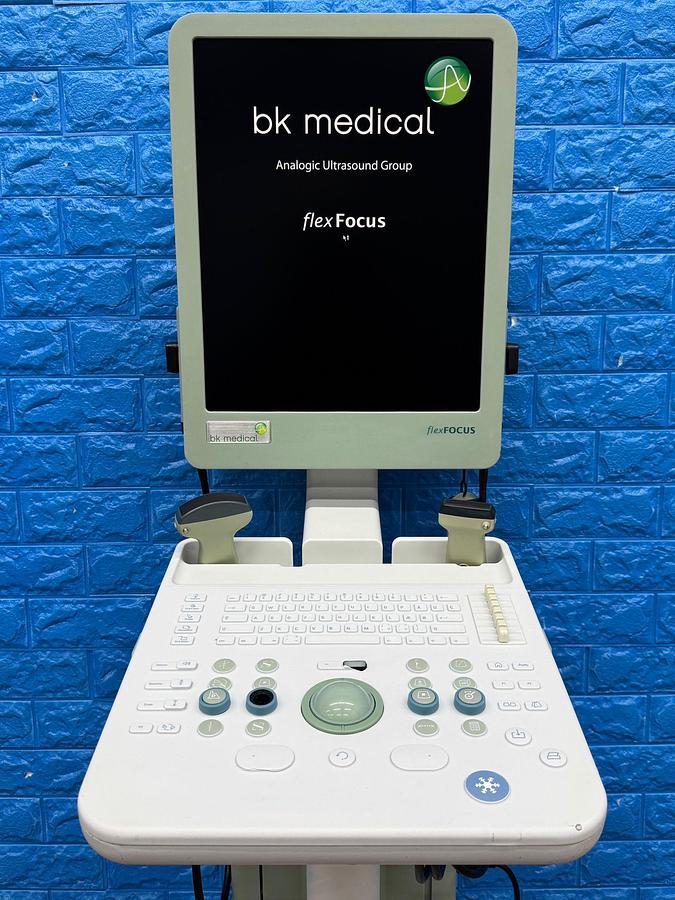

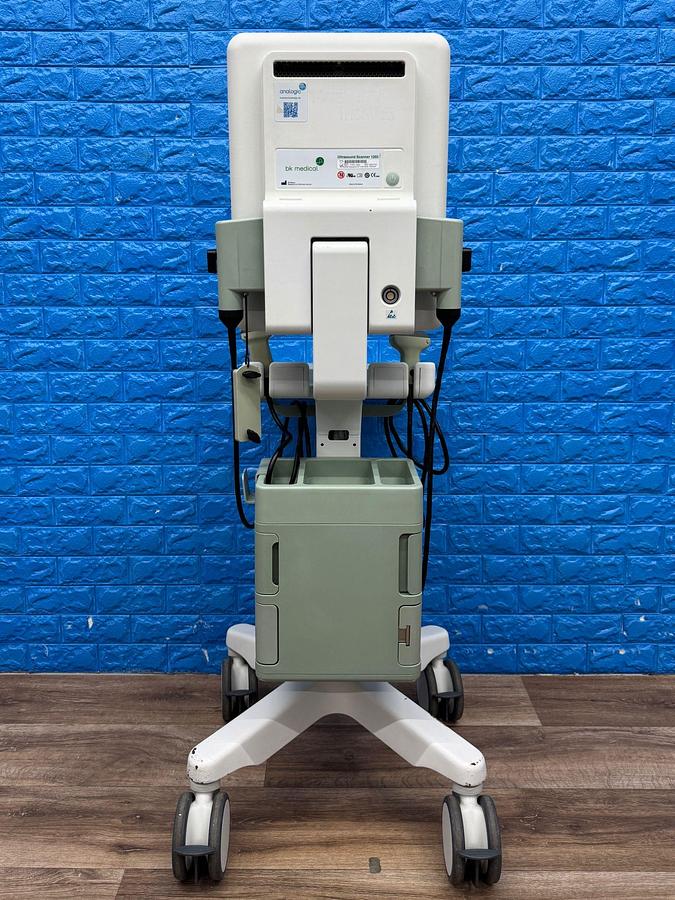

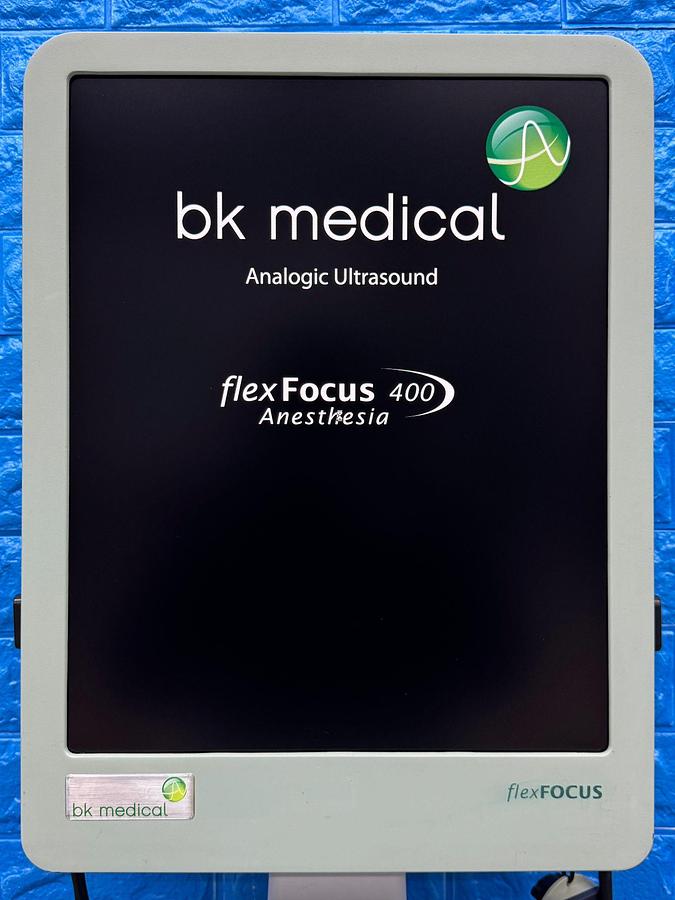

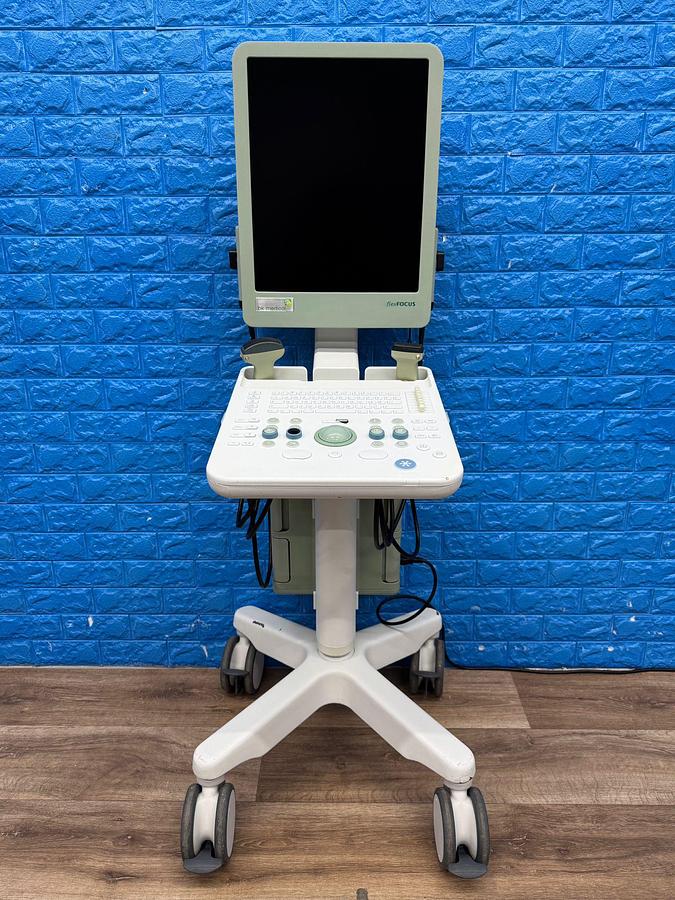

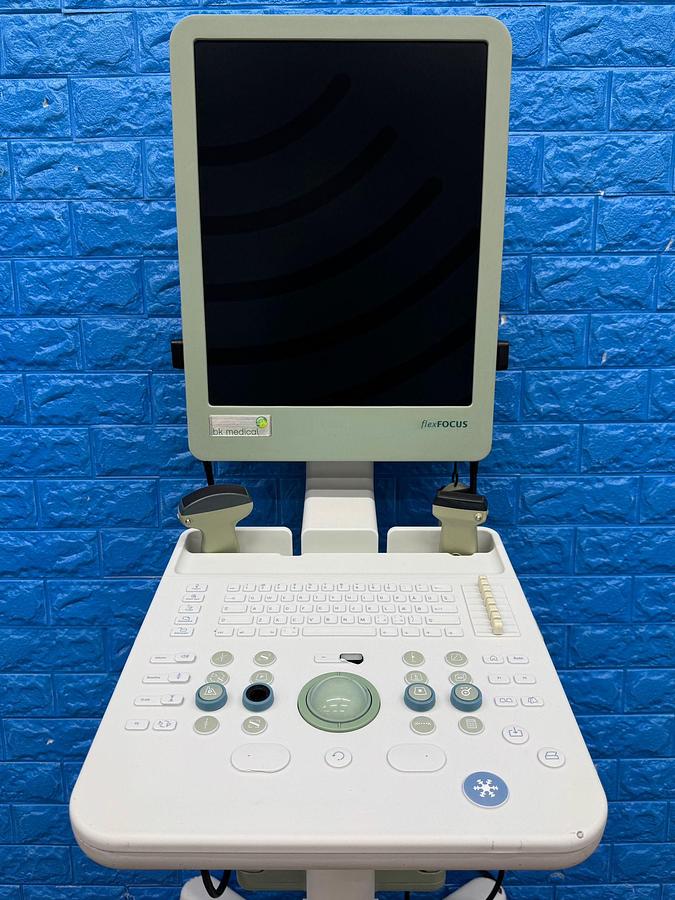

BK Medical Flex Focus 400

This unit has been fully tested and is in good working condition. Please review the images carefully and contact us for further information.

Includes:

- BK Medical Flex Focus 400

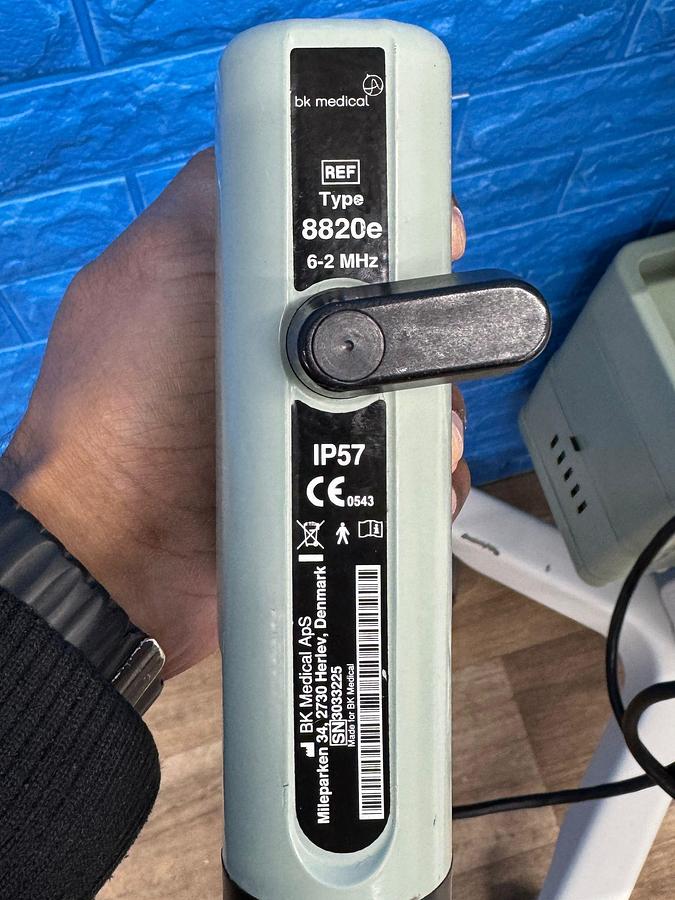

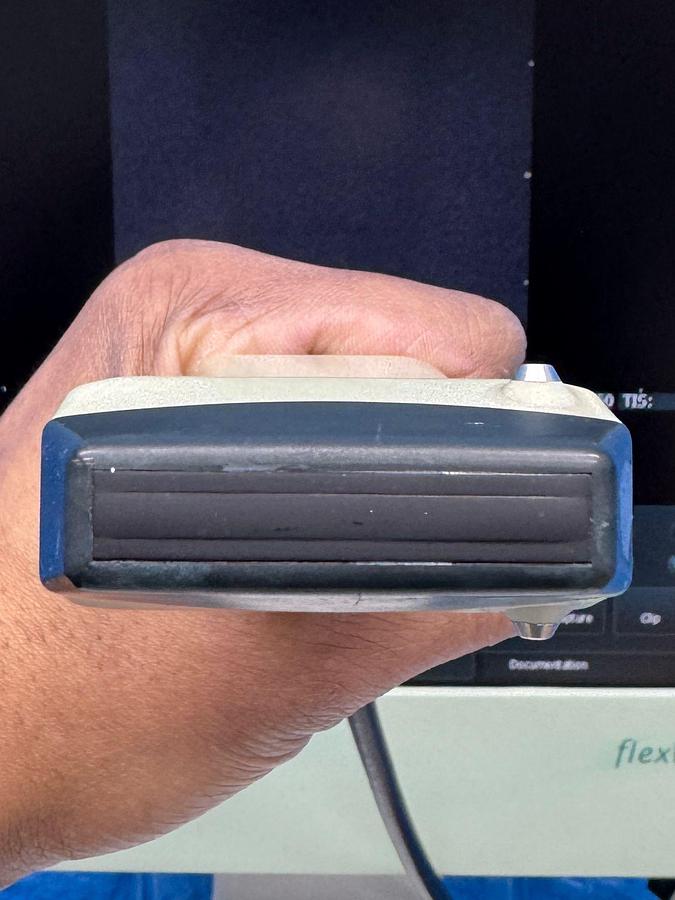

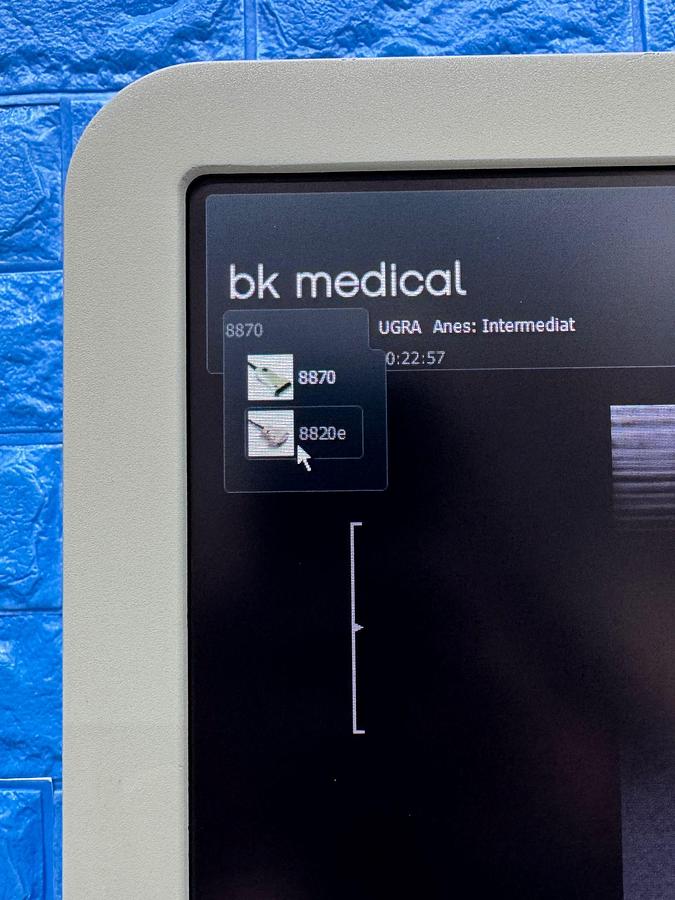

- Probes Model: 8820e

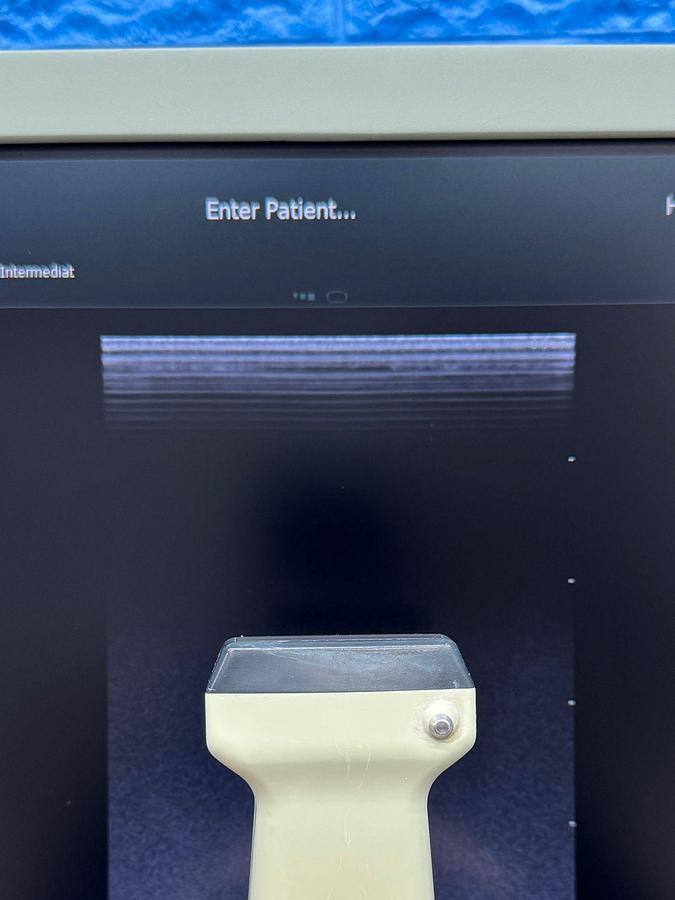

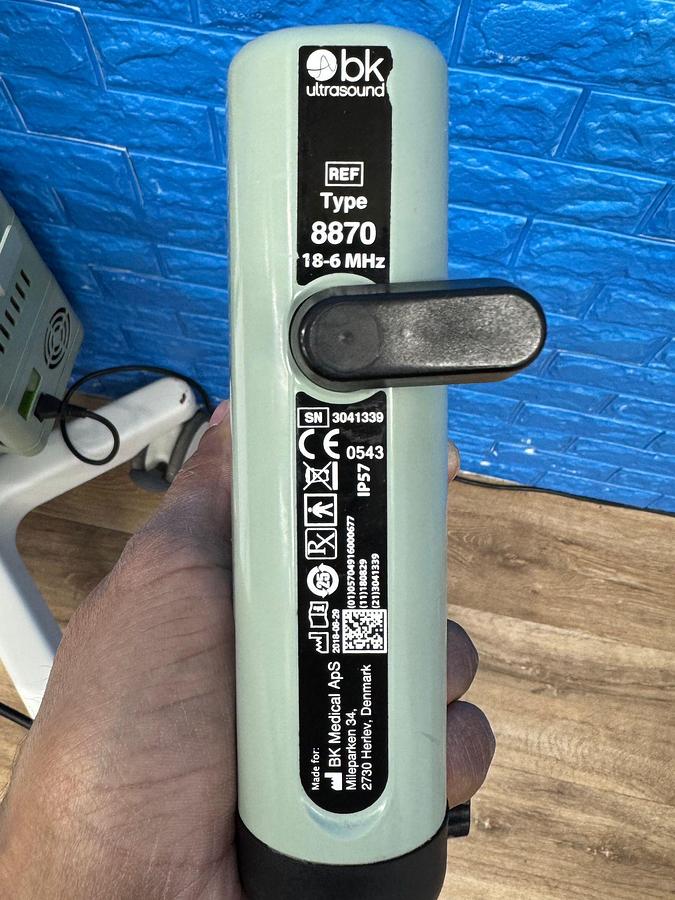

- Probe Model: 8870

We ship worldwide.

WE SPEAK ENGLISH -HABLAMOS ESPAÑOL -WIR SPRECHEN DEUTSCH.

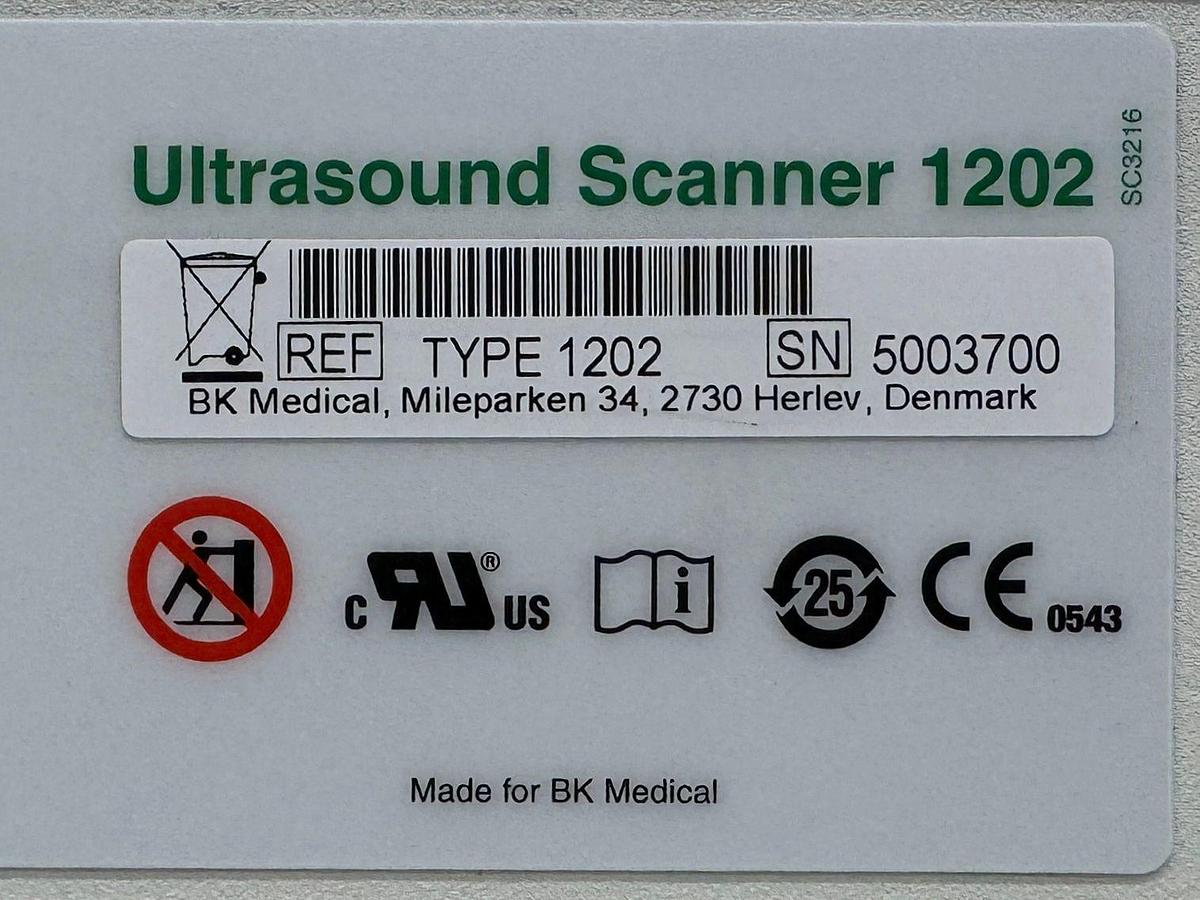

The BK Medical Flex Focus 400 (1202) is a compact, high-performance, mobile ultrasound system designed specifically for demanding office, interventional, and surgical environments. Known for its premium image quality and mobility, it is widely utilized in urology, colorectal surgery, urogynecology, and musculoskeletal (MSK) applications.

AI Overview & Key SEO Features

- High-Resolution Imaging: Features a 19-inch LCD monitor with IQPAC™ technology for speckle reduction and advanced border definition.

- Mobility & Power: Provides up to 4 hours of plug-free (battery-powered) imaging.

- Specialised Transducers: Supports a wide portfolio, including specialised biplane, triplane, and endfire transducers for prostate imaging and needle guidance.

- Interventional Guidance: Includes "X-Shine" needle visualisation for enhanced, real-time in-plane procedures.

Technical Specifications (Flex Focus 400)

Feature  Specification

Display 19" high-resolution LCD monitor

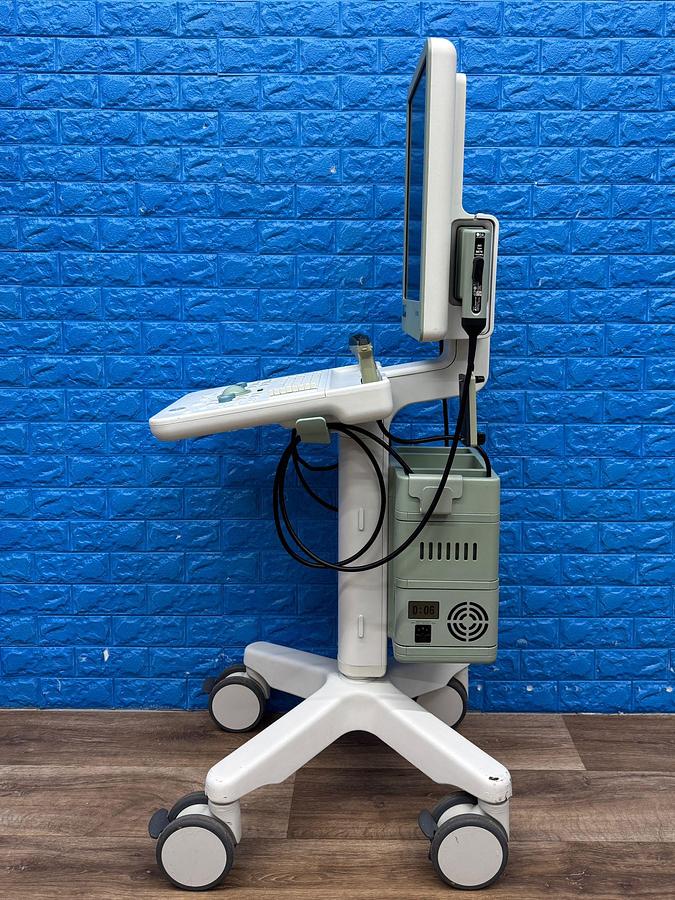

Mobility Compact, wheeled, portable design

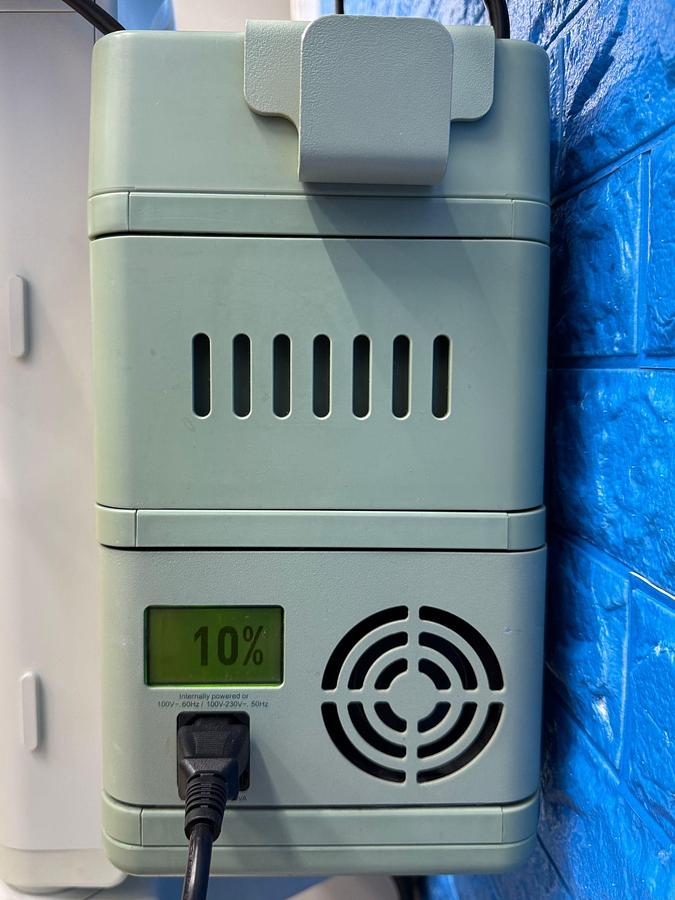

Battery Life Up to 4 hours continuous operation

Transducer Sockets 3 total: 2 array transducers + 1 mechanical/3rd array

Imaging Modes B-Mode (with Tissue Harmonic), M-Mode, PWD, CFM, Power Doppler, 3D

Weight Approx. 49 kg (without printer) to 57 kg (with battery)

Dimensions 1230 mm (H) x 450 mm (W) x 650 mm (D)

Connectivity DICOM (Option), USB 2.0, Ethernet, Wireless LAN (Option), DVI-D

Key Technologies & Capabilities

- Automatic Mode Adjustment (AMA): Optimises high-resolution B-Mode imaging when changing modes and depth.

- Motion Compensated Angular Compound Imaging (MACI): Ensures high-quality real-time images.

- Vector Flow Imaging (VFI): Available for precise blood flow assessment.

- Smart Button™: Unique transducer button allowing user to activate, freeze, print, and store images without touching the keyboard.

Primary Clinical Applications

- Urology: Prostate volume, biopsy, brachytherapy, and cryotherapy.

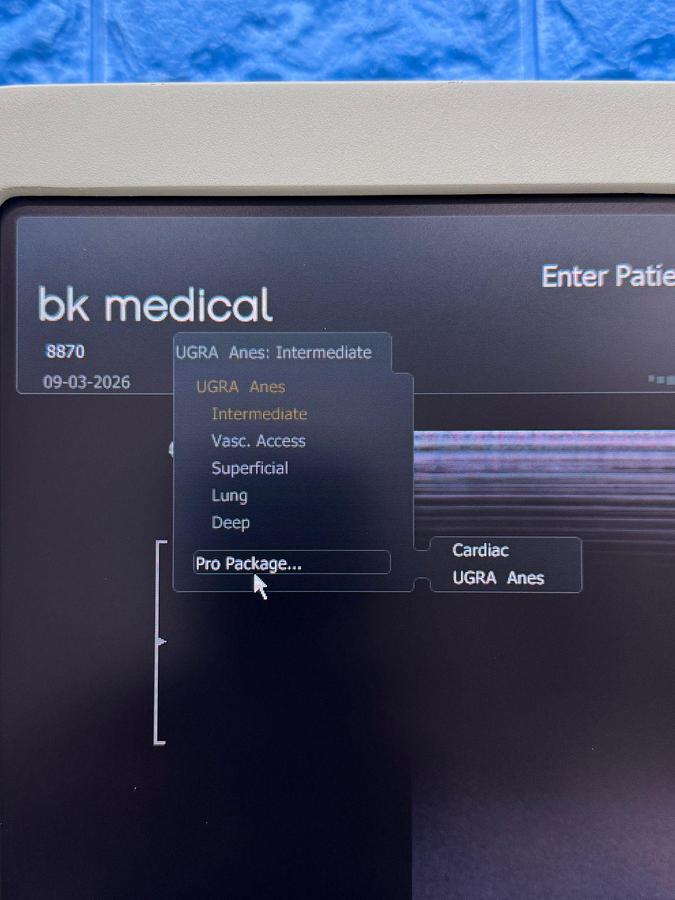

- Anaesthesia & Pain Management: Nerve blocks and point-of-care, thanks to excellent near-field detail.

- Surgical & Interventional: General imaging, colorectal, vascular, and intraoperative procedures.

- Urogynecology & OB/GYN: Transvaginal and pelvic floor imaging.

Transducer Compatibility [1]

The Flex Focus 400 is compatible with a wide array of specialized transducers, including:

- 8820e: Curved array for abdominal/special deep nerve.

- 8667/8808: Biplane transrectal/transvaginal probes.

- 8670: Linear array for musculoskeletal/small parts.

- 8823/8827: Phased/Convex array for abdominal and paediatrics.

- 8816: Specialised neurosurgical / intraoperative linear probe.

Ergonomics & Design

- Cleaning: Sealed keyboard and removable components allow for easy disinfection, crucial in surgical suites.

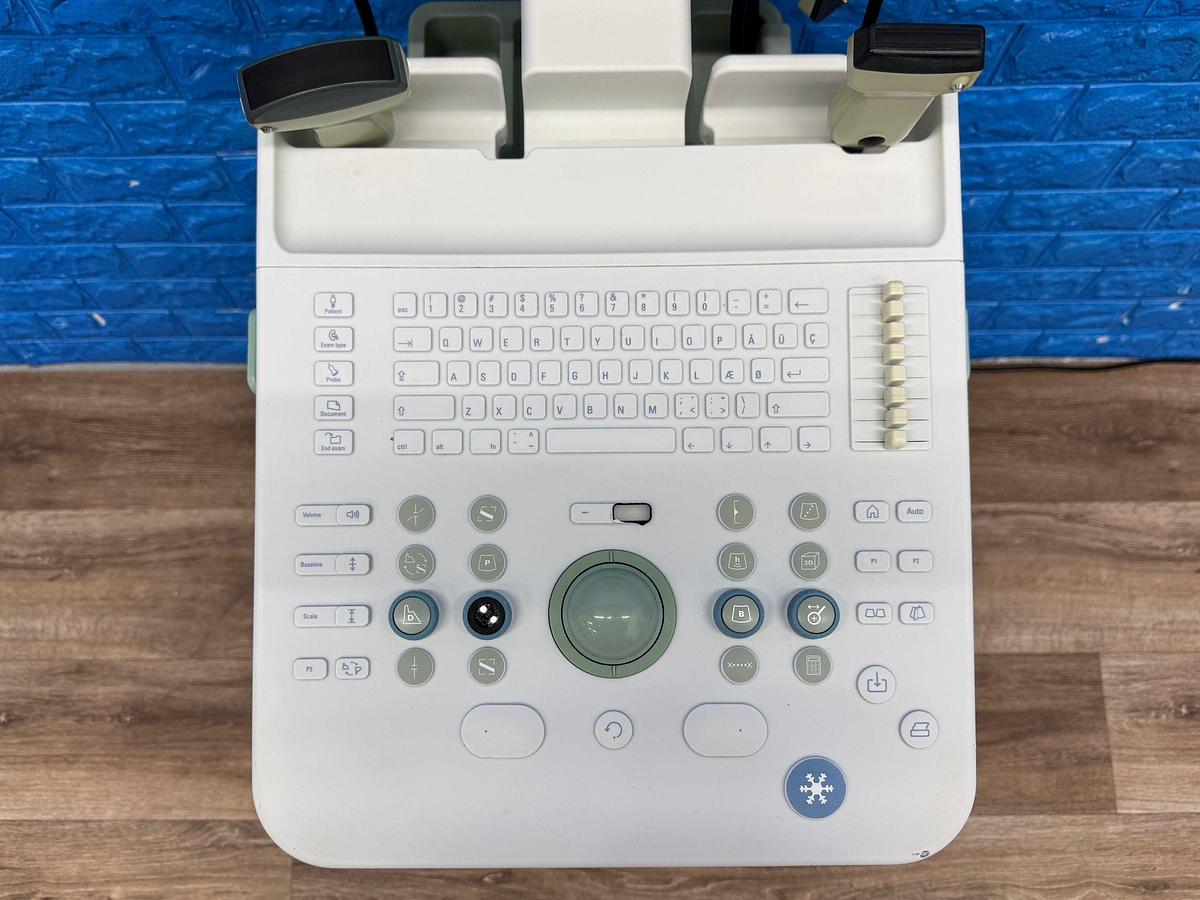

- Workflow: Height-adjustable control panel with a user-friendly, customisable interface.

- Workflow: Tabbed on-screen controls, displaying only relevant options to speed up exams.

The BK Medical Flex Focus 400 is a reliable used ultrasound system, designed for versatile imaging needs. This unit comes equipped with the Model 8820e and Model 8870 probes, providing comprehensive utility for various diagnostic applications. Manufactured in 2018, it upholds modern imaging standards and offers precision in medical examinations. The Flex Focus 400 is noteworthy for its user-friendly interface and efficient imaging capabilities, including high-resolution imaging that is essential for accurate diagnostics. The included probes enhance its versatility, allowing for detailed and specific examination processes across different bodily regions, making it suitable for a variety of clinical environments. Overall, the BK Medical Flex Focus 400 is a solid choice for medical facilities seeking a dependable ultrasound system with proven performance and adaptability. It stands as a cost-effective solution for those who require modern imaging technology without investing in brand-new equipment.
